DPA Temperatures Check
Summary
| Date start | 2026:166:01:09:48.416 |
| Date stop | 2026:173:00:14:21.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN1526/oflsa |
| Run time | Thu Jun 11 21:43:02 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

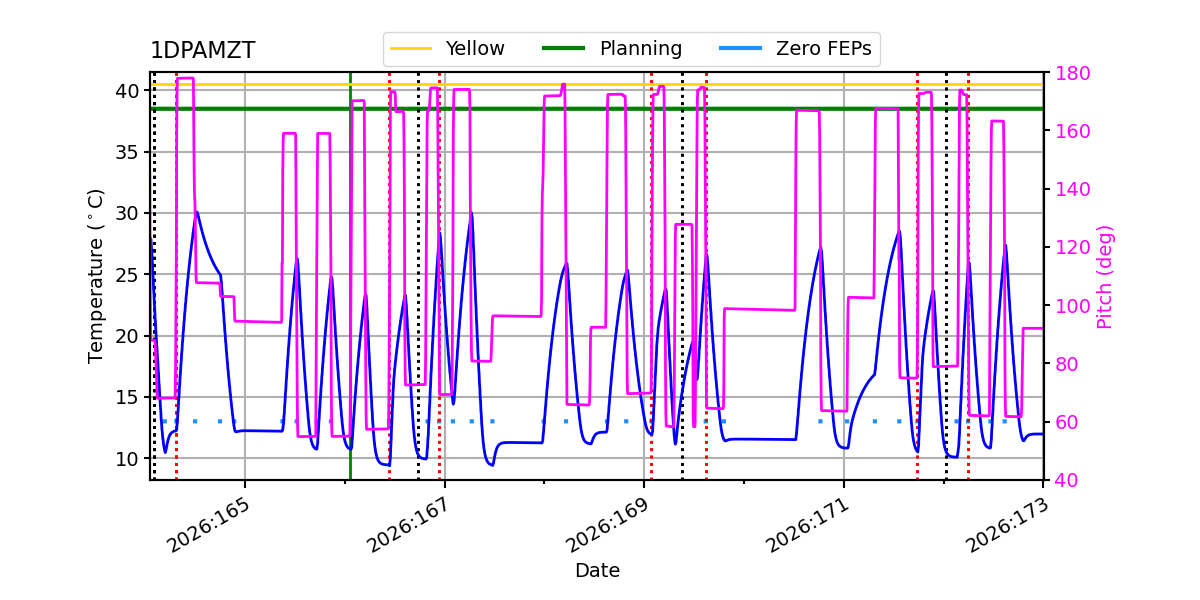

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:166:19:53:48.821 | 2026:166:19:53:58.816 | 0.01 | 10.91 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.33 | -1.93 | -1.13 | 0.05 | 0.92 | 1.57 | 1.99 |
| pitch | -9.199 | -0.153 | -0.004 | -0.000 | 0.004 | 0.315 | 7.725 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.455 | -0.076 | -0.004 | -0.000 | 0.004 | 0.083 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.33 | 2.00 |
| PITCH | 1 | -9.199 | 3.00 |
| PITCH | 99 | 7.725 | 3.00 |

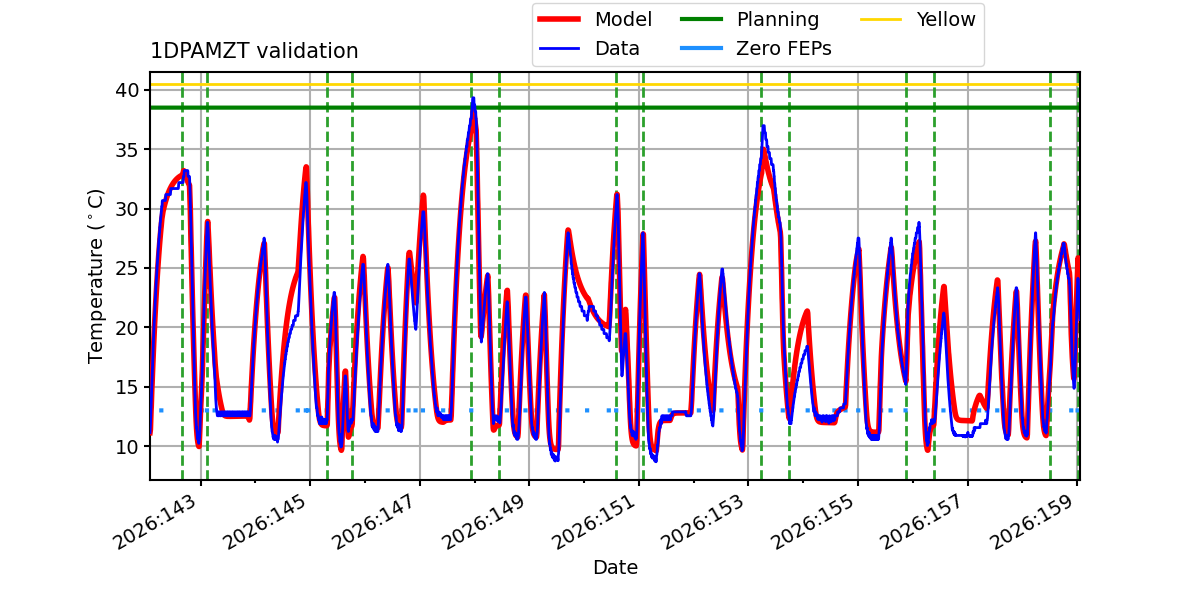

1DPAMZT

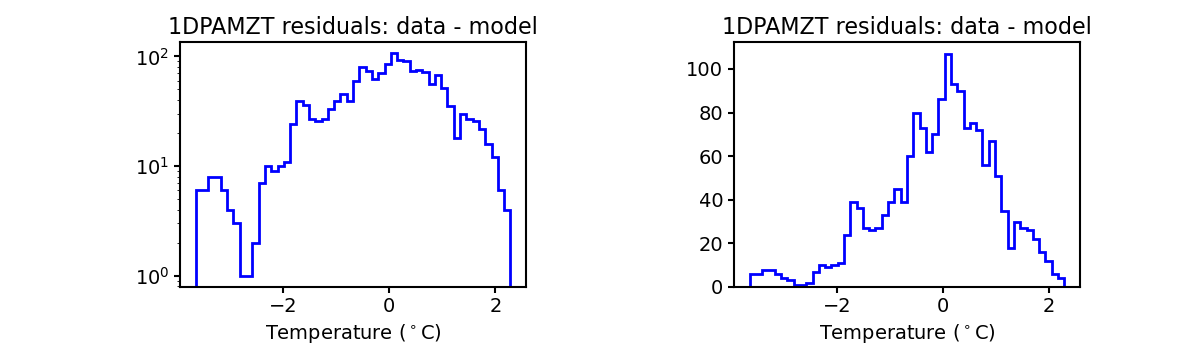

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

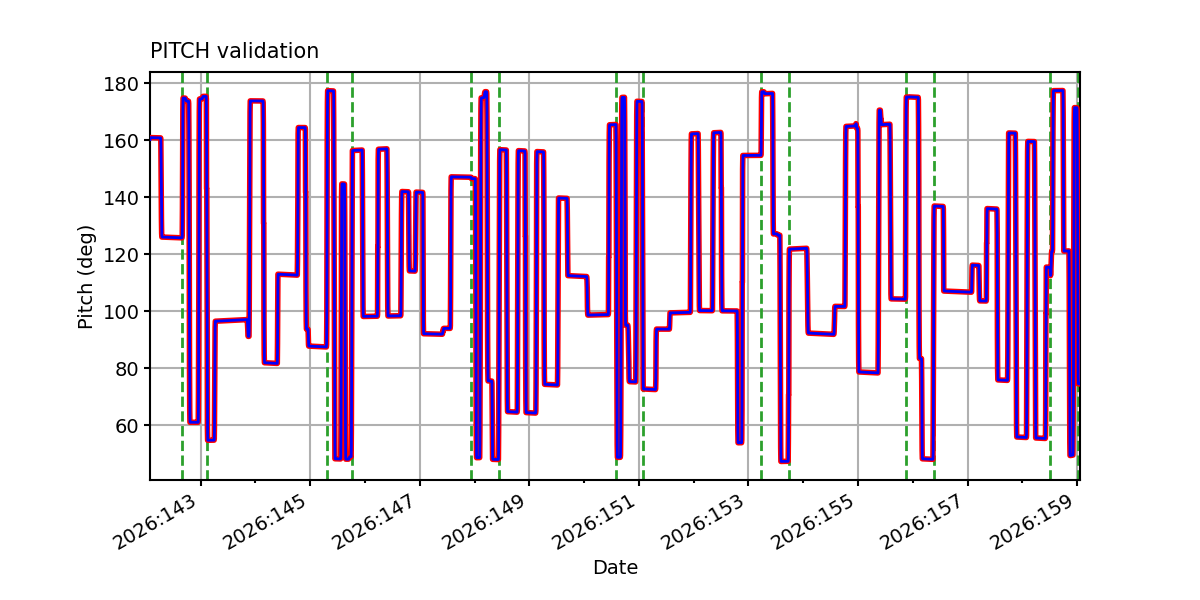

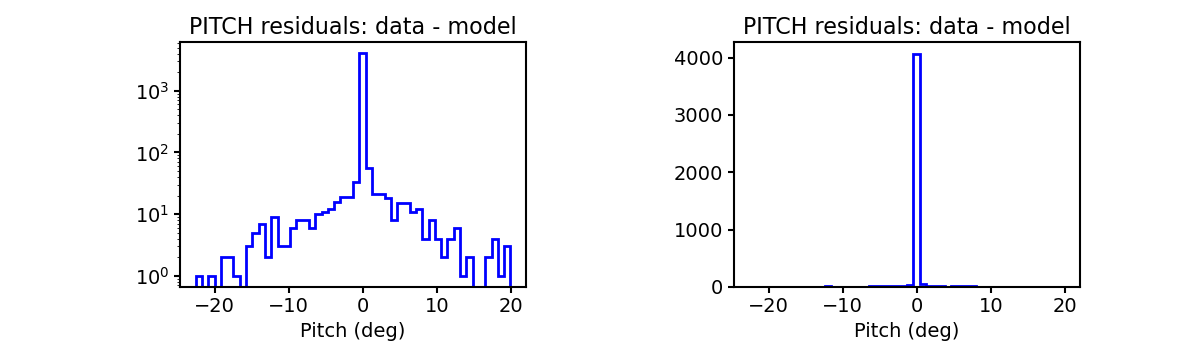

PITCH

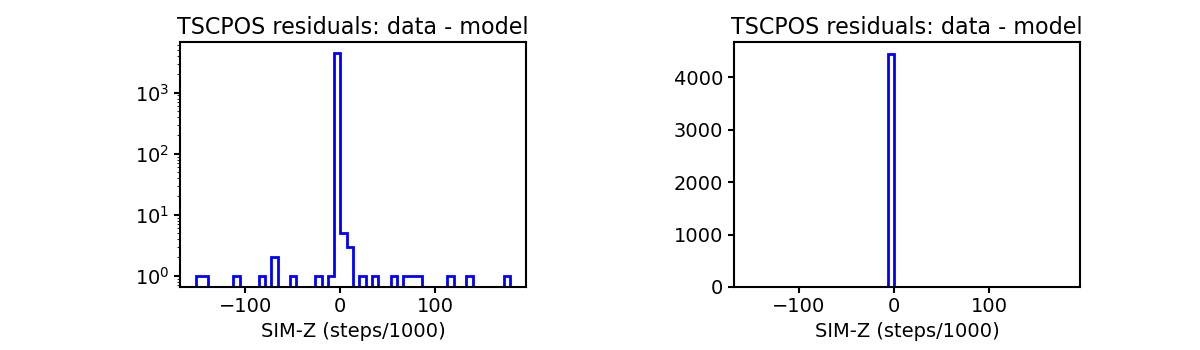

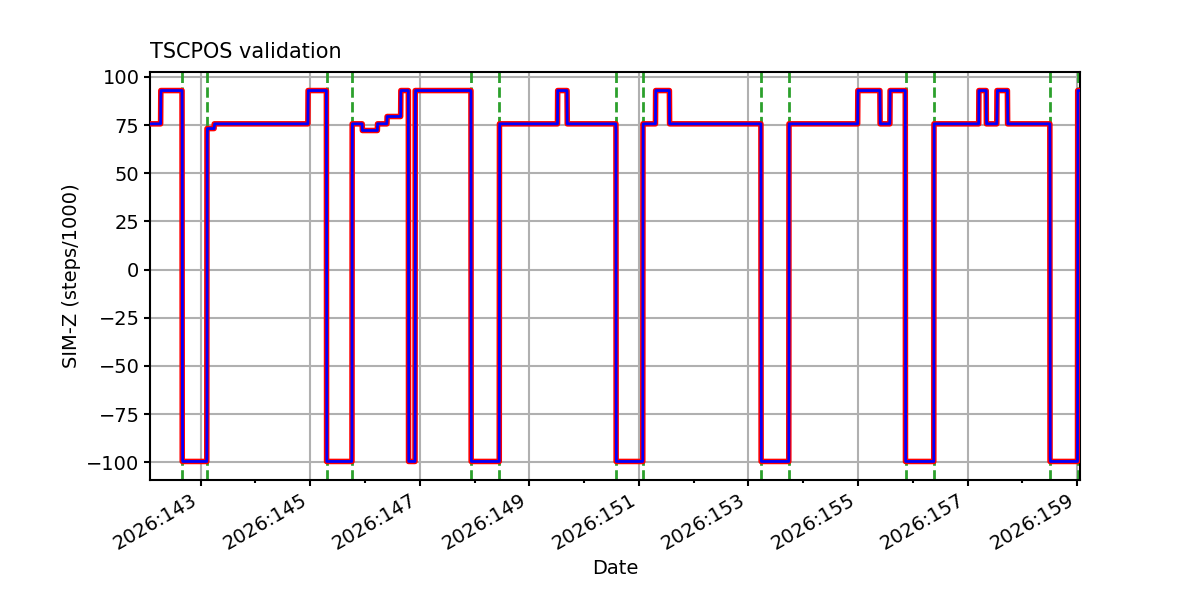

TSCPOS

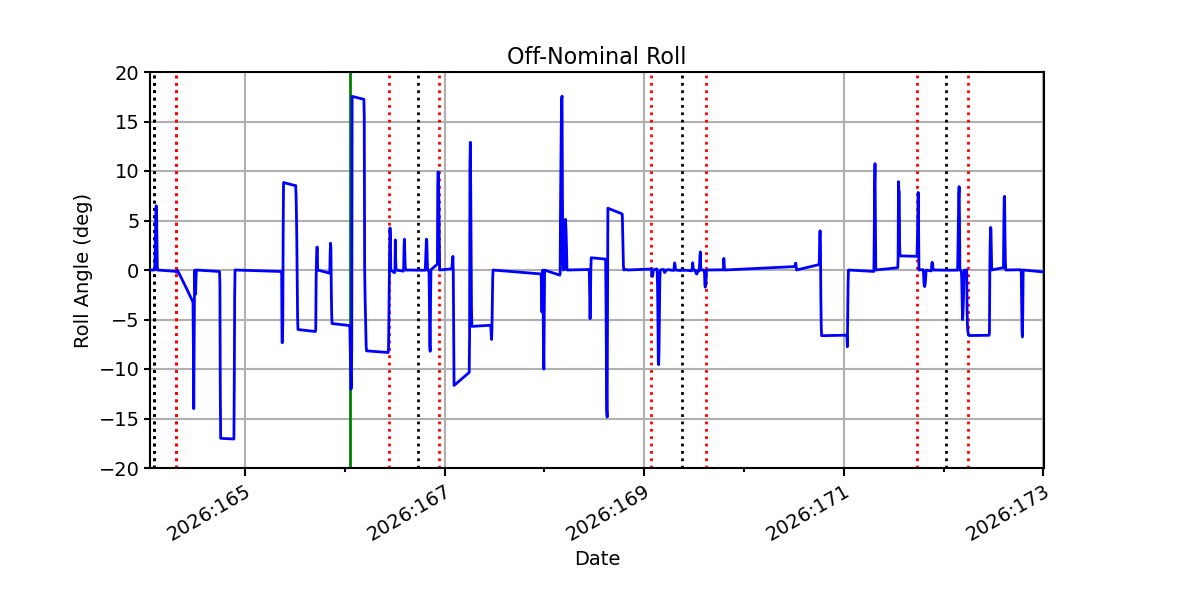

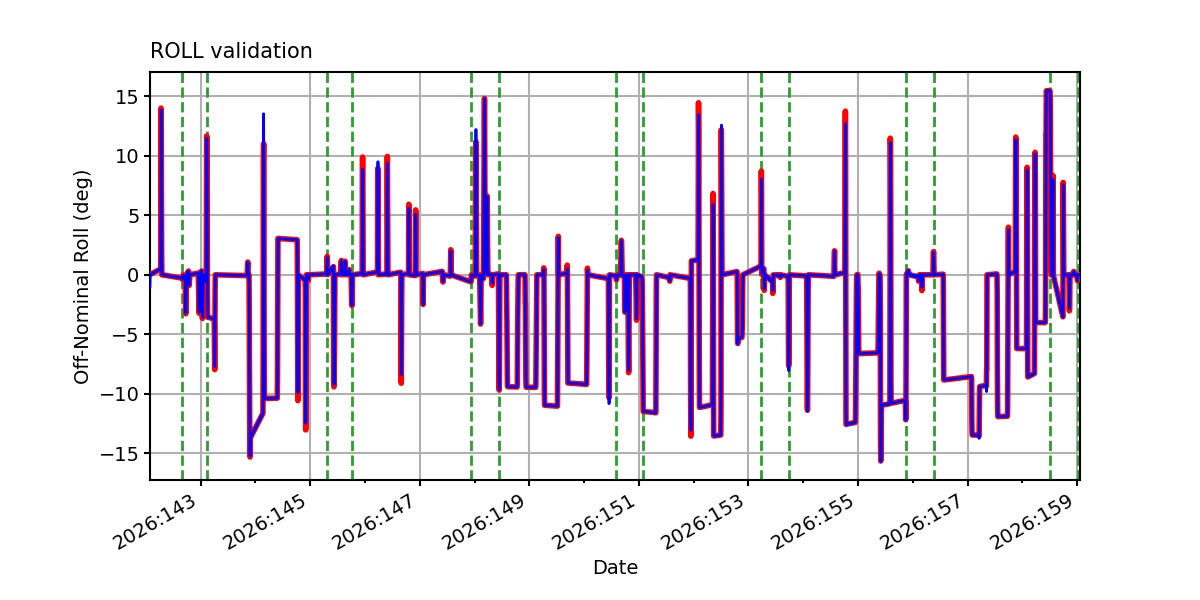

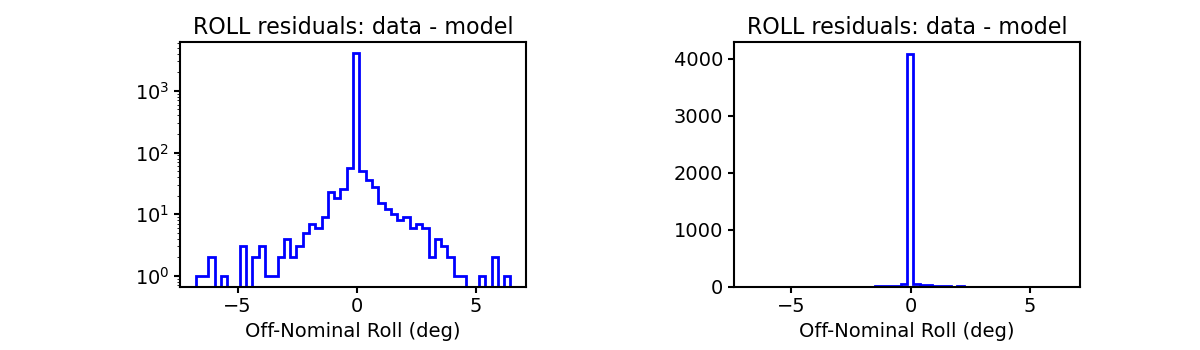

ROLL

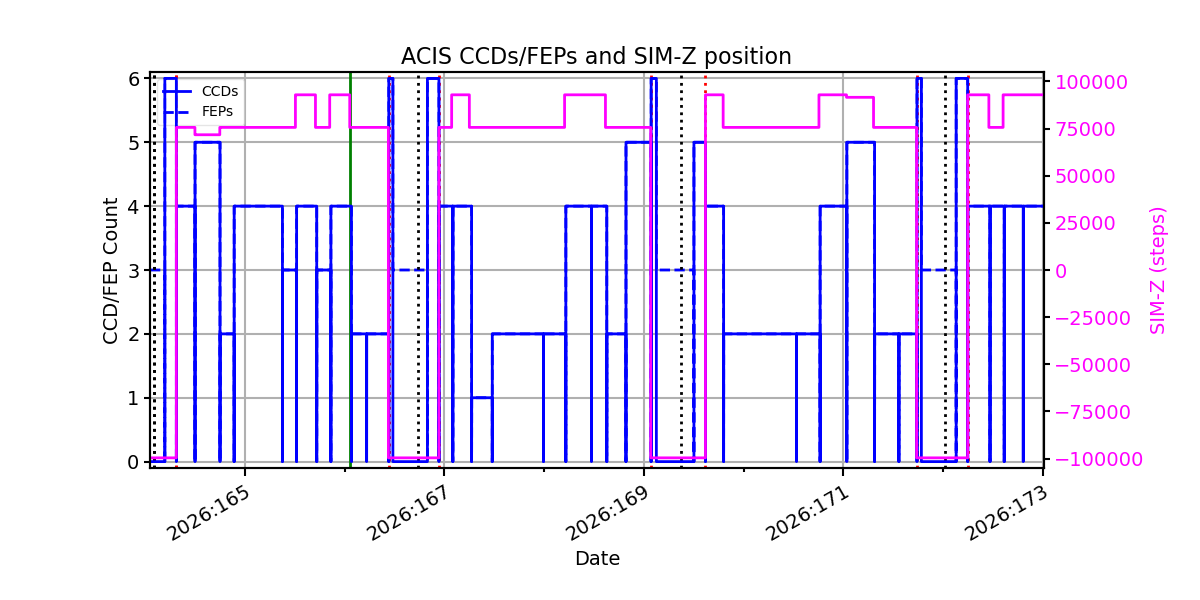

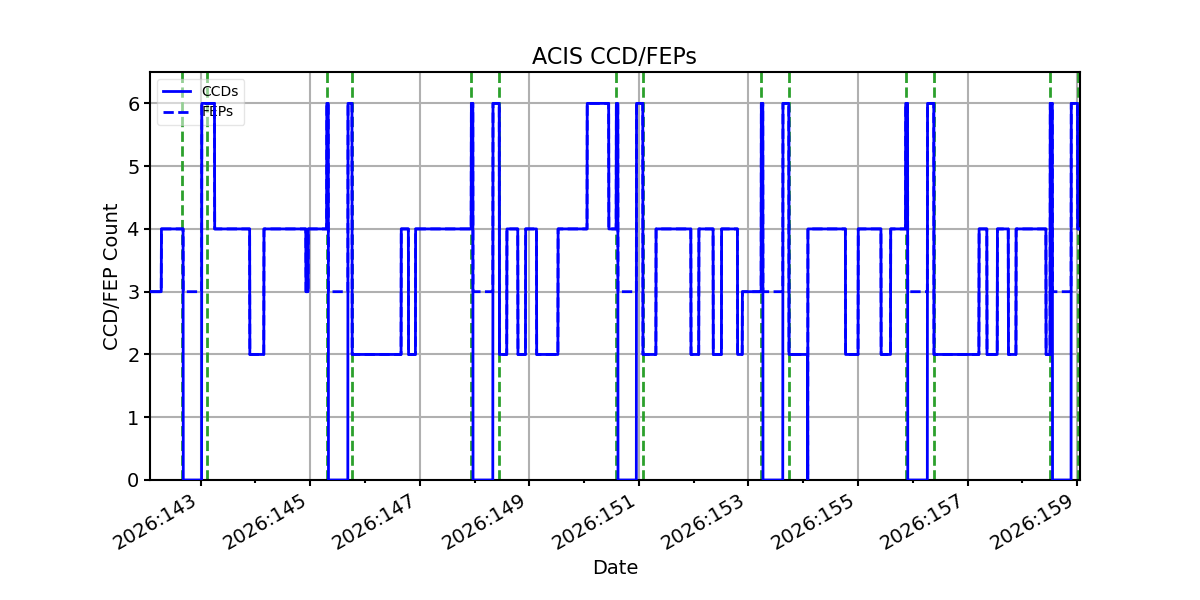

ACIS CCD/FEP Count
