DPA Temperatures Check
Summary
| Date start | 2025:166:13:51:00.016 |
| Date stop | 2025:174:00:04:24.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUN1625/ofls |
| Run time | Wed Jun 11 12:15:15 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

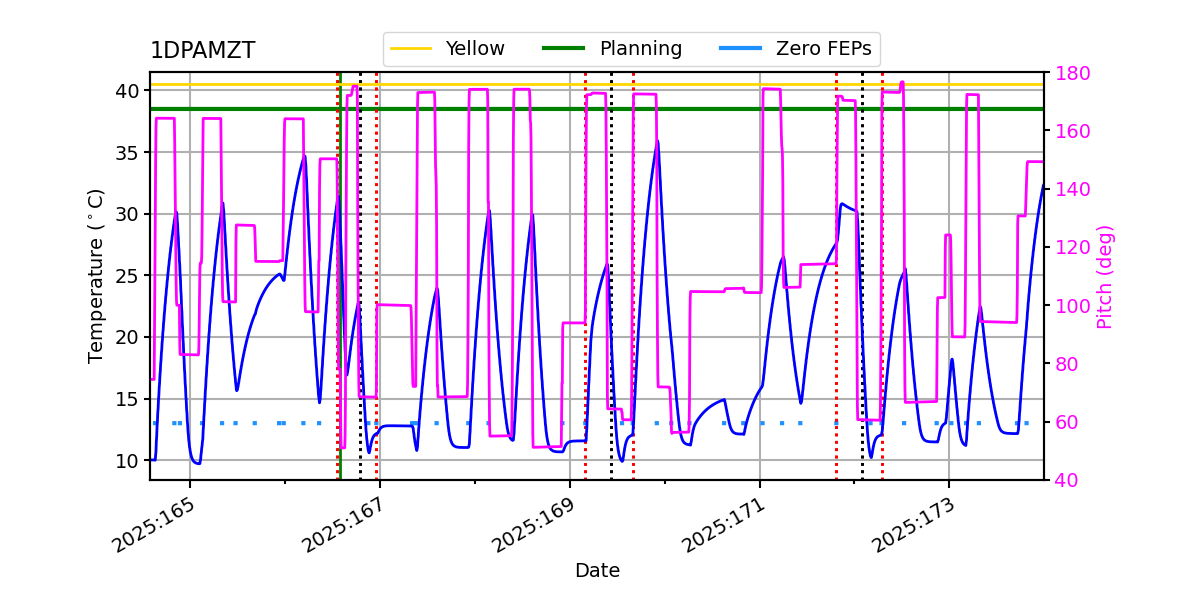

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:166:23:05:35.675 | 2025:166:23:05:39.724 | 0.00 | 12.16 / 13.00 |
| 2025:167:22:20:53.208 | 2025:167:22:21:10.816 | 0.02 | 11.04 / 13.00 |
| 2025:172:06:51:17.338 | 2025:172:06:51:26.816 | 0.01 | 12.06 / 13.00 |
| 2025:172:20:47:56.748 | 2025:172:20:48:07.548 | 0.01 | 11.48 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.69 | -2.44 | -1.74 | -0.24 | 0.68 | 1.19 | 1.57 |
| pitch | -5.124 | -0.233 | -0.004 | 0.000 | 0.004 | 0.311 | 5.162 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.307 | -0.118 | -0.005 | -0.000 | 0.005 | 0.080 | 1.325 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.69 | 2.00 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.162 | 3.00 |

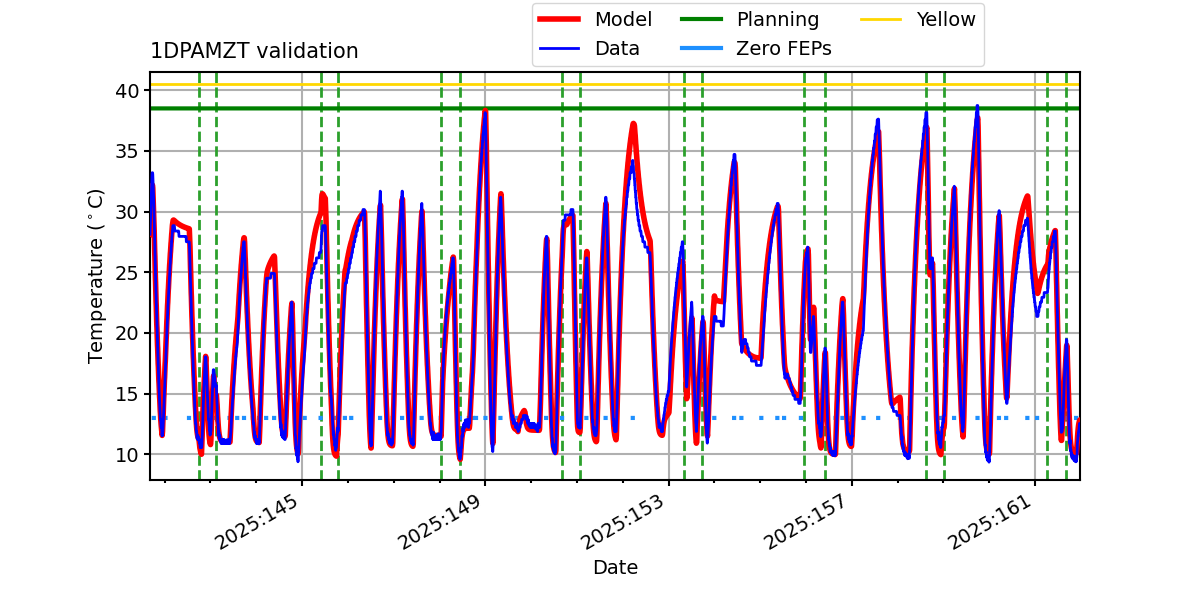

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

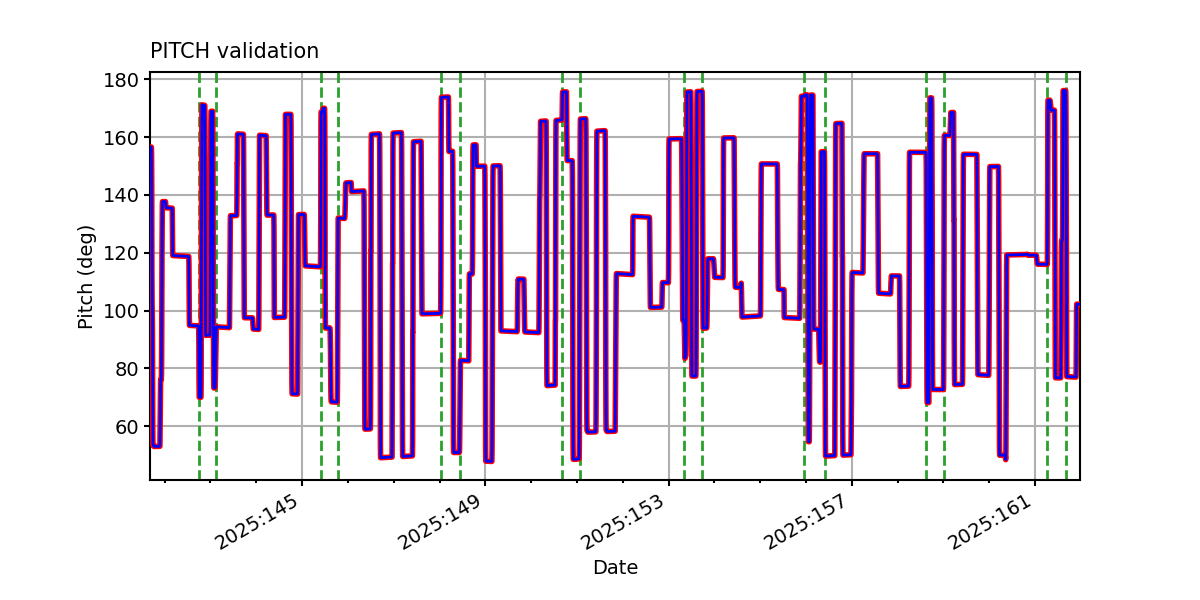

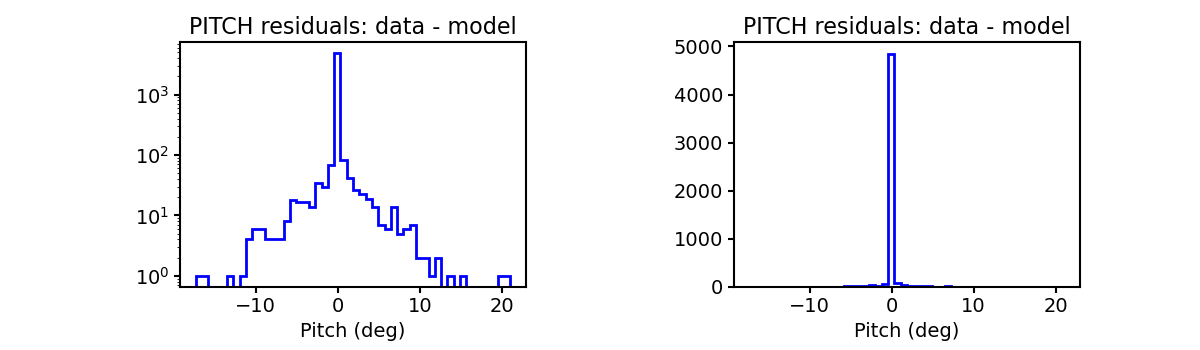

PITCH
TSCPOS

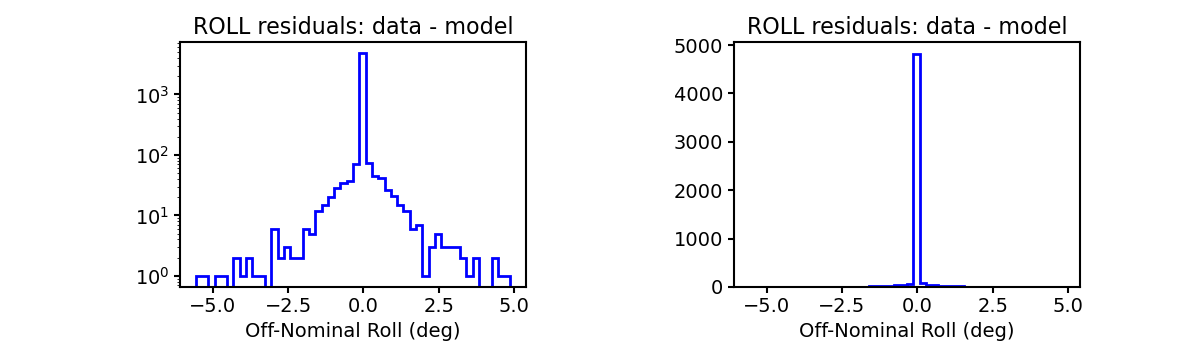

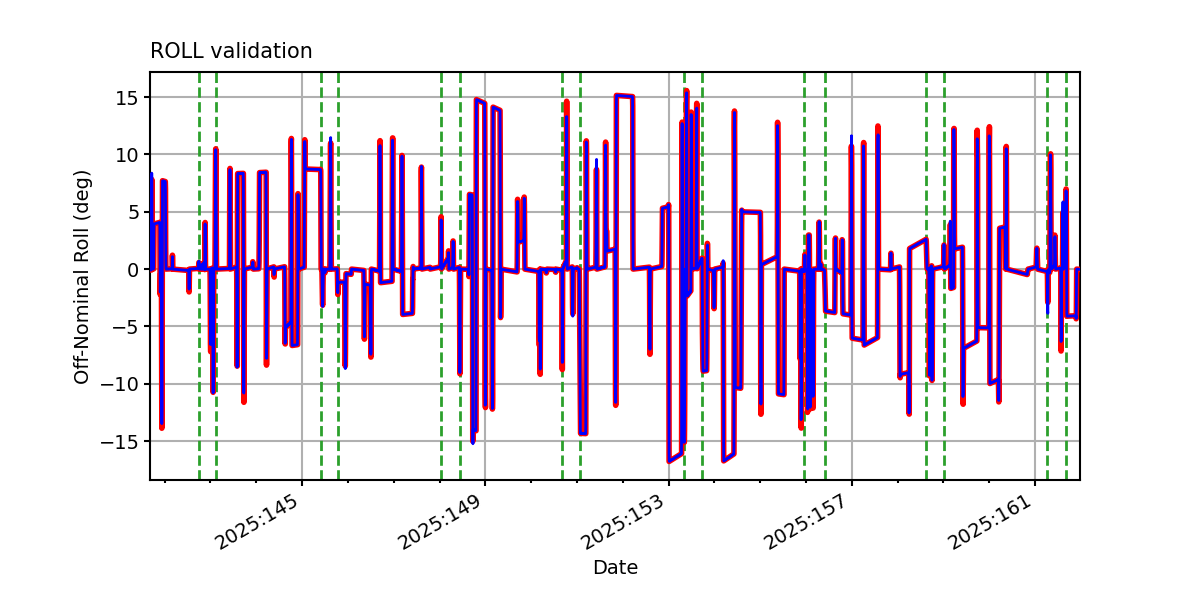

ROLL

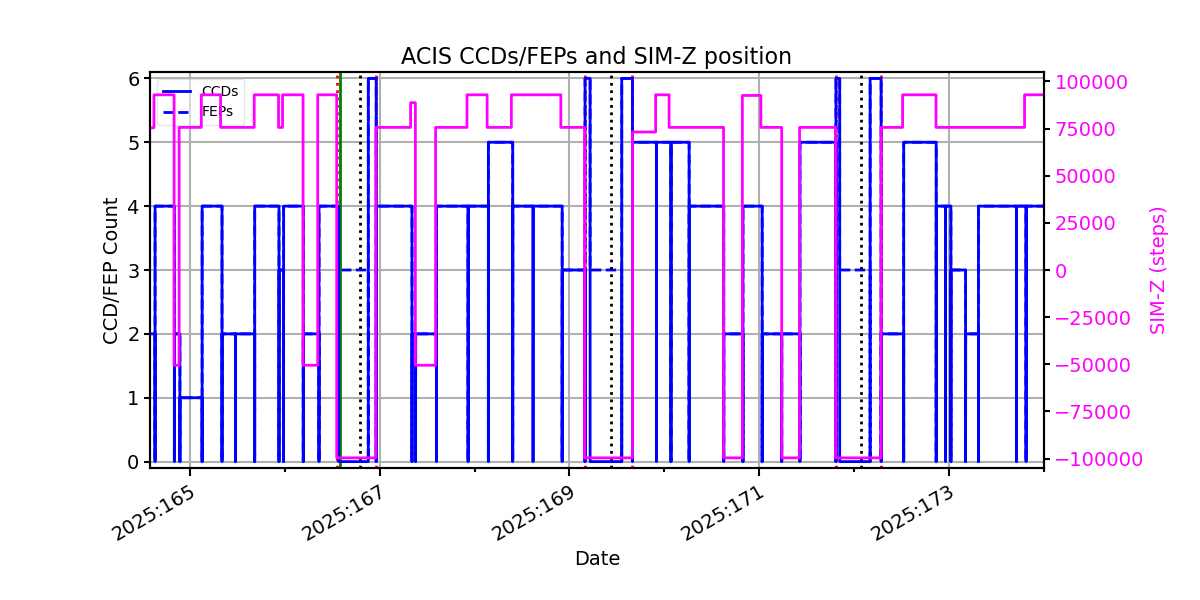

ACIS CCD/FEP Count
