DPA Temperatures Check
Summary
| Date start | 2026:173:00:11:21.816 |
| Date stop | 2026:179:17:09:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2226/oflsa |
| Run time | Wed Jun 17 18:32:01 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:173:00:35:29.668 | 2026:173:00:35:34.816 | 0.01 | 12.01 / 13.00 |
| 2026:177:19:45:52.862 | 2026:177:19:45:58.662 | 0.01 | 10.60 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.95 | -1.54 | -0.78 | 0.08 | 0.81 | 1.50 | 2.00 |
| pitch | -10.607 | -0.248 | -0.004 | 0.000 | 0.004 | 0.669 | 8.354 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.041 | -0.109 | -0.007 | 0.000 | 0.007 | 0.108 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 8.354 | 3.00 |
1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

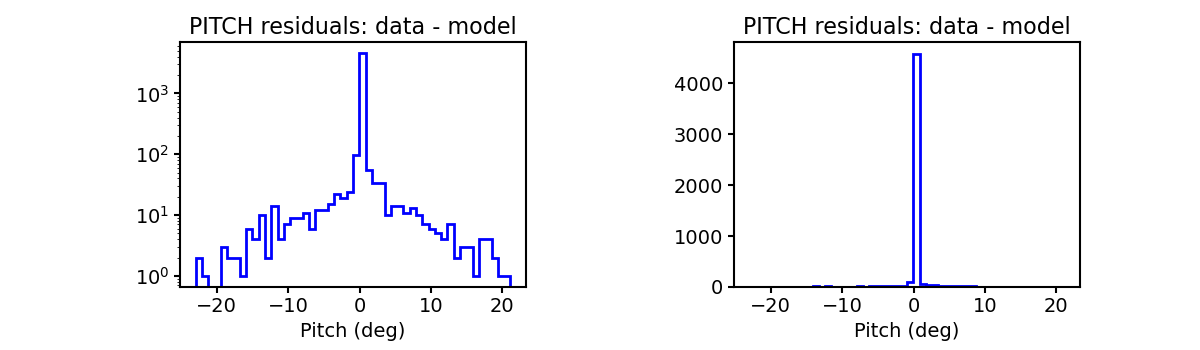

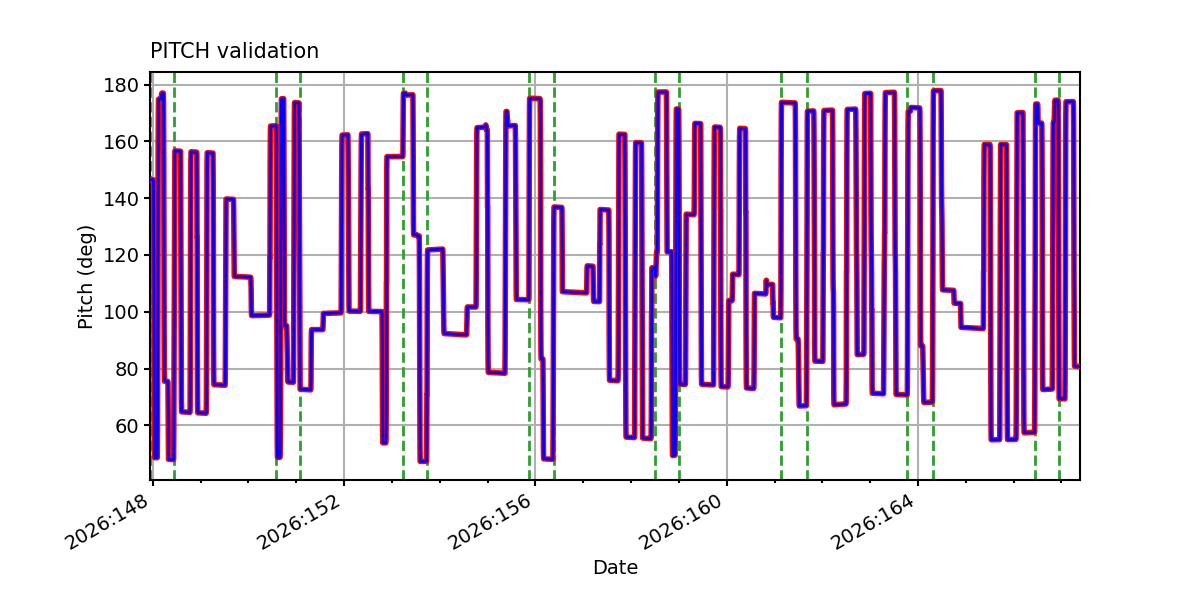

PITCH

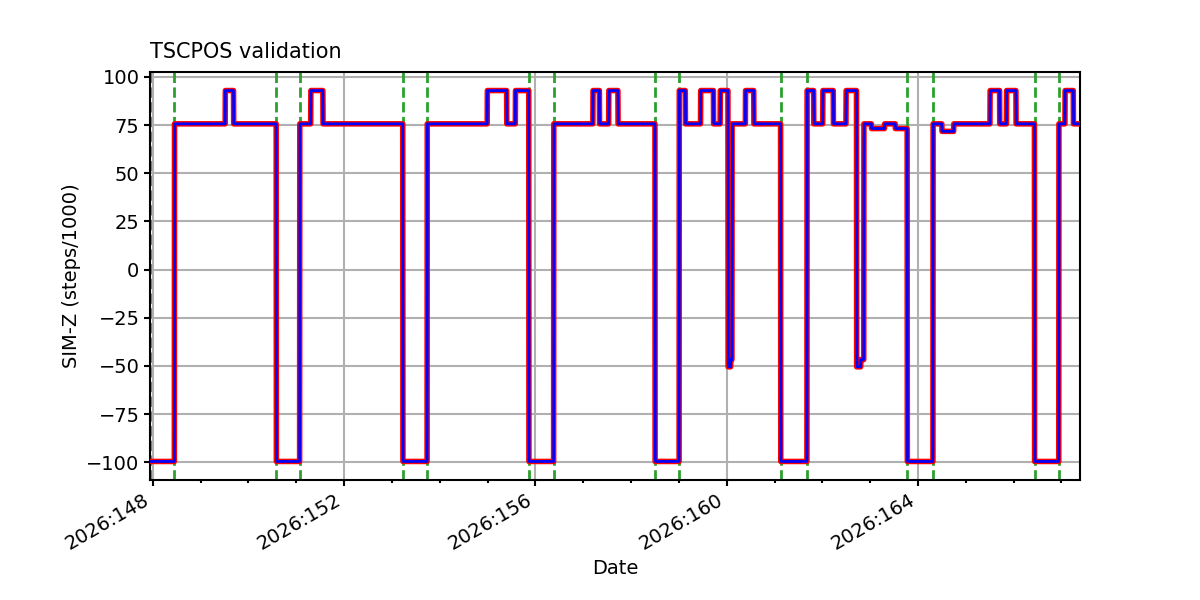

TSCPOS

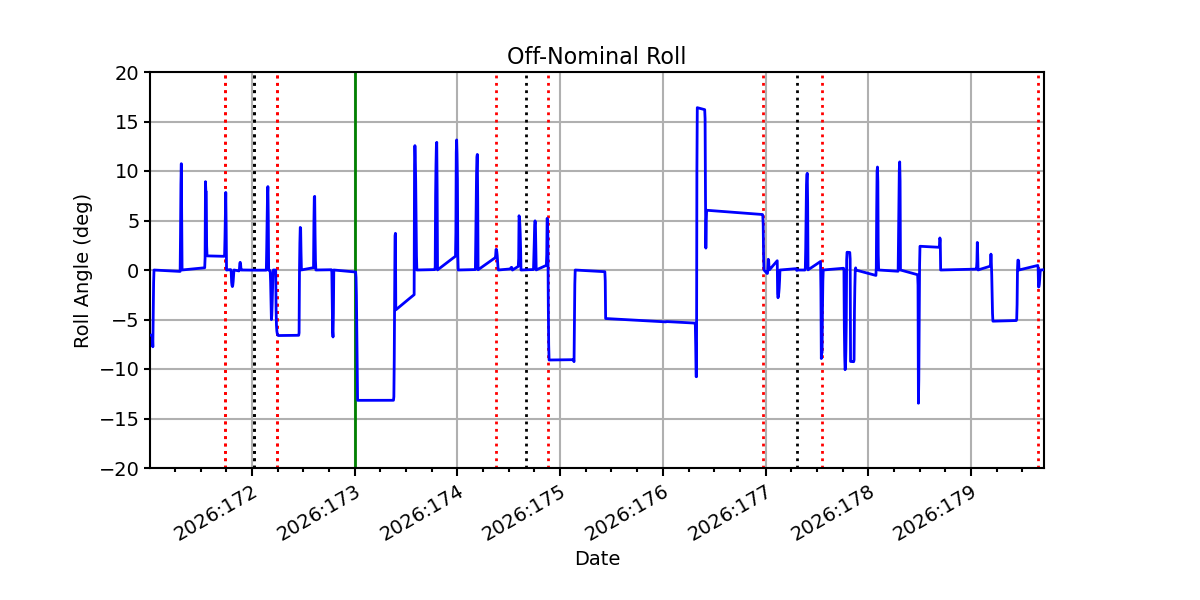

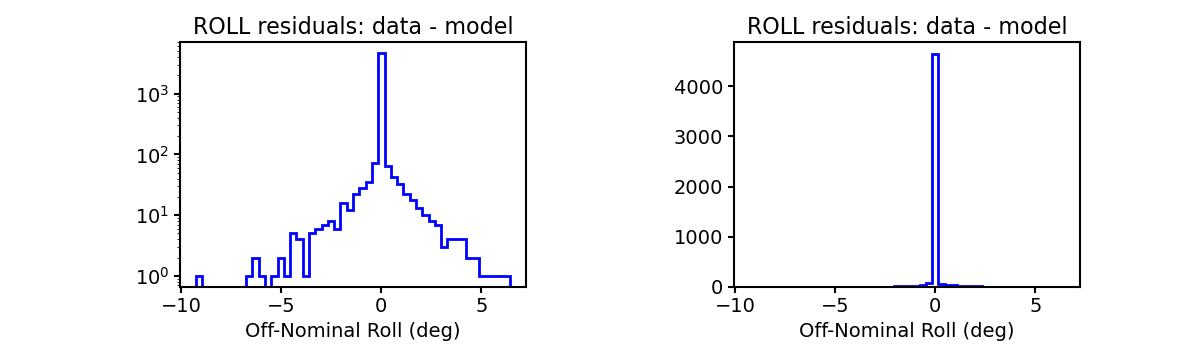

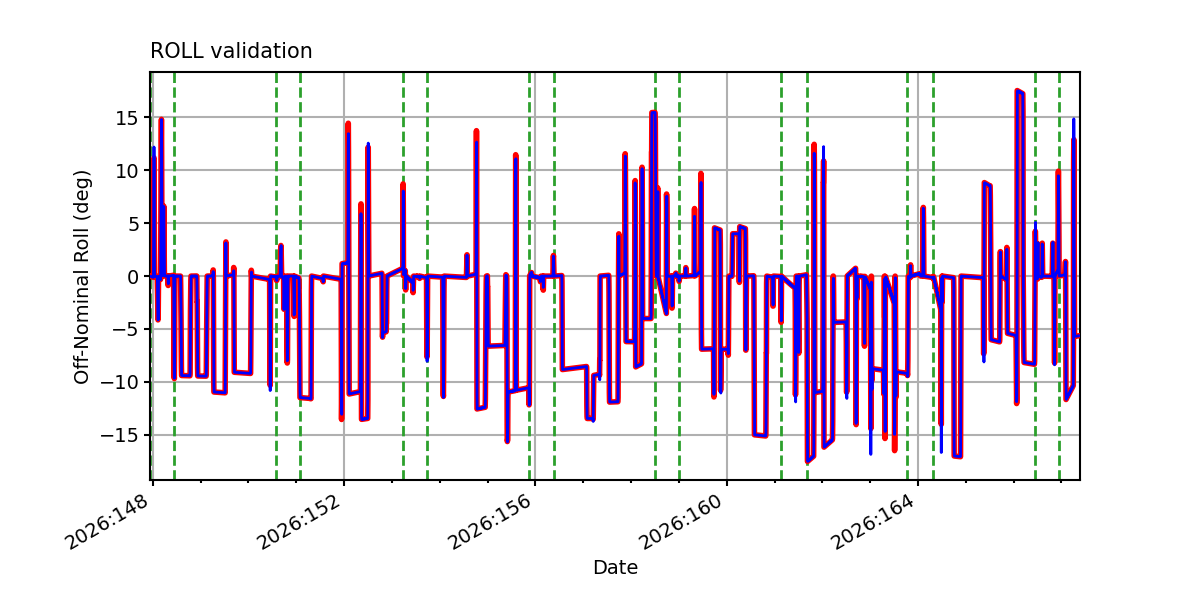

ROLL

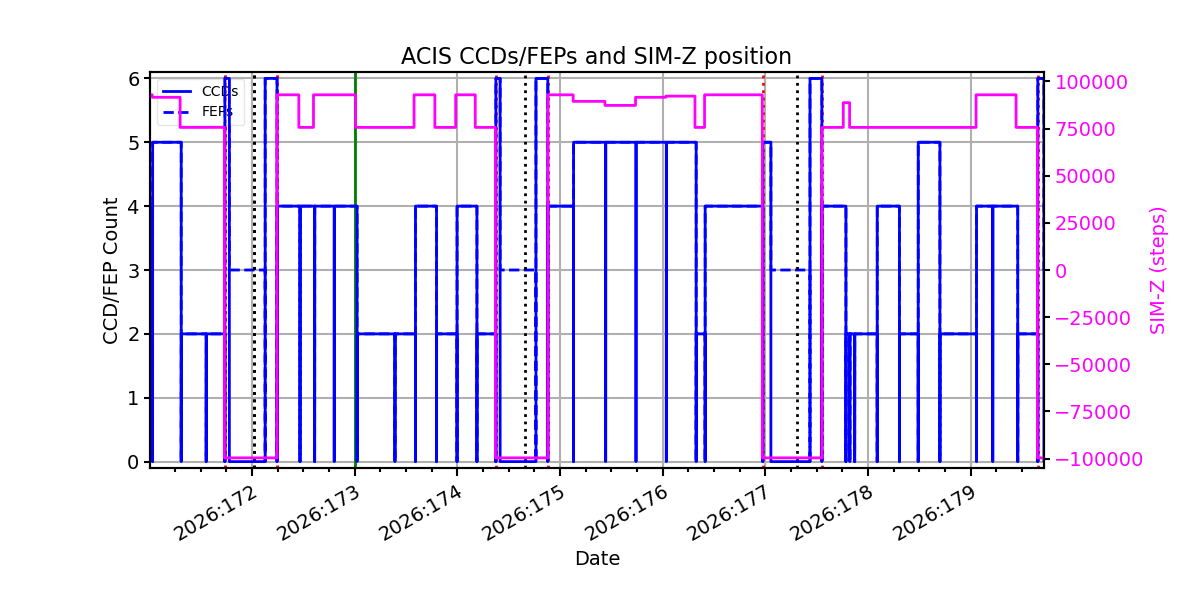

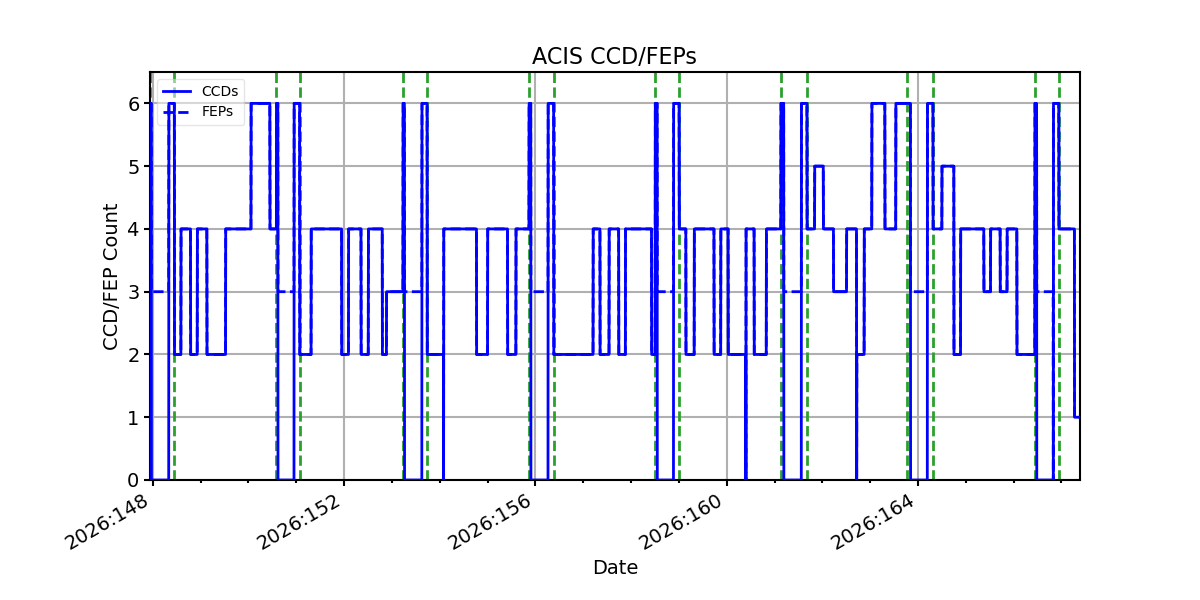

ACIS CCD/FEP Count
