DPA Temperatures Check
Summary
| Date start | 2026:179:17:06:00.016 |
| Date stop | 2026:186:23:50:27.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2926/oflsa |
| Run time | Thu Jun 25 11:00:36 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:180:10:31:35.231 | 2026:180:10:31:58.816 | 0.02 | 11.76 / 13.00 |
| 2026:186:17:12:20.667 | 2026:186:17:12:22.162 | 0.00 | 10.94 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.02 | -1.33 | -0.71 | 0.06 | 0.58 | 0.94 | 1.51 |
| pitch | -11.254 | -0.365 | -0.004 | -0.000 | 0.004 | 0.370 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.976 | -0.089 | -0.007 | 0.000 | 0.008 | 0.089 | 1.794 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.02 | 2.00 |
| PITCH | 1 | -11.254 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |

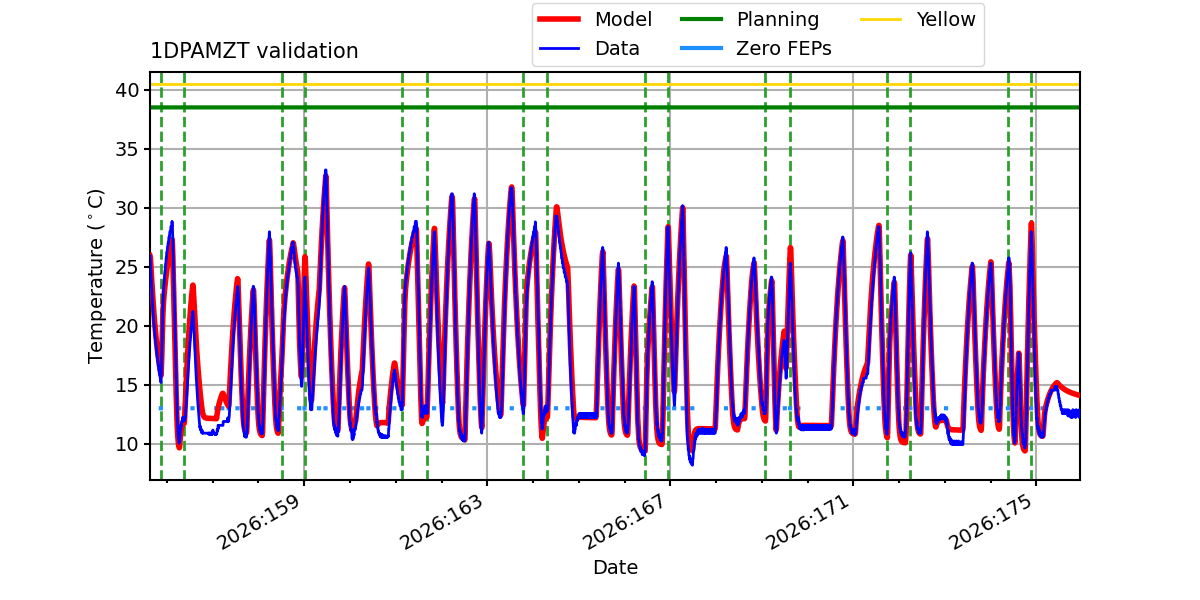

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

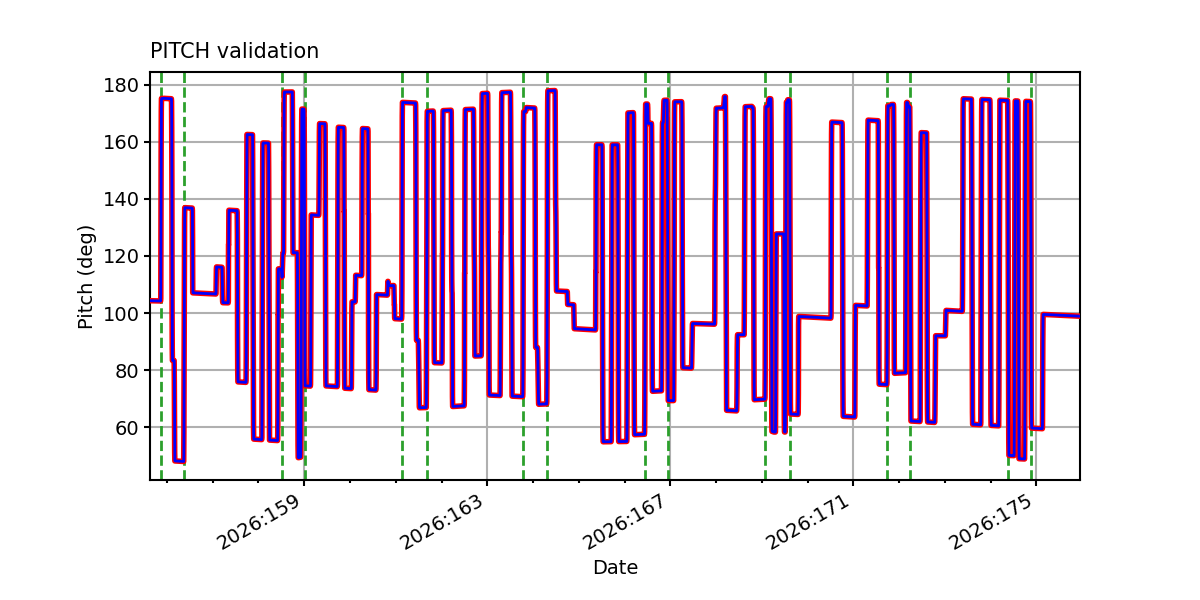

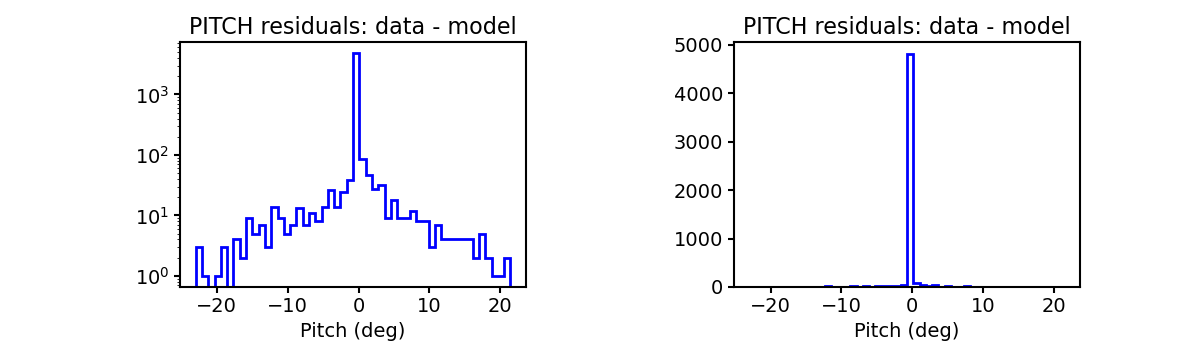

PITCH

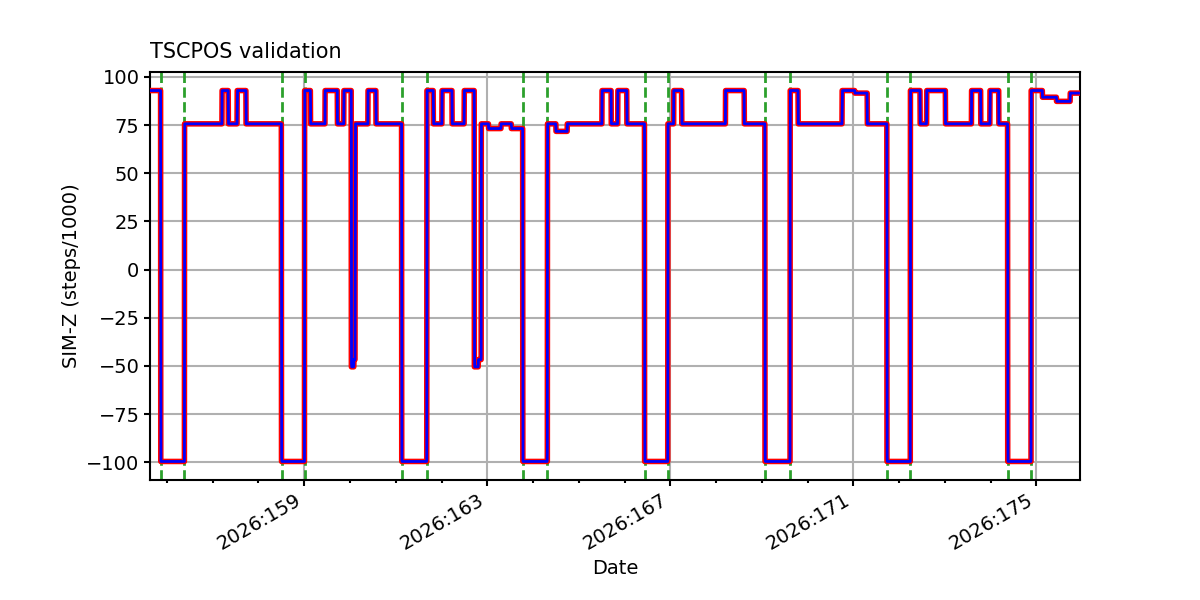

TSCPOS

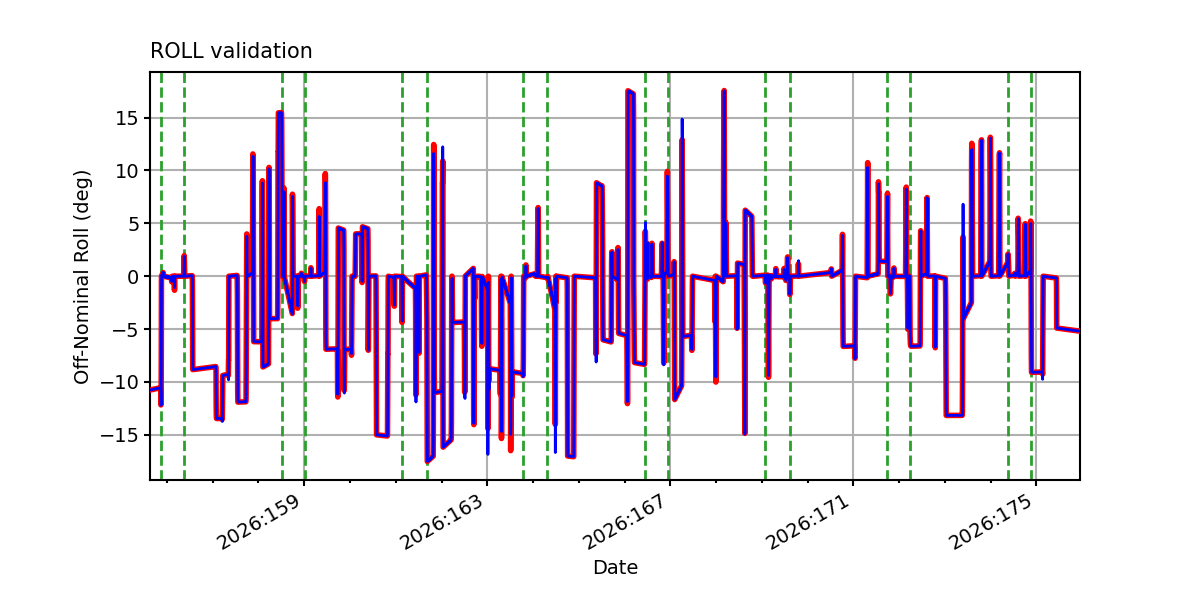

ROLL

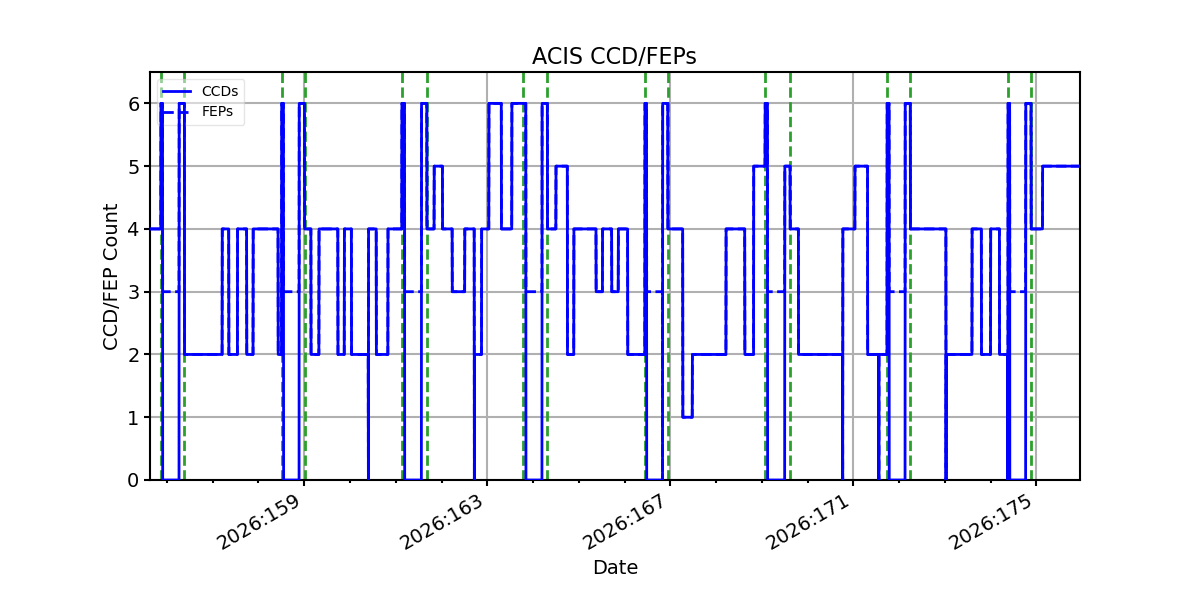

ACIS CCD/FEP Count
