DPA Temperatures Check
Summary
| Date start | 2026:067:21:25:00.016 |
| Date stop | 2026:075:02:35:52.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0926/oflsa |
| Run time | Thu Mar 5 10:12:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:070:04:50:39.416 | 2026:070:04:50:54.816 | 0.02 | 12.38 / 13.00 |
| 2026:071:17:28:13.264 | 2026:071:17:28:30.816 | 0.02 | 11.85 / 13.00 |
| 2026:073:01:05:24.709 | 2026:073:01:05:26.816 | 0.00 | 12.88 / 13.00 |
| 2026:073:17:56:32.695 | 2026:073:17:56:46.816 | 0.01 | 11.11 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.41 | -0.96 | -0.39 | 0.23 | 0.74 | 1.15 | 1.69 |
| pitch | -10.835 | -0.787 | -0.004 | -0.000 | 0.004 | 0.788 | 11.034 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.900 | -0.181 | -0.010 | -0.000 | 0.011 | 0.178 | 2.109 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.835 | 3.00 |
| PITCH | 99 | 11.034 | 3.00 |

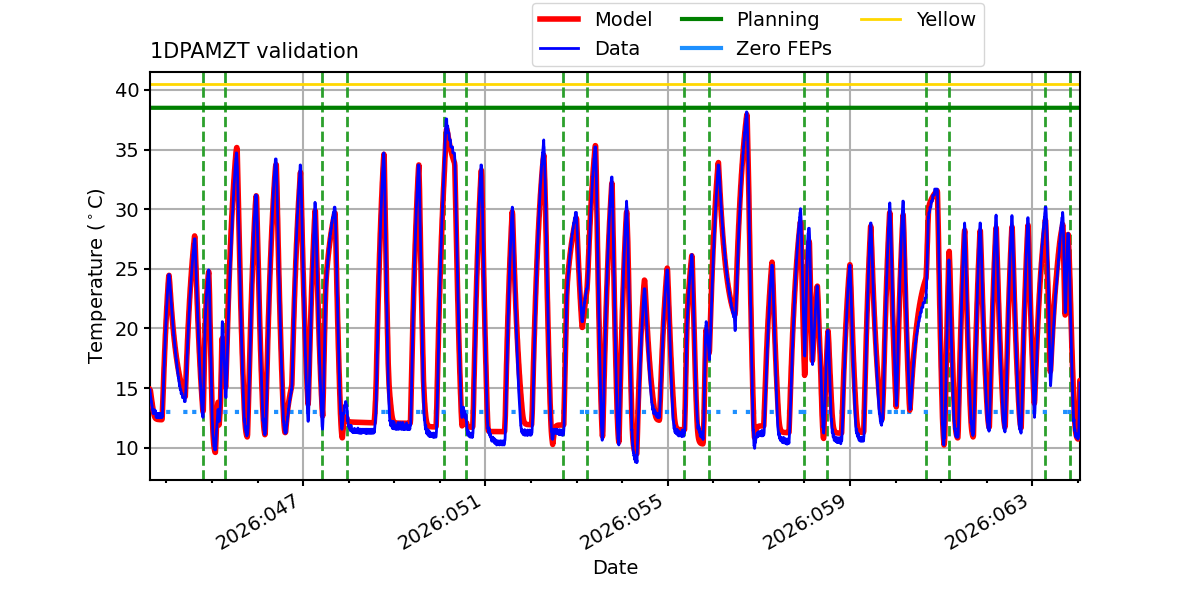

1DPAMZT

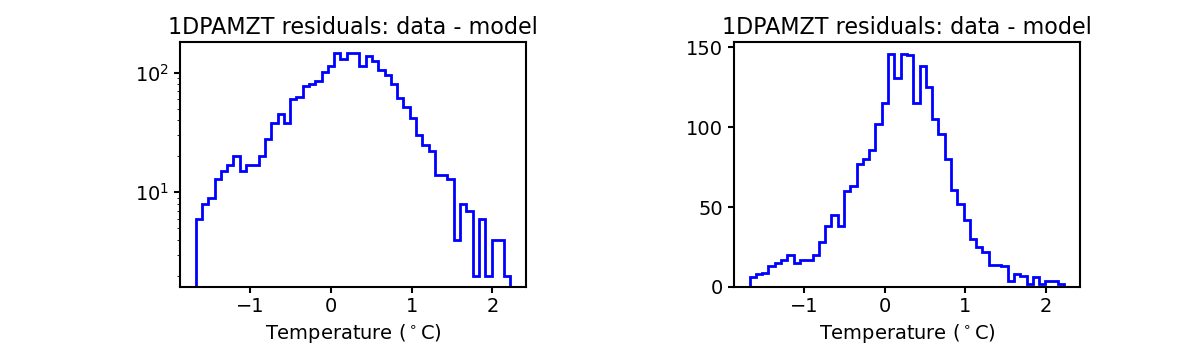

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

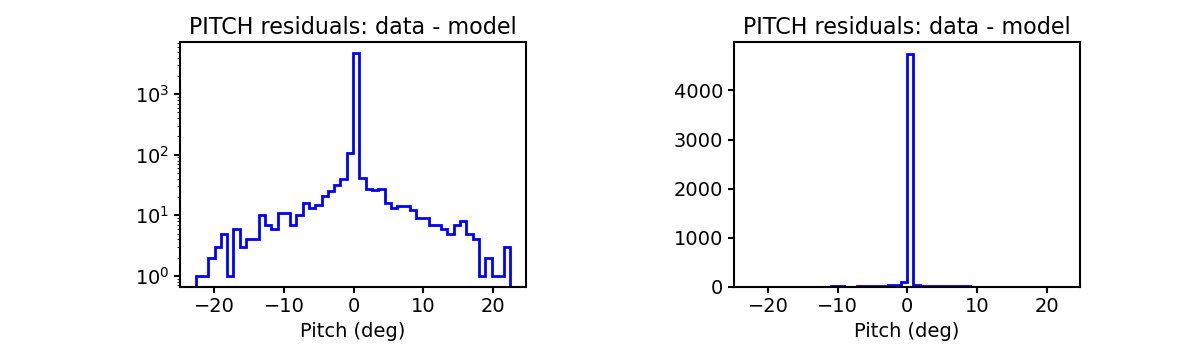

PITCH

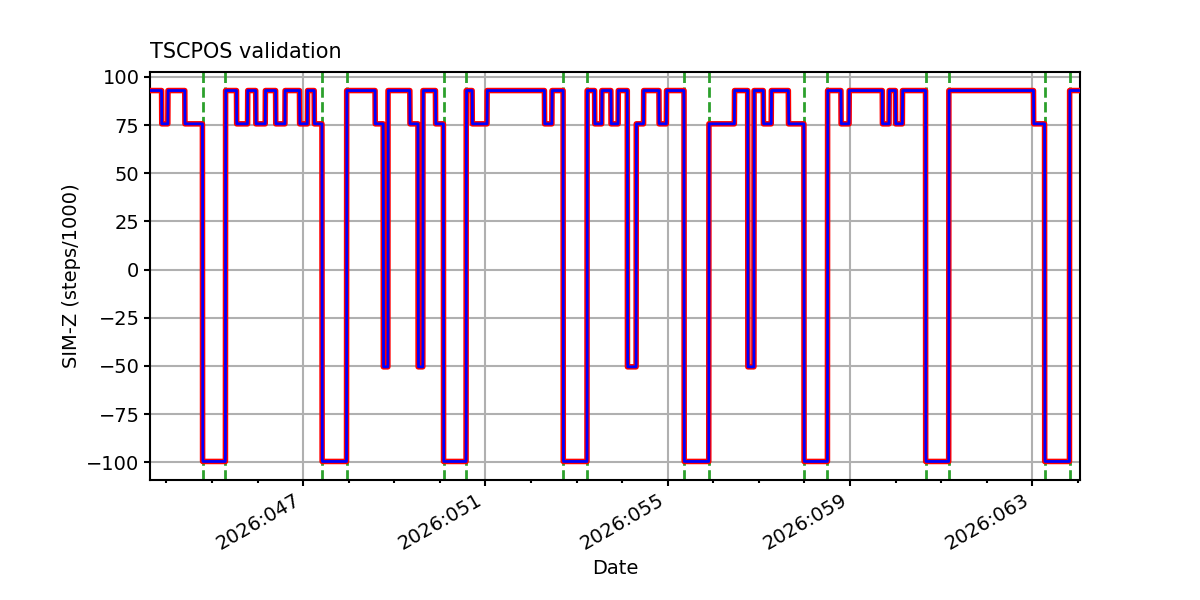

TSCPOS

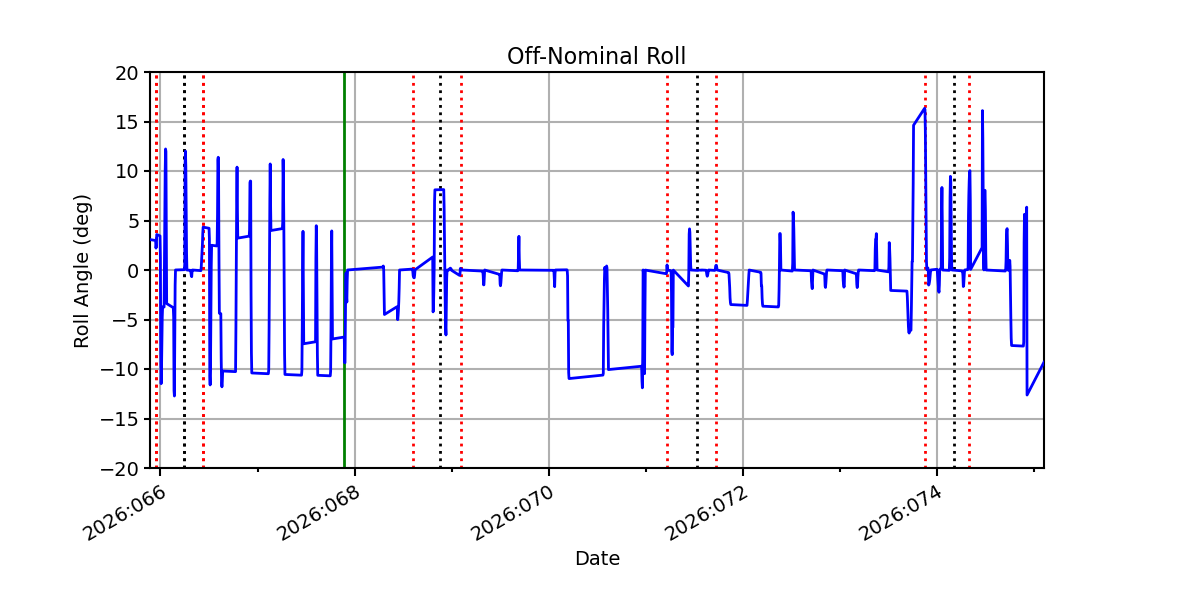

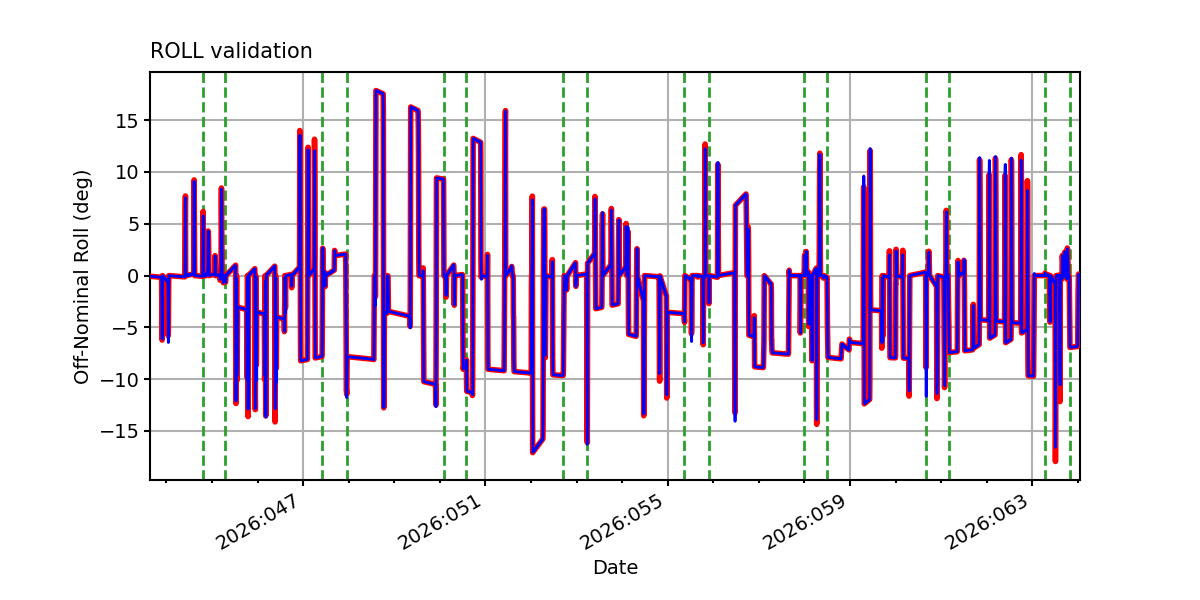

ROLL

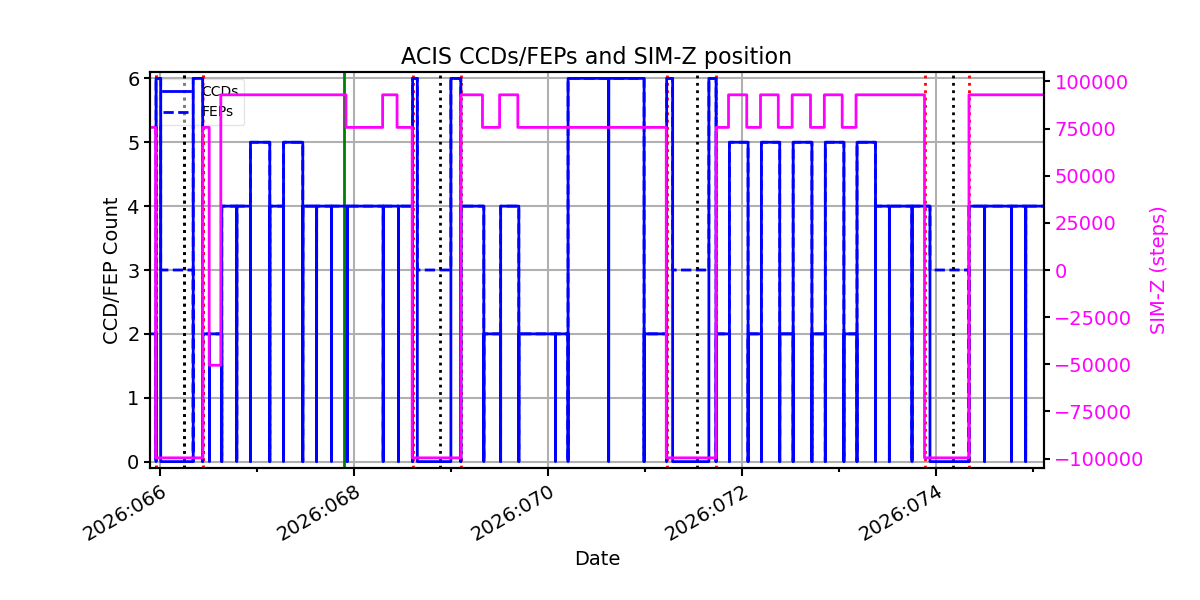

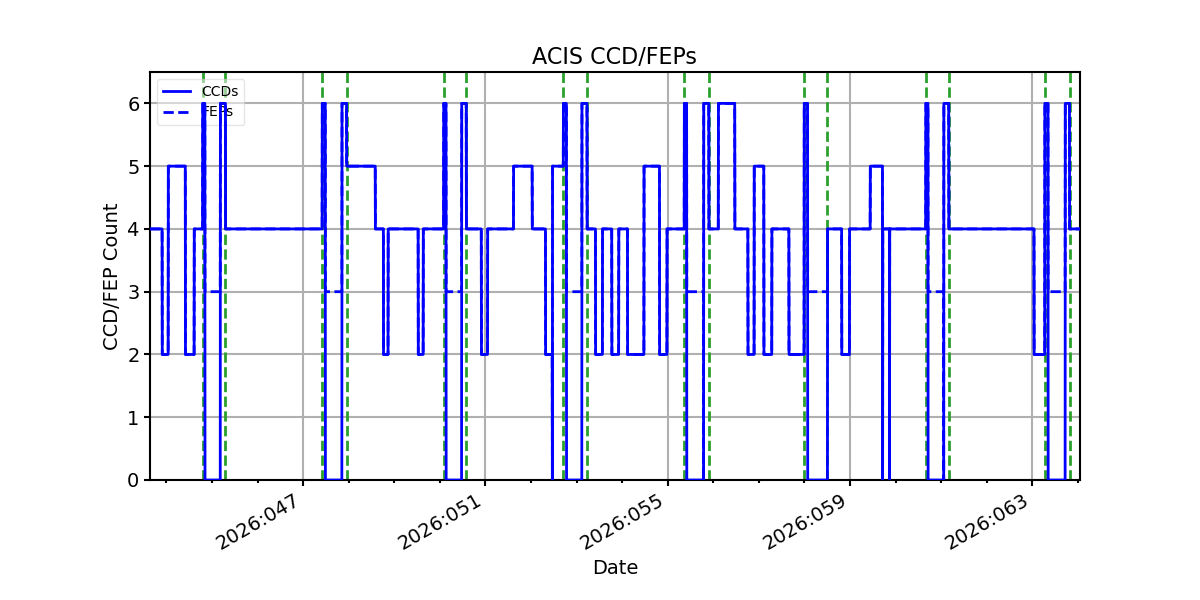

ACIS CCD/FEP Count
