DPA Temperatures Check
Summary
| Date start | 2026:081:20:41:00.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2326/oflsa |
| Run time | Thu Mar 19 10:47:45 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

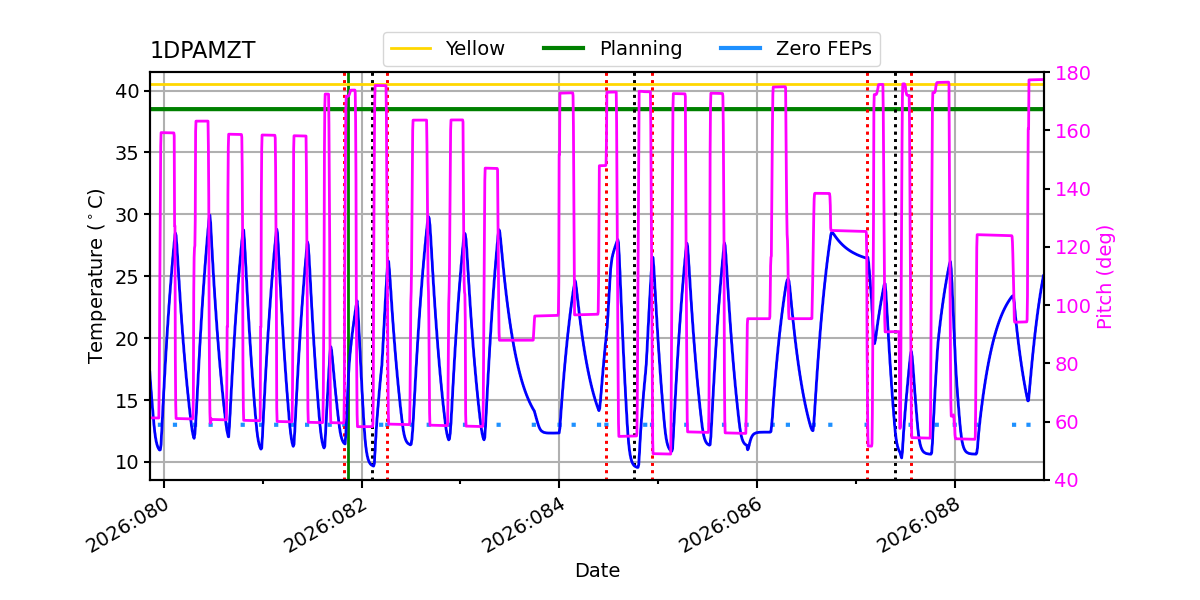

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:083:05:42:02.812 | 2026:083:05:42:05.472 | 0.00 | 11.80 / 13.00 |
| 2026:085:21:24:19.215 | 2026:085:21:24:38.816 | 0.02 | 11.34 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.55 | -0.87 | -0.14 | 0.54 | 1.18 | 1.56 | 1.91 |
| pitch | -13.289 | -1.567 | -0.004 | 0.000 | 0.004 | 2.120 | 12.438 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.325 | -0.287 | -0.011 | 0.000 | 0.013 | 0.325 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -13.289 | 3.00 |
| PITCH | 99 | 12.438 | 3.00 |

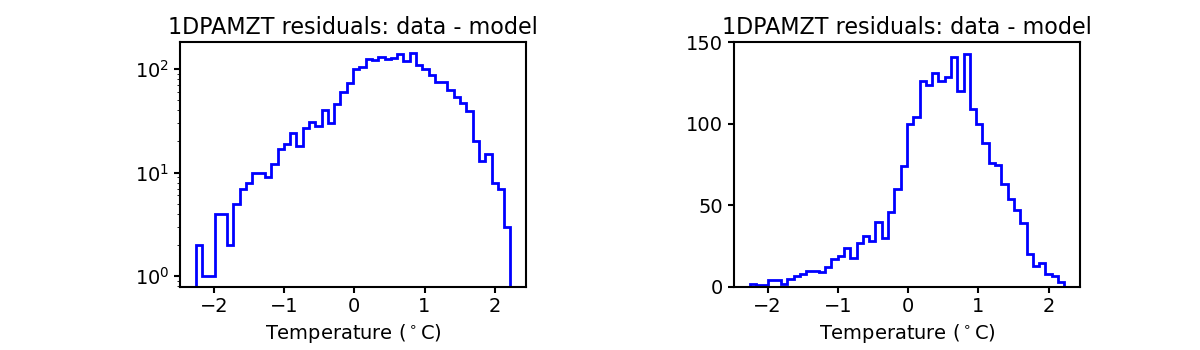

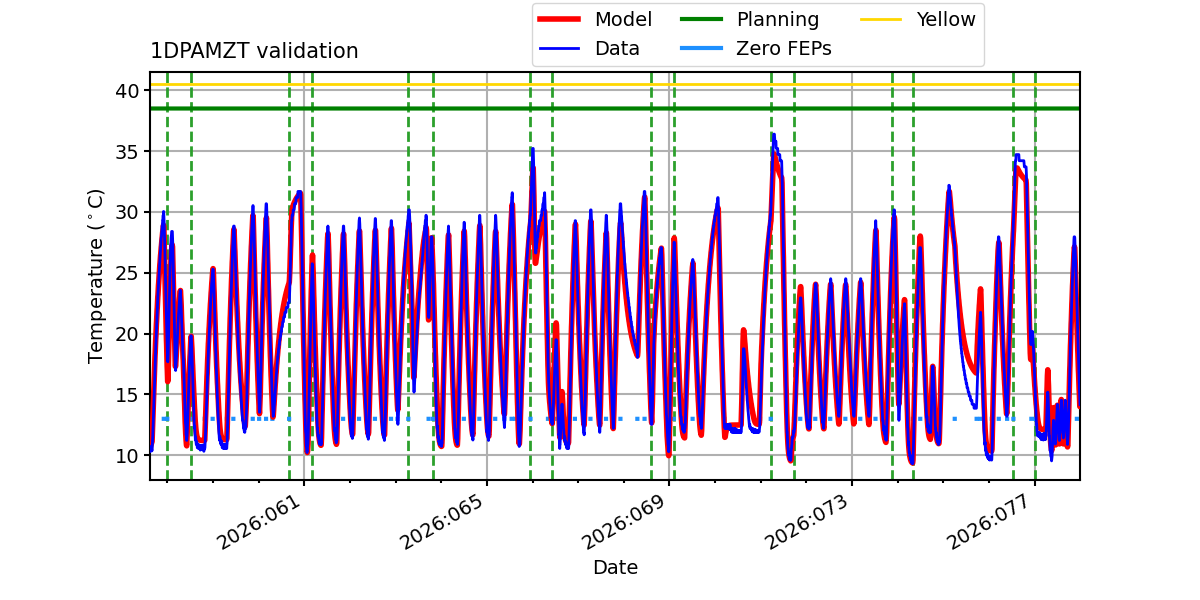

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

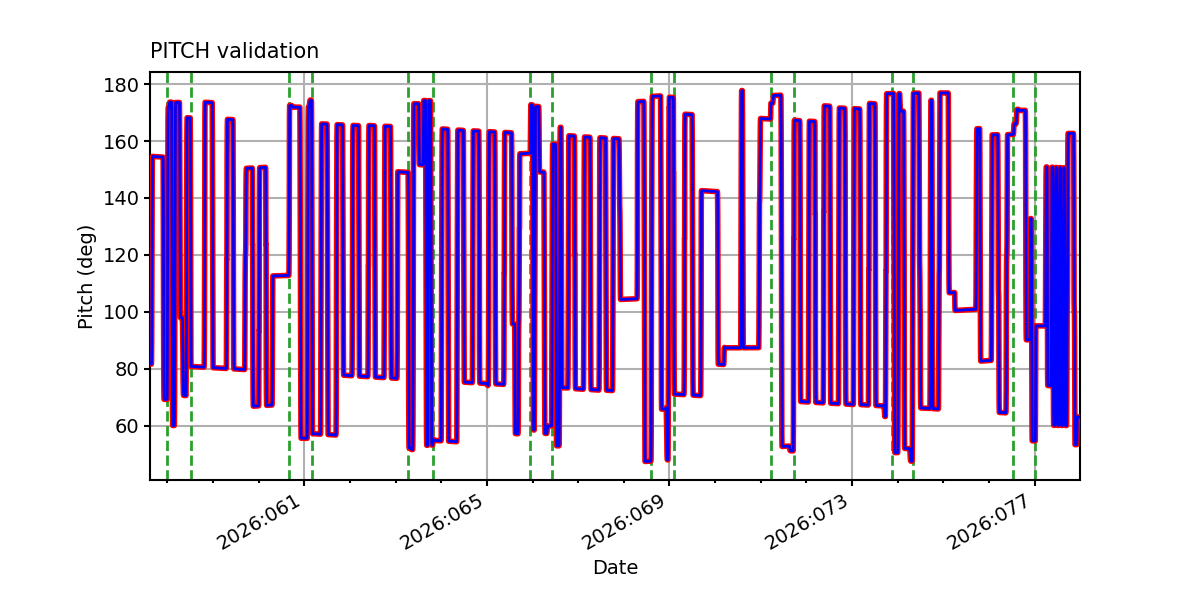

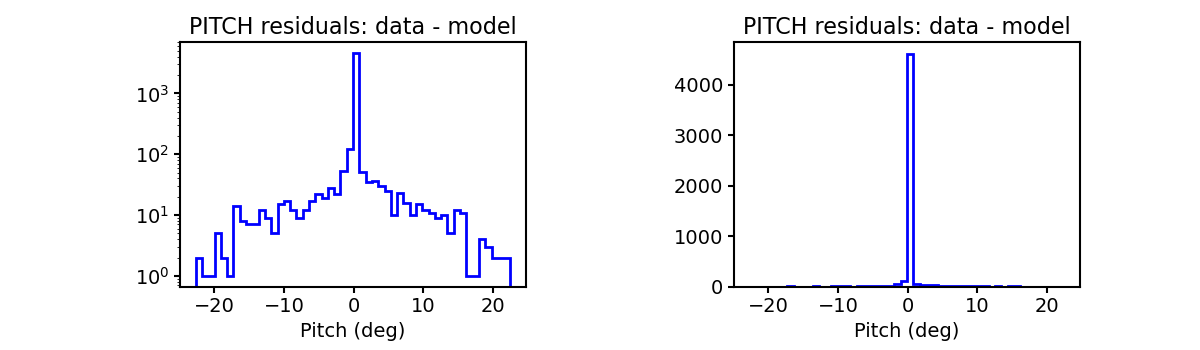

PITCH

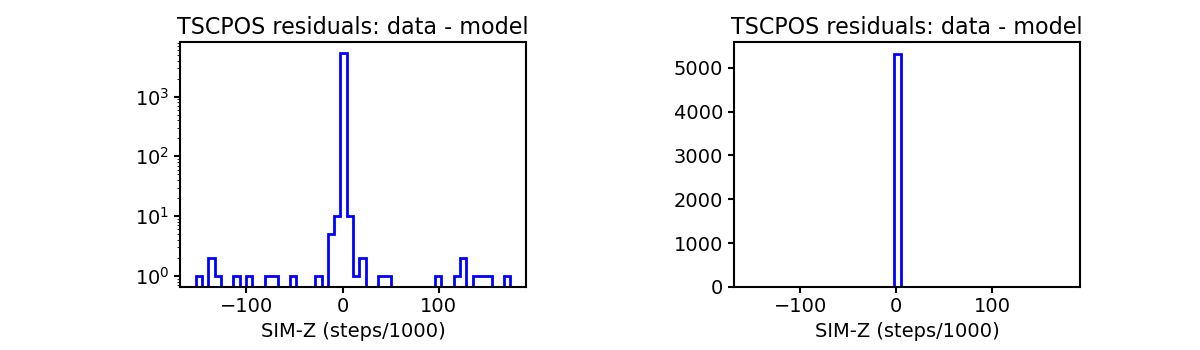

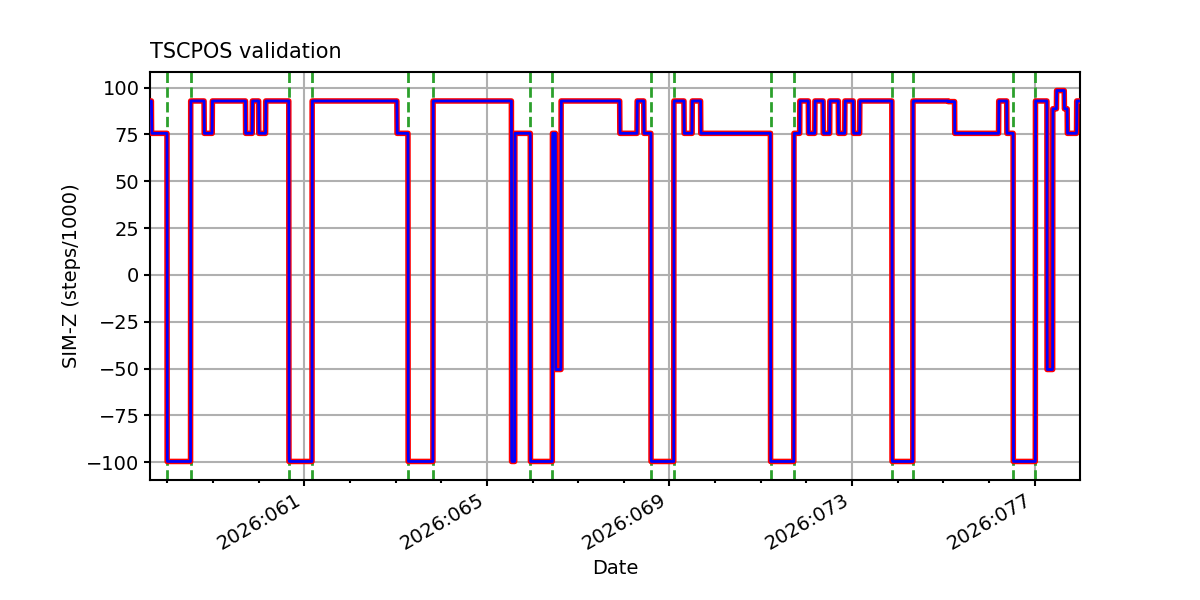

TSCPOS

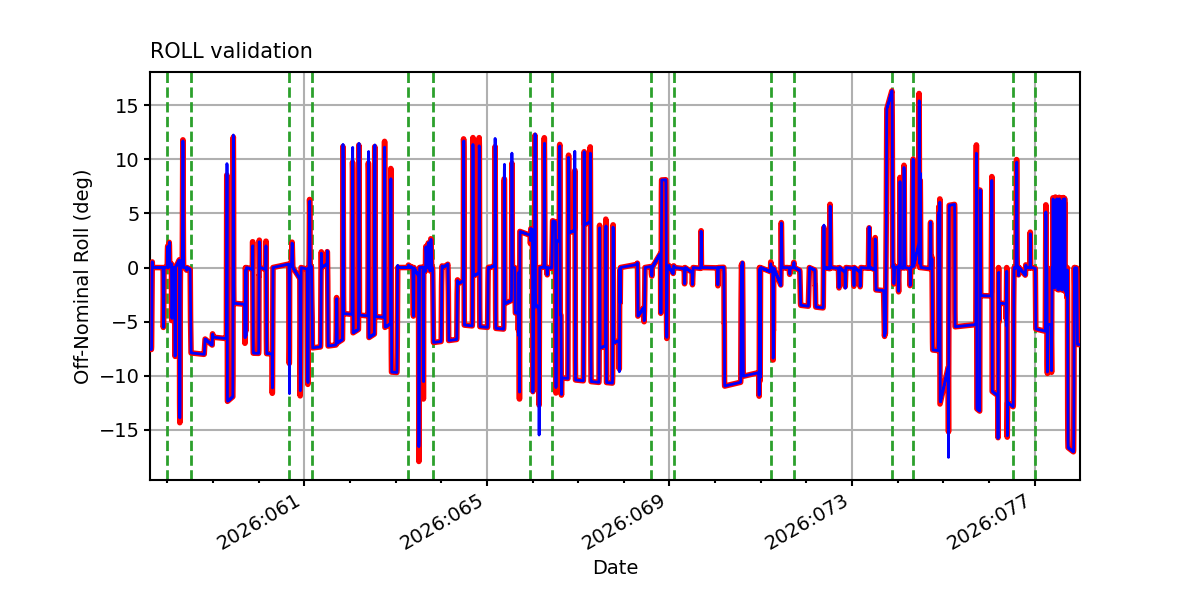

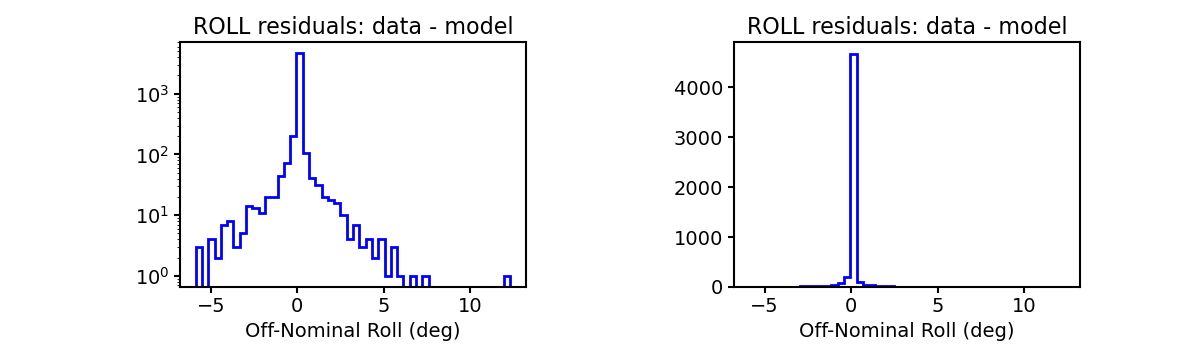

ROLL

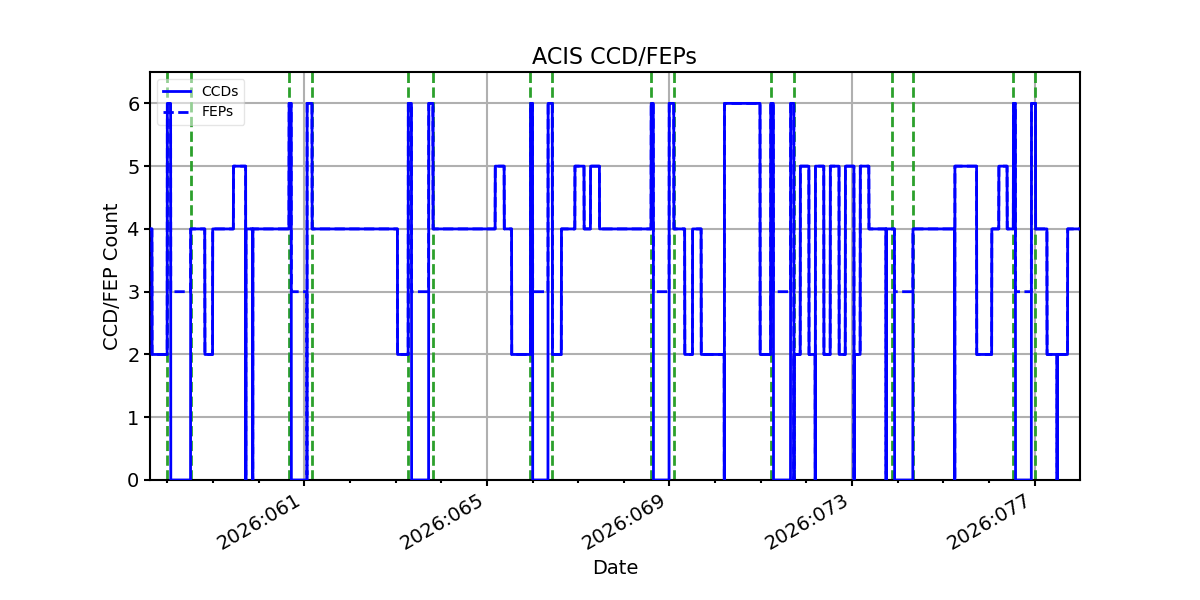

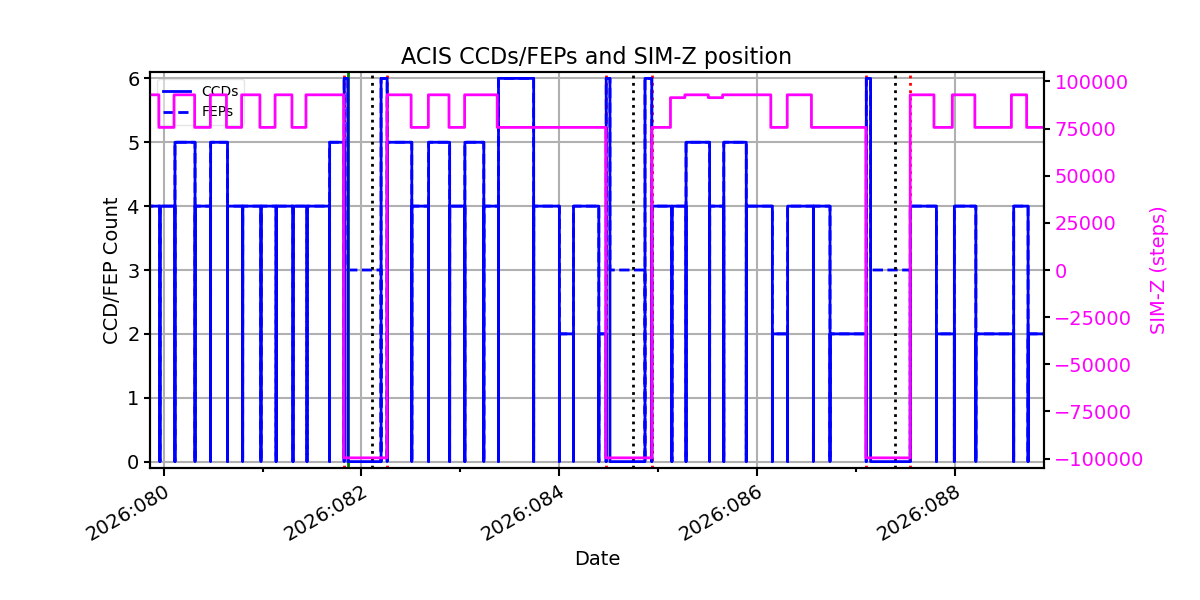

ACIS CCD/FEP Count
