DPA Temperatures Check
Summary
| Date start | 2025:085:03:14:00.016 |
| Date stop | 2025:089:21:13:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/MAR2625/ofls |
| Run time | Tue Mar 25 09:59:28 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:088:17:41:00.087 | 2025:088:17:41:02.816 | 0.00 | 9.79 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.55 | -1.86 | -1.30 | -0.49 | 0.47 | 0.95 | 1.28 |
| pitch | -6.109 | -0.564 | -0.004 | 0.000 | 0.004 | 0.777 | 5.840 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.002 | -0.248 | -0.009 | -0.000 | 0.007 | 0.162 | 1.366 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.55 | 2.00 |
| PITCH | 1 | -6.109 | 3.00 |
| PITCH | 99 | 5.84 | 3.00 |
1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

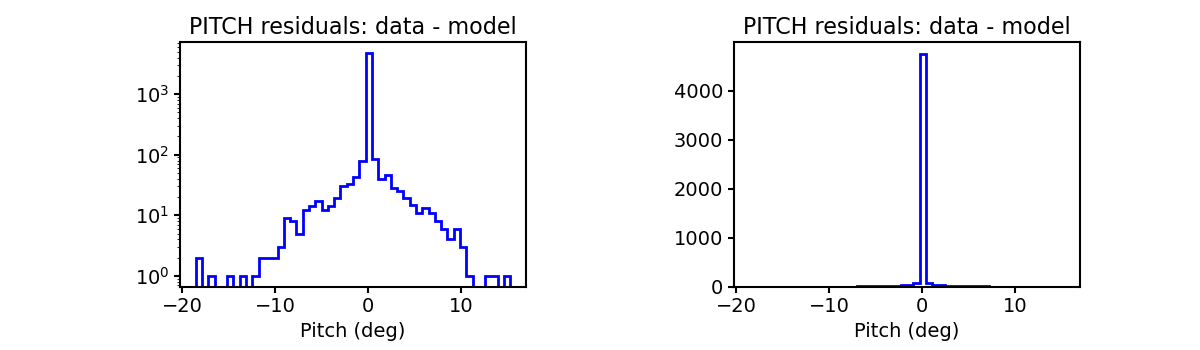

PITCH
TSCPOS
ROLL

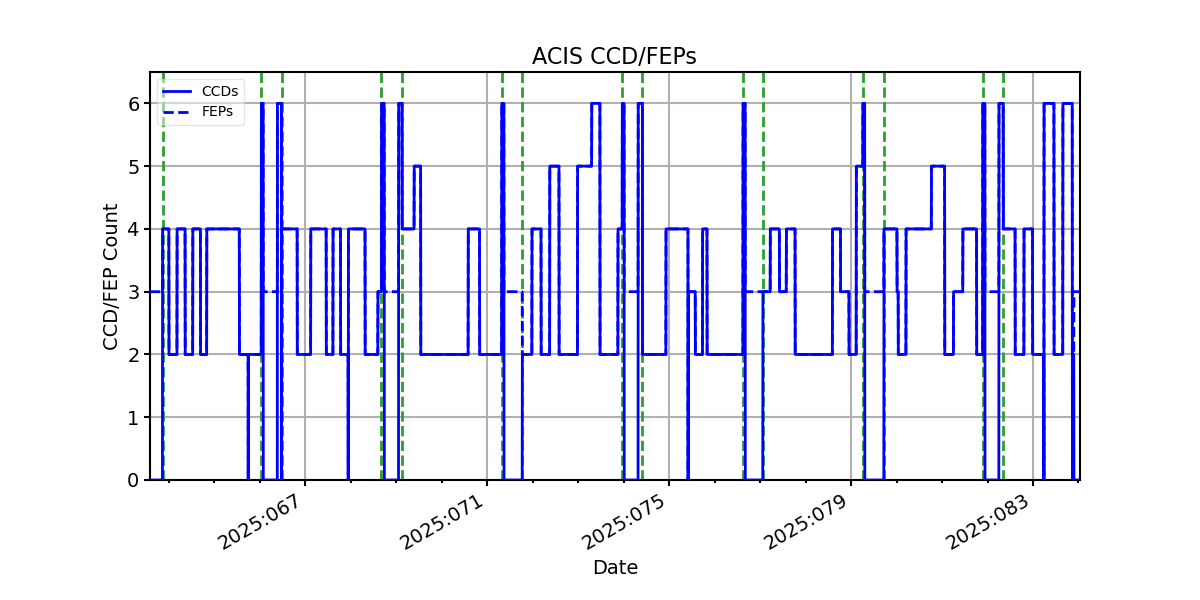

ACIS CCD/FEP Count
