DPA Temperatures Check
Summary
| Date start | 2026:130:20:55:40.716 |
| Date stop | 2026:137:09:59:04.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1126/oflsa |
| Run time | Wed May 6 15:48:15 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

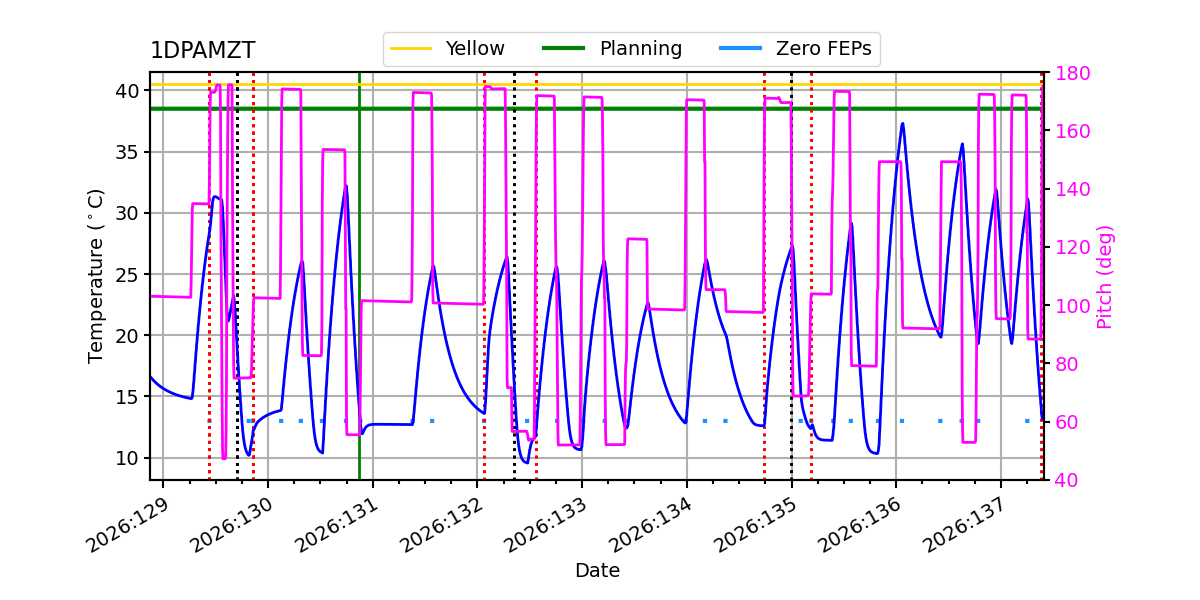

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:130:21:08:28.439 | 2026:130:21:08:49.779 | 0.02 | 12.93 / 13.00 |
| 2026:135:04:30:40.326 | 2026:135:04:30:44.526 | 0.00 | 12.45 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.07 | -2.73 | -2.12 | -0.52 | 0.50 | 1.02 | 1.69 |
| pitch | -10.038 | -0.149 | -0.004 | 0.000 | 0.004 | 0.185 | 10.249 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.812 | -0.077 | -0.004 | -0.000 | 0.004 | 0.098 | 2.103 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.07 | 2.00 |
| PITCH | 1 | -10.038 | 3.00 |
| PITCH | 99 | 10.249 | 3.00 |

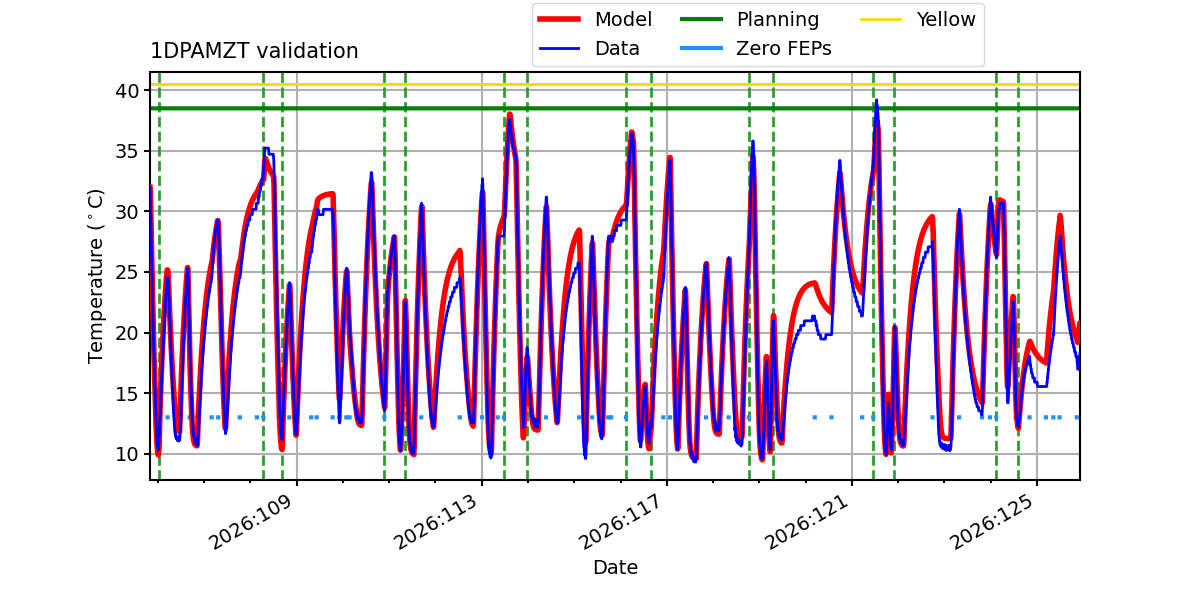

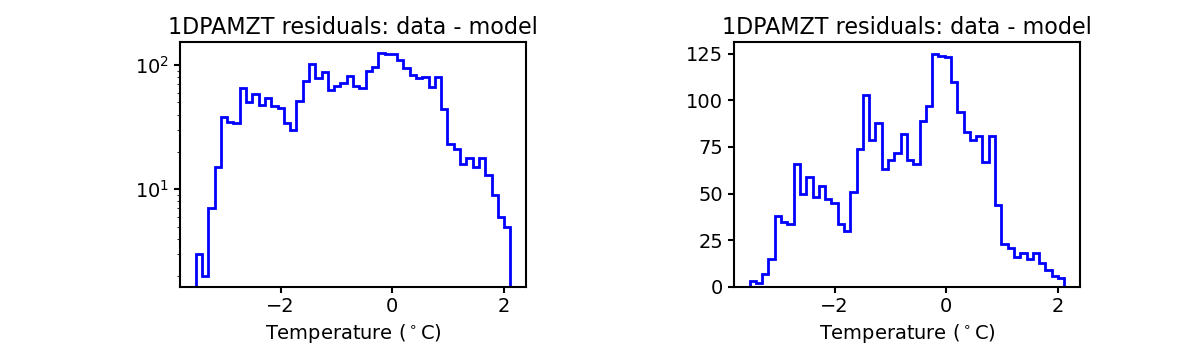

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

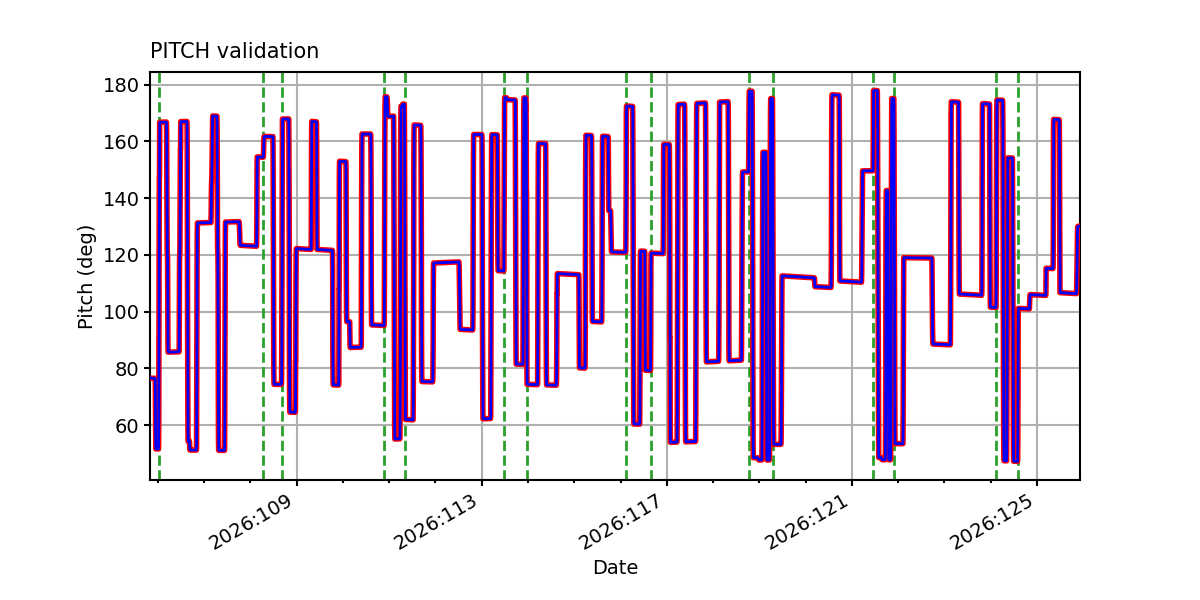

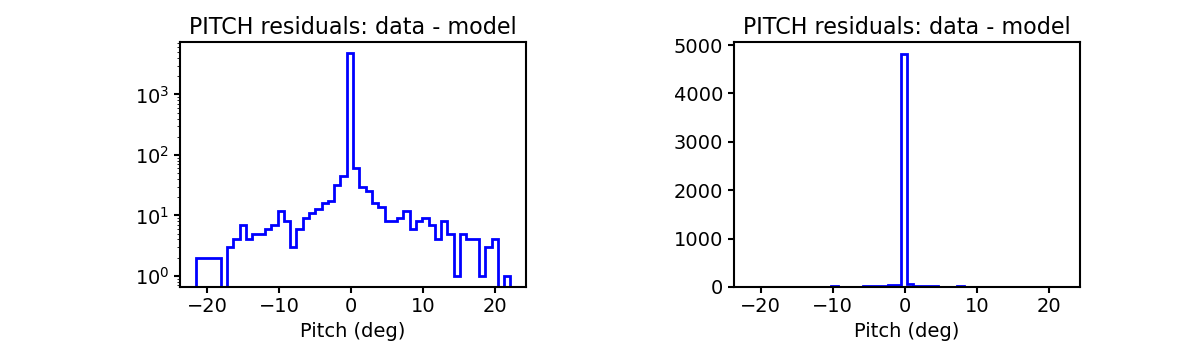

PITCH

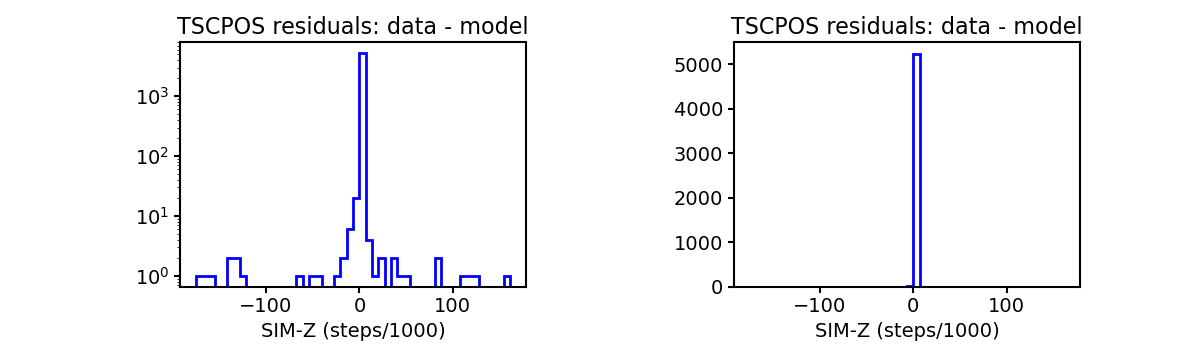

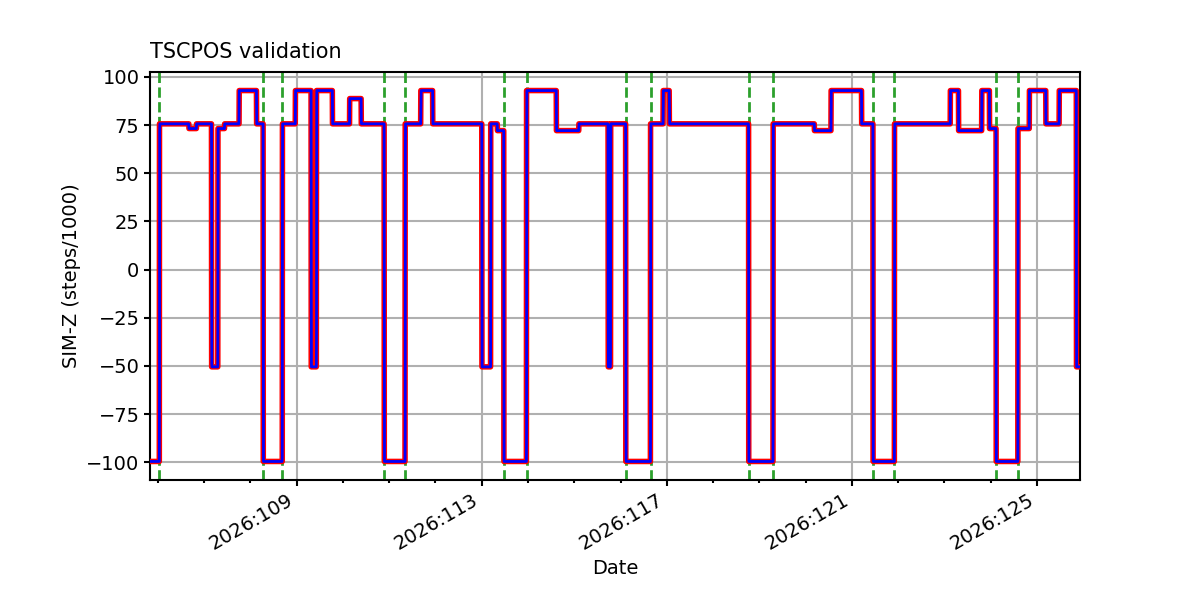

TSCPOS

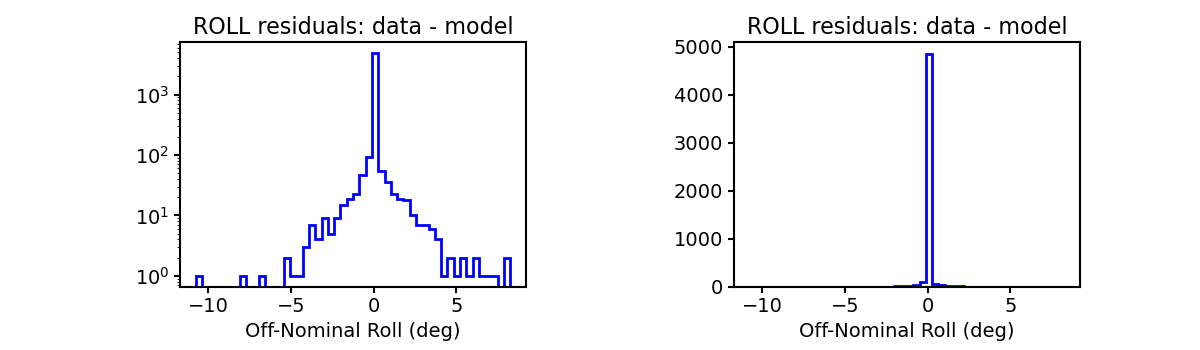

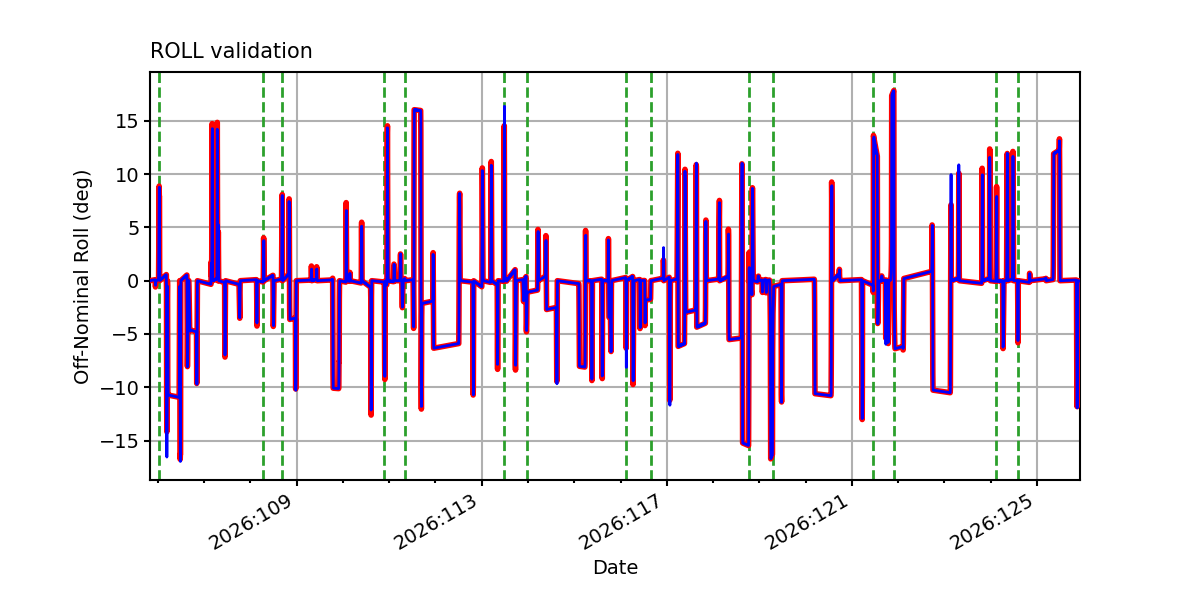

ROLL

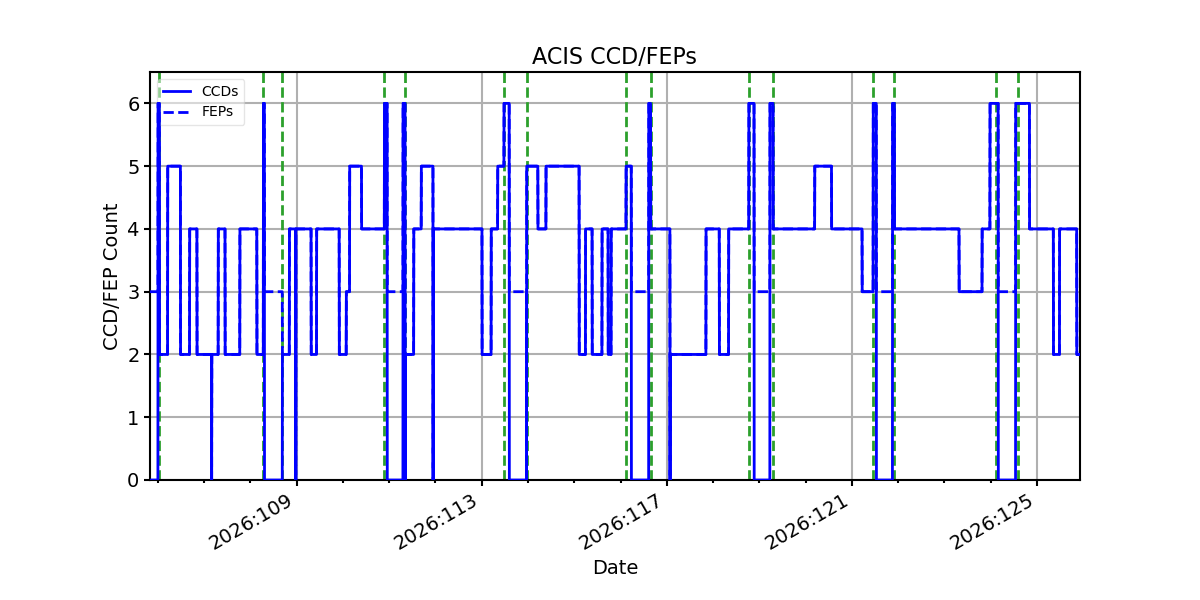

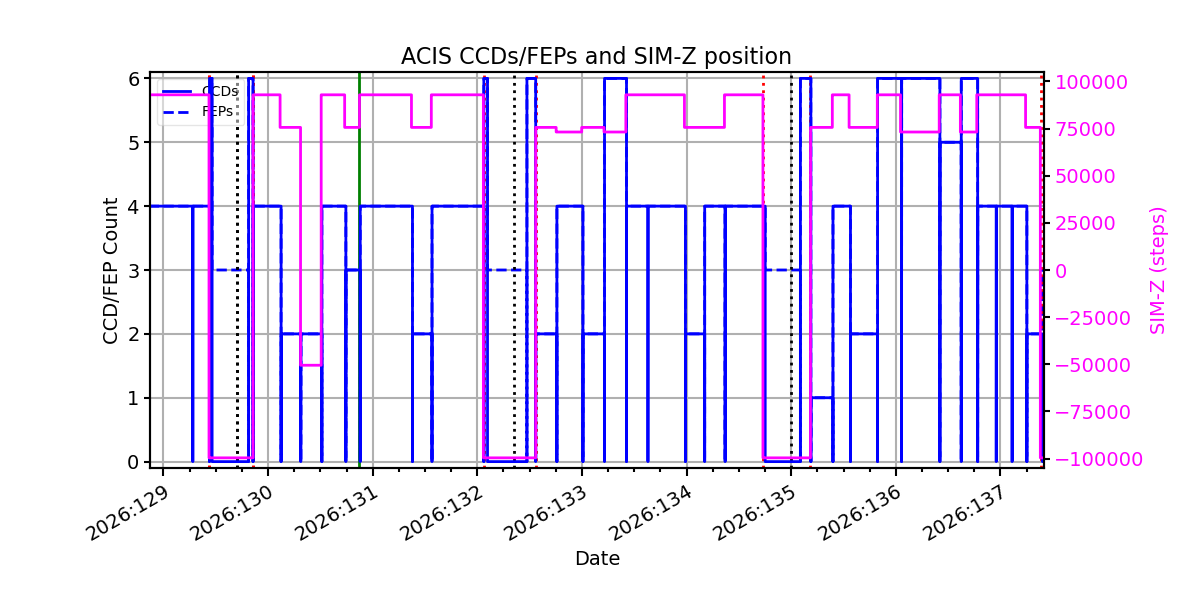

ACIS CCD/FEP Count
