DPA Temperatures Check
Summary
| Date start | 2025:131:21:12:39.216 |
| Date stop | 2025:139:00:00:00.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1225/ofls |
| Run time | Wed May 7 09:43:57 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:135:04:25:35.588 | 2025:135:04:25:42.816 | 0.01 | 11.70 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.99 | -2.49 | -1.56 | -0.53 | 0.57 | 0.84 | 1.20 |
| pitch | -6.454 | -0.384 | -0.004 | 0.000 | 0.004 | 0.541 | 5.426 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.576 | -0.104 | -0.004 | 0.000 | 0.005 | 0.131 | 1.195 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.99 | 2.00 |
| PITCH | 1 | -6.454 | 3.00 |
| PITCH | 99 | 5.426 | 3.00 |

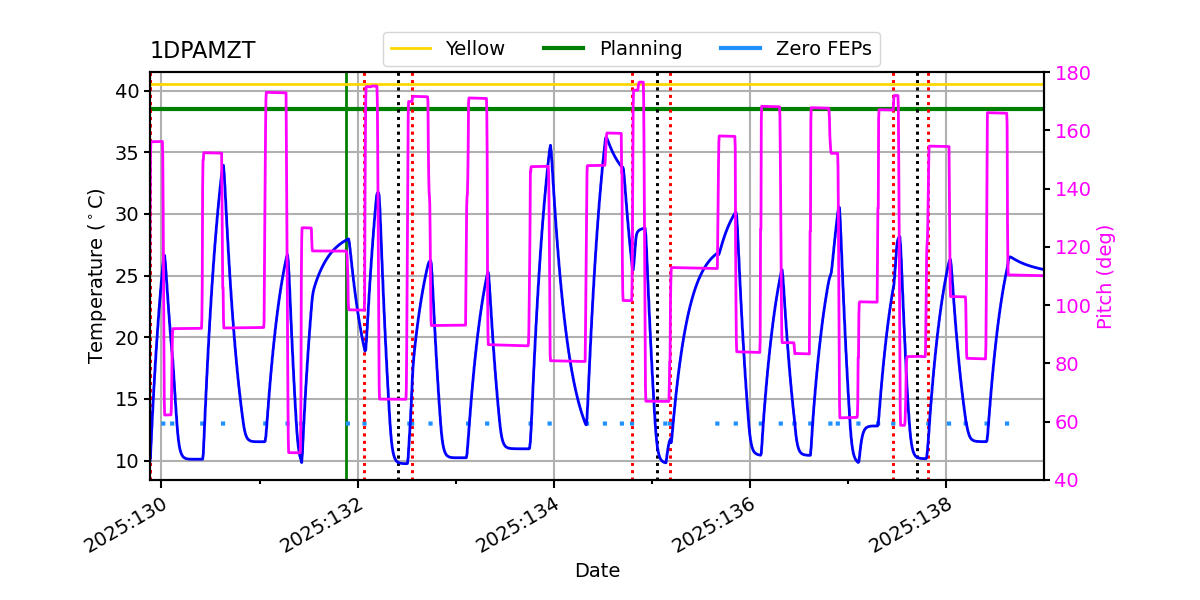

1DPAMZT

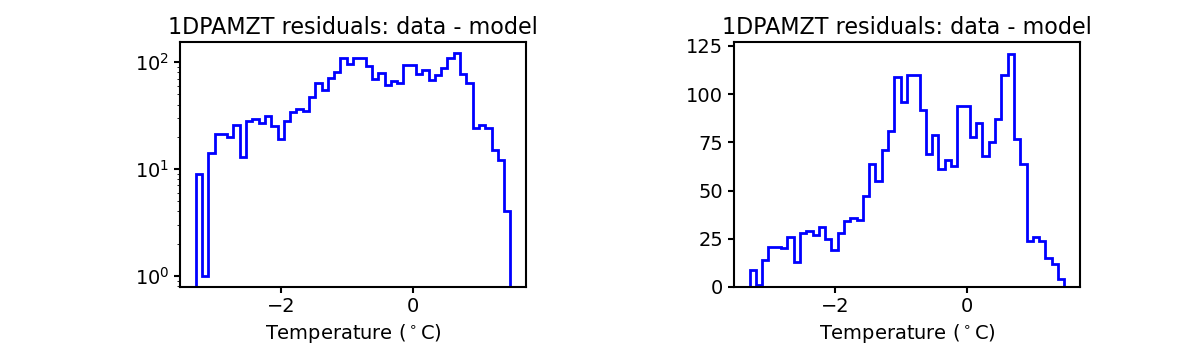

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

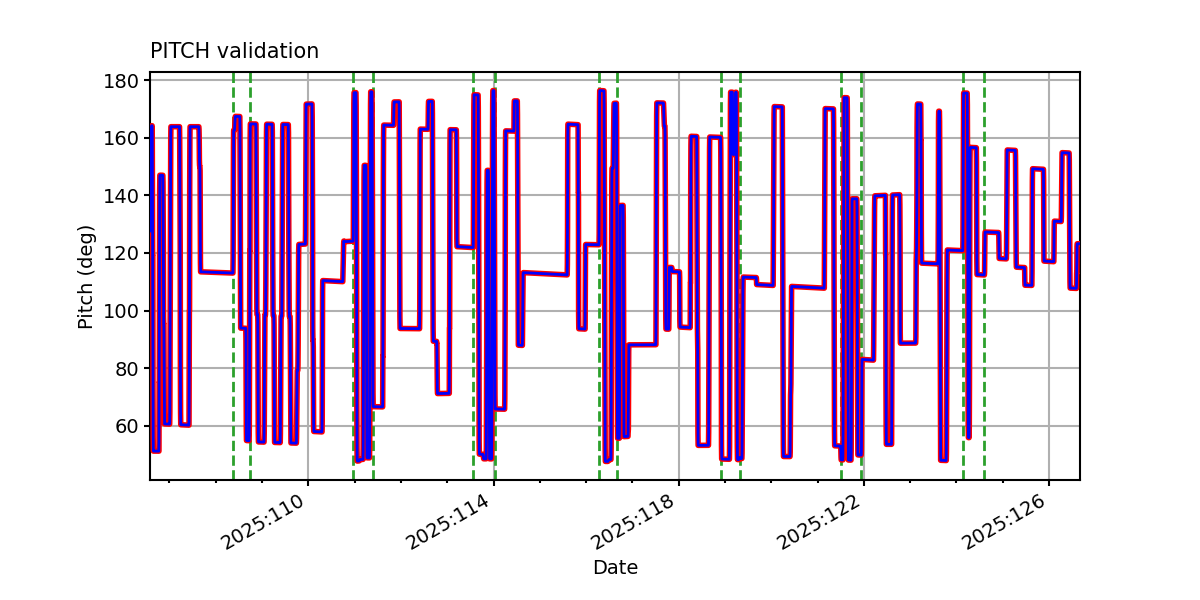

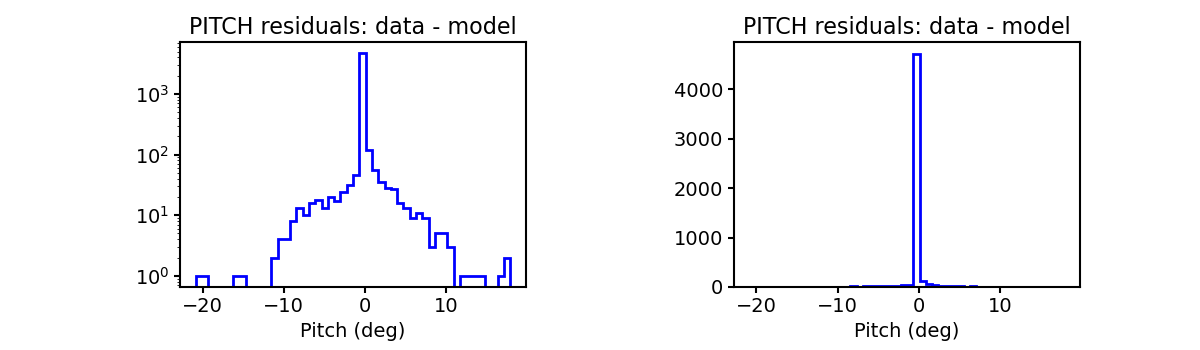

PITCH

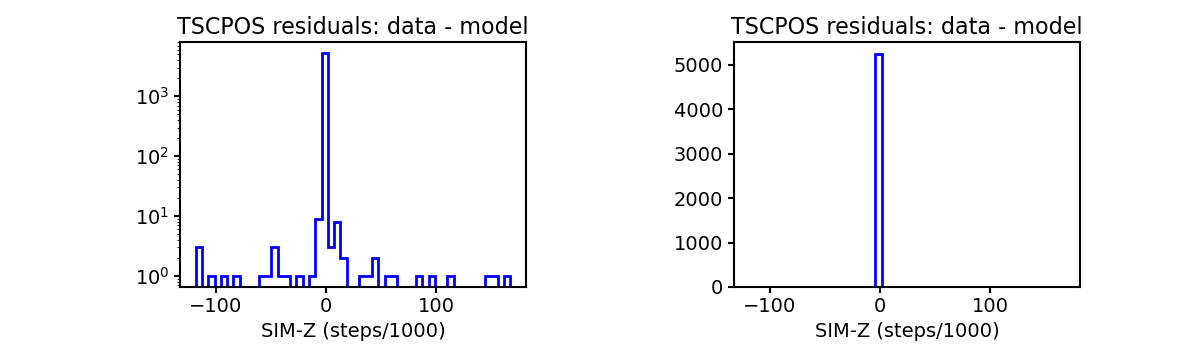

TSCPOS

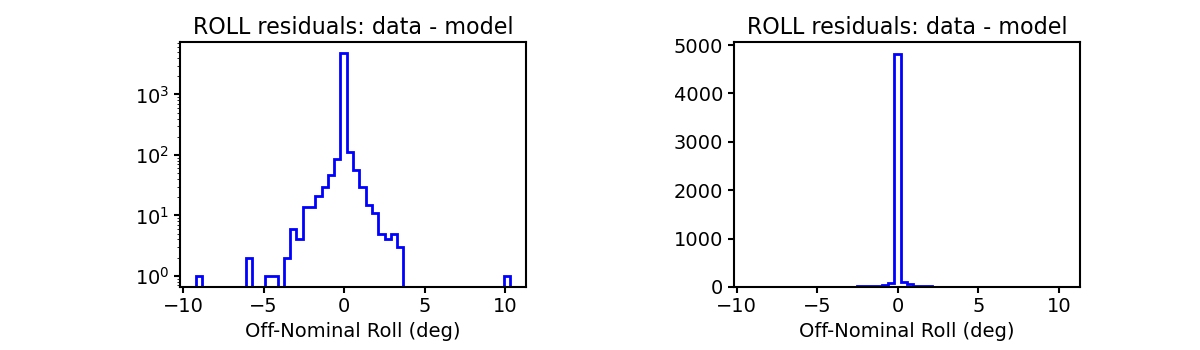

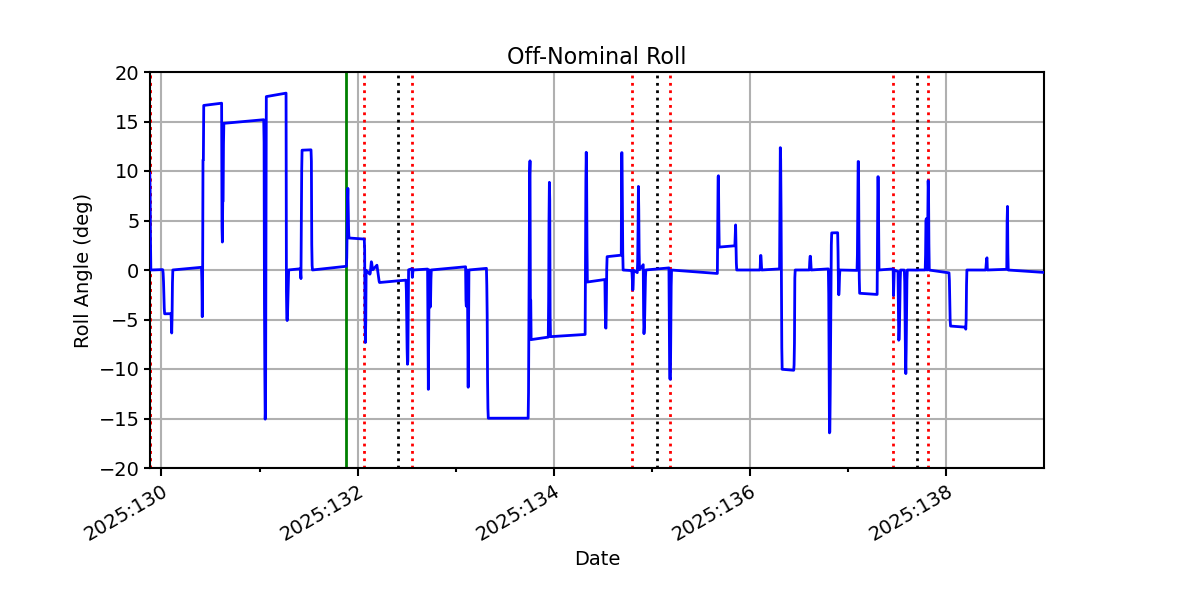

ROLL

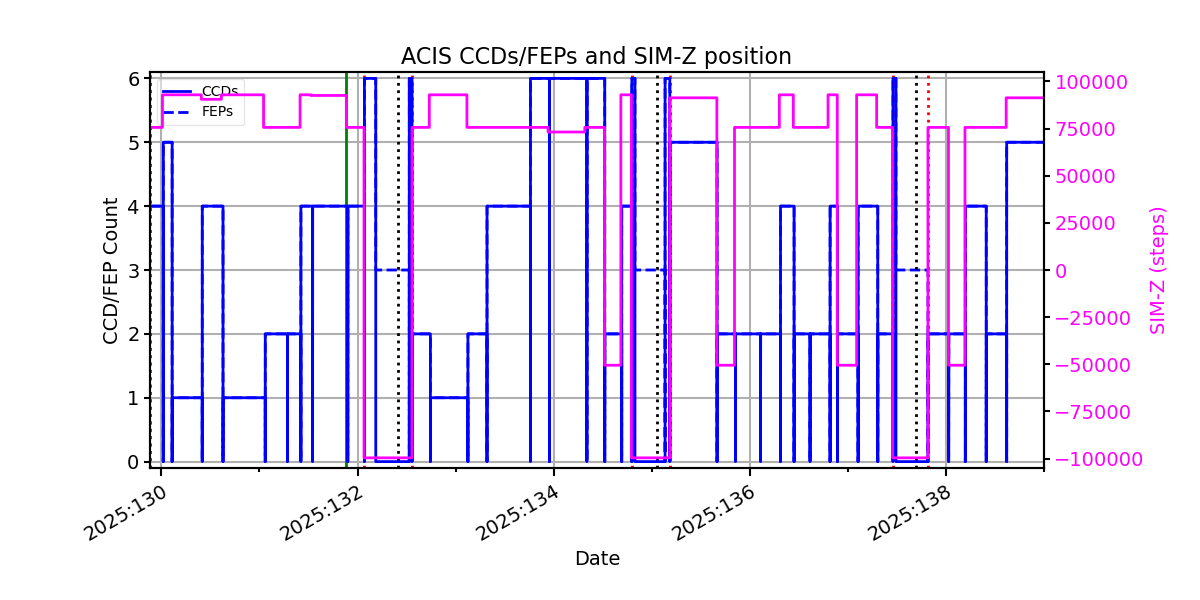

ACIS CCD/FEP Count
