DPA temperatures check
Summary
| Date start | 2015:138:13:40:00.000 |
| Date stop | 2015:151:19:49:33.094 |
| 1DPAMZT status | OK (Planning Limit = 35.5 C) |
| Run time | Thu May 14 17:04:58 2015 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Violations
DPA Model Validation
MSID quantiles
Note: DPA quantiles are calculated using only points where 1DPAMZT > 20 degC.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1DPAMZT | -2.84 | -1.74 | -0.76 | 0.03 | 0.84 | 1.35 | 2.01 |
| PITCH | -1.471 | -0.121 | 0.152 | 0.228 | 0.282 | 0.300 | 1.606 |
| TSCPOS | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.84 | 2.00 |
| 1DPAMZT | 99 | 2.01 | 2.00 |

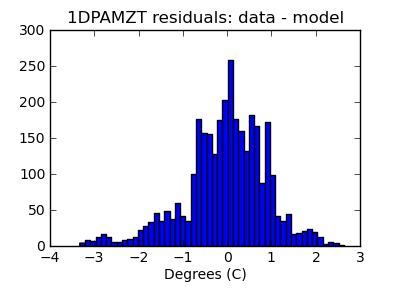

1DPAMZT
Note: DPA residual histograms include only points where 1DPAMZT > 20 degC.
Red = telemetry, blue = model

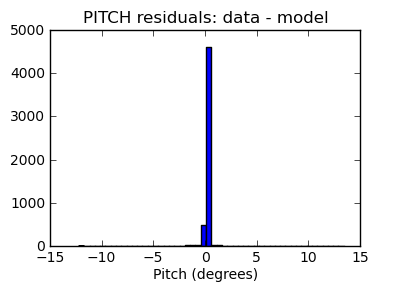

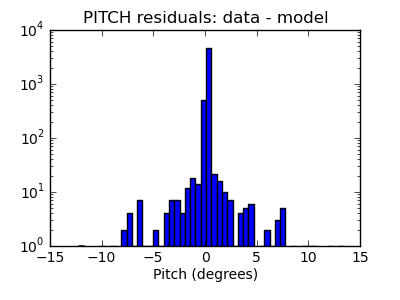

PITCH
Note: DPA residual histograms include only points where 1DPAMZT > 20 degC.
Red = telemetry, blue = model

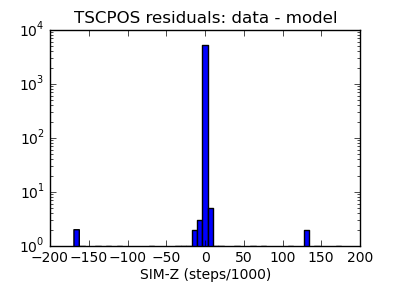

TSCPOS
Note: DPA residual histograms include only points where 1DPAMZT > 20 degC.
Red = telemetry, blue = model
