DPA Temperatures Check
Summary
| Date start | 2026:144:21:49:00.916 |
| Date stop | 2026:151:22:30:10.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY2526/oflsa |
| Run time | Thu May 21 07:07:24 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:147:10:15:06.643 | 2026:147:10:15:17.634 | 0.01 | 12.01 / 13.00 |
| 2026:151:13:31:21.742 | 2026:151:13:31:29.474 | 0.01 | 12.16 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.47 | -2.23 | -1.51 | -0.13 | 0.48 | 0.89 | 1.39 |
| pitch | -8.282 | -0.443 | -0.004 | -0.000 | 0.004 | 0.190 | 11.205 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.968 | -0.096 | -0.005 | -0.000 | 0.005 | 0.103 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.47 | 2.00 |
| PITCH | 1 | -8.282 | 3.00 |
| PITCH | 99 | 11.205 | 3.00 |

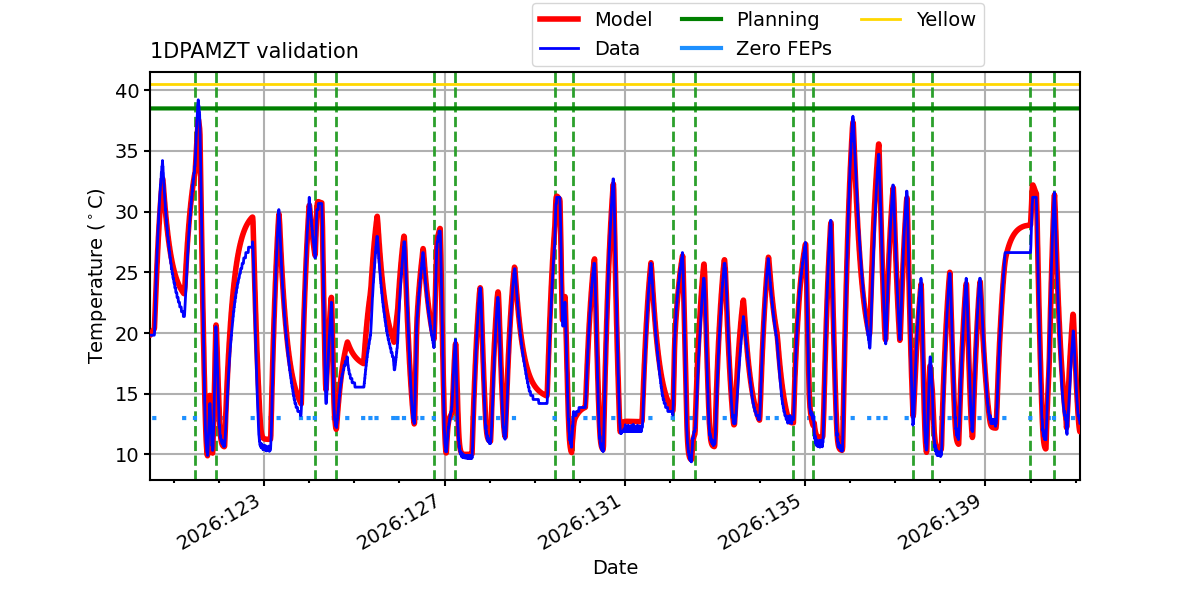

1DPAMZT

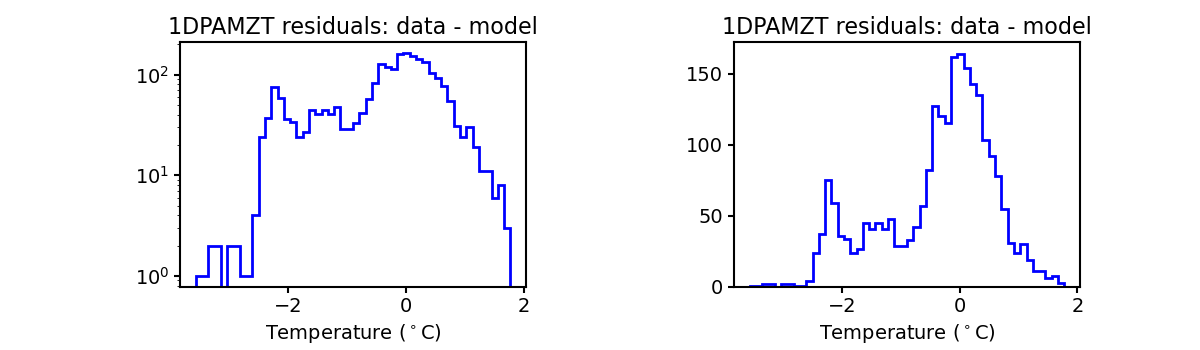

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

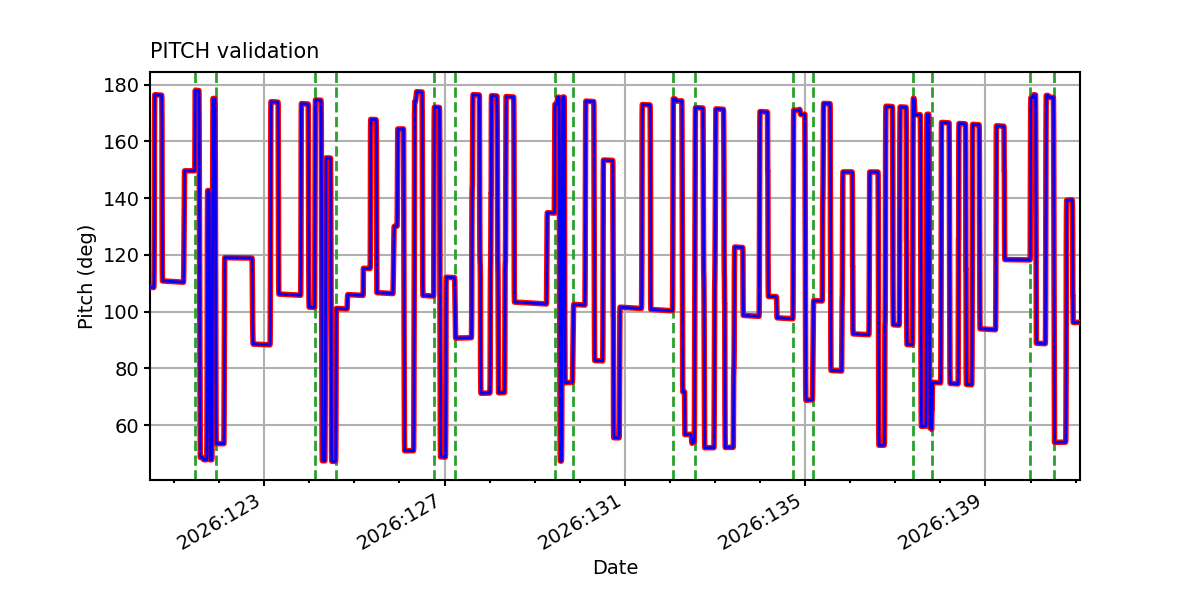

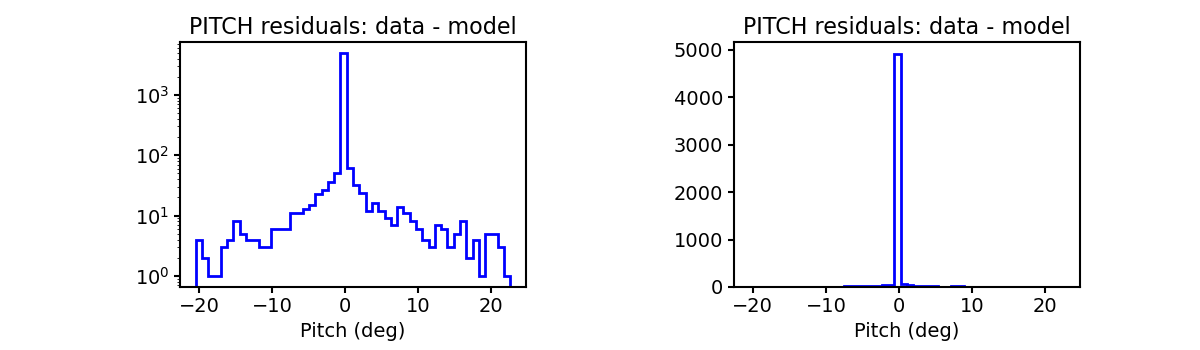

PITCH

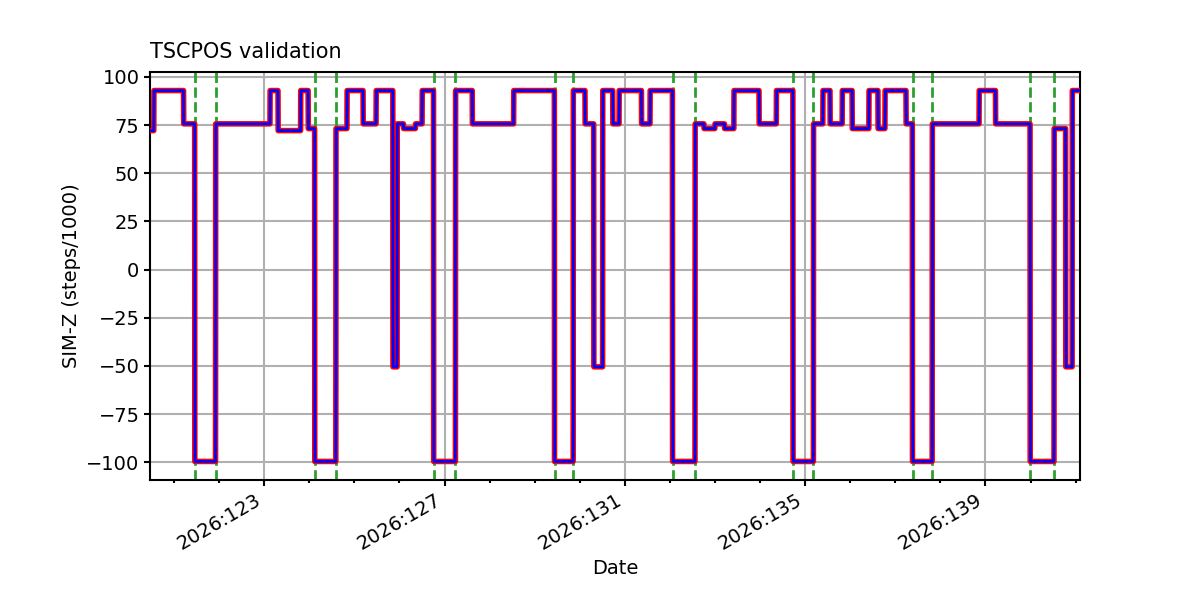

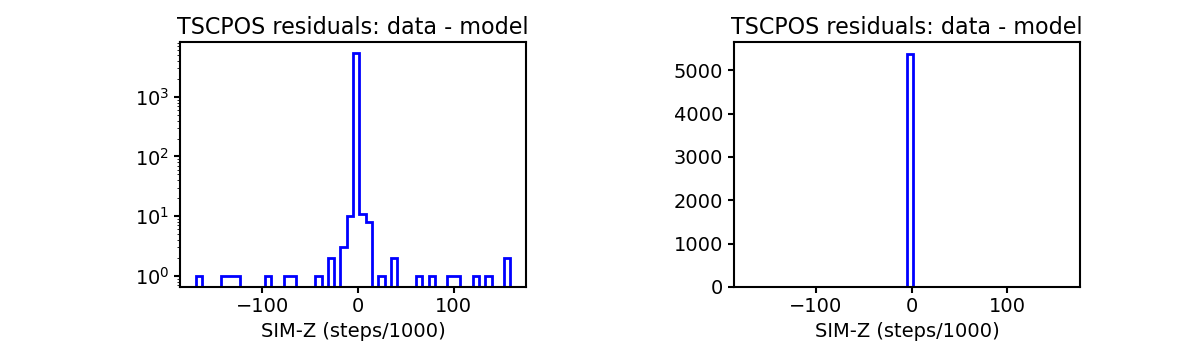

TSCPOS

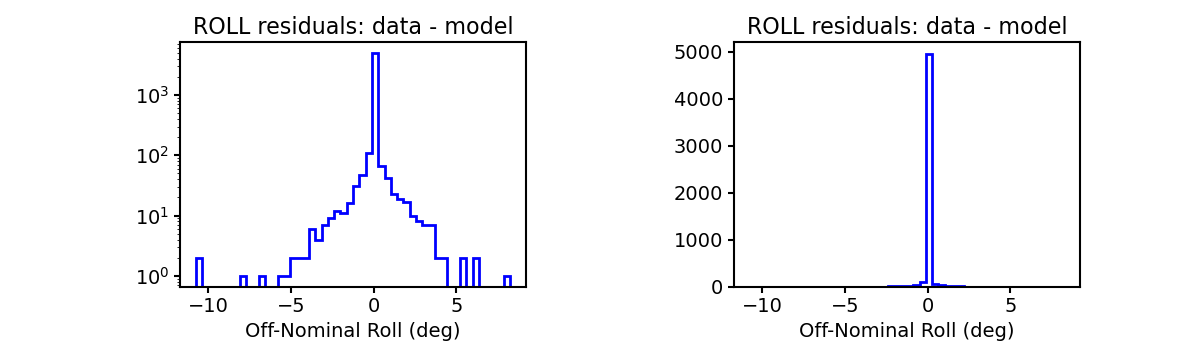

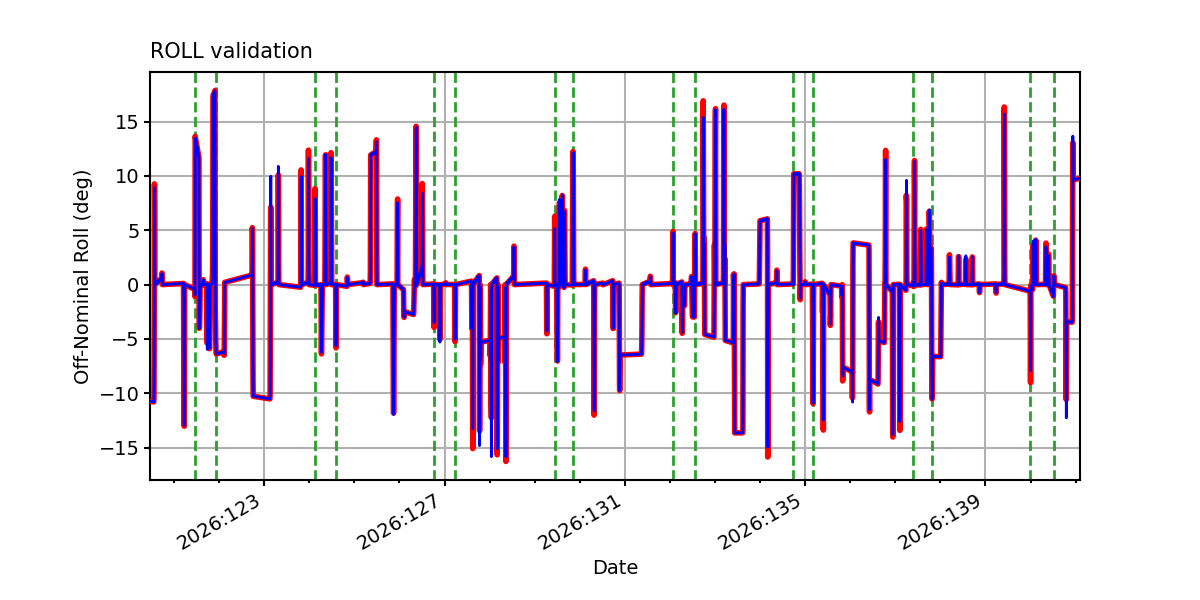

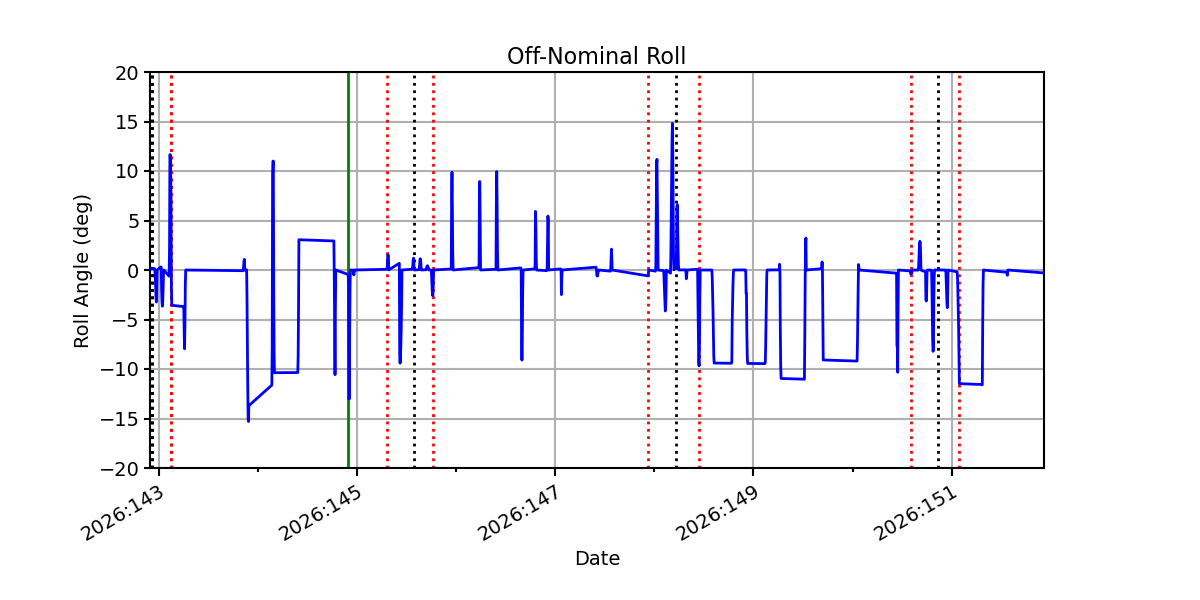

ROLL

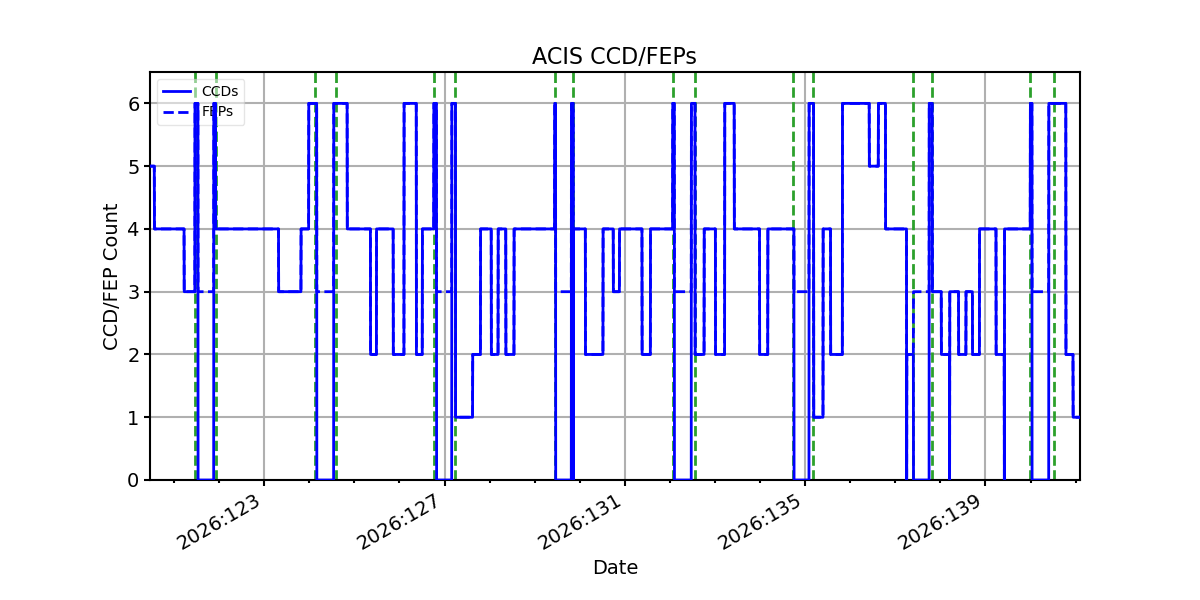

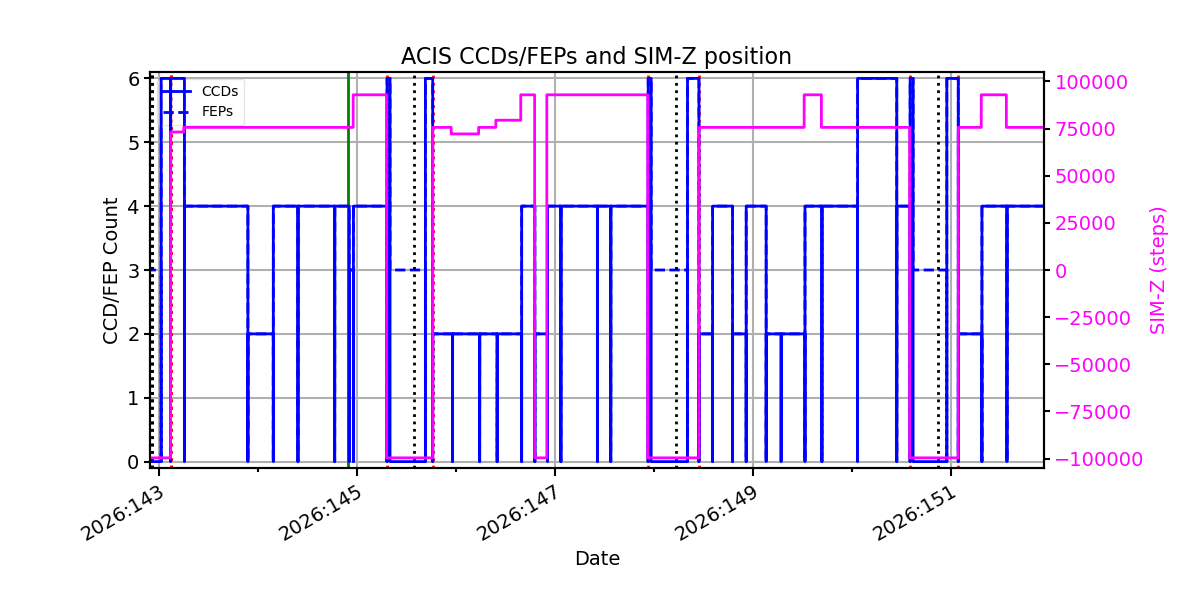

ACIS CCD/FEP Count
