DPA Temperatures Check
Summary
| Date start | 2025:146:01:40:21.716 |
| Date stop | 2025:152:23:54:14.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY2625/ofls |
| Run time | Fri May 23 11:18:34 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

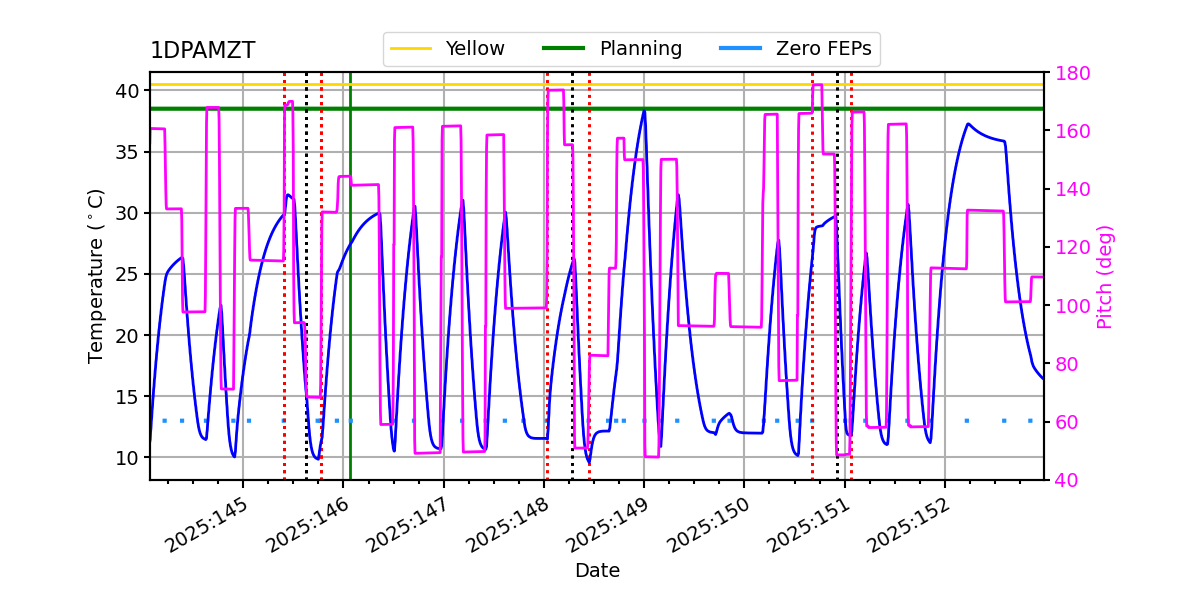

No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.66 | -2.29 | -1.52 | -0.42 | 0.49 | 1.01 | 1.48 |
| pitch | -5.217 | -0.249 | -0.004 | 0.000 | 0.004 | 0.440 | 5.469 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.502 | -0.096 | -0.005 | 0.000 | 0.005 | 0.122 | 1.401 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.66 | 2.00 |
| PITCH | 1 | -5.217 | 3.00 |
| PITCH | 99 | 5.469 | 3.00 |

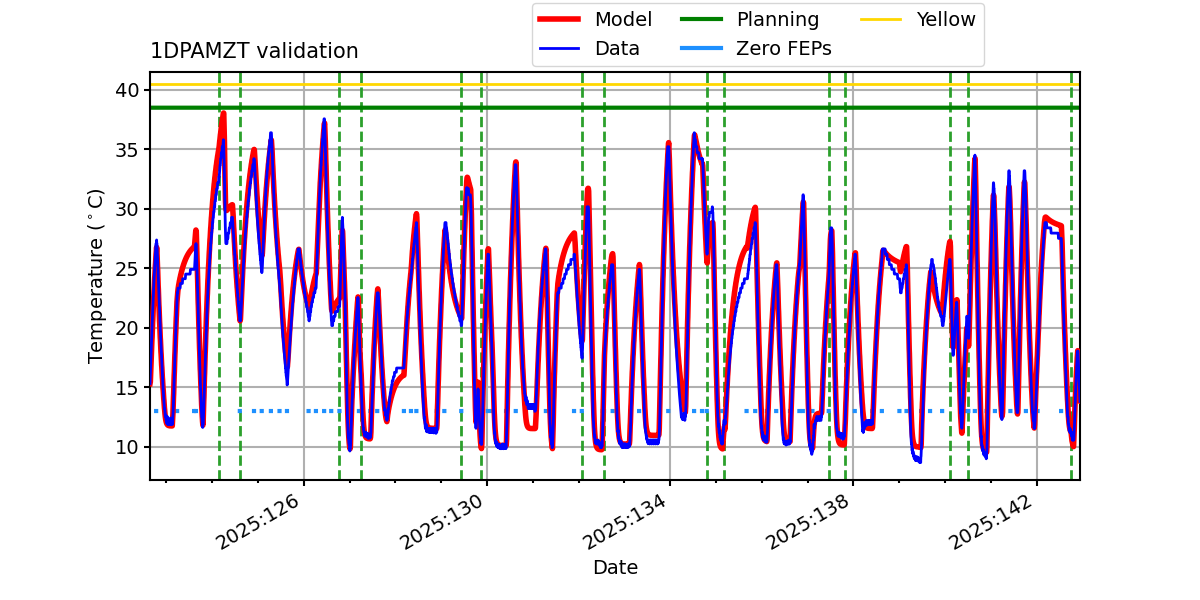

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

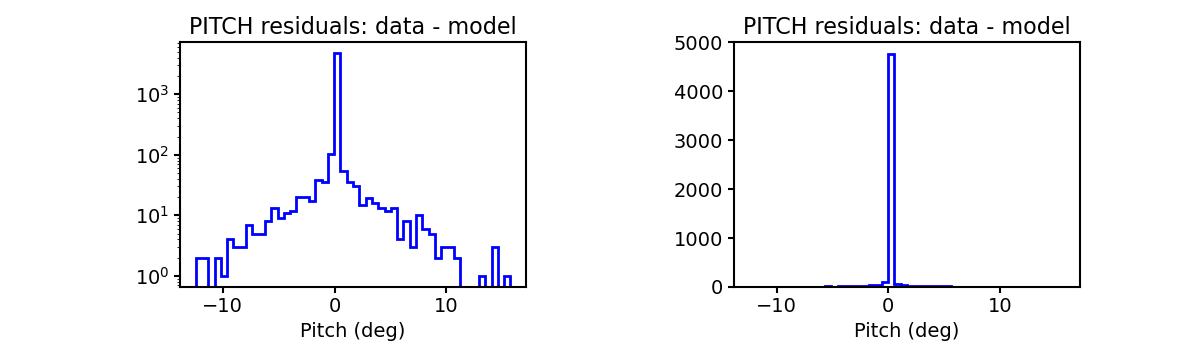

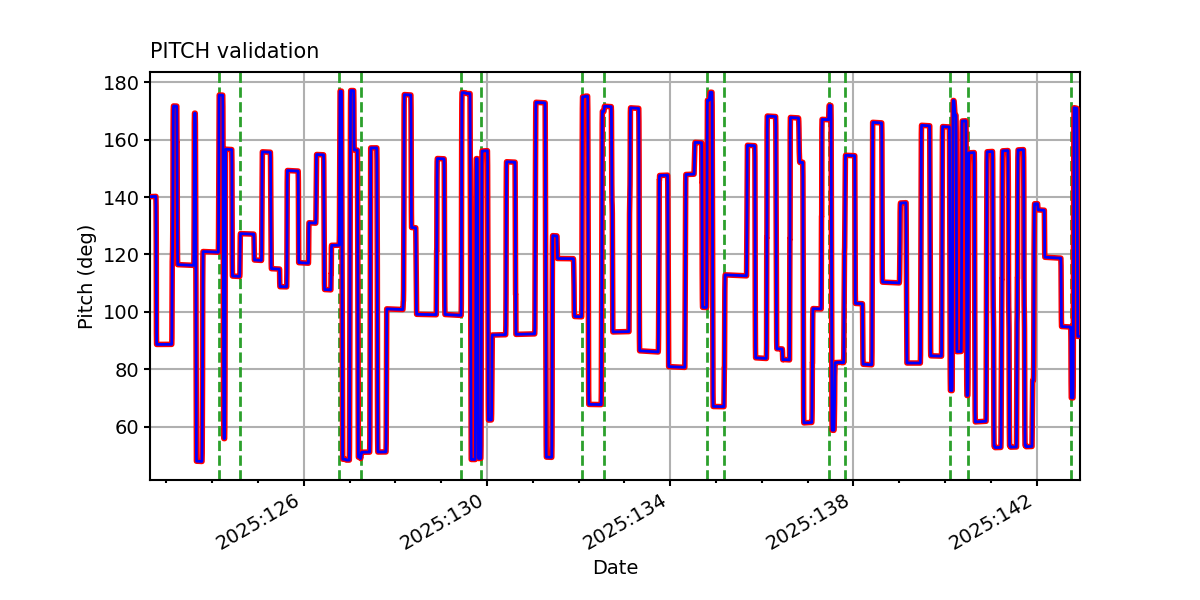

PITCH

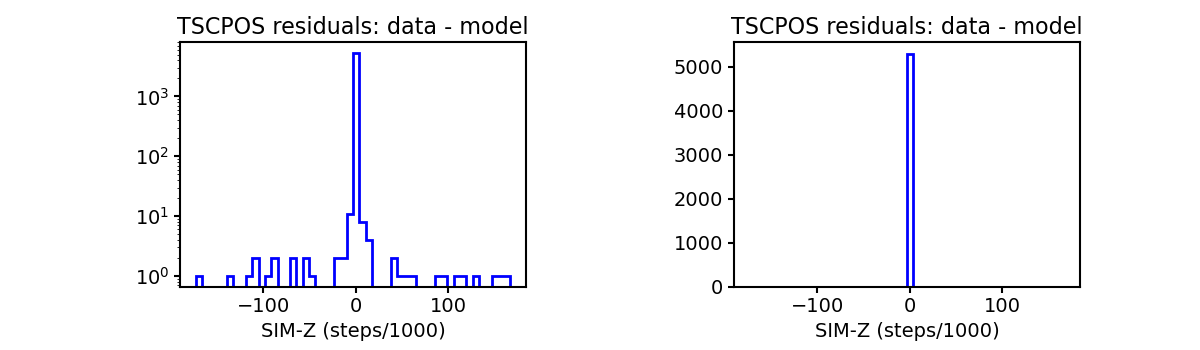

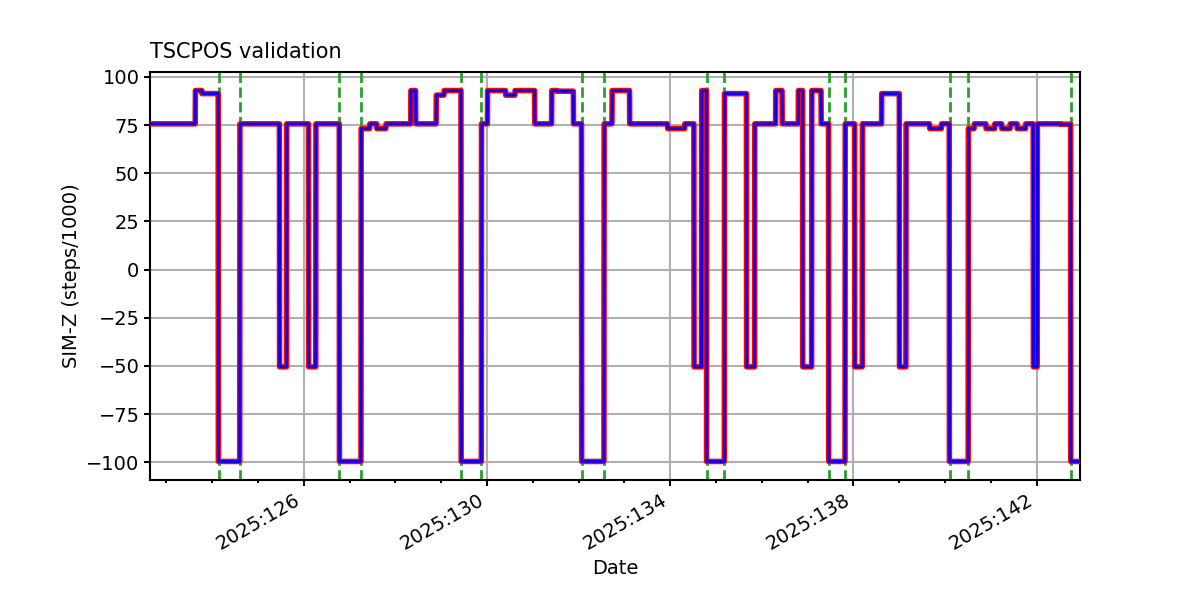

TSCPOS

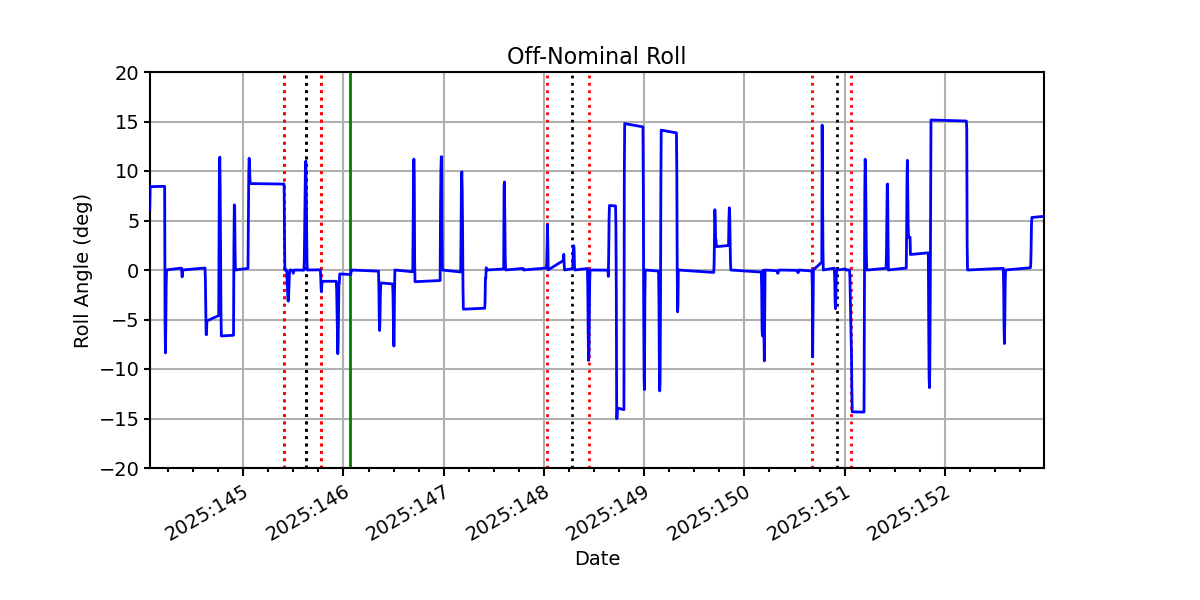

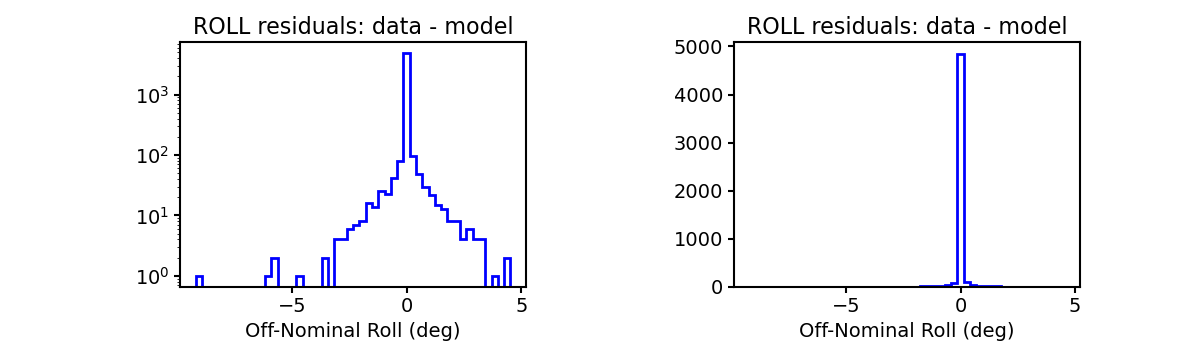

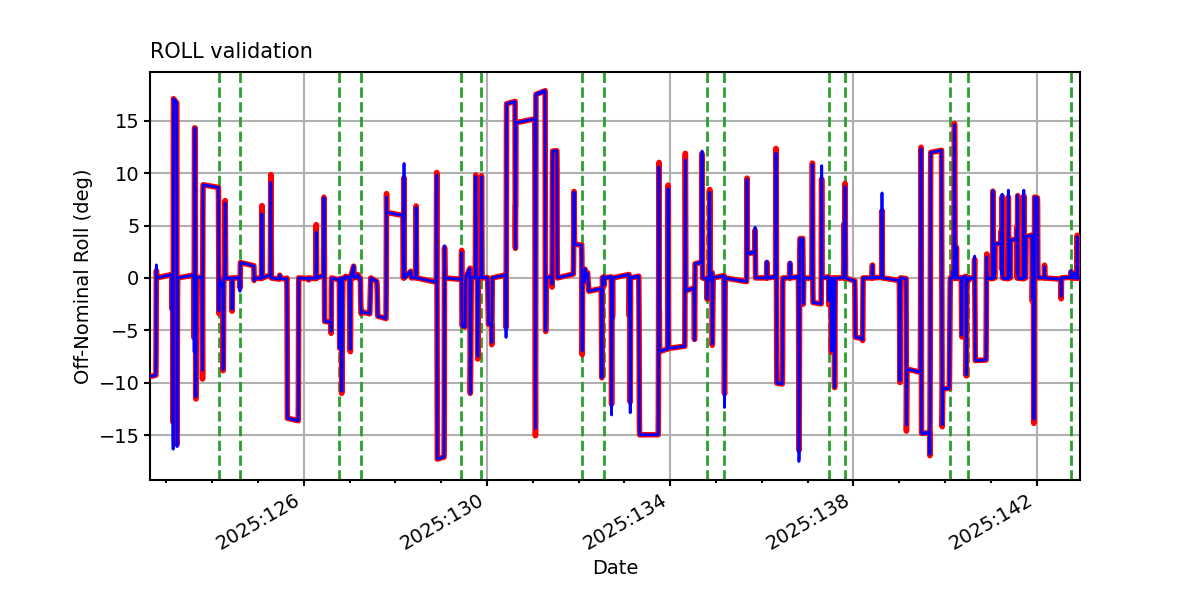

ROLL

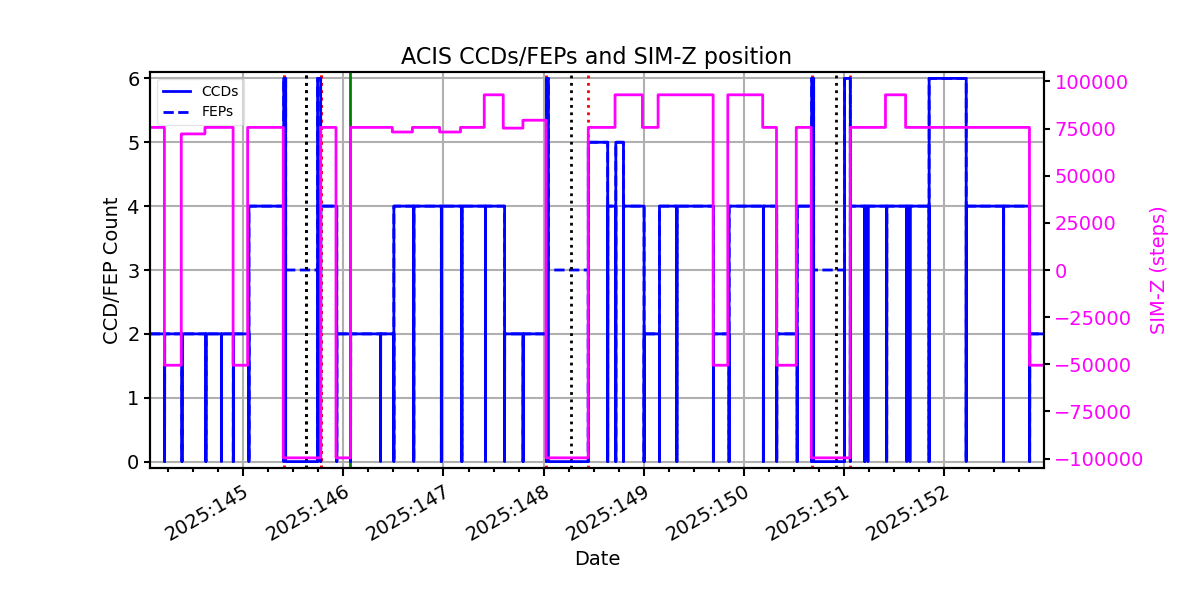

ACIS CCD/FEP Count
