DPA Temperatures Check
Summary
| Date start | 2025:306:16:59:00.016 |
| Date stop | 2025:314:01:32:52.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0325/oflsa |
| Run time | Thu Oct 30 14:29:22 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

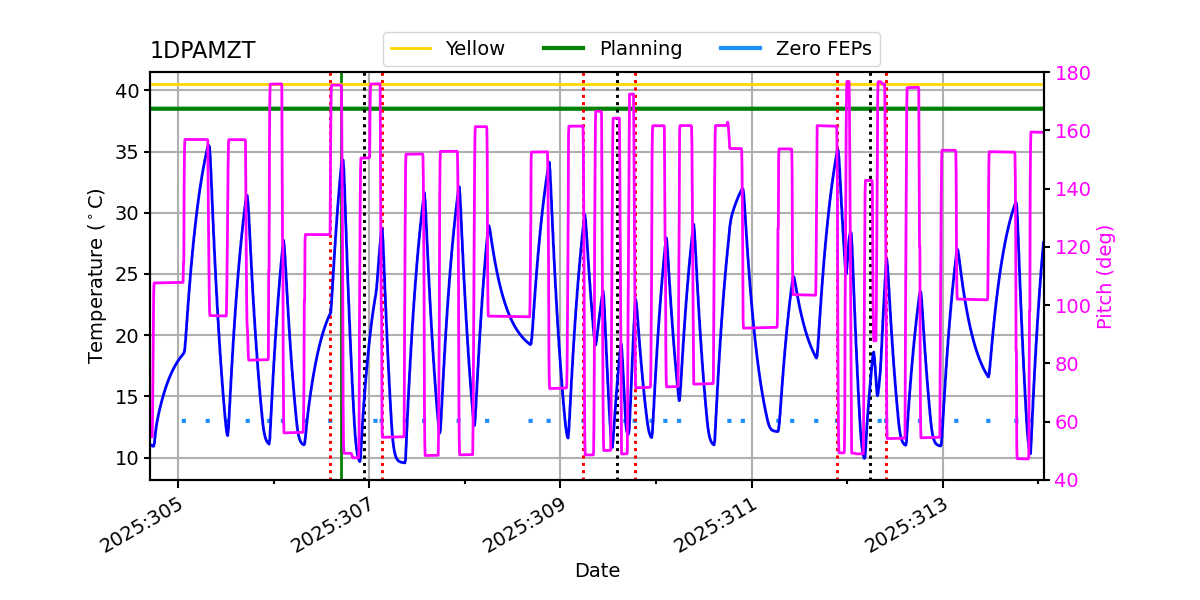

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:313:21:50:43.459 | 2025:313:21:50:54.816 | 0.01 | 10.42 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.15 | -1.69 | -1.14 | -0.32 | 0.59 | 1.06 | 1.29 |
| pitch | -13.315 | -1.019 | -0.004 | 0.000 | 0.004 | 1.013 | 12.770 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.769 | -0.151 | -0.009 | -0.000 | 0.009 | 0.163 | 1.625 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.15 | 2.00 |
| PITCH | 1 | -13.315 | 3.00 |
| PITCH | 99 | 12.77 | 3.00 |

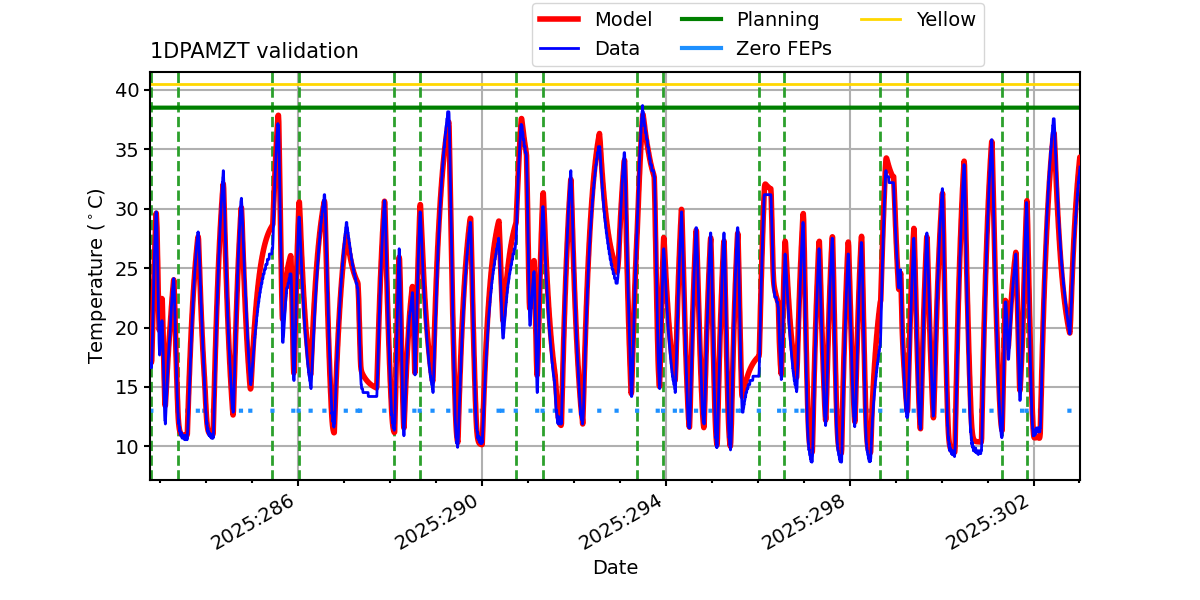

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

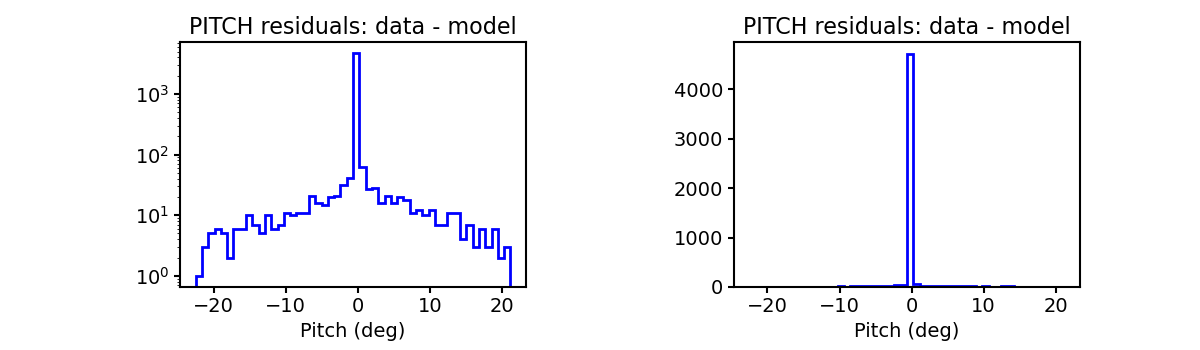

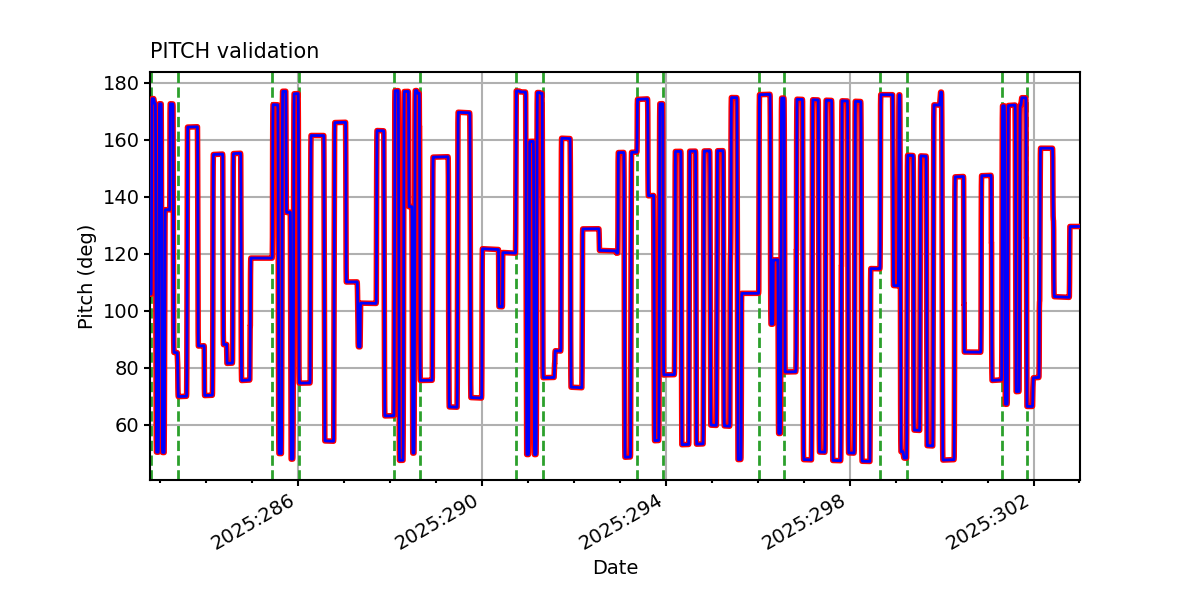

PITCH

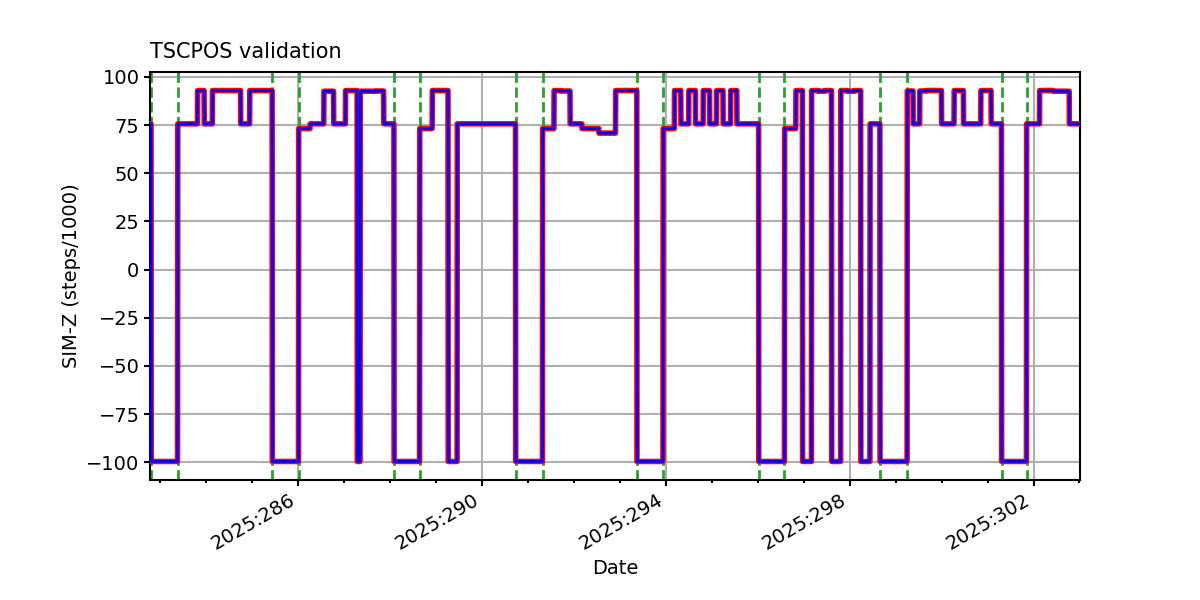

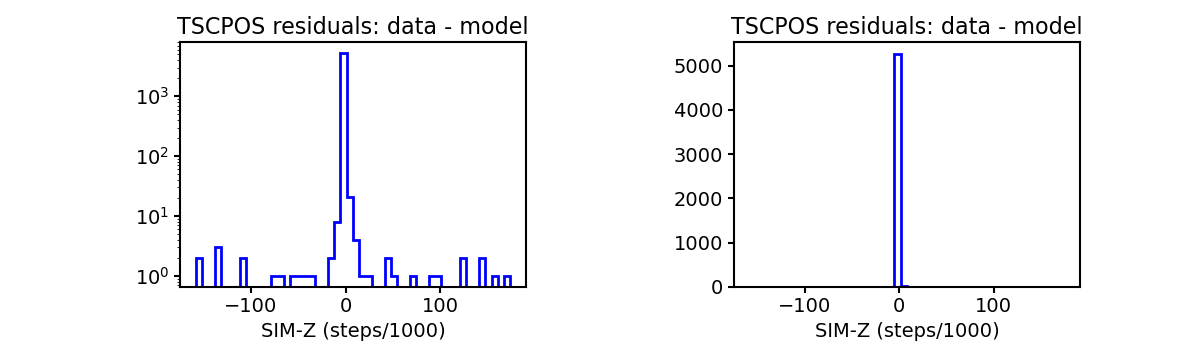

TSCPOS

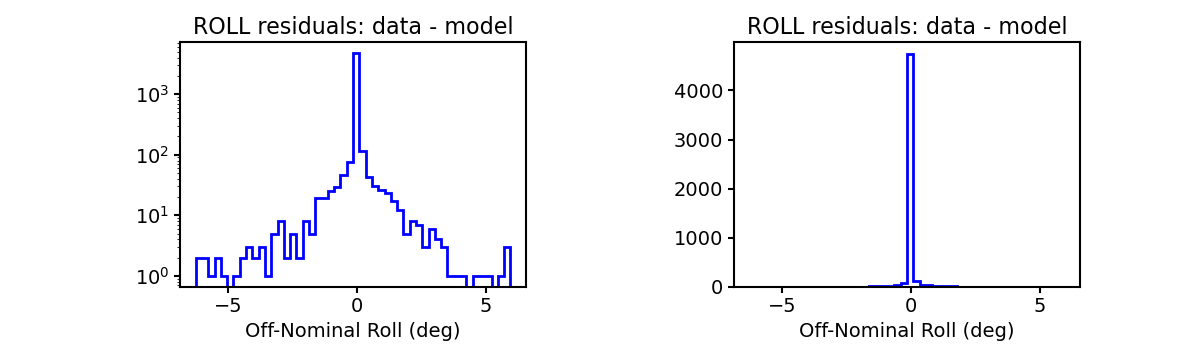

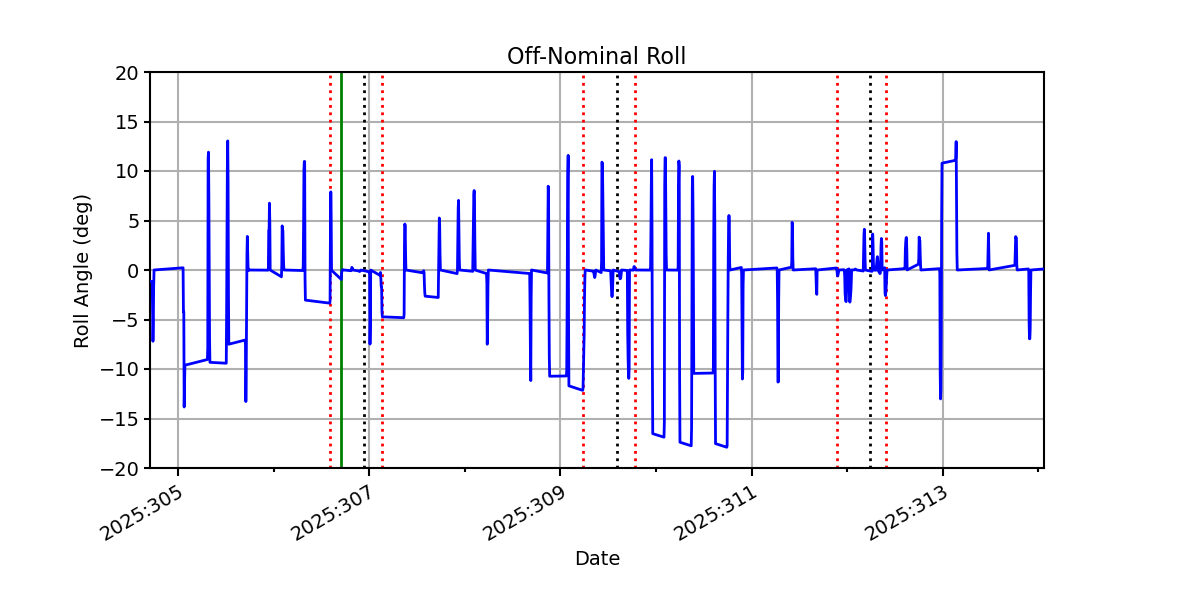

ROLL

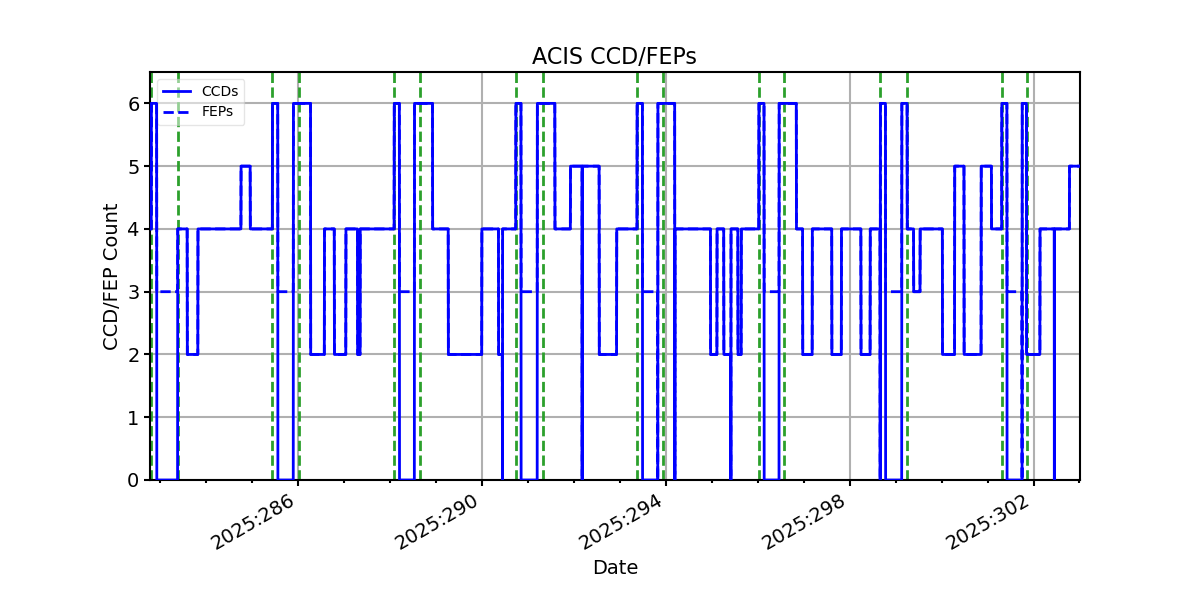

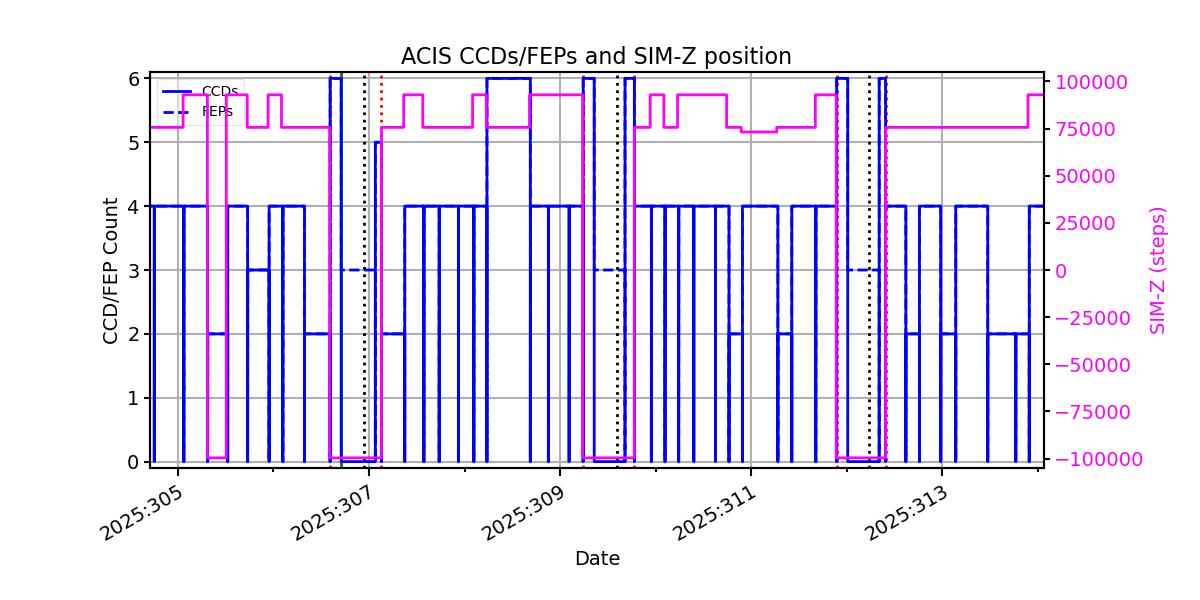

ACIS CCD/FEP Count
