DPA Temperatures Check
Summary
| Date start | 2025:312:17:45:00.016 |
| Date stop | 2025:320:22:47:28.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0825/oflsa |
| Run time | Wed Nov 5 15:28:49 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.20 | -1.58 | -1.07 | -0.25 | 0.62 | 1.01 | 1.26 |
| pitch | -12.400 | -0.906 | -0.004 | 0.000 | 0.004 | 0.526 | 11.230 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.956 | -0.138 | -0.008 | -0.000 | 0.007 | 0.142 | 1.746 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.2 | 2.00 |
| PITCH | 1 | -12.4 | 3.00 |
| PITCH | 99 | 11.23 | 3.00 |

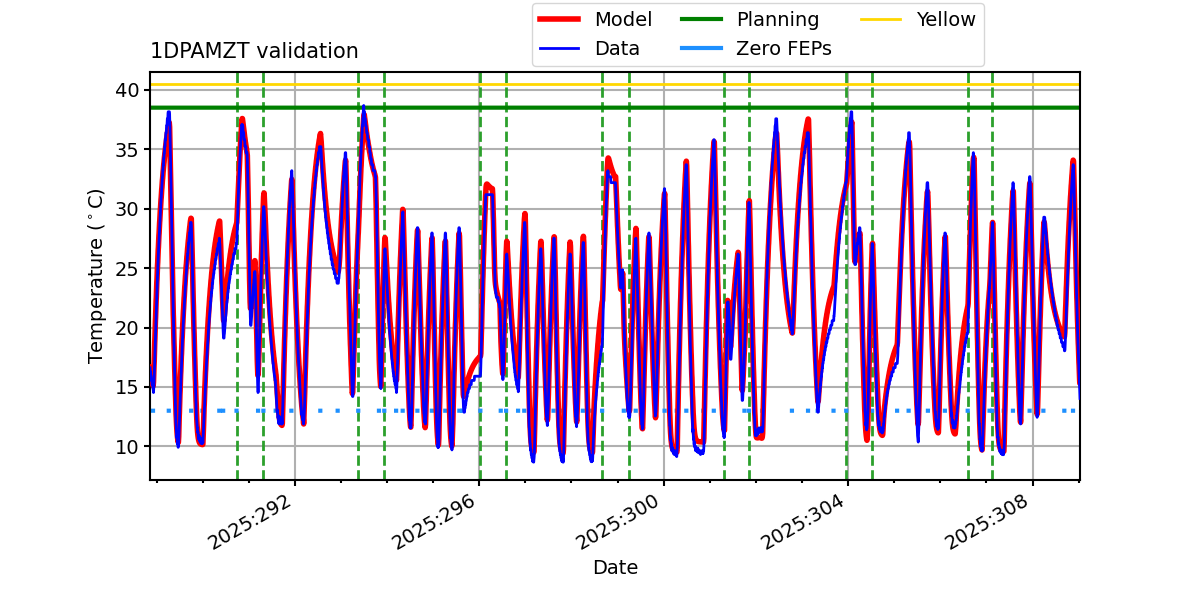

1DPAMZT

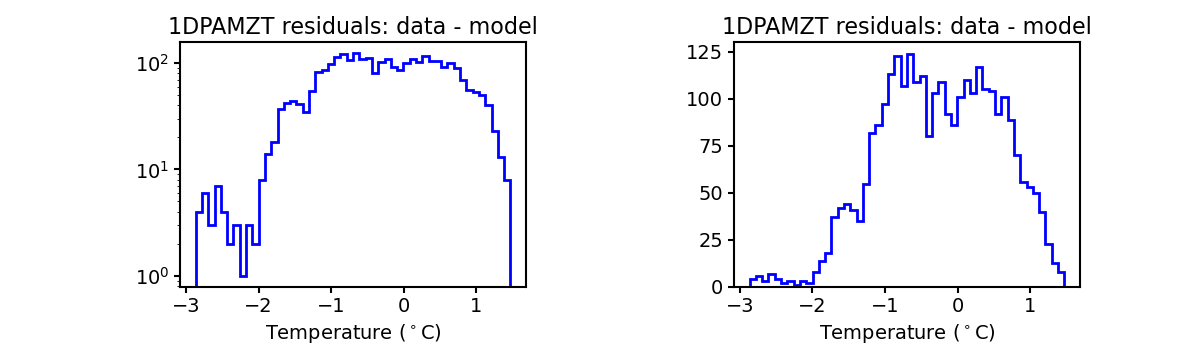

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

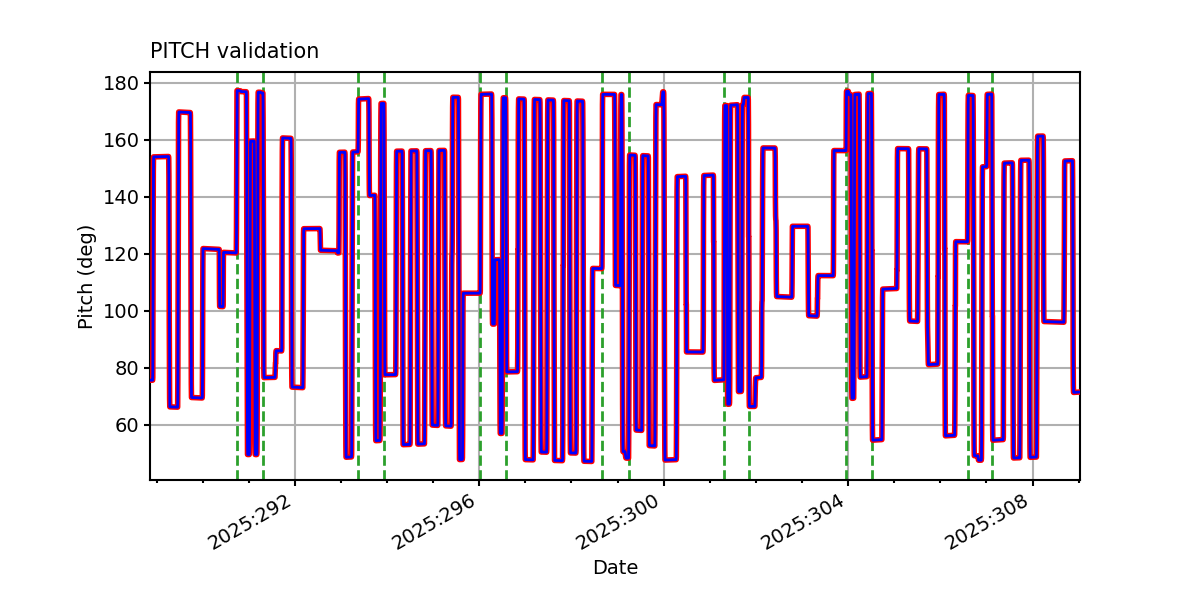

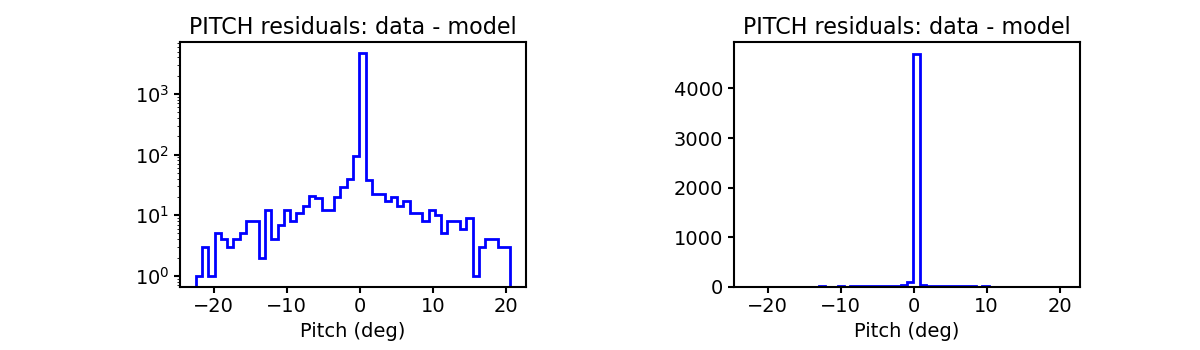

PITCH

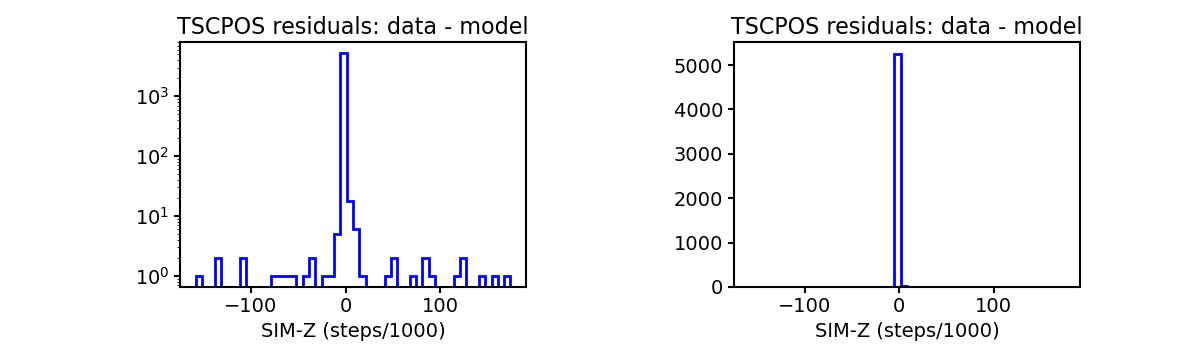

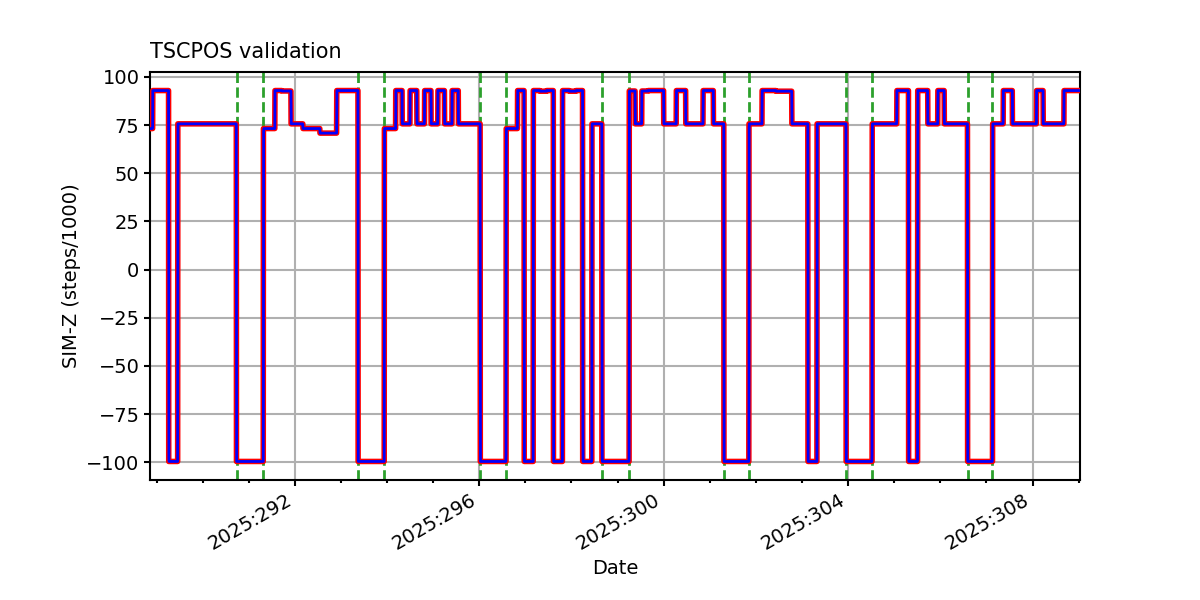

TSCPOS

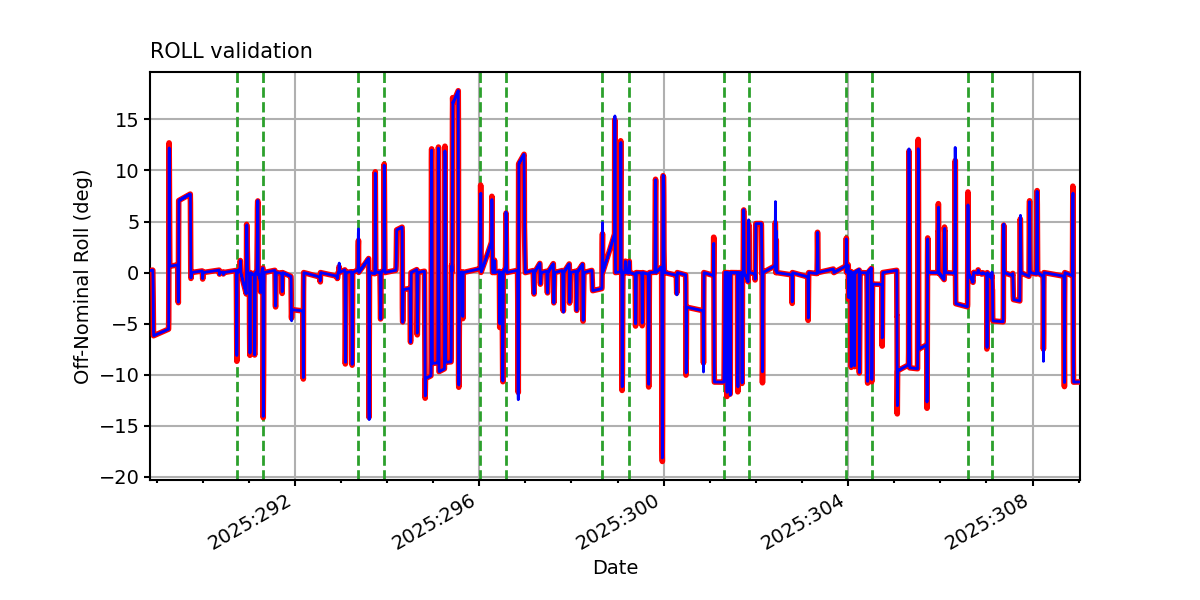

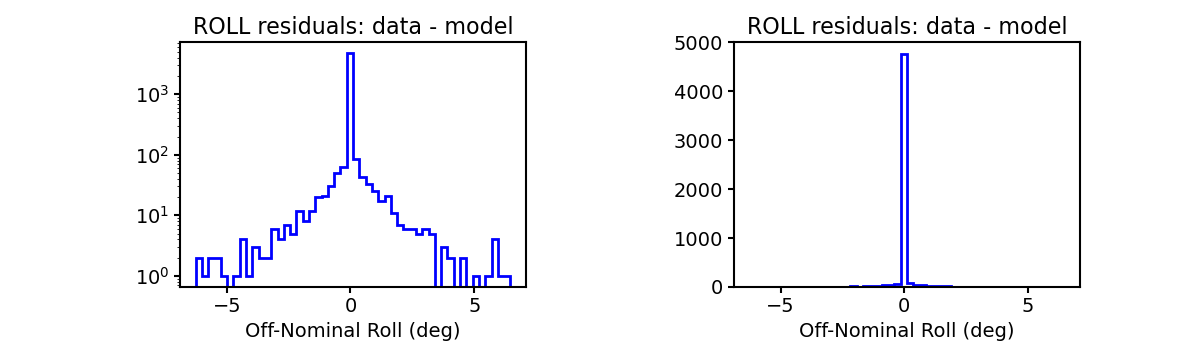

ROLL

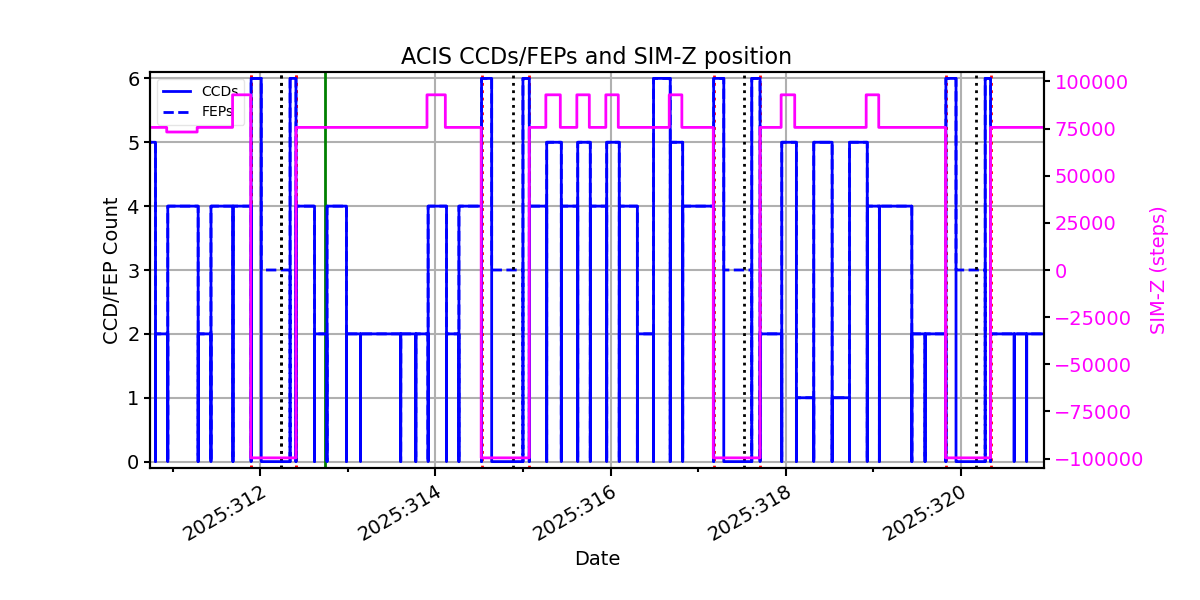

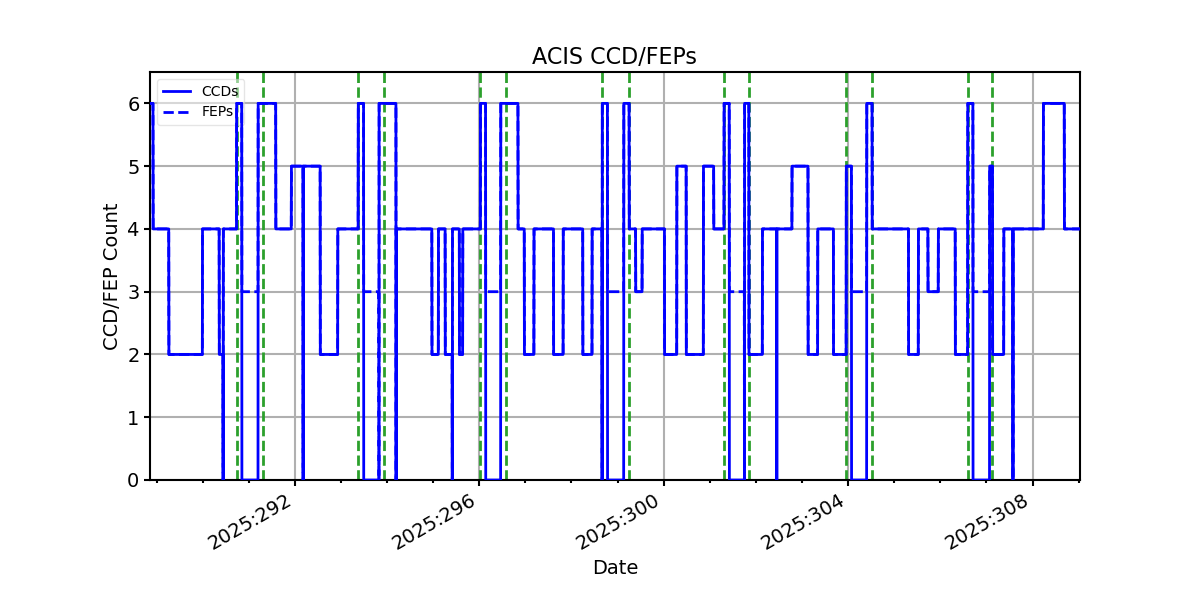

ACIS CCD/FEP Count
