DPA Temperatures Check
Summary
| Date start | 2025:327:21:03:00.016 |
| Date stop | 2025:335:01:22:35.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/NOV2425/oflsa |
| Run time | Wed Nov 19 21:04:14 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:334:01:41:06.585 | 2025:334:01:41:19.635 | 0.01 | 11.74 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.33 | -1.84 | -0.98 | 0.04 | 0.74 | 1.23 | 1.81 |
| pitch | -12.655 | -1.681 | -0.004 | 0.000 | 0.004 | 1.399 | 12.292 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.475 | -0.215 | -0.007 | -0.000 | 0.007 | 0.273 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.33 | 2.00 |
| PITCH | 1 | -12.655 | 3.00 |
| PITCH | 99 | 12.292 | 3.00 |

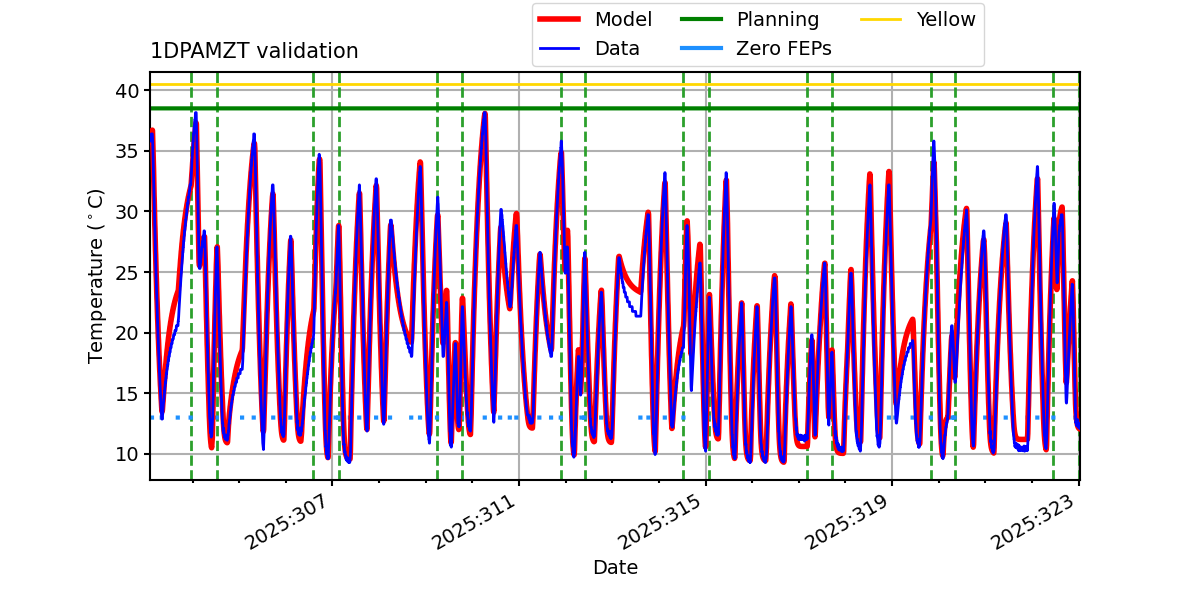

1DPAMZT

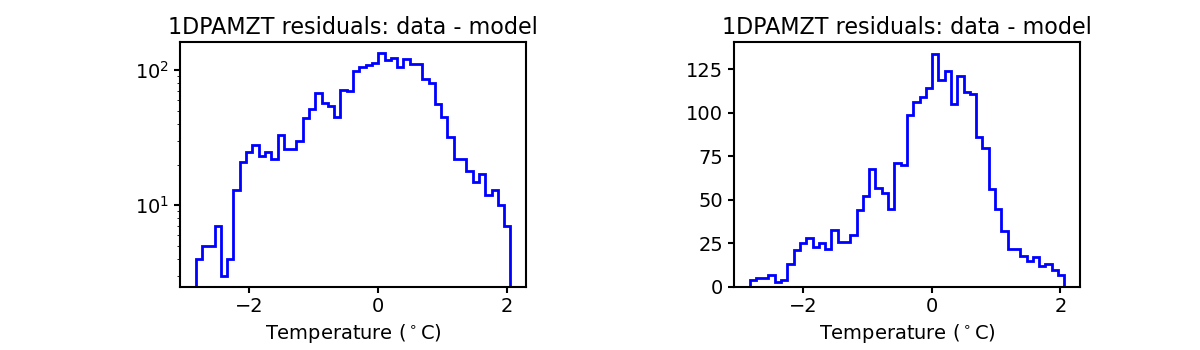

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

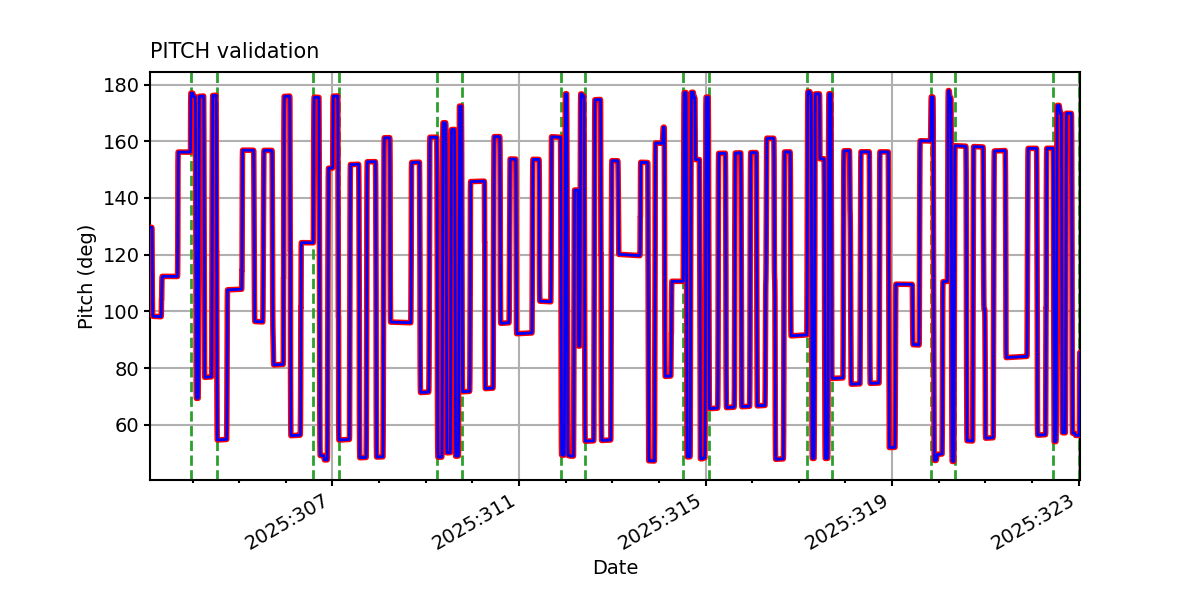

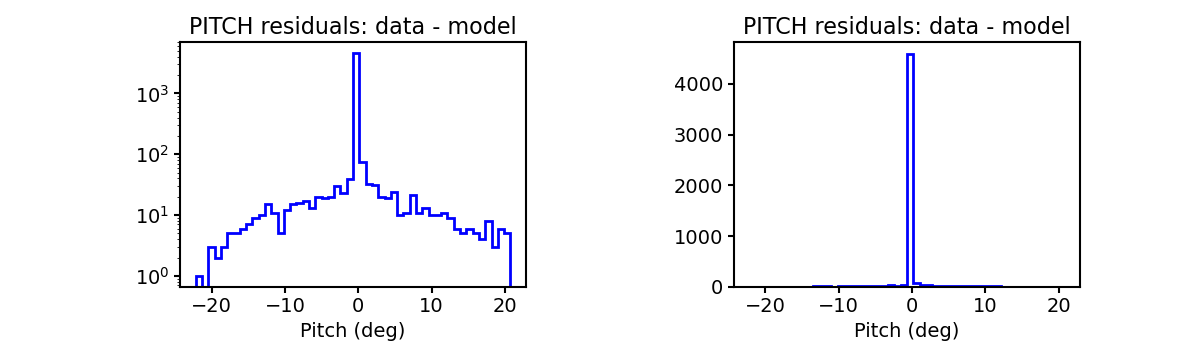

PITCH

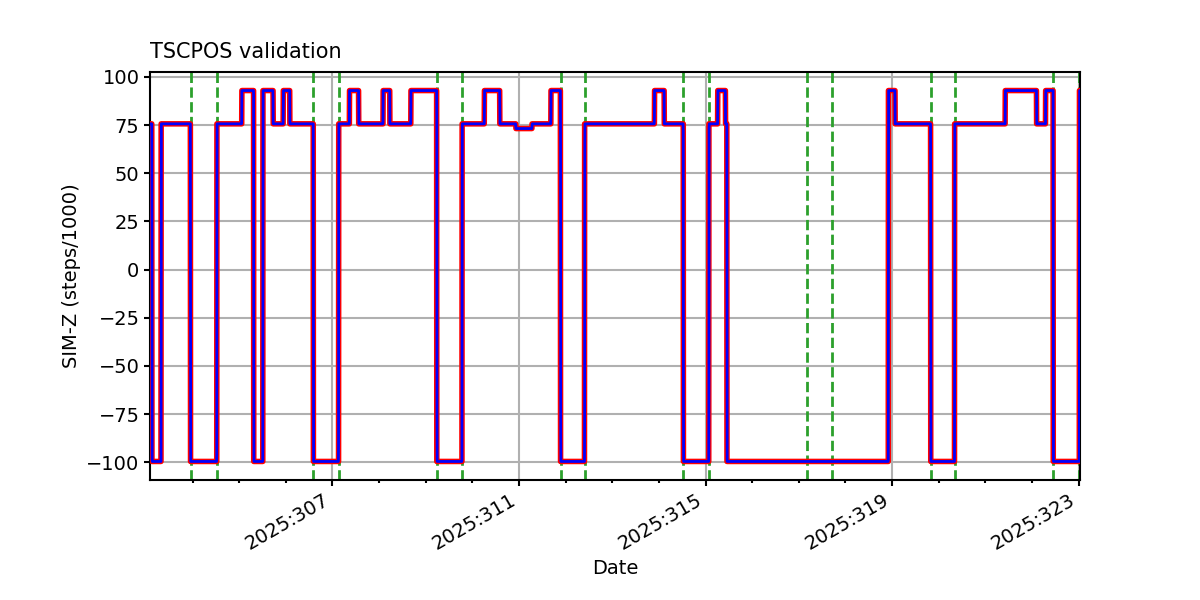

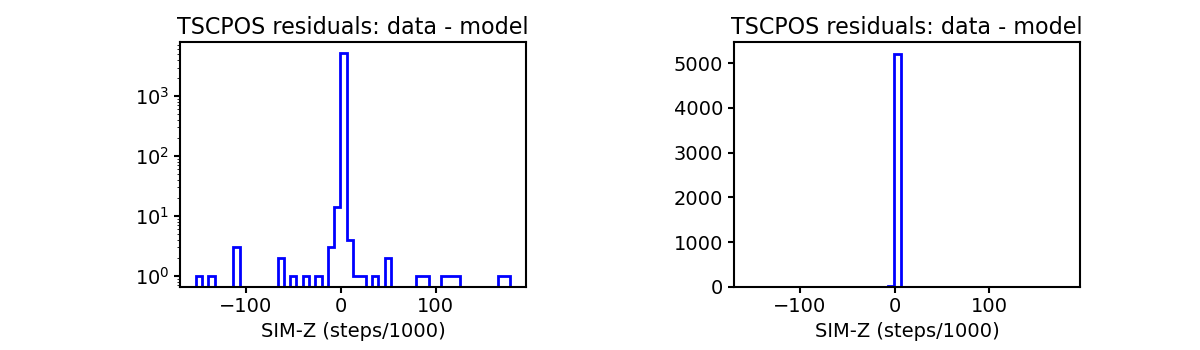

TSCPOS

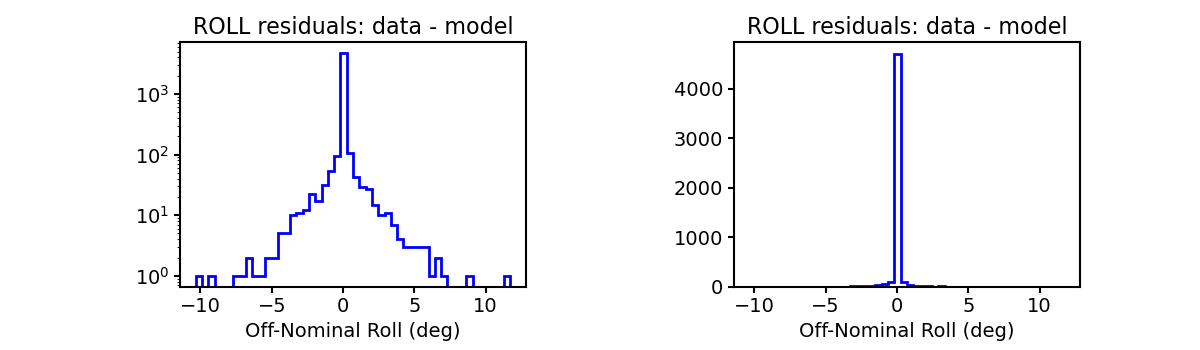

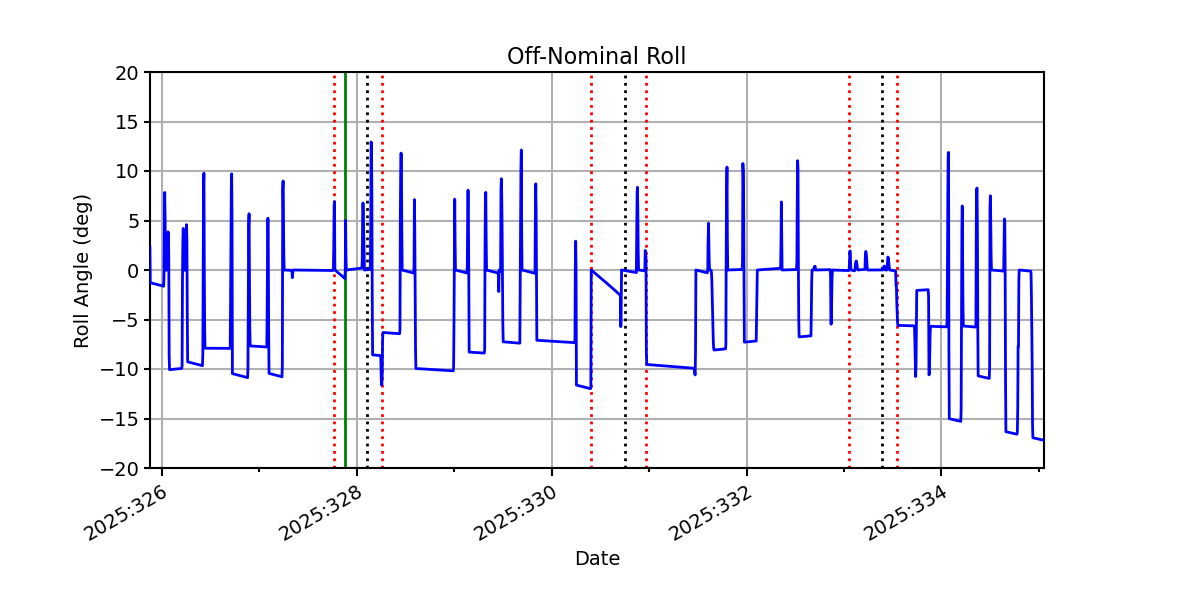

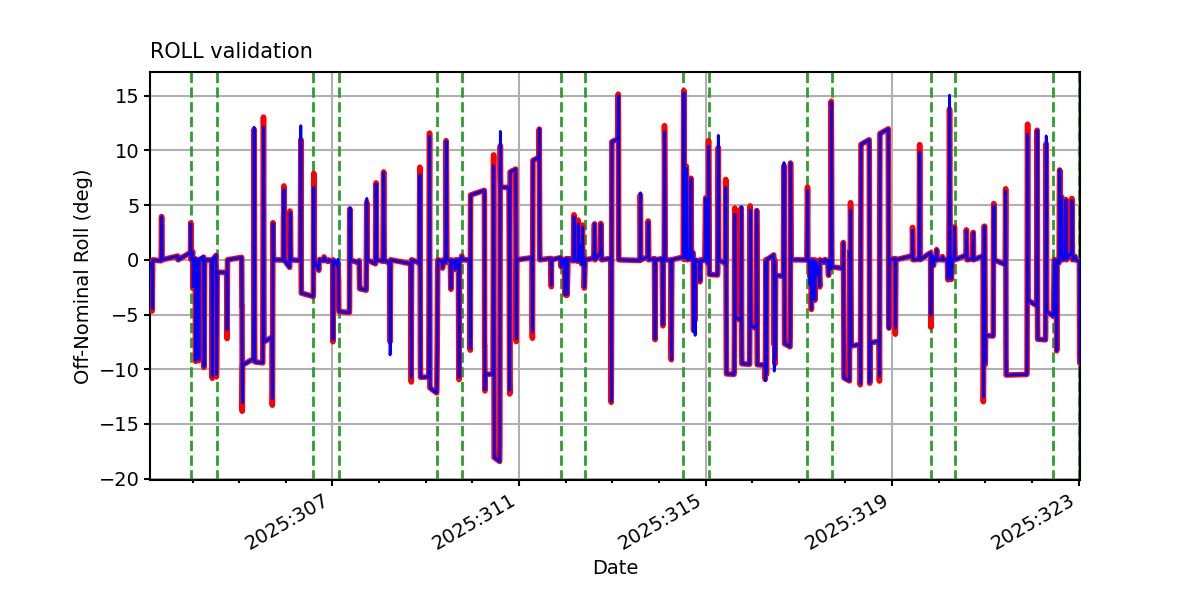

ROLL

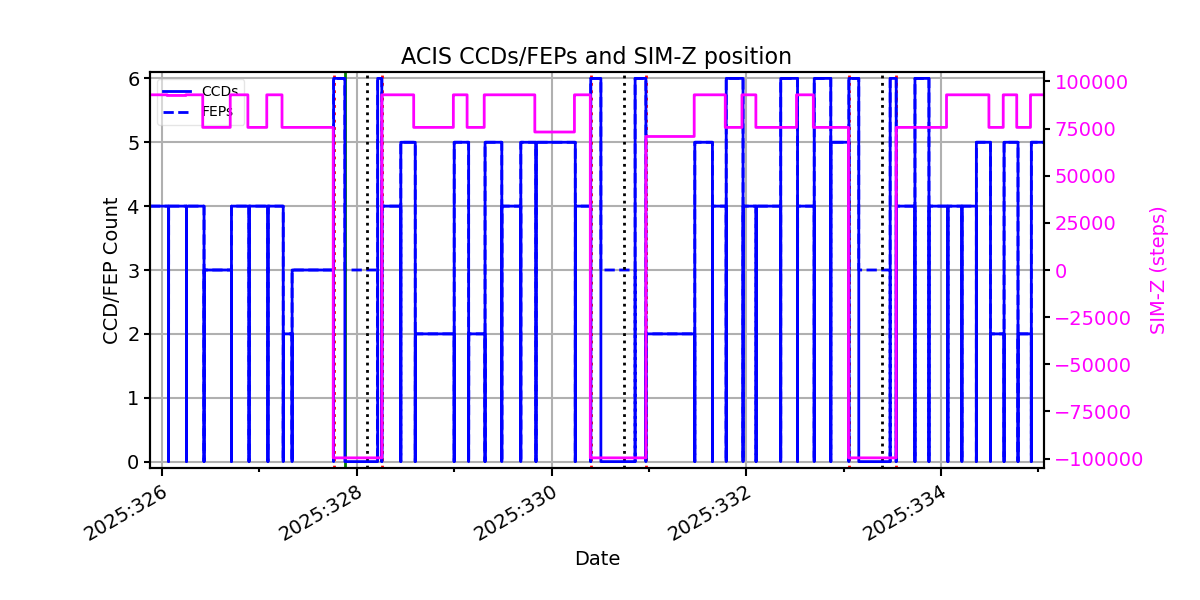

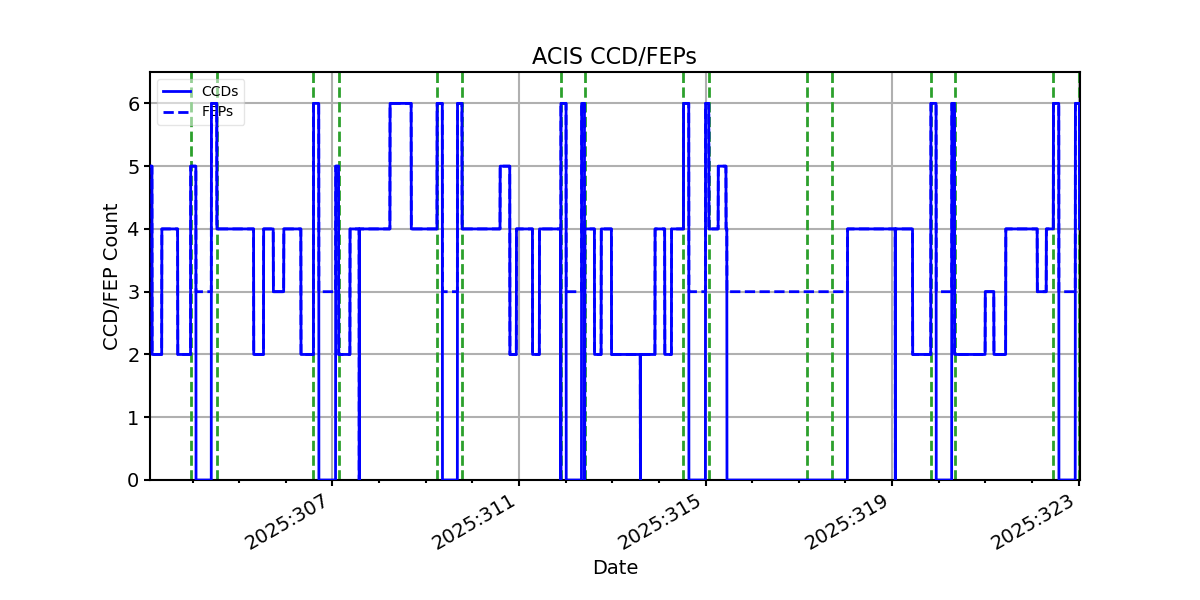

ACIS CCD/FEP Count
