DPA Temperatures Check
Summary
| Date start | 2026:277:13:10:00.016 |
| Date stop | 2026:284:19:12:22.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT0526/oflsa |
| Run time | Thu Oct 1 08:46:41 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

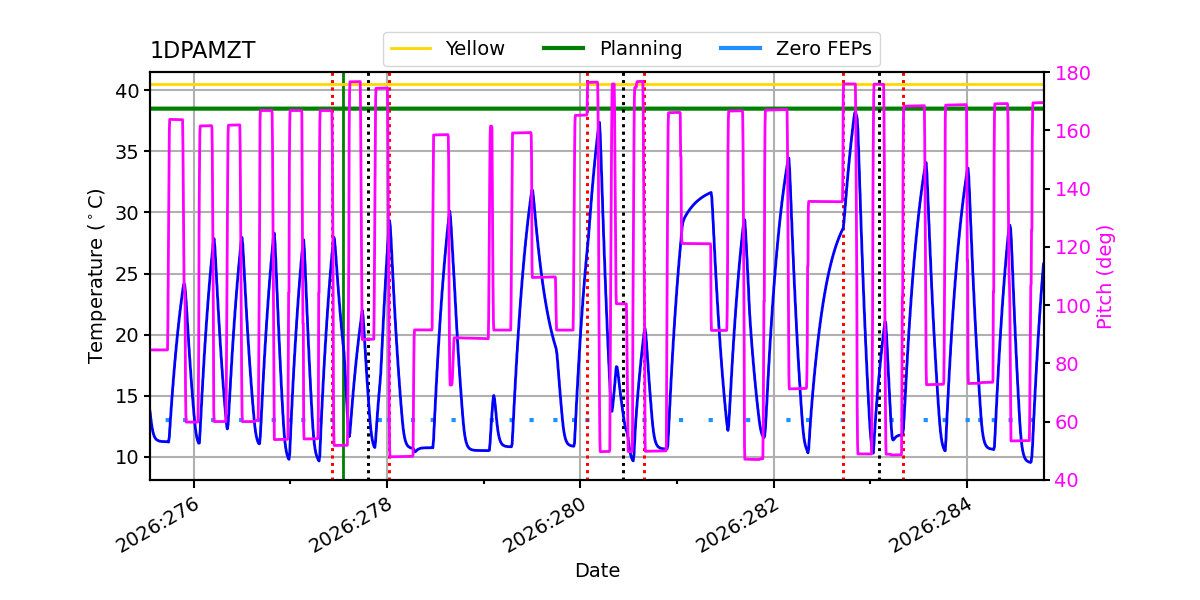

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:281:21:40:24.032 | 2026:281:21:40:41.159 | 0.02 | 11.65 / 13.00 |
| 2026:283:08:01:26.277 | 2026:283:08:01:43.369 | 0.02 | 11.88 / 13.00 |
| 2026:283:18:26:03.632 | 2026:283:18:26:12.312 | 0.01 | 10.51 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.69 | -1.31 | -0.81 | 0.16 | 0.83 | 1.41 | 1.96 |
| pitch | -12.048 | -1.672 | -0.004 | -0.000 | 0.004 | 1.769 | 12.896 |
| tscpos | -303 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.106 | -0.273 | -0.010 | 0.000 | 0.010 | 0.250 | 1.801 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.048 | 3.00 |
| PITCH | 99 | 12.896 | 3.00 |
| TSCPOS | 1 | -303.0 | 2.50 |

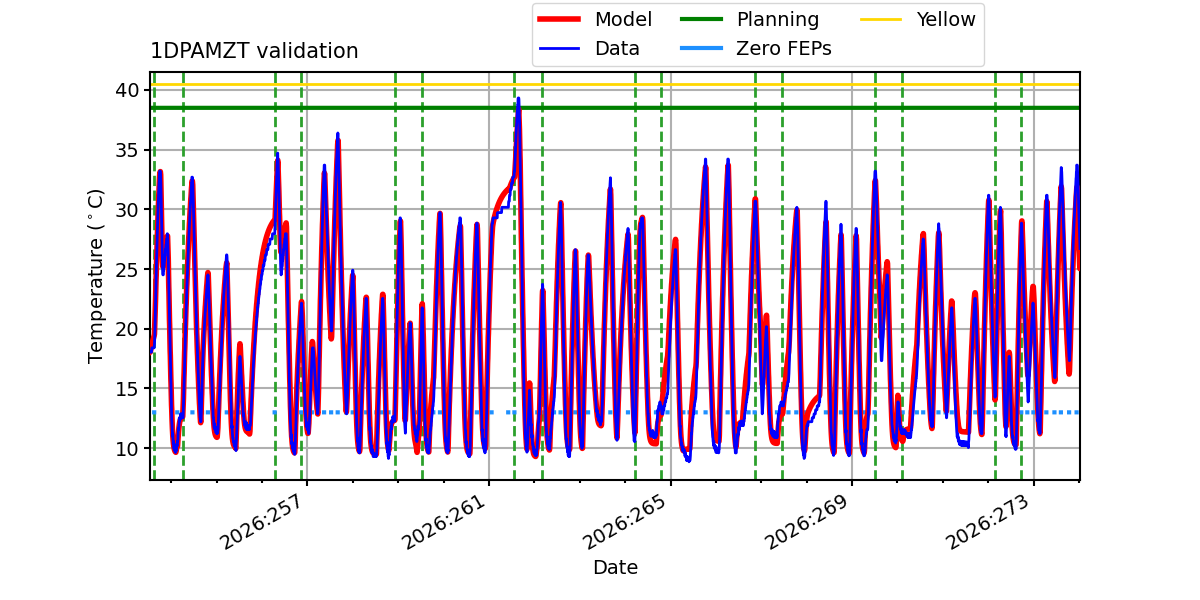

1DPAMZT

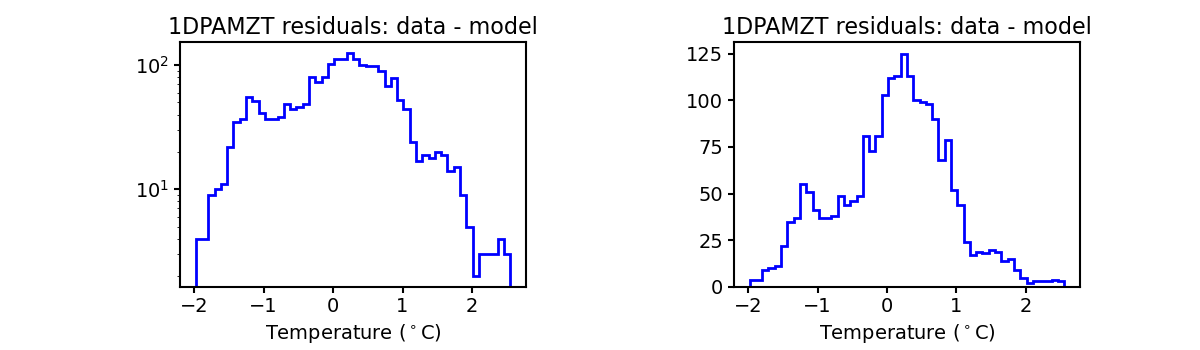

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

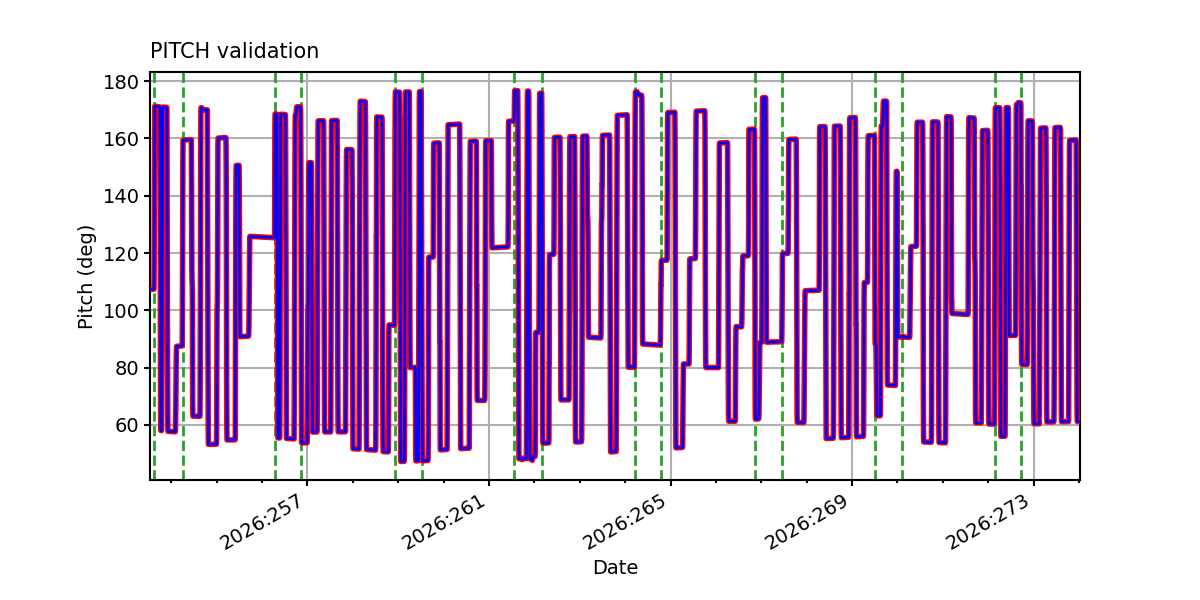

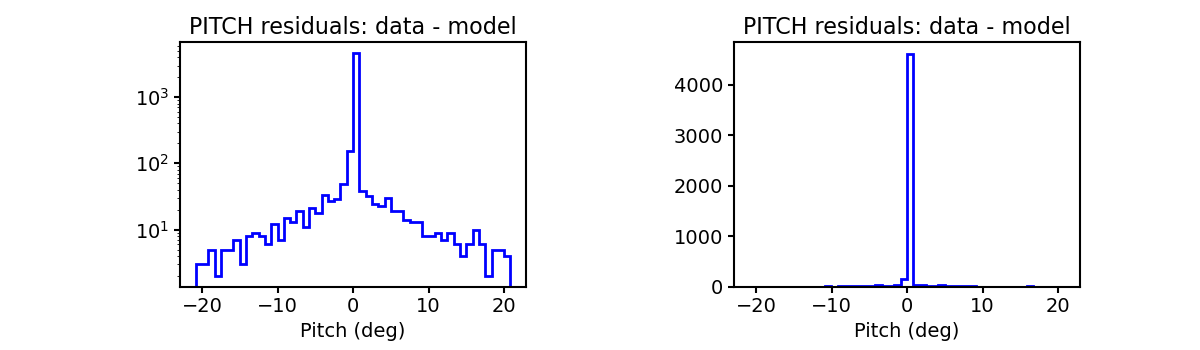

PITCH

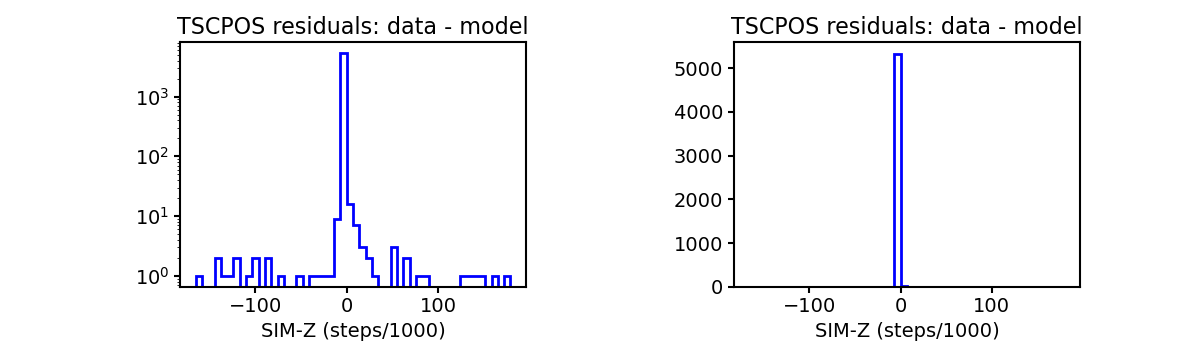

TSCPOS

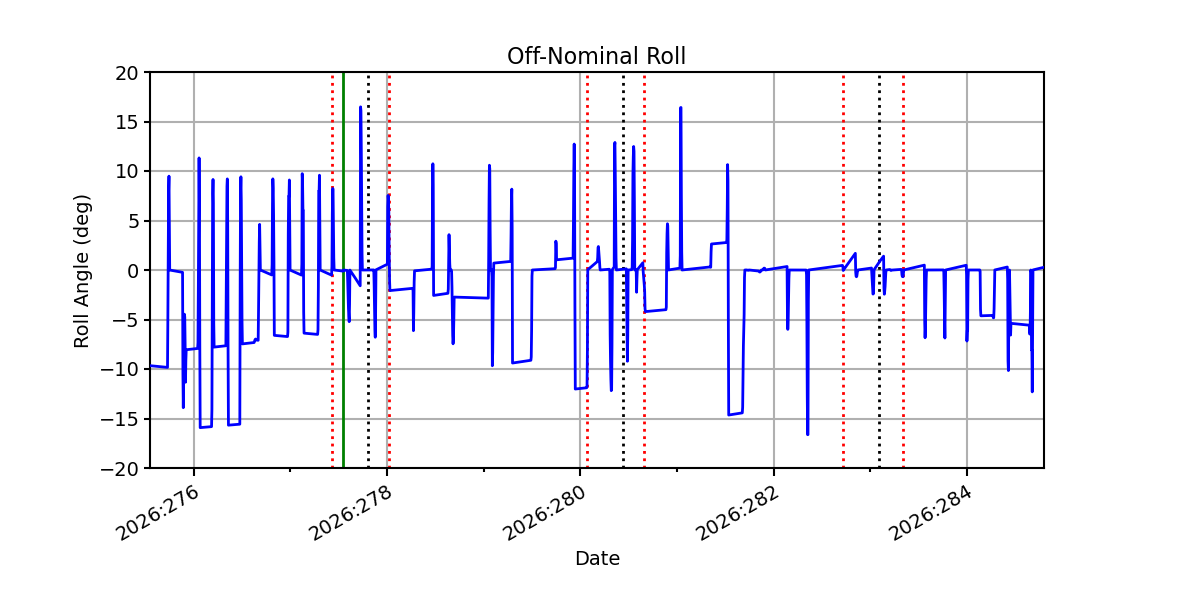

ROLL

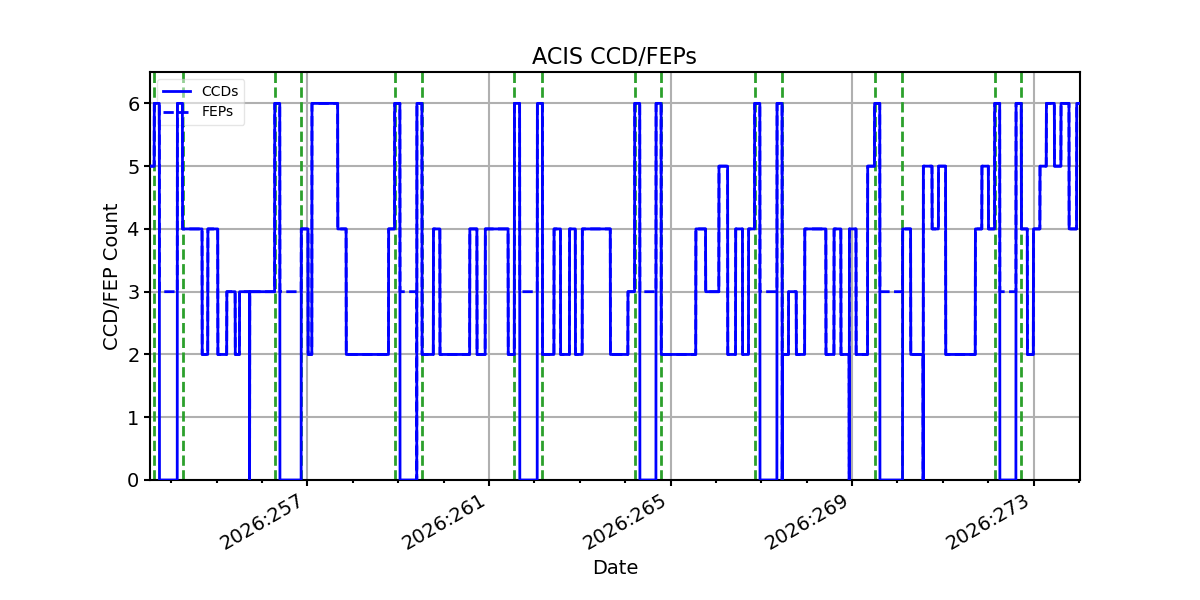

ACIS CCD/FEP Count
