DPA Temperatures Check
Summary
| Date start | 2026:284:19:09:22.016 |
| Date stop | 2026:291:23:52:06.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1226/oflsa |
| Run time | Thu Oct 8 08:14:30 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:286:02:40:18.401 | 2026:286:02:40:25.631 | 0.01 | 10.47 / 13.00 |
| 2026:289:18:23:04.011 | 2026:289:18:23:09.292 | 0.01 | 9.80 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.52 | -1.13 | -0.52 | 0.44 | 1.26 | 1.74 | 2.03 |
| pitch | -11.369 | -1.559 | -0.004 | -0.000 | 0.004 | 1.627 | 12.148 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.492 | -0.305 | -0.009 | 0.000 | 0.010 | 0.339 | 2.289 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 99 | 2.03 | 2.00 |
| PITCH | 1 | -11.369 | 3.00 |
| PITCH | 99 | 12.148 | 3.00 |

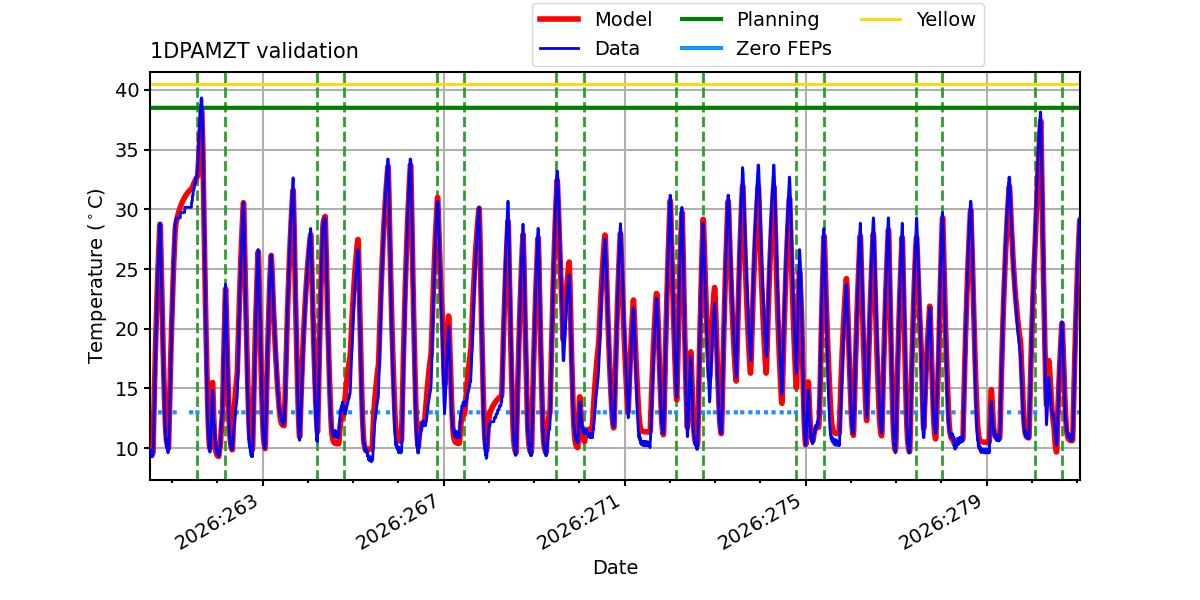

1DPAMZT

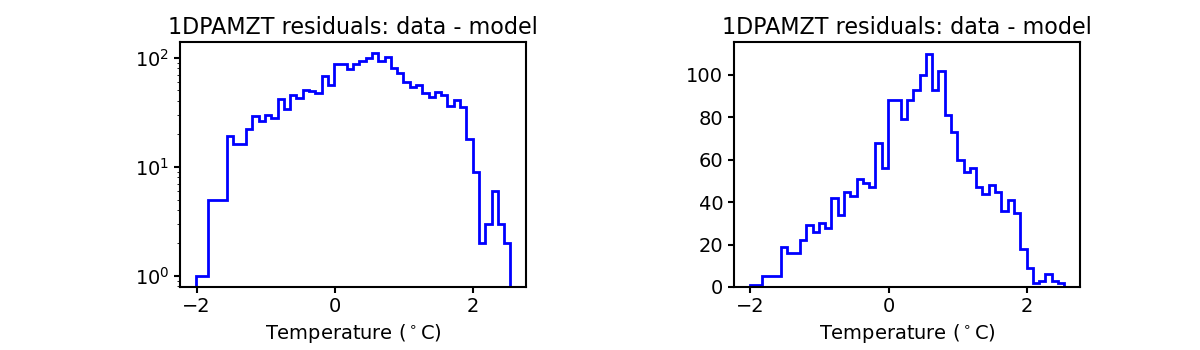

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

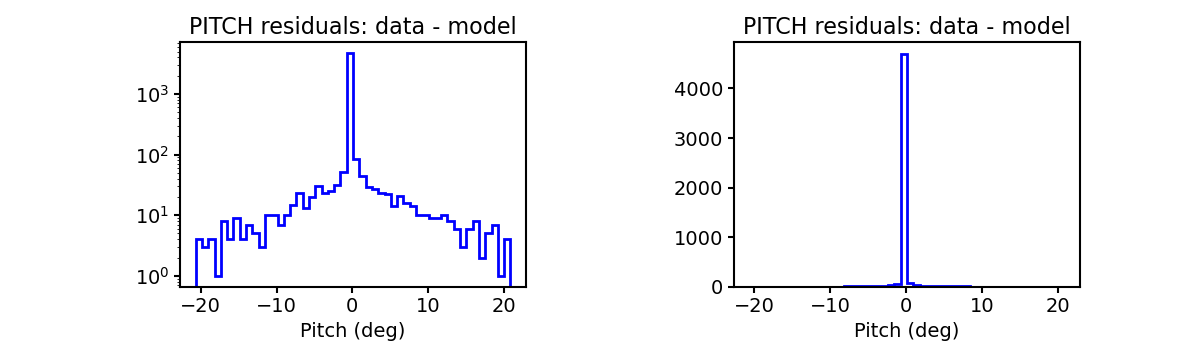

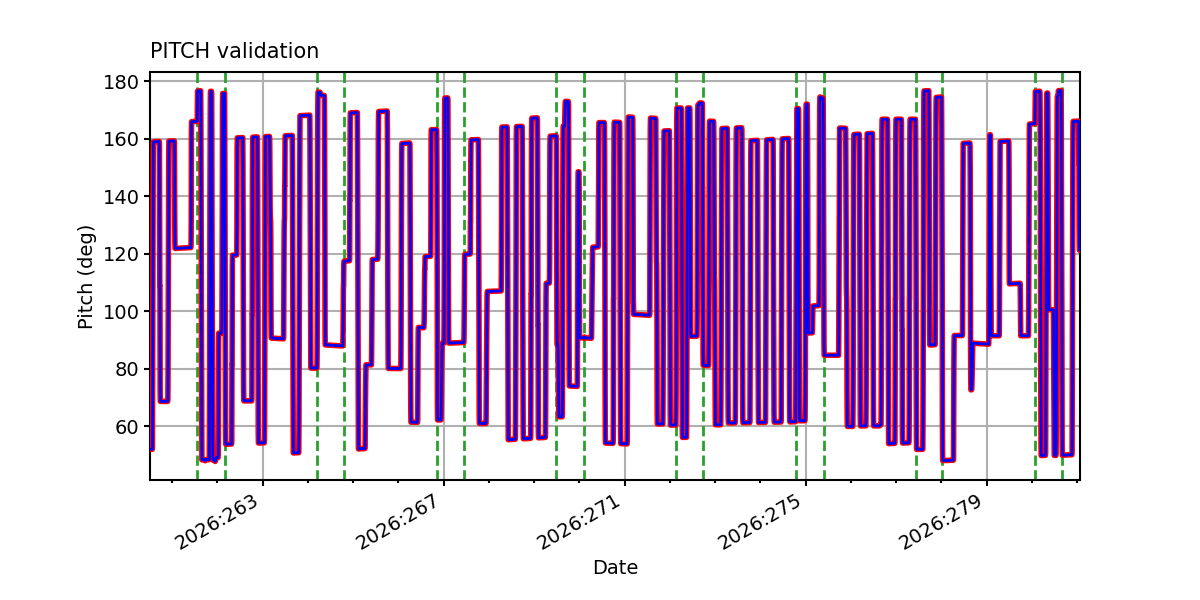

PITCH

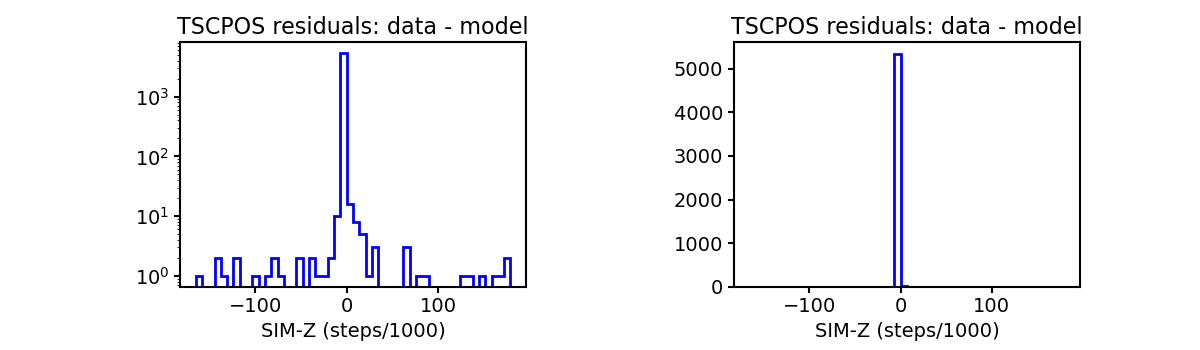

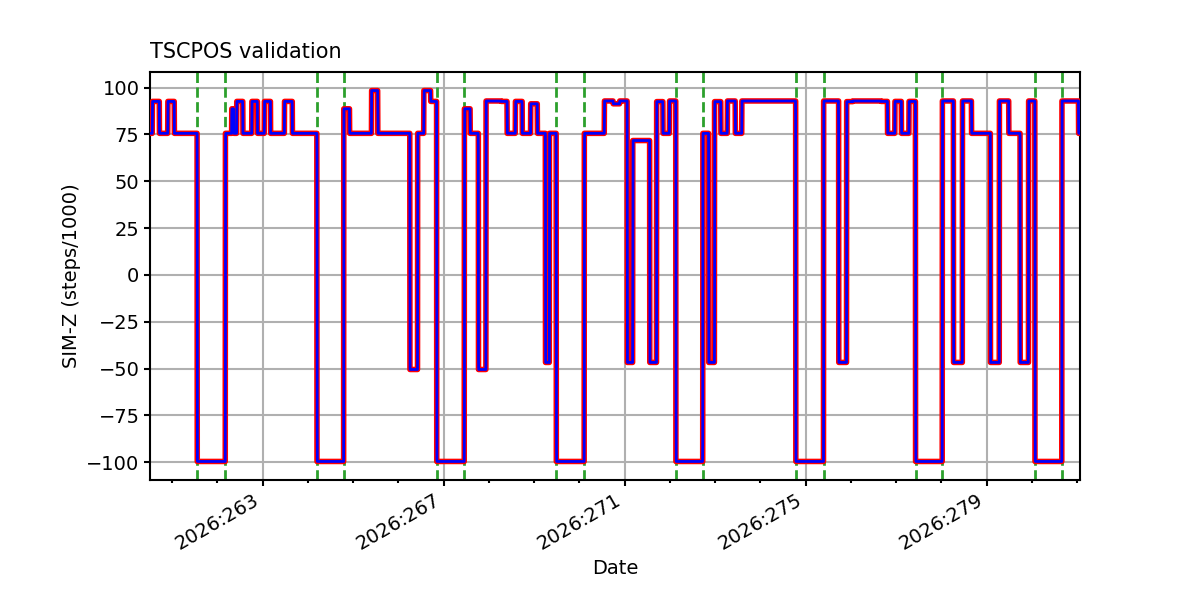

TSCPOS

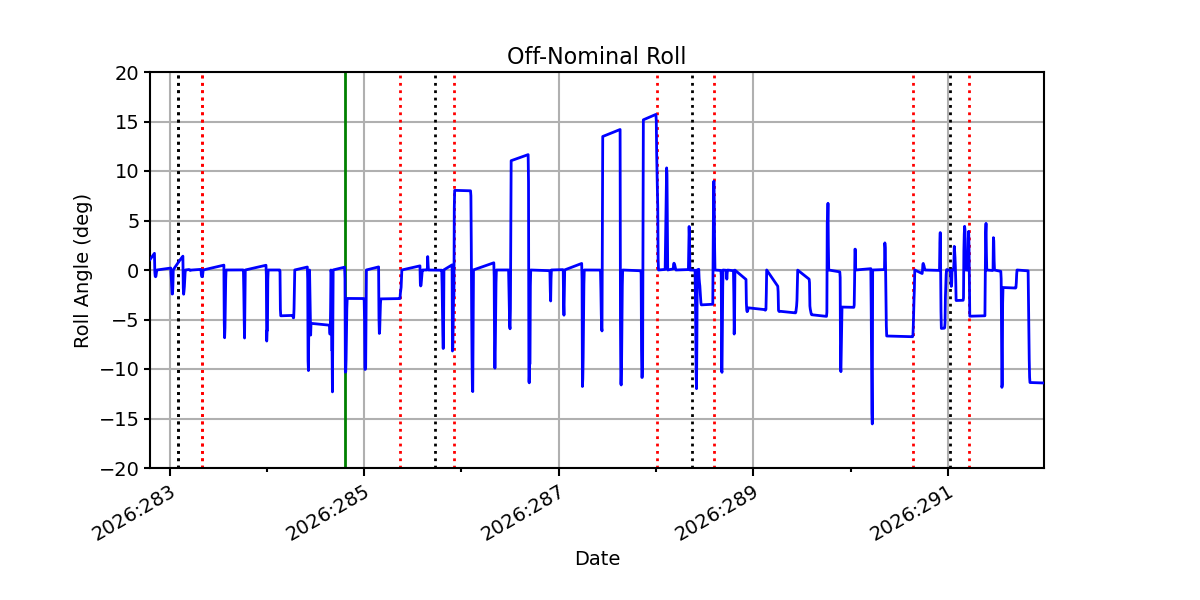

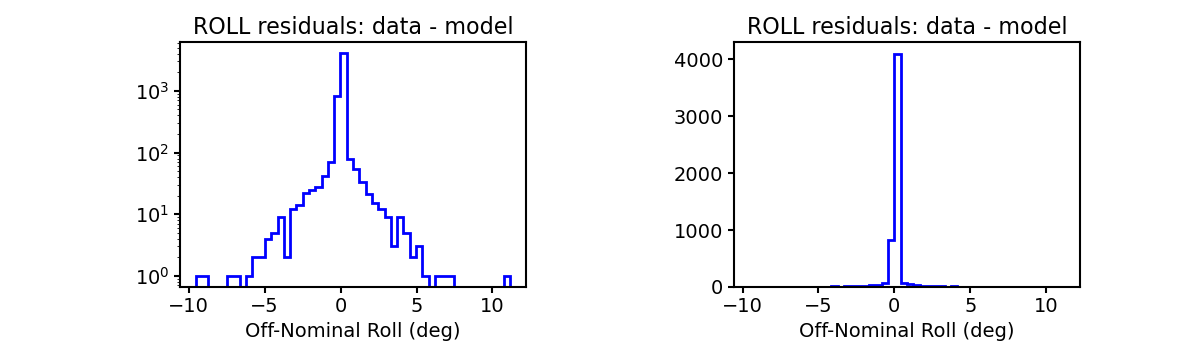

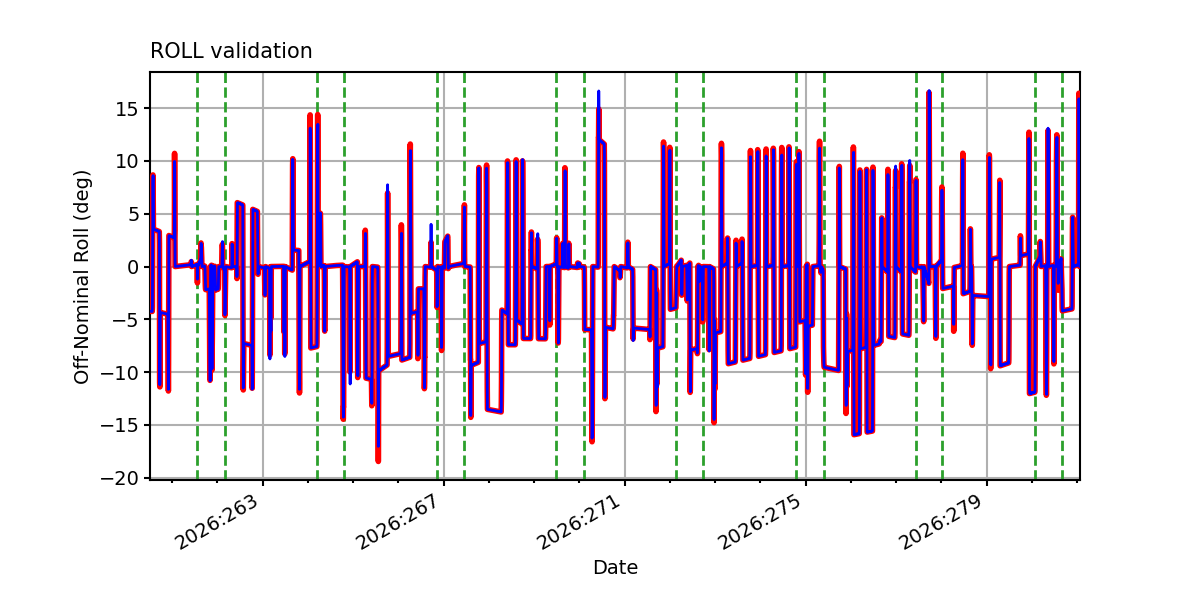

ROLL

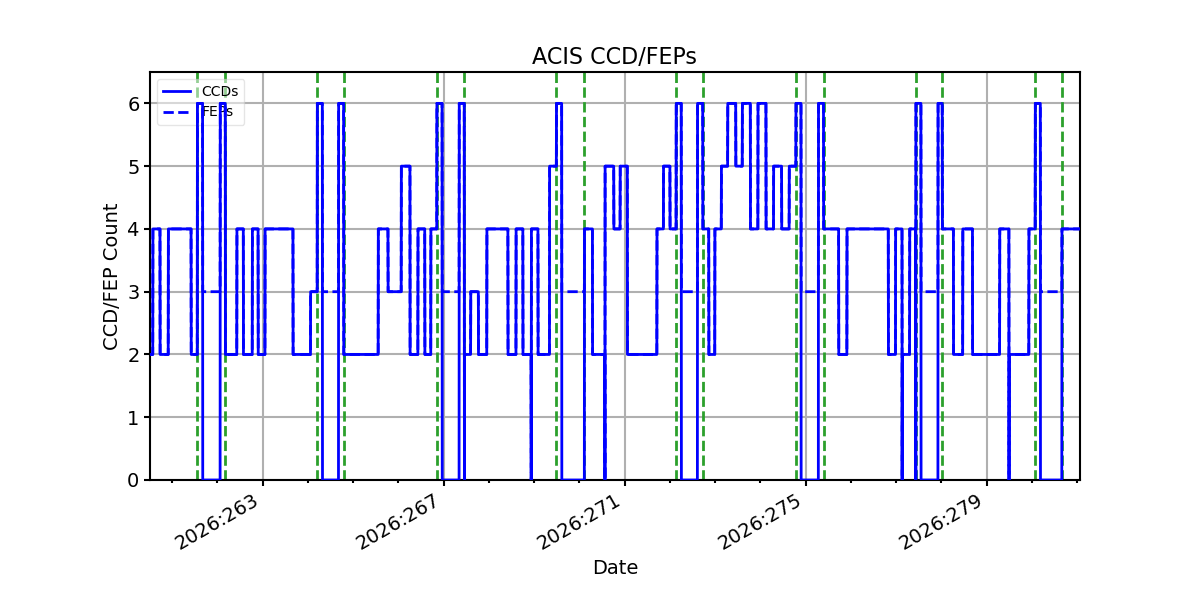

ACIS CCD/FEP Count
