DPA Temperatures Check
Summary
| Date start | 2025:285:13:20:00.016 |
| Date stop | 2025:292:21:47:50.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT1325/oflsa |
| Run time | Thu Oct 9 14:30:49 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:289:23:55:03.746 | 2025:289:23:55:12.753 | 0.01 | 10.15 / 13.00 |
| 2025:292:04:19:26.367 | 2025:292:04:19:42.816 | 0.02 | 12.33 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.56 | -1.86 | -1.02 | -0.14 | 0.59 | 0.97 | 1.25 |
| pitch | -10.319 | -1.230 | -0.004 | -0.000 | 0.004 | 1.054 | 10.563 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.187 | -0.291 | -0.008 | -0.000 | 0.008 | 0.309 | 2.424 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.56 | 2.00 |
| PITCH | 1 | -10.319 | 3.00 |
| PITCH | 99 | 10.563 | 3.00 |

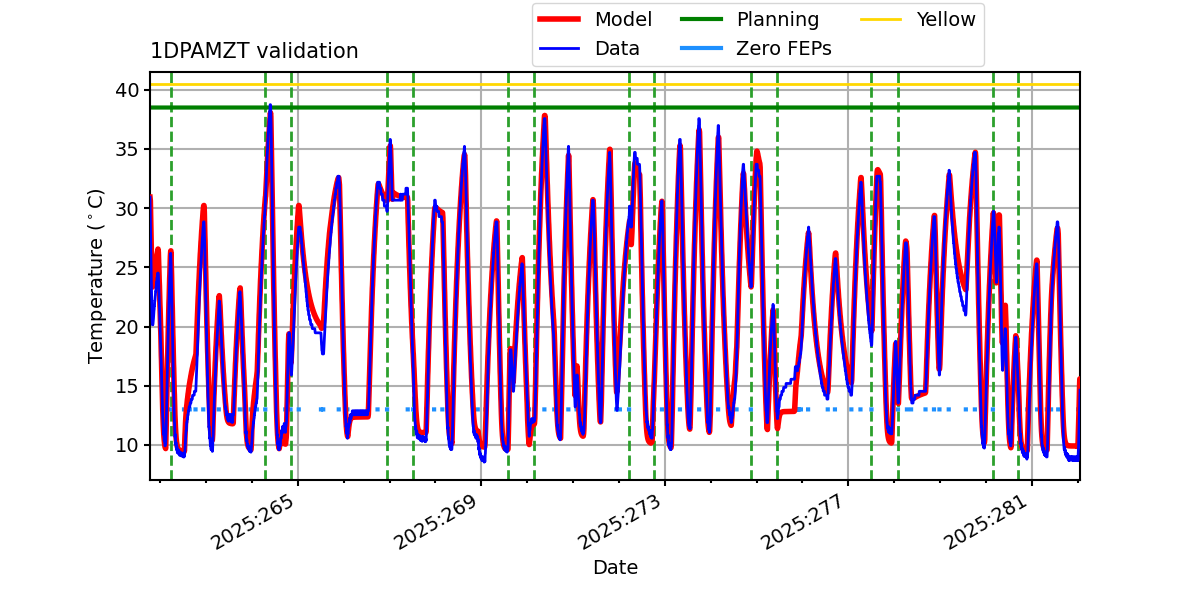

1DPAMZT

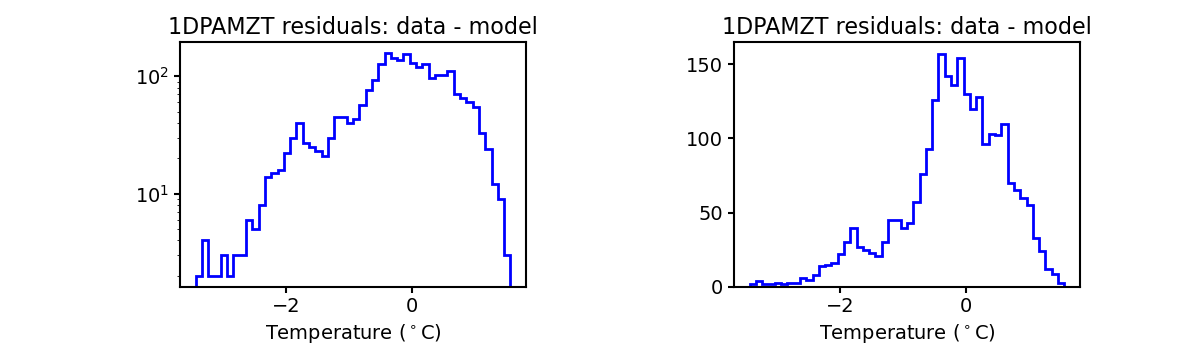

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

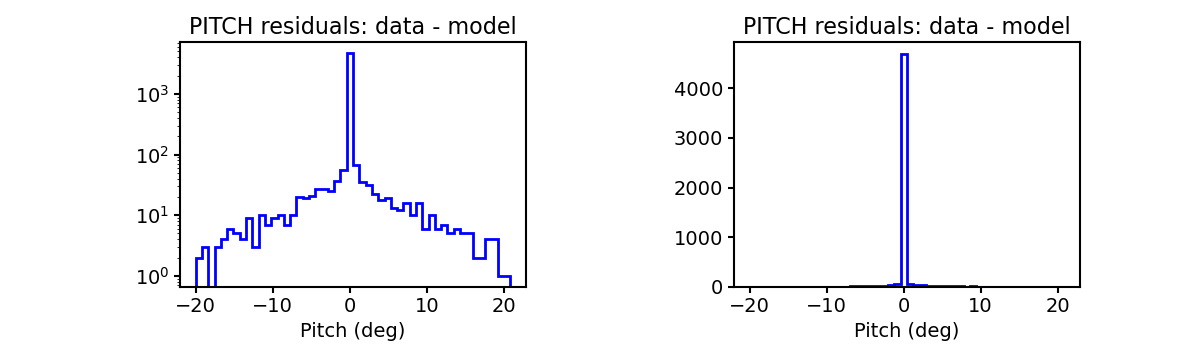

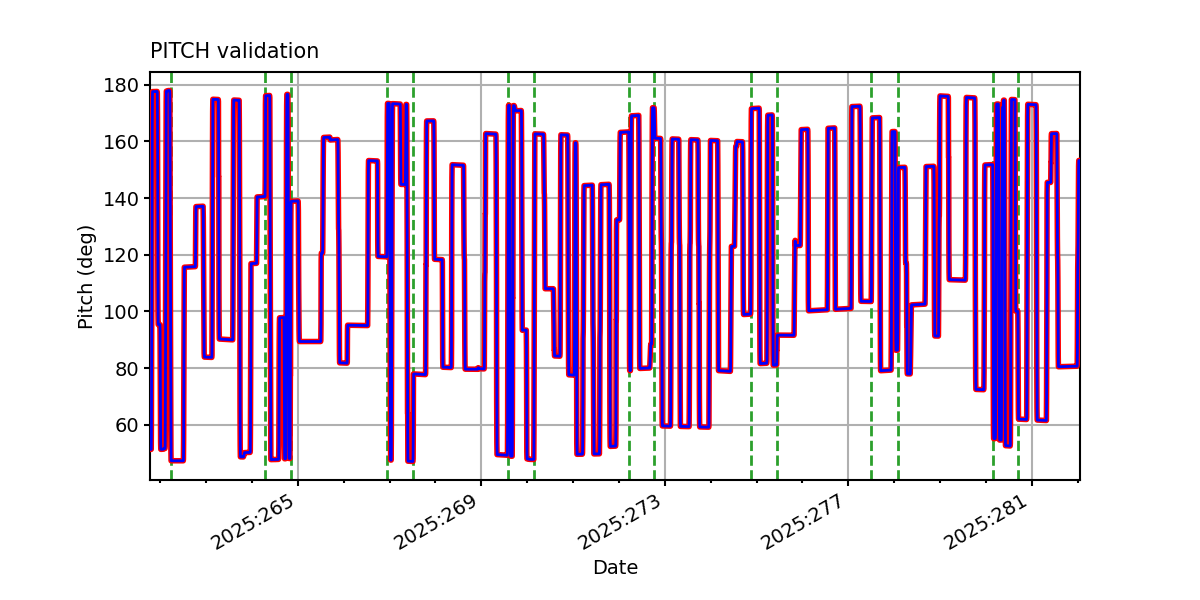

PITCH

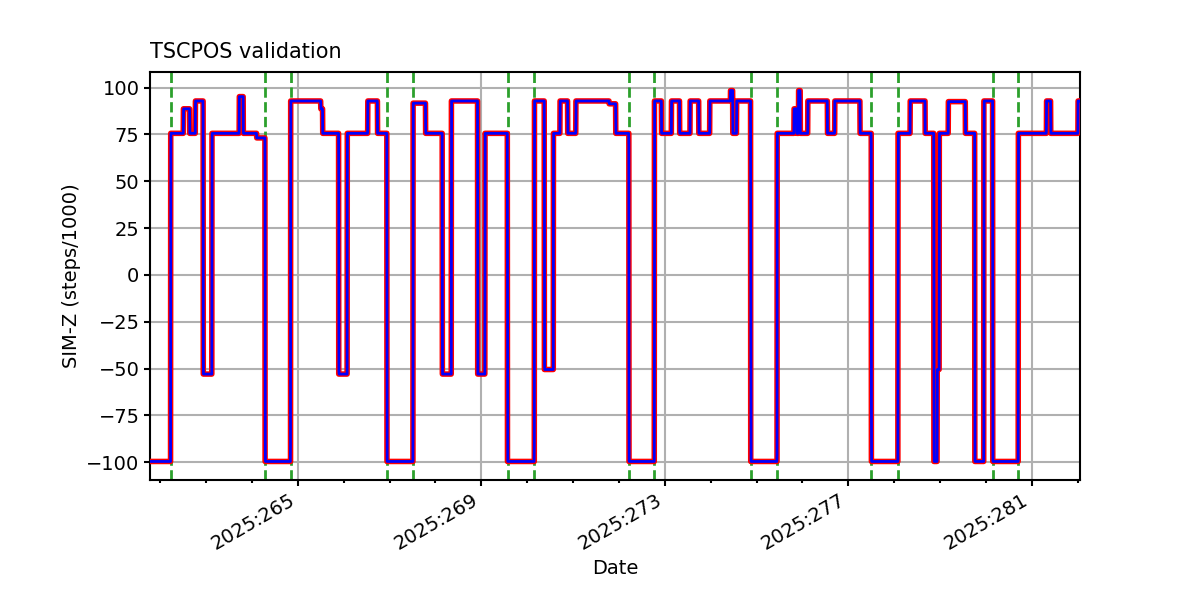

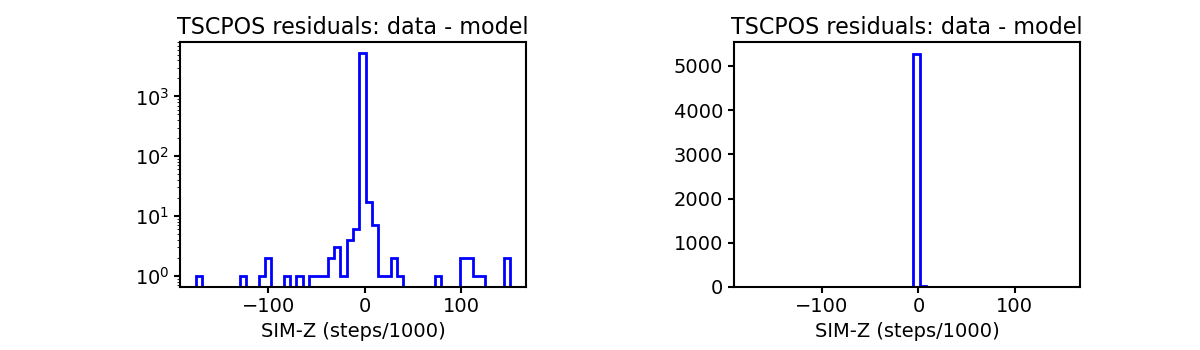

TSCPOS

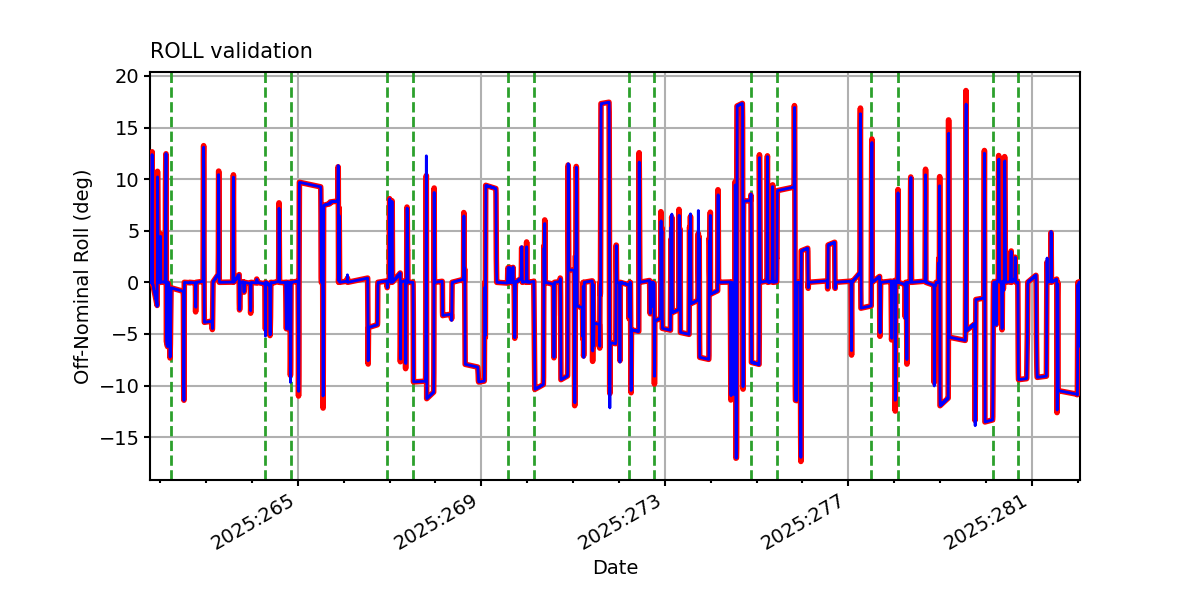

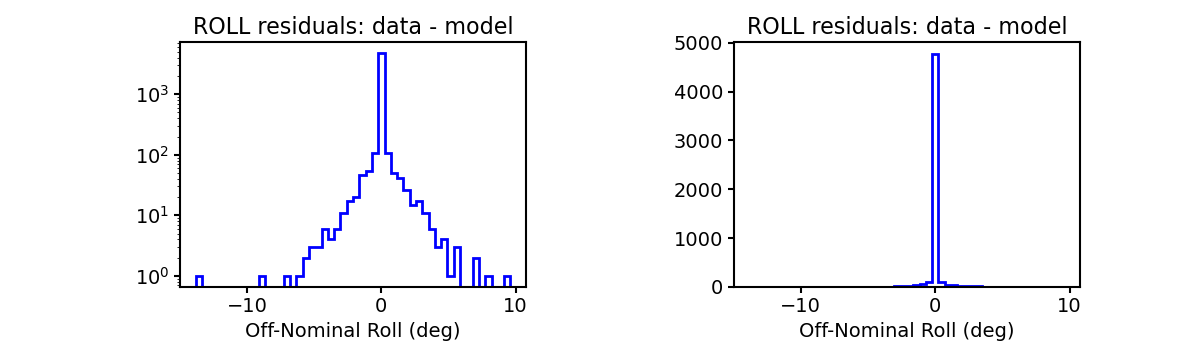

ROLL

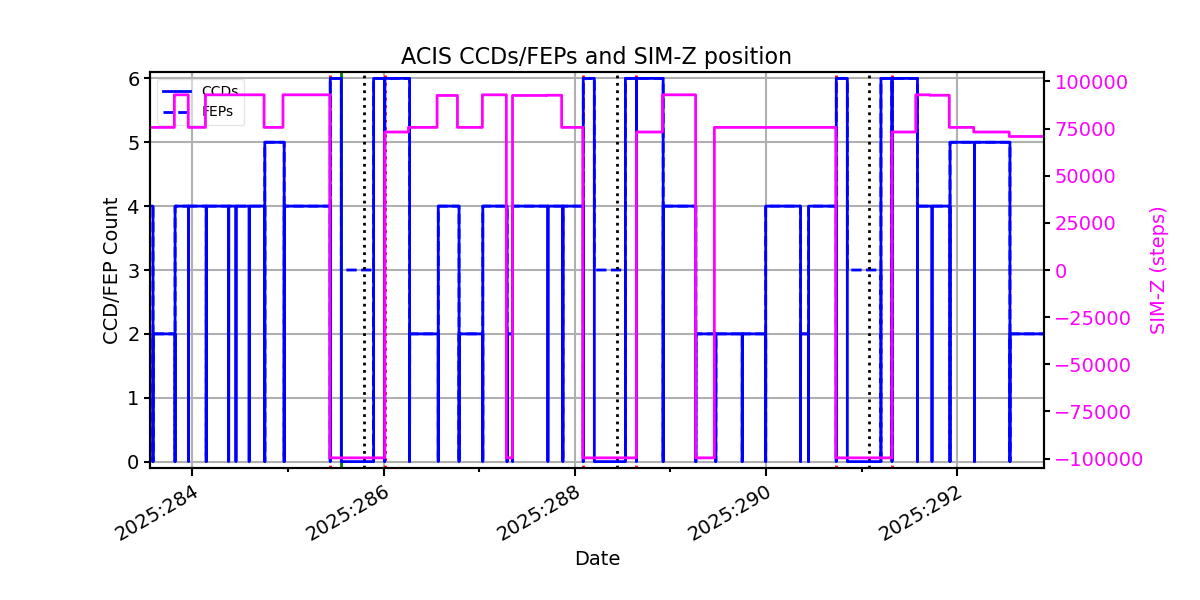

ACIS CCD/FEP Count
