DPA Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:19:04 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:298:15:56:36.286 | 2025:298:15:56:46.816 | 0.01 | 12.38 / 13.00 |
| 2025:299:12:47:54.503 | 2025:299:12:48:03.559 | 0.01 | 11.63 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.20 | -1.82 | -0.95 | -0.05 | 0.67 | 1.09 | 1.33 |
| pitch | -11.396 | -1.347 | -0.004 | -0.000 | 0.004 | 1.227 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.196 | -0.008 | 0.000 | 0.009 | 0.338 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.2 | 2.00 |
| PITCH | 1 | -11.396 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |
1DPAMZT

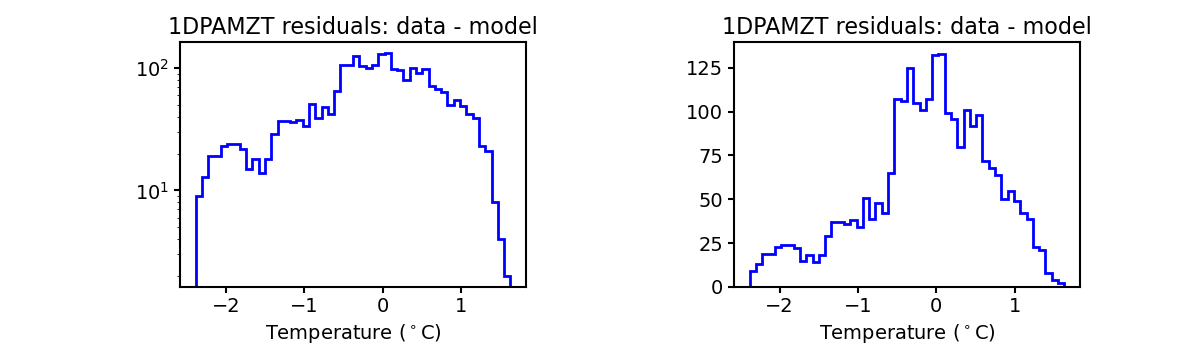

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

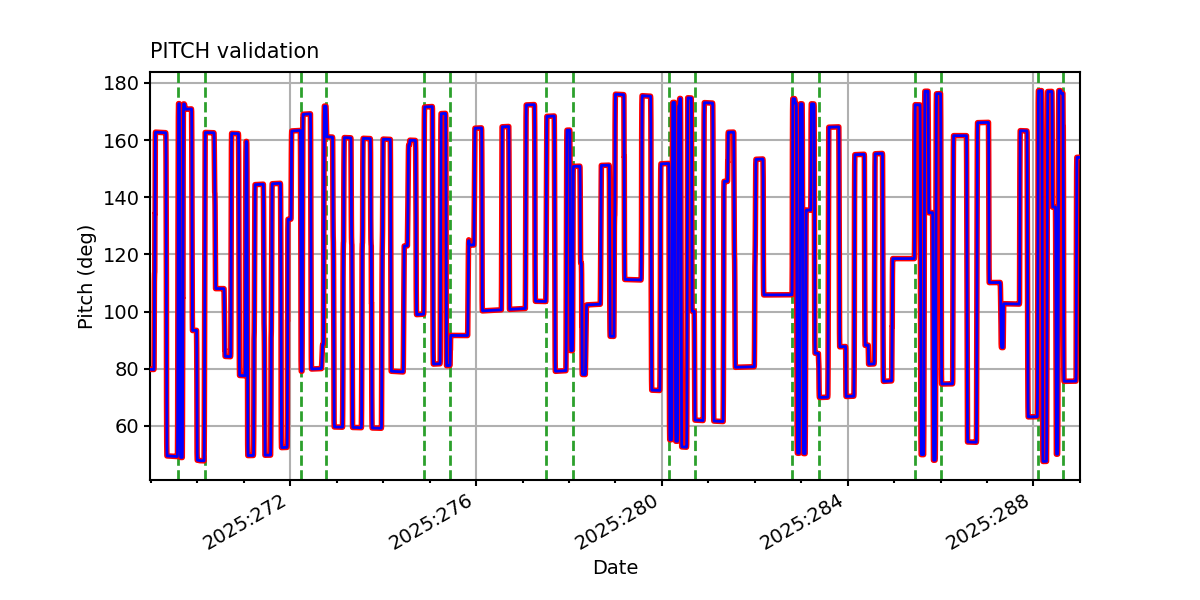

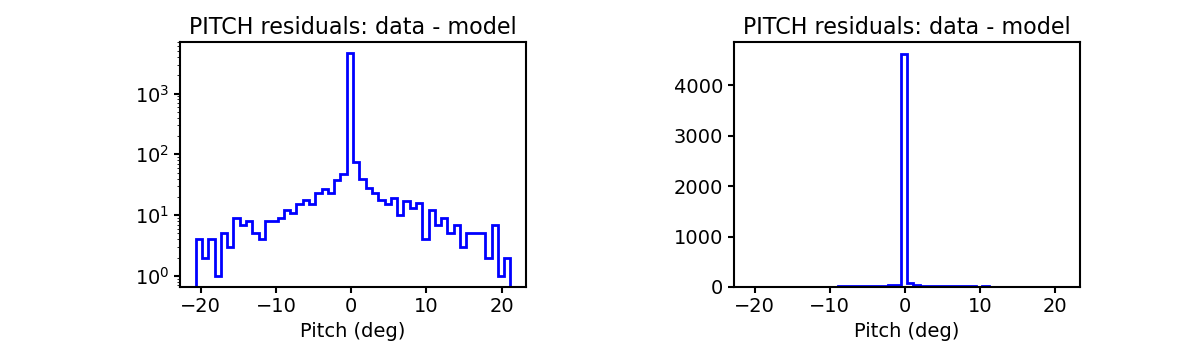

PITCH

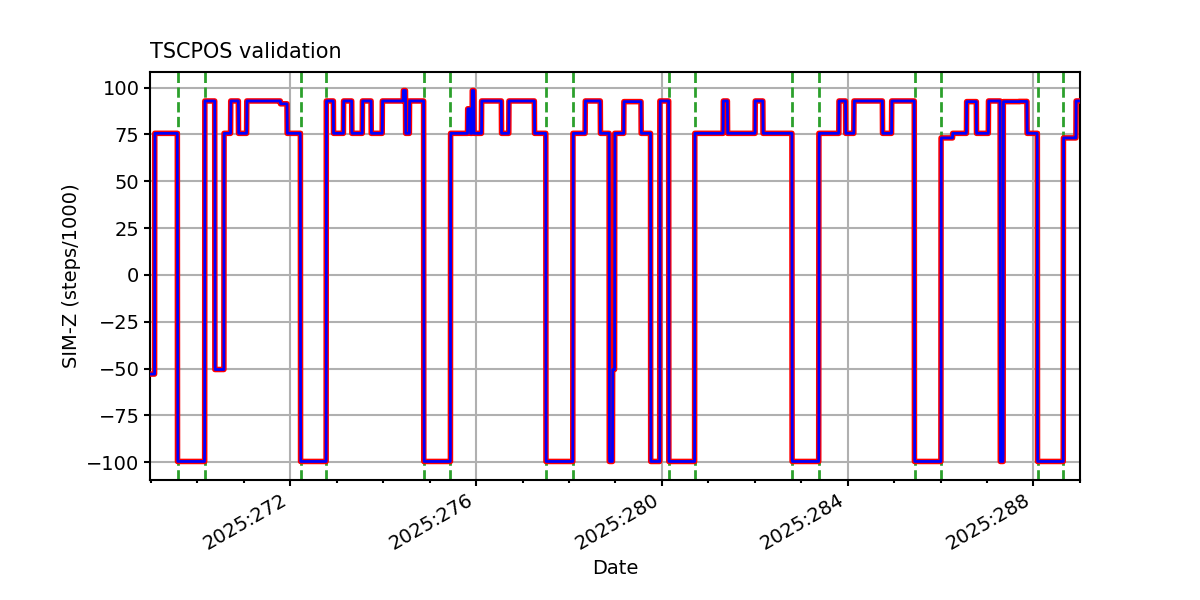

TSCPOS

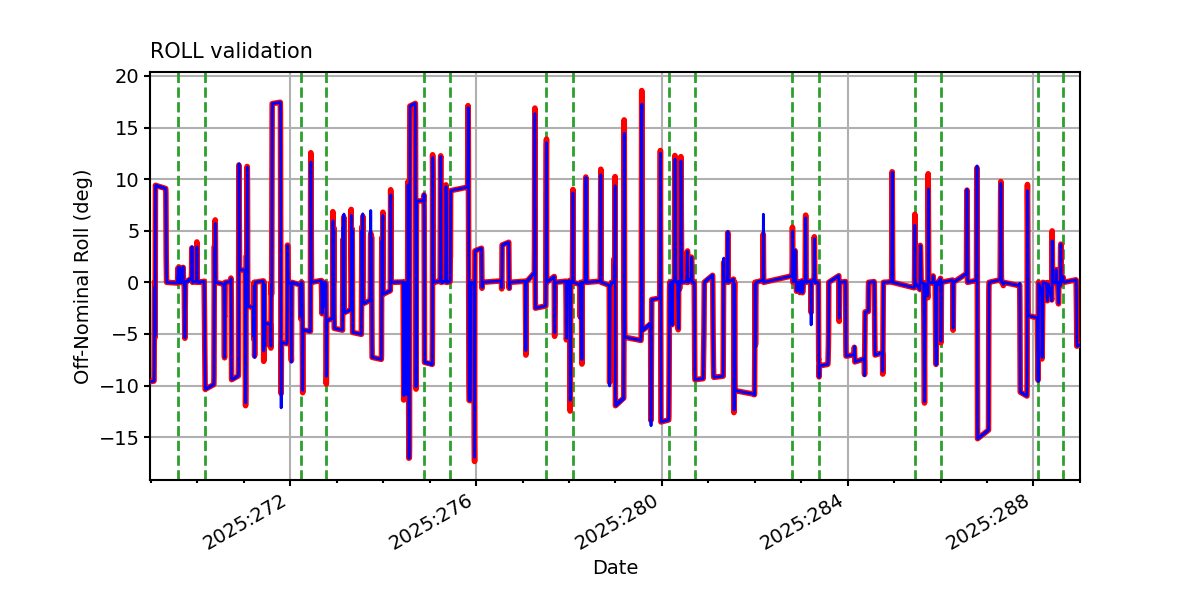

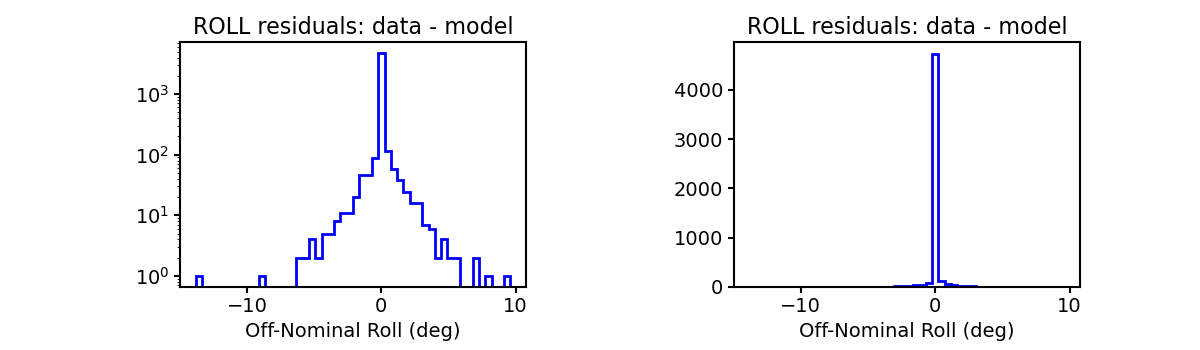

ROLL

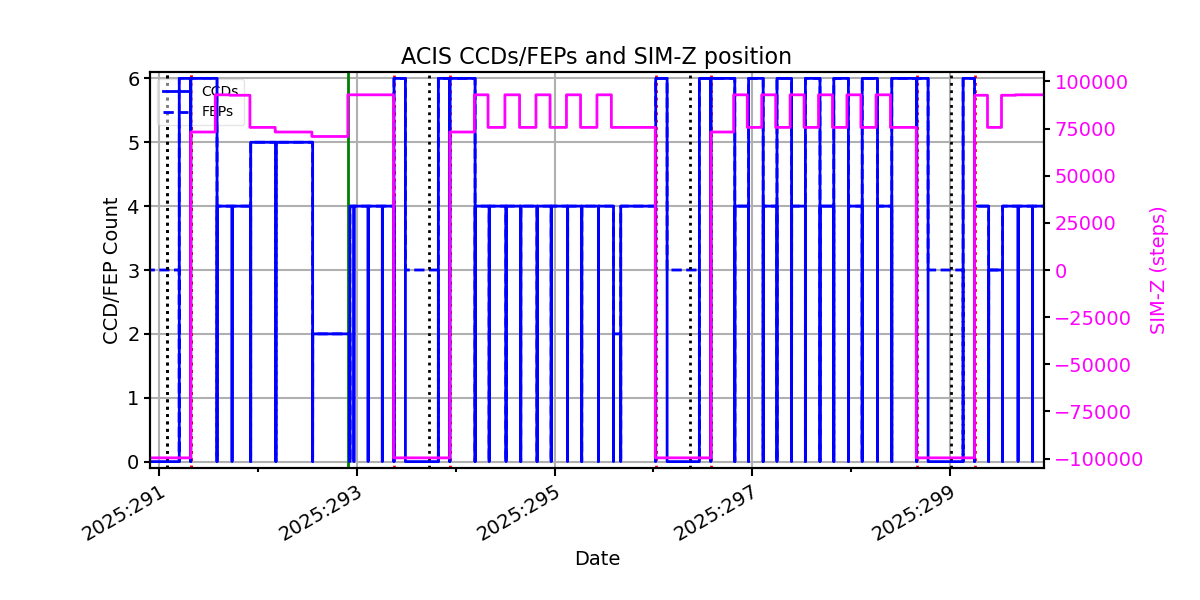

ACIS CCD/FEP Count
