DPA Temperatures Check
Summary
| Date start | 2025:299:22:49:08.316 |
| Date stop | 2025:306:17:02:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2725/oflsa |
| Run time | Wed Oct 22 21:26:31 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.24 | -1.94 | -1.11 | -0.19 | 0.53 | 0.98 | 1.27 |
| pitch | -11.079 | -1.018 | -0.004 | -0.000 | 0.004 | 0.776 | 12.615 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.701 | -0.086 | -0.007 | 0.000 | 0.008 | 0.206 | 2.081 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.24 | 2.00 |
| PITCH | 1 | -11.079 | 3.00 |
| PITCH | 99 | 12.615 | 3.00 |

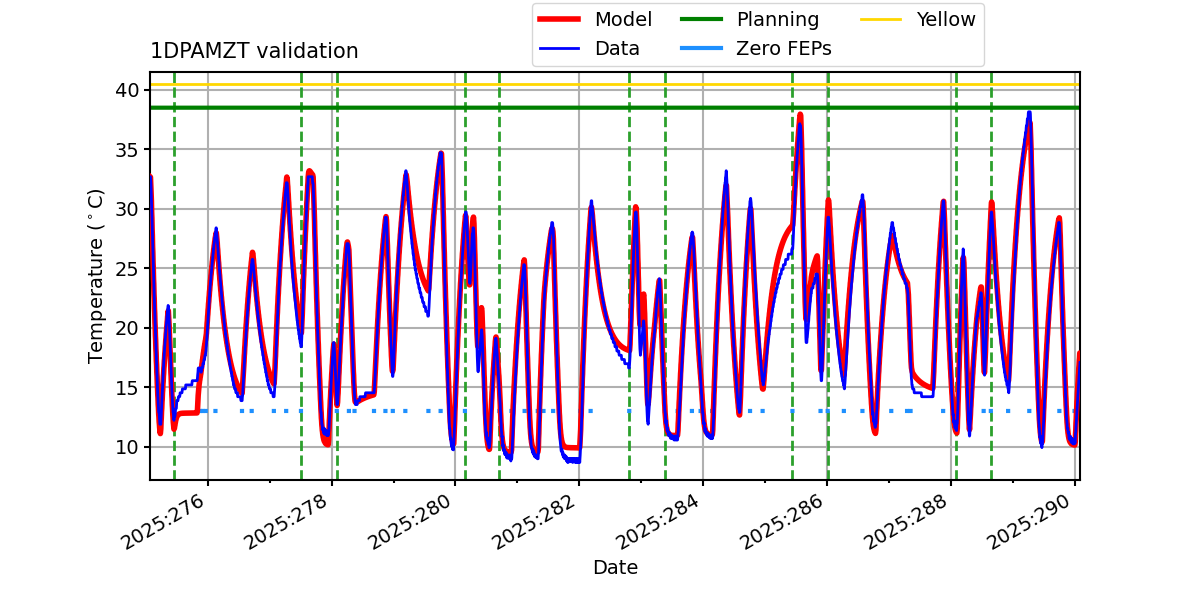

1DPAMZT

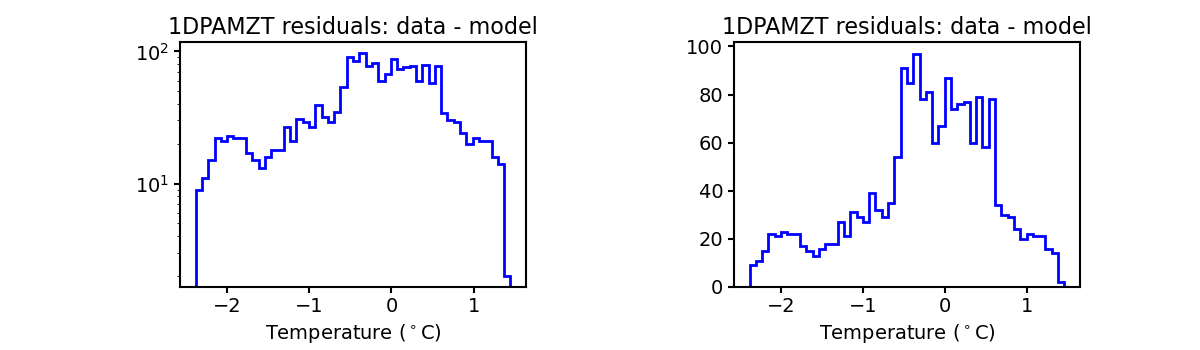

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

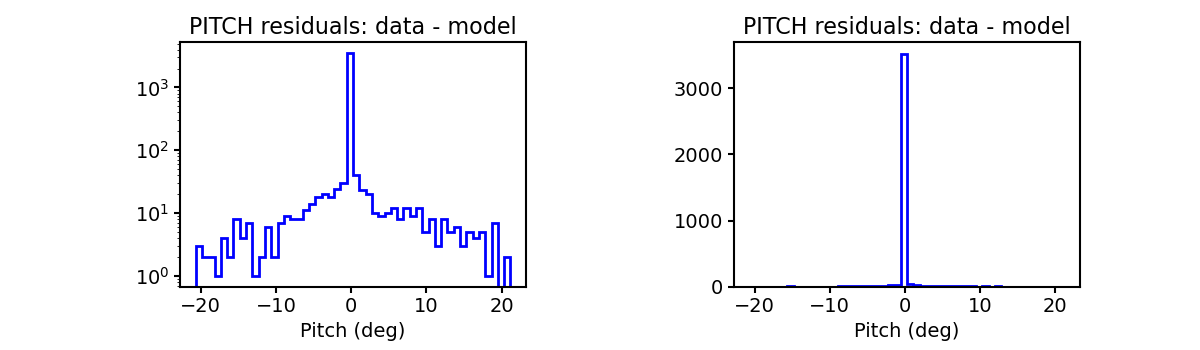

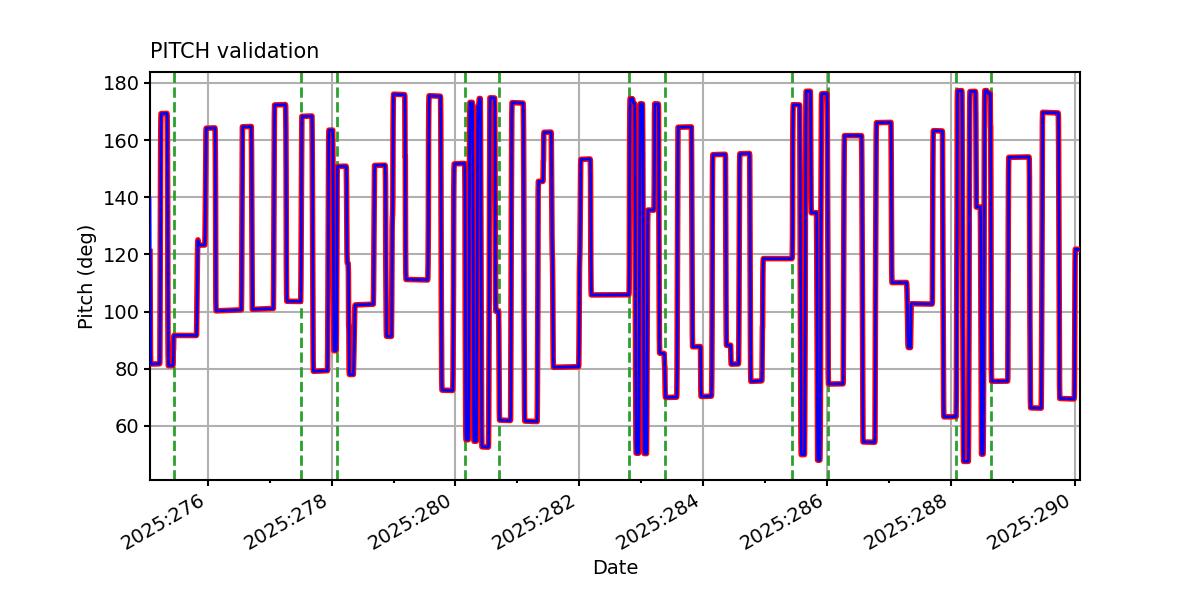

PITCH

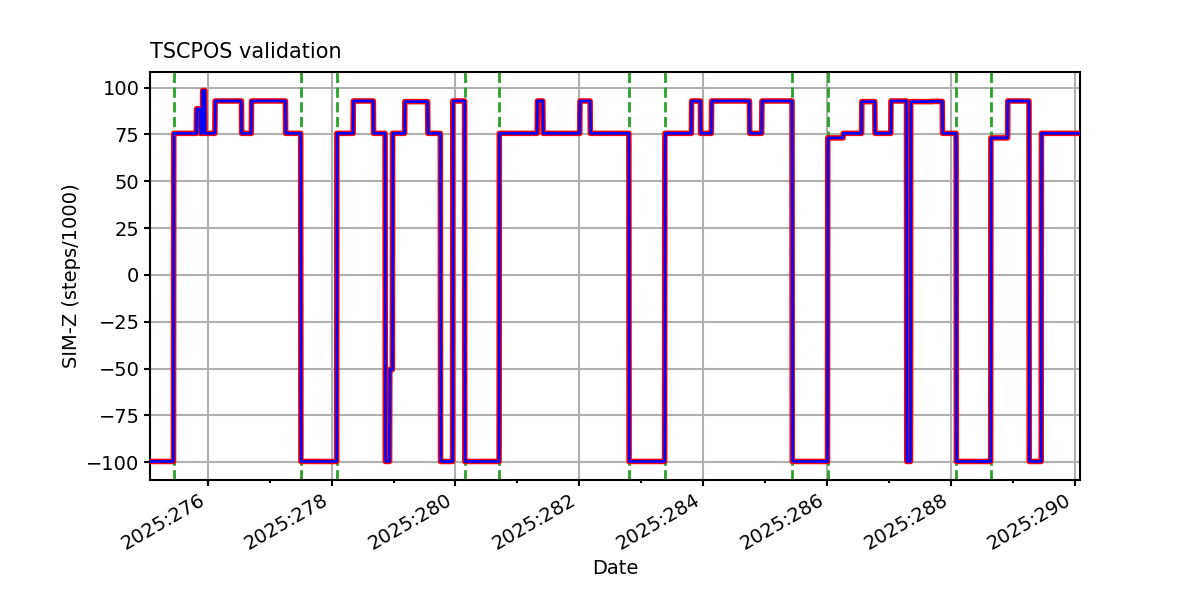

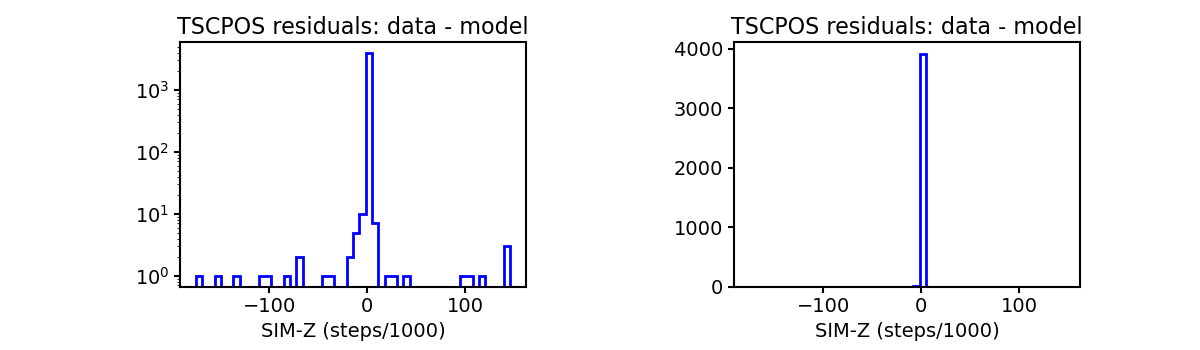

TSCPOS

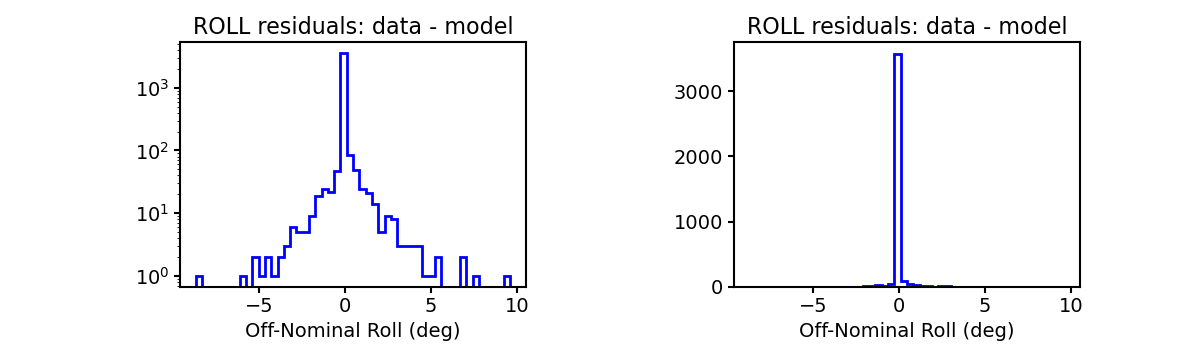

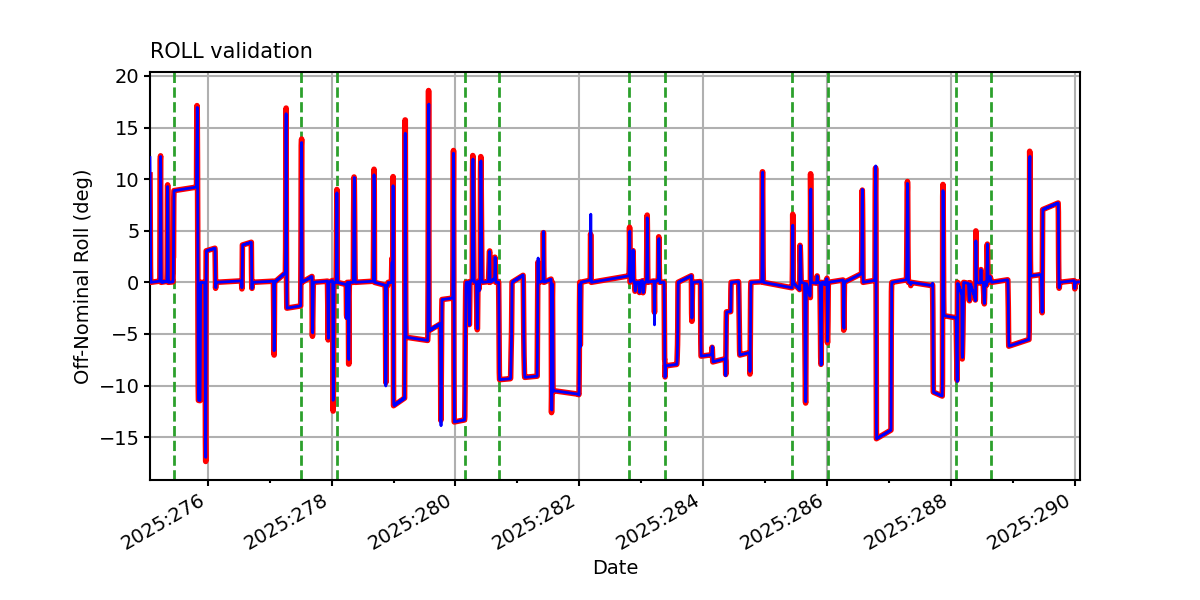

ROLL

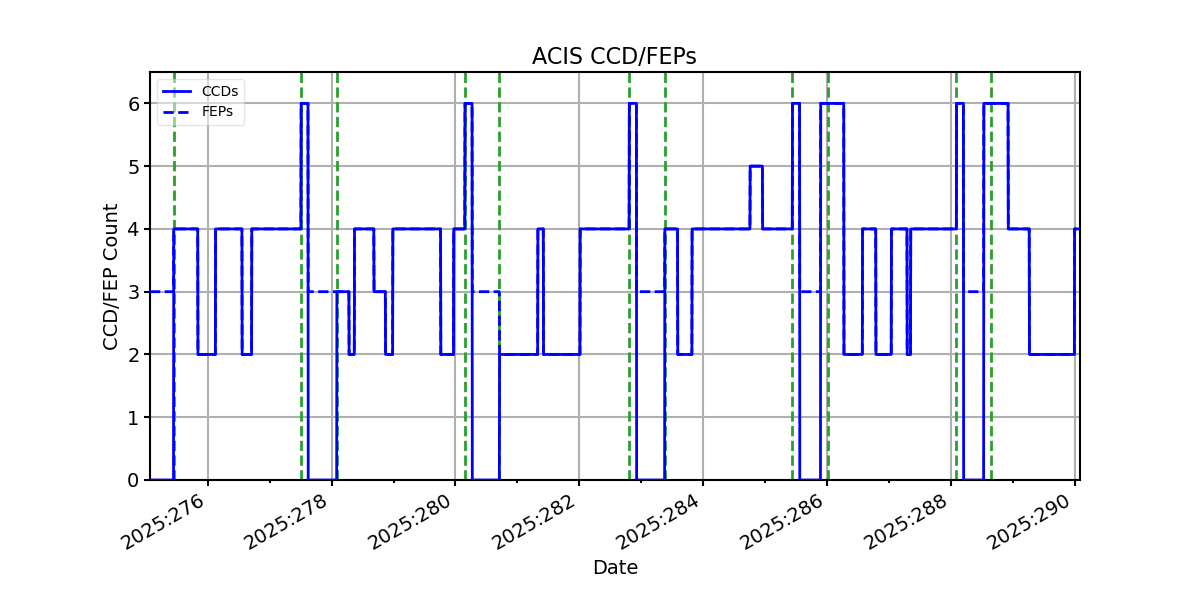

ACIS CCD/FEP Count
