DPA Temperatures Check
Summary
| Date start | 2026:257:02:06:19.916 |
| Date stop | 2026:264:01:05:49.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP1426/oflsa |
| Run time | Thu Sep 10 10:39:31 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:259:09:49:29.194 | 2026:259:09:49:34.816 | 0.01 | 9.84 / 13.00 |
| 2026:260:22:03:31.024 | 2026:260:22:03:44.933 | 0.01 | 10.00 / 13.00 |
| 2026:262:08:47:02.543 | 2026:262:08:47:15.994 | 0.01 | 12.72 / 13.00 |
| 2026:262:18:34:12.798 | 2026:262:18:34:32.810 | 0.02 | 9.87 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.91 | -2.73 | -2.16 | -0.81 | 0.23 | 0.81 | 1.08 |
| pitch | -10.330 | -0.618 | -0.004 | -0.000 | 0.004 | 0.652 | 9.757 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.048 | -0.130 | -0.006 | -0.000 | 0.006 | 0.129 | 1.645 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.91 | 2.00 |
| PITCH | 1 | -10.33 | 3.00 |
| PITCH | 99 | 9.757 | 3.00 |

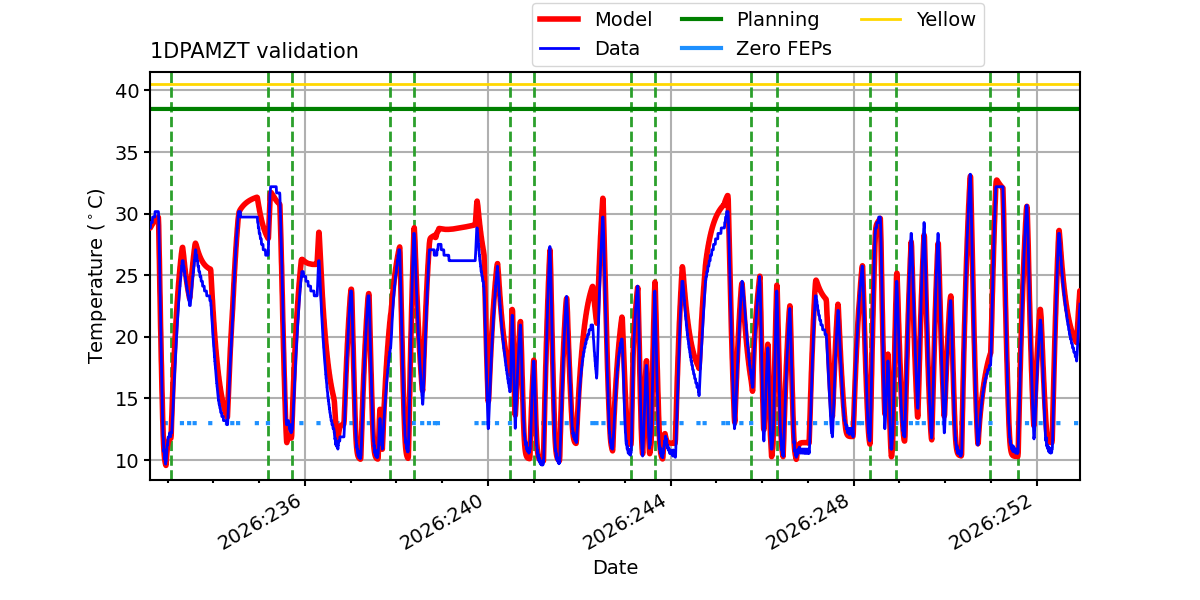

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

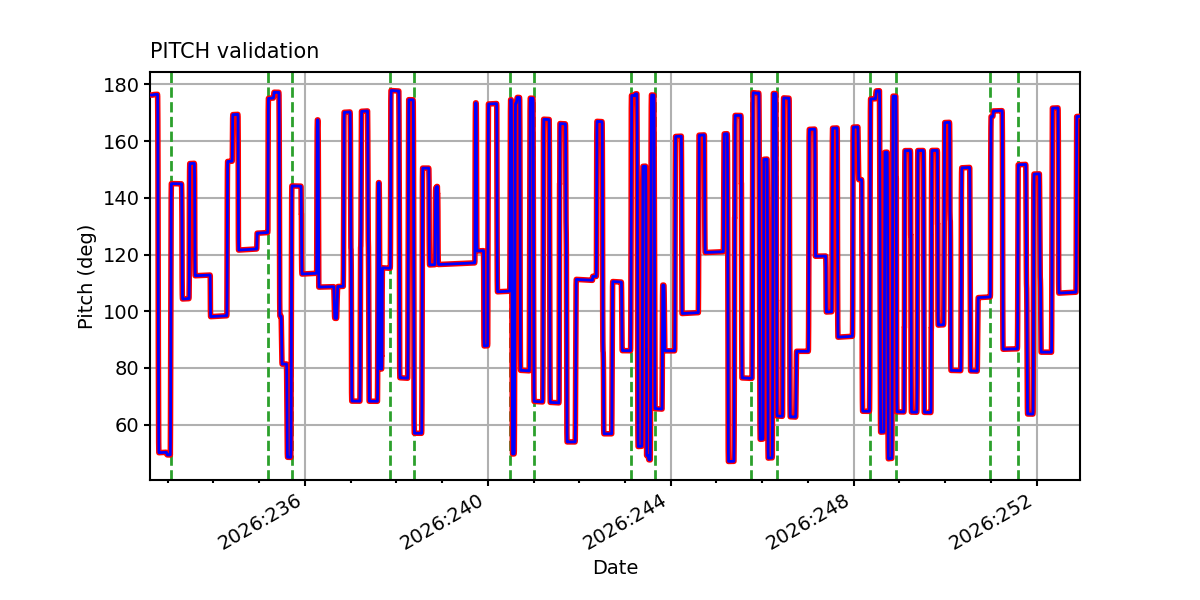

PITCH

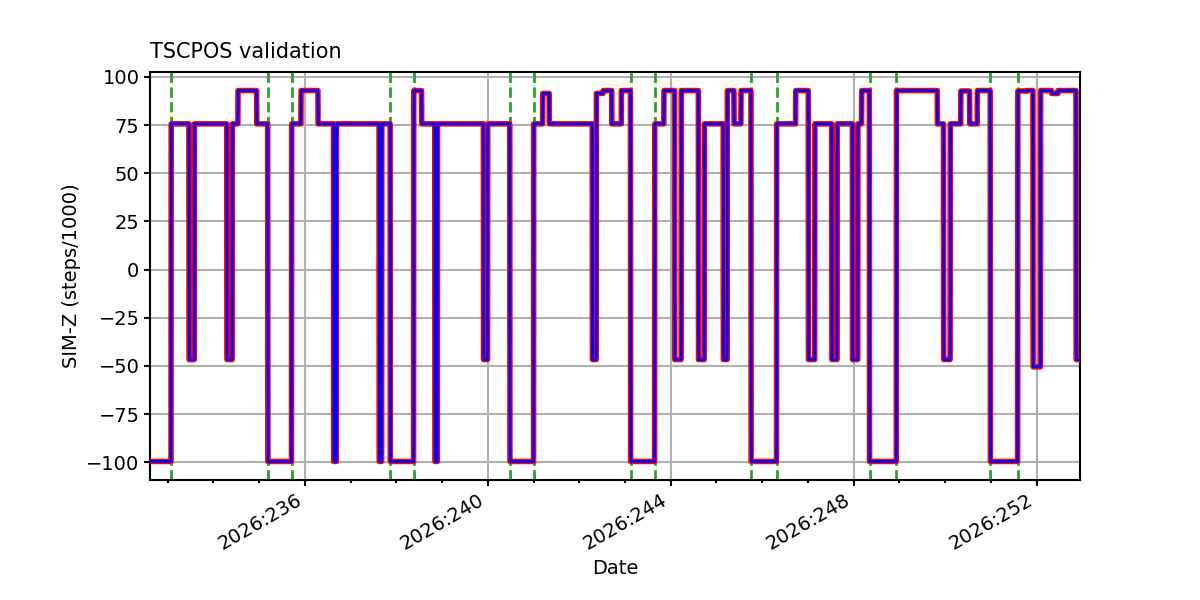

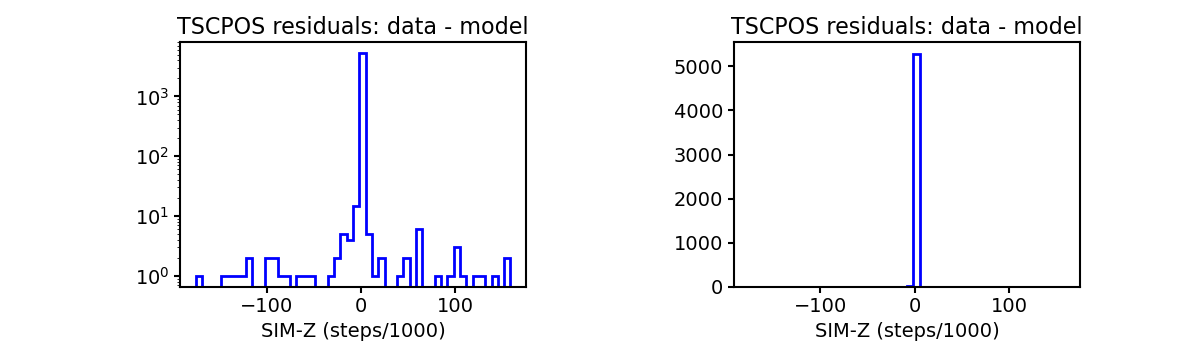

TSCPOS

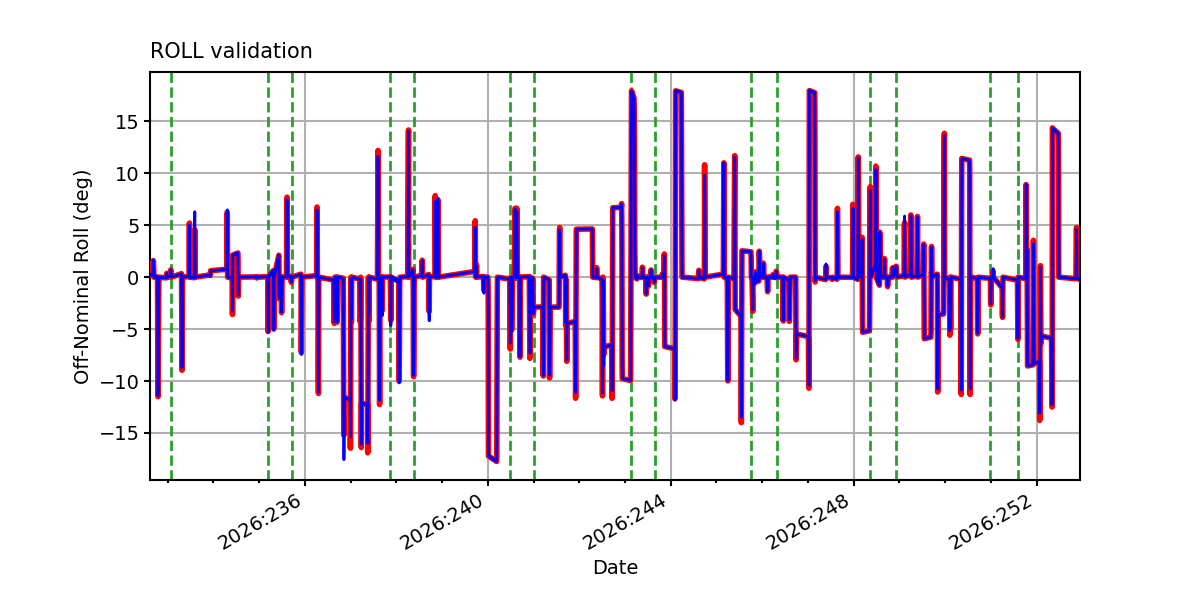

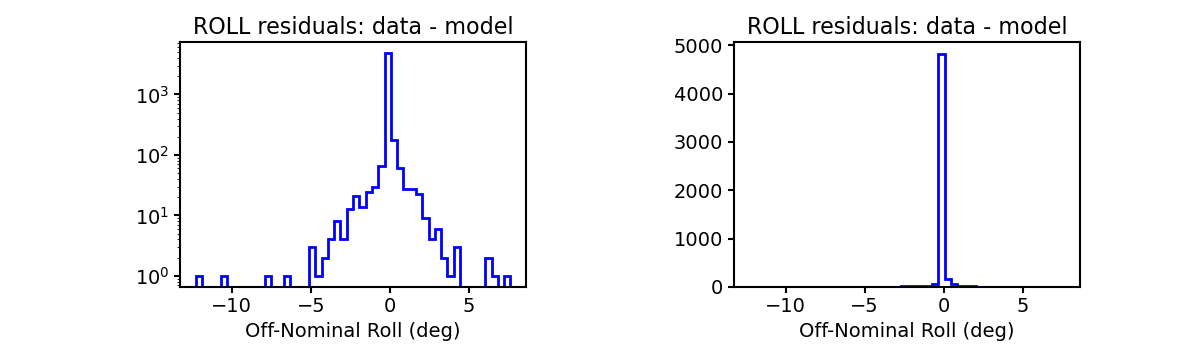

ROLL

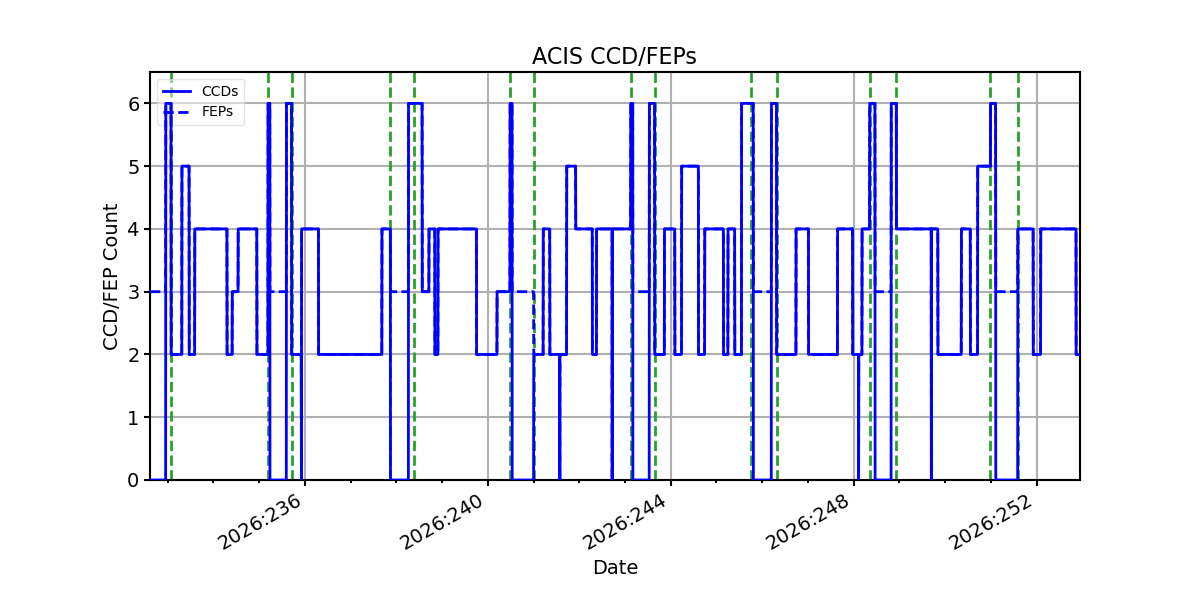

ACIS CCD/FEP Count
