DPA Temperatures Check
Summary
| Date start | 2025:265:00:04:59.816 |
| Date stop | 2025:272:00:17:23.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2225/oflsa |
| Run time | Thu Sep 18 20:53:01 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

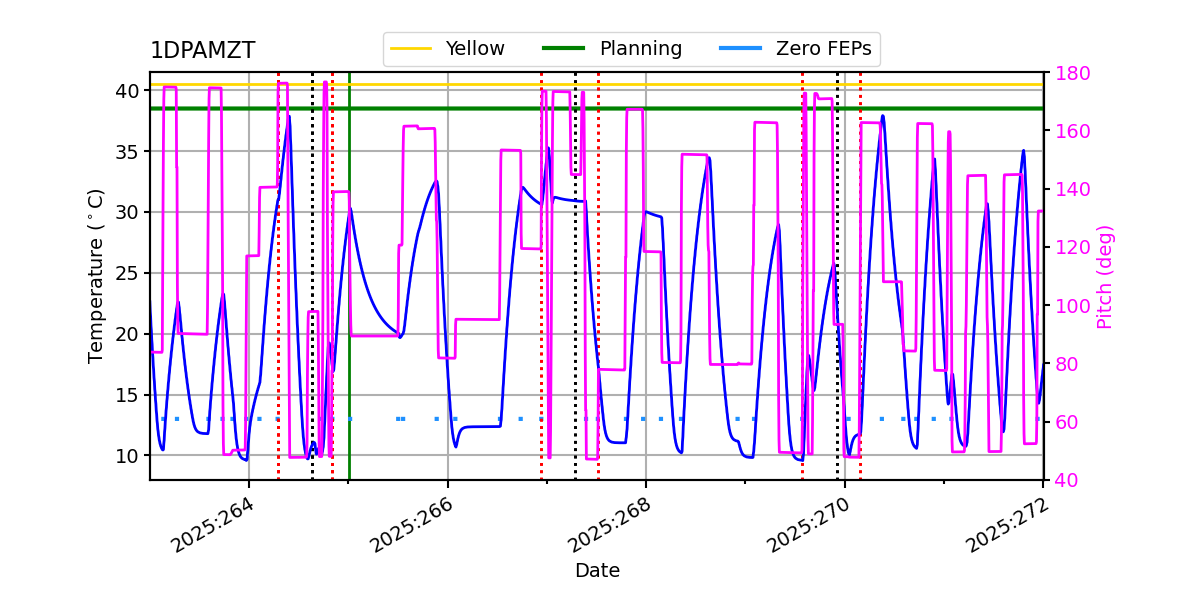

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:266:01:52:47.448 | 2025:266:01:52:52.084 | 0.00 | 10.80 / 13.00 |
| 2025:267:19:07:17.934 | 2025:267:19:07:18.816 | 0.00 | 11.33 / 13.00 |
| 2025:268:08:25:14.660 | 2025:268:08:25:26.816 | 0.01 | 10.23 / 13.00 |
| 2025:268:22:05:59.181 | 2025:268:22:06:17.921 | 0.02 | 11.17 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -4.03 | -3.07 | -2.08 | -0.72 | 0.00 | 0.39 | 0.66 |
| pitch | -8.013 | -0.141 | -0.004 | 0.000 | 0.004 | 0.221 | 11.491 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.554 | -0.080 | -0.006 | -0.000 | 0.007 | 0.086 | 1.399 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -4.03 | 2.00 |
| PITCH | 1 | -8.013 | 3.00 |
| PITCH | 99 | 11.491 | 3.00 |

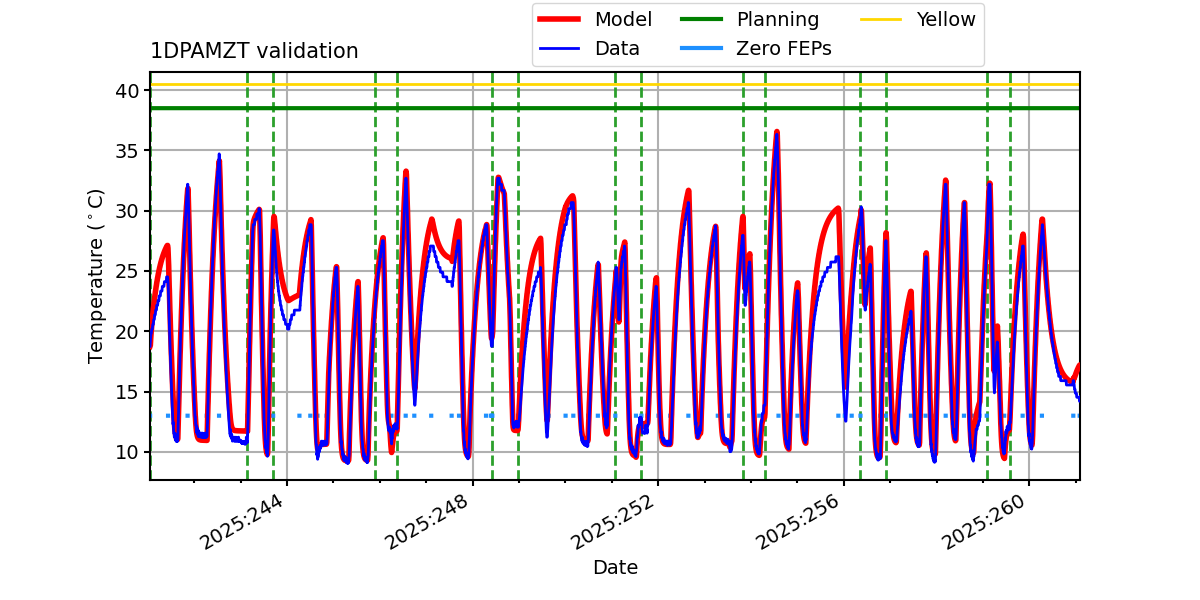

1DPAMZT

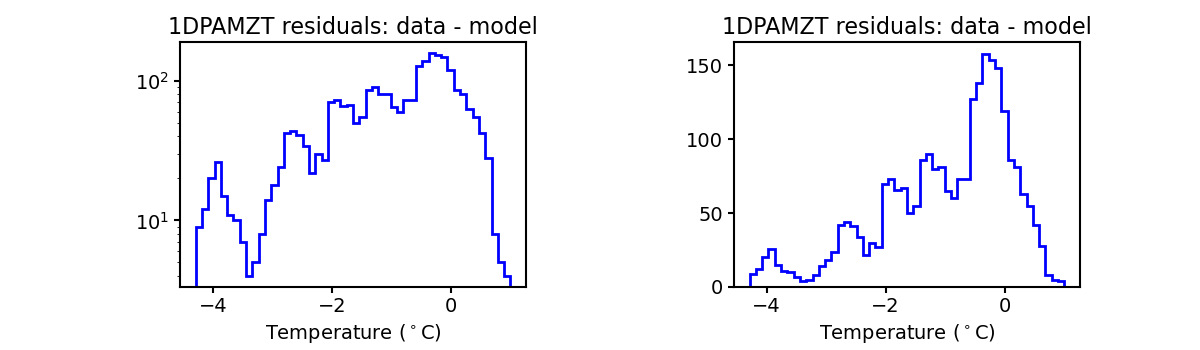

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

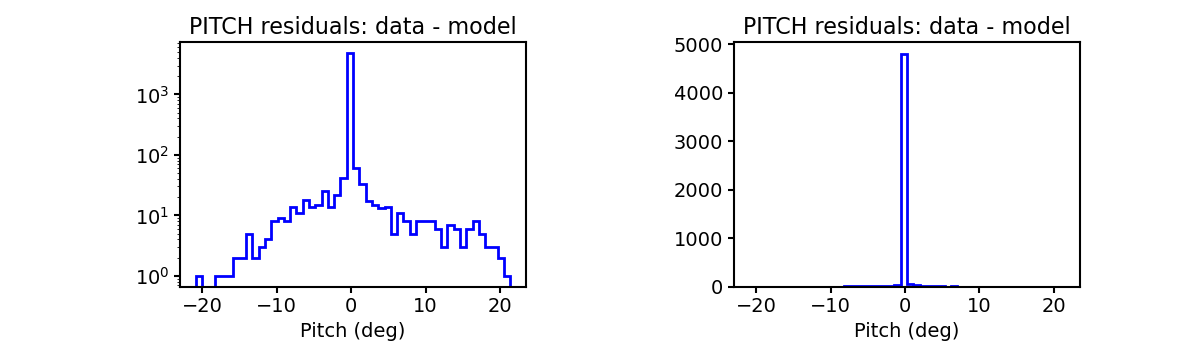

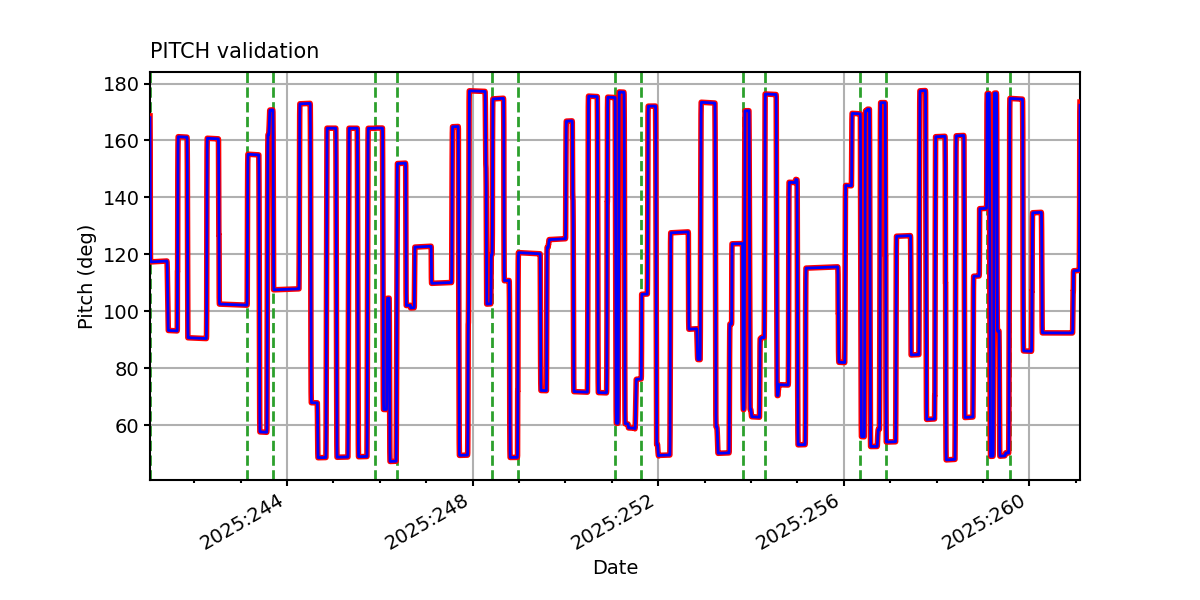

PITCH

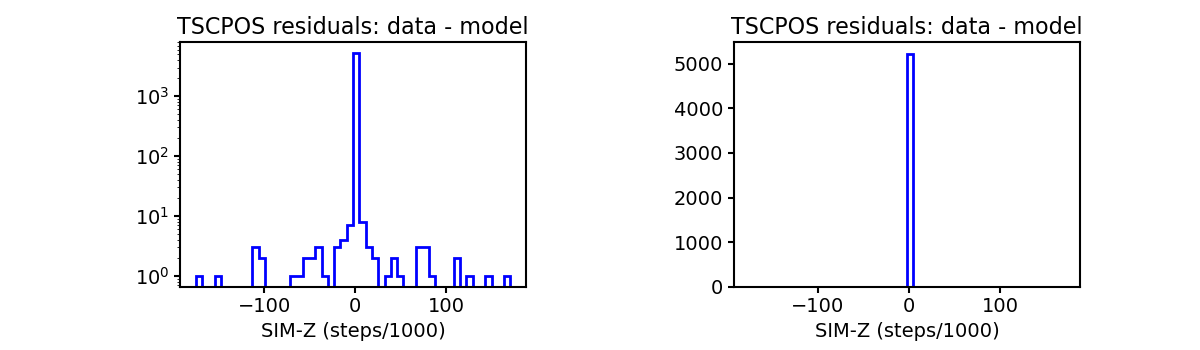

TSCPOS

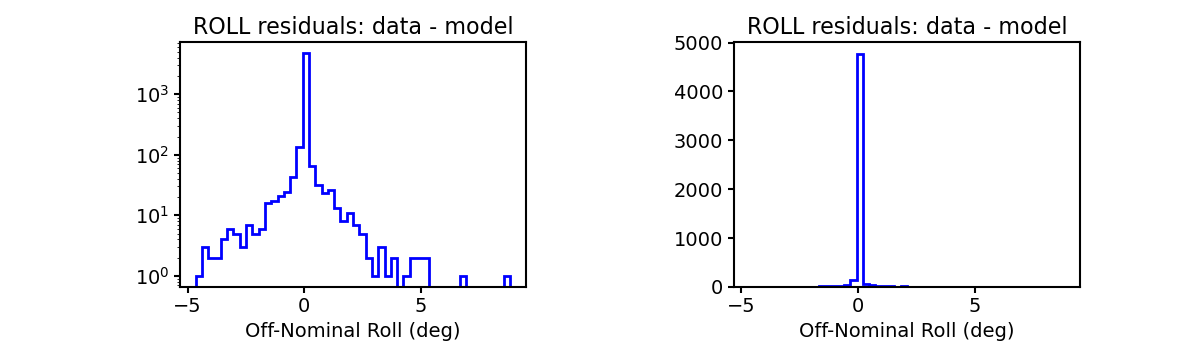

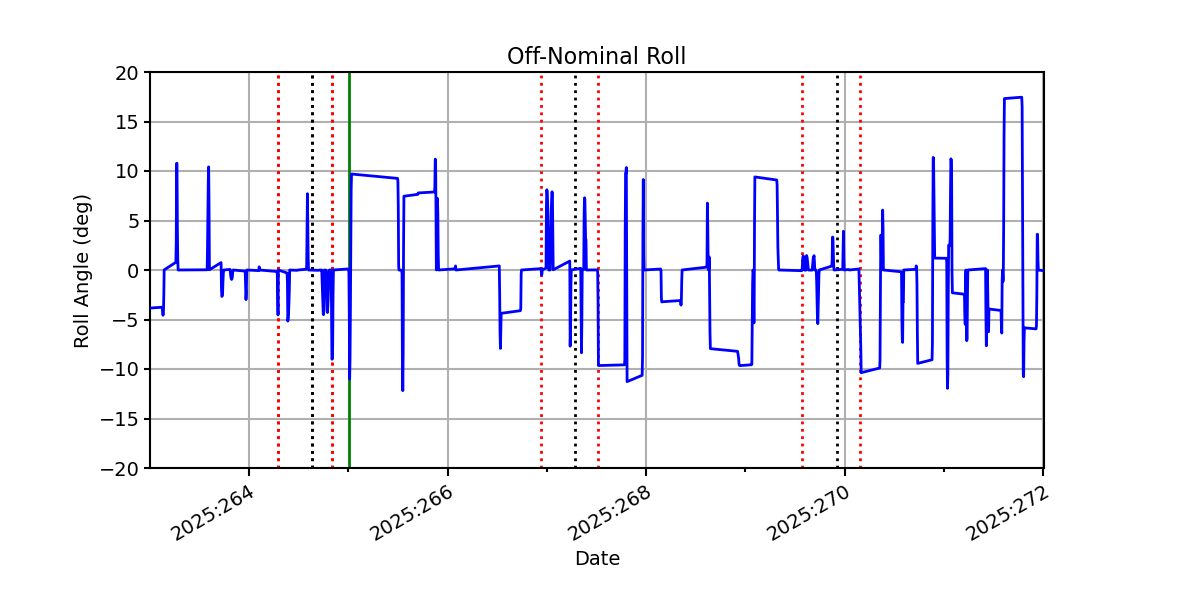

ROLL

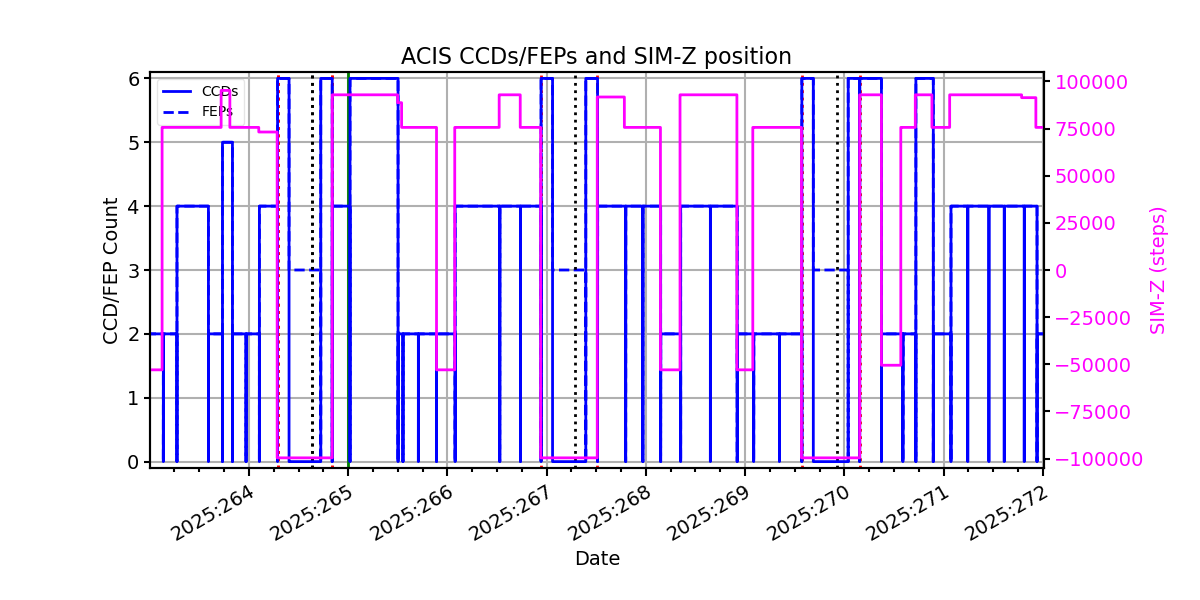

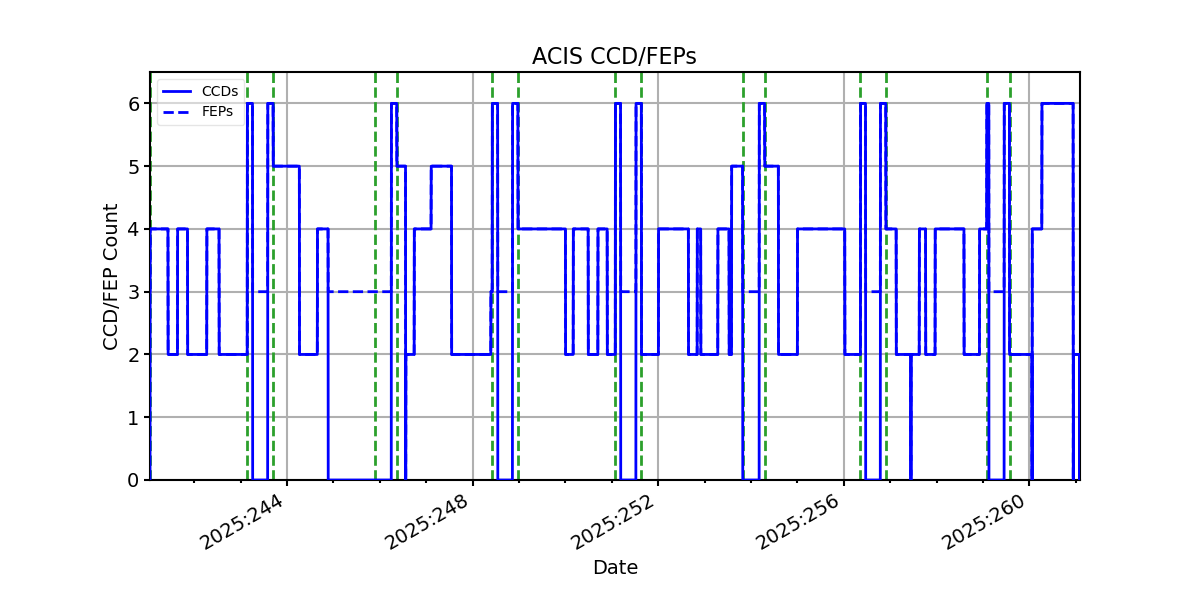

ACIS CCD/FEP Count
