DPA Temperatures Check
Summary
| Date start | 2026:271:01:21:07.416 |
| Date stop | 2026:277:13:13:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2826/oflst |
| Run time | Fri Oct 9 14:03:03 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

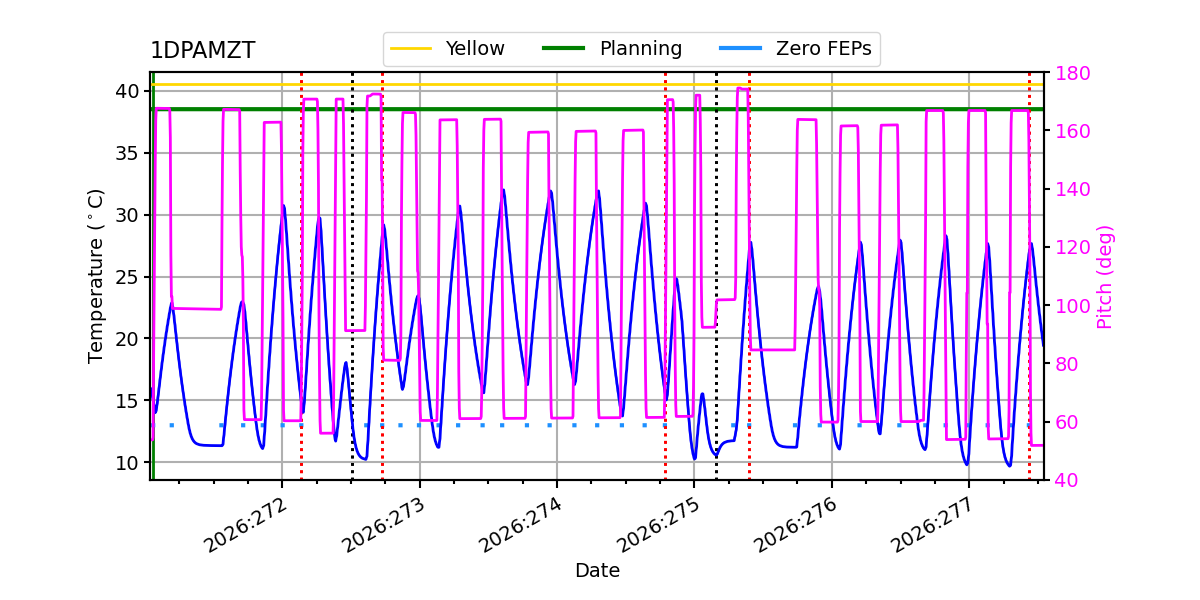

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:276:08:20:08.907 | 2026:276:08:20:32.449 | 0.02 | 12.33 / 13.00 |
| 2026:276:23:40:17.099 | 2026:276:23:40:38.436 | 0.02 | 9.89 / 13.00 |
| 2026:277:07:09:59.036 | 2026:277:07:10:19.413 | 0.02 | 9.74 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.59 | -1.29 | -0.87 | 0.01 | 0.64 | 1.02 | 1.59 |
| pitch | -11.469 | -1.293 | -0.004 | -0.000 | 0.004 | 1.252 | 11.528 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.003 | -0.229 | -0.008 | 0.000 | 0.009 | 0.231 | 1.777 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.469 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |

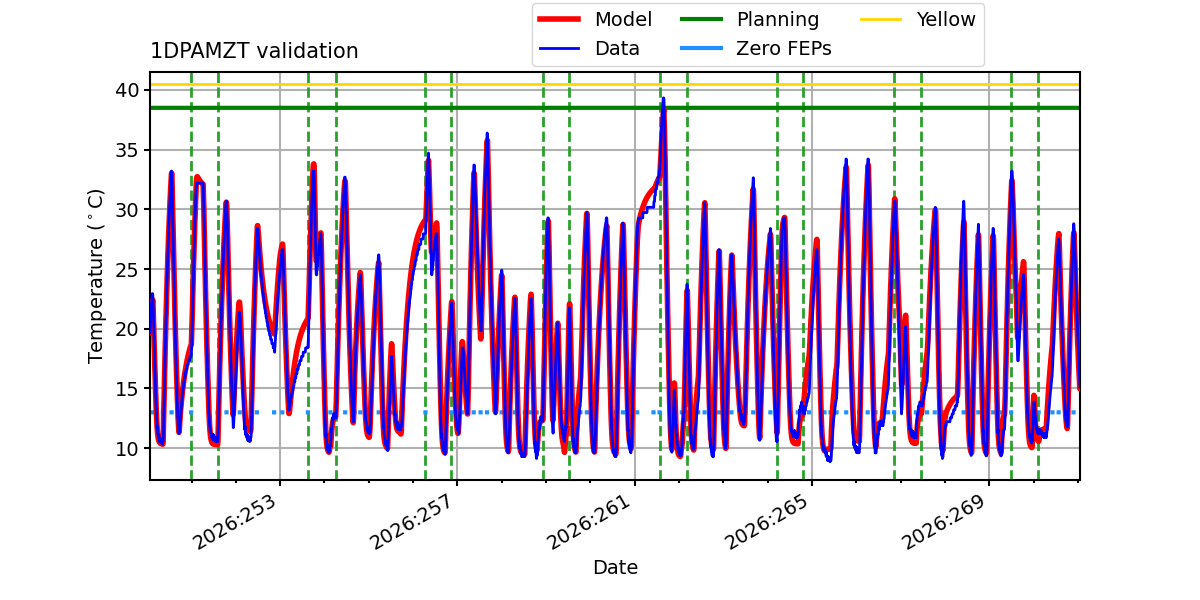

1DPAMZT

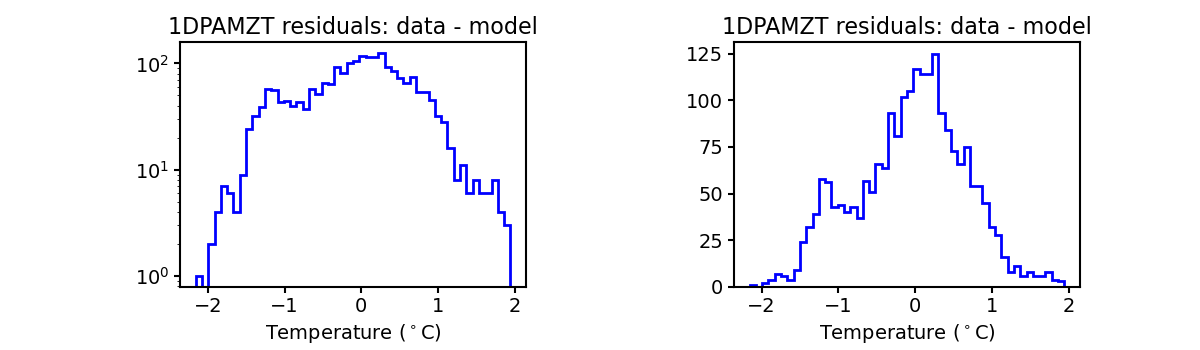

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

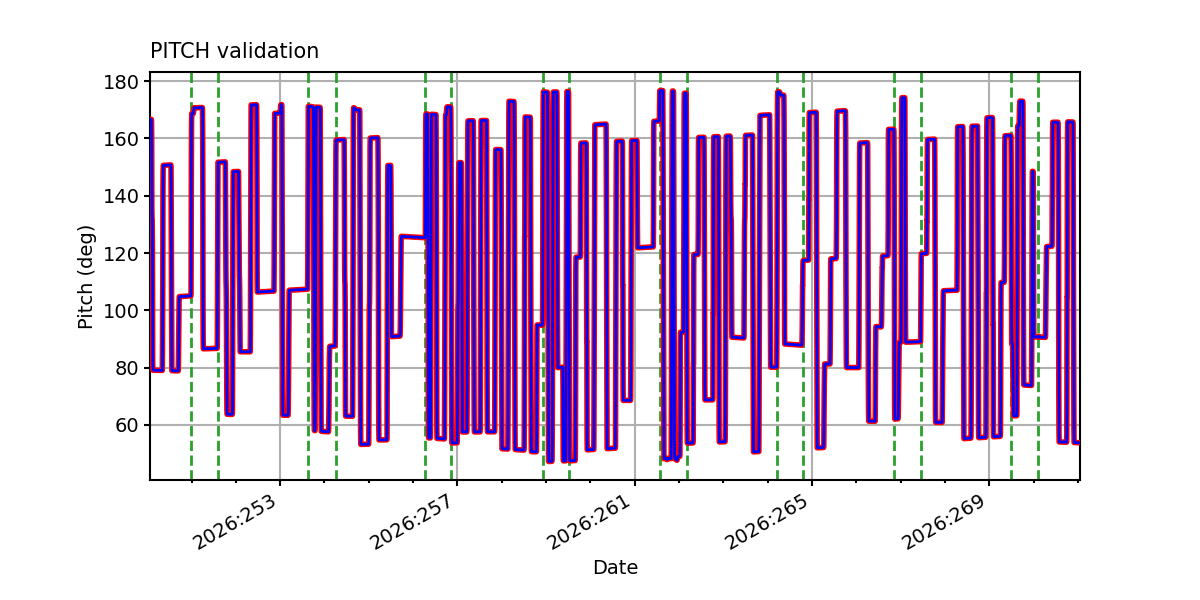

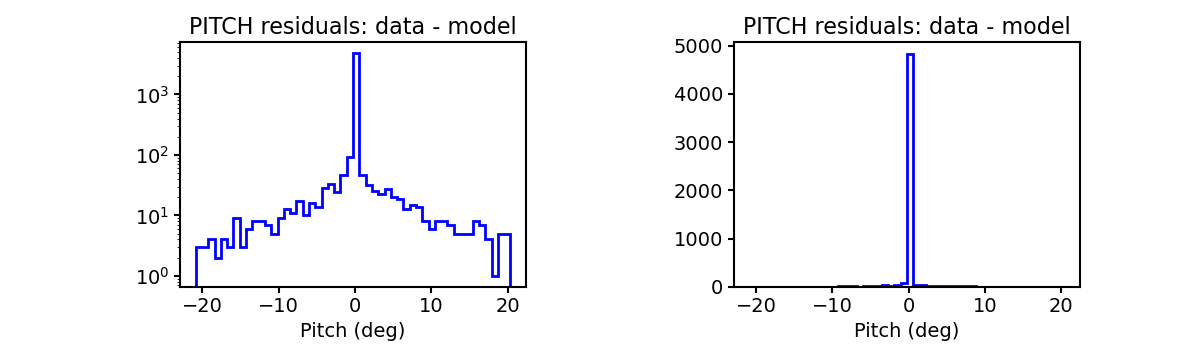

PITCH

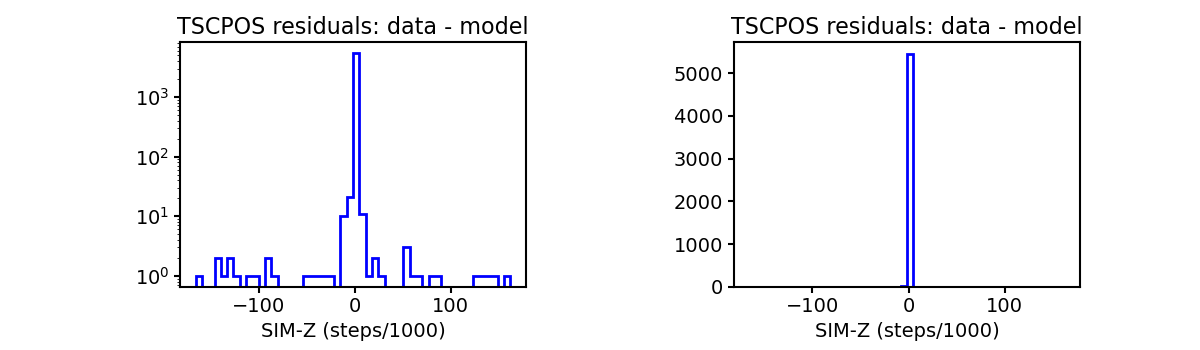

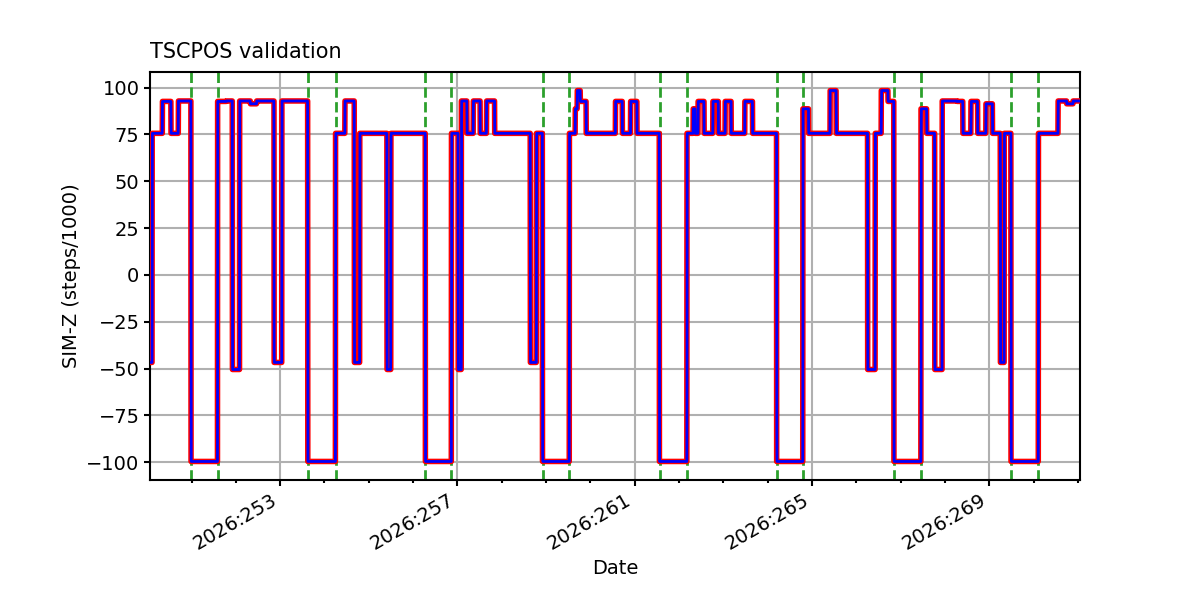

TSCPOS

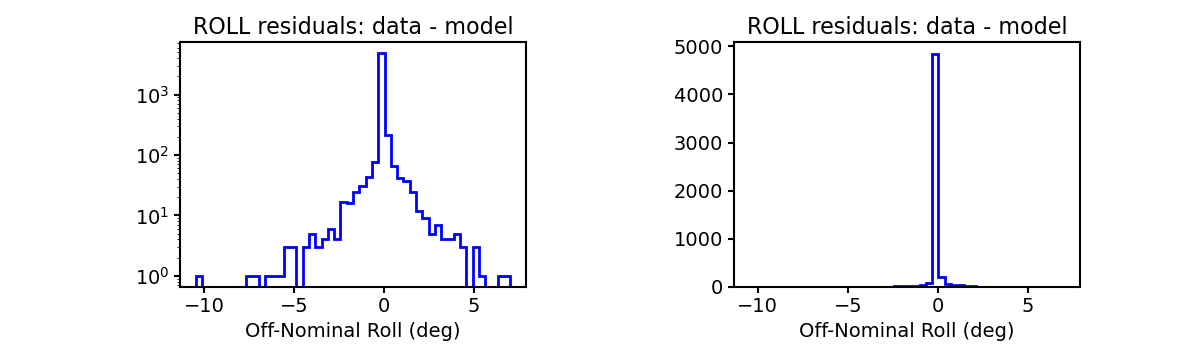

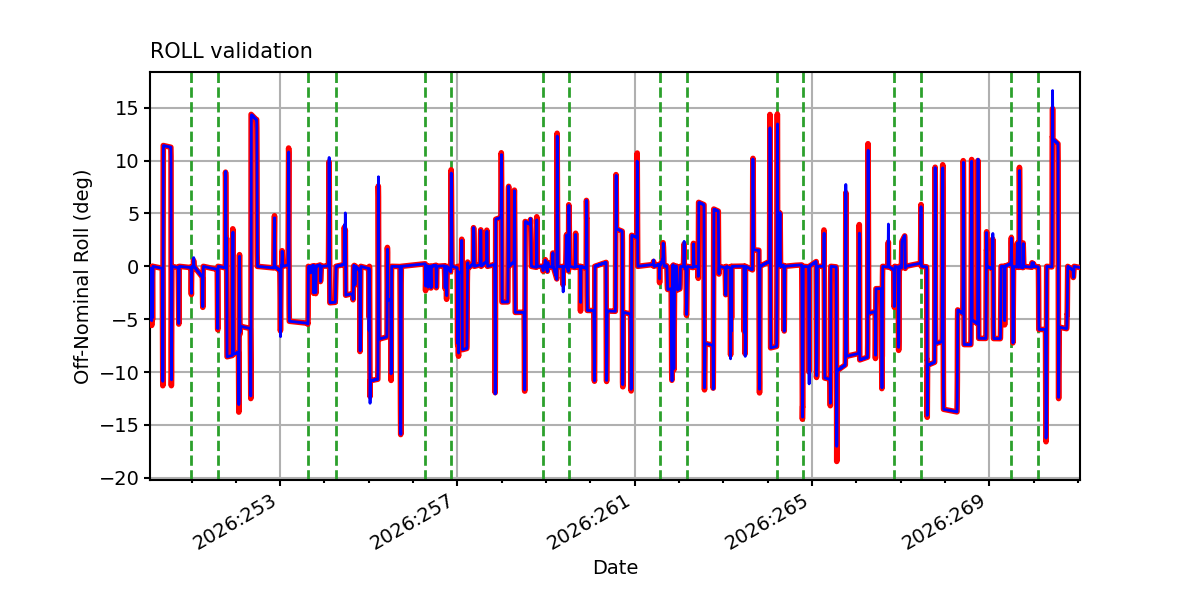

ROLL

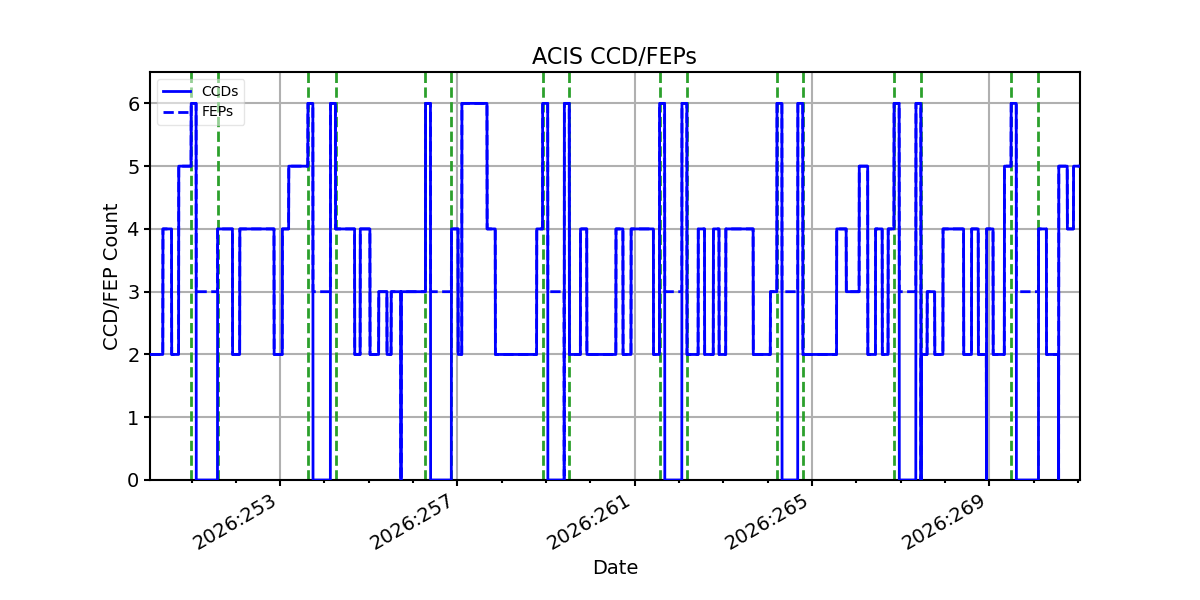

ACIS CCD/FEP Count
