DPA Temperatures Check
Summary
| Date start | 2025:272:00:14:23.616 |
| Date stop | 2025:278:23:13:04.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2925/oflsa |
| Run time | Thu Sep 25 09:51:23 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

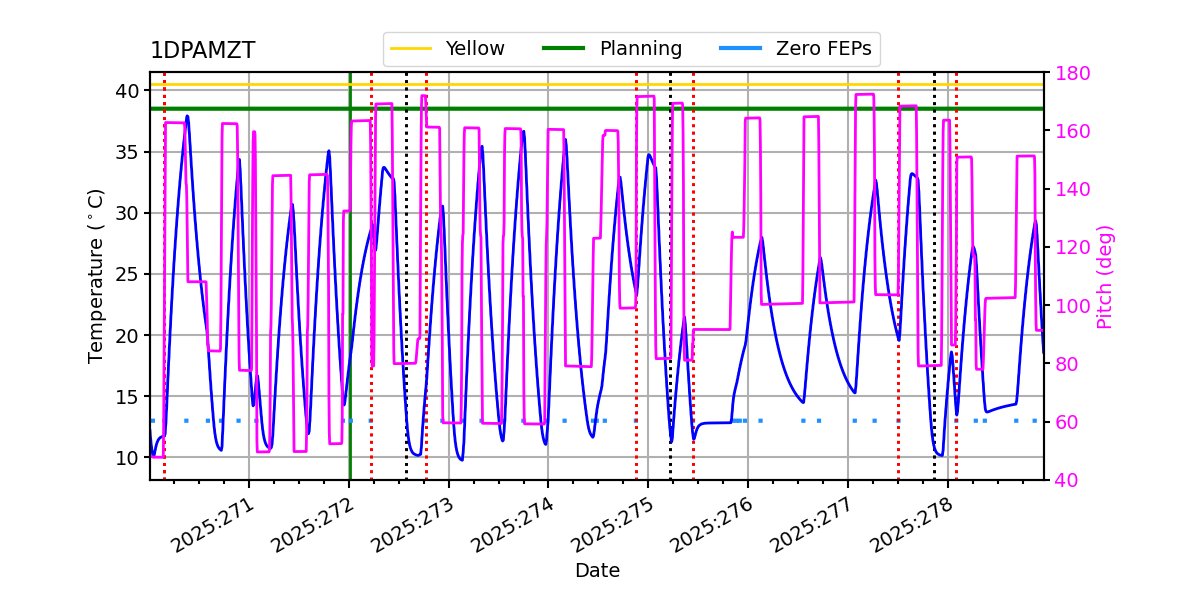

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:273:23:37:48.328 | 2025:273:23:37:58.816 | 0.01 | 11.93 / 13.00 |
| 2025:275:10:43:37.851 | 2025:275:10:43:39.587 | 0.00 | 11.83 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -4.03 | -3.13 | -1.64 | -0.50 | 0.16 | 0.61 | 1.16 |
| pitch | -9.068 | -0.402 | -0.004 | 0.000 | 0.004 | 0.477 | 12.748 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.596 | -0.151 | -0.008 | -0.000 | 0.007 | 0.109 | 1.567 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -4.03 | 2.00 |
| PITCH | 1 | -9.068 | 3.00 |
| PITCH | 99 | 12.748 | 3.00 |

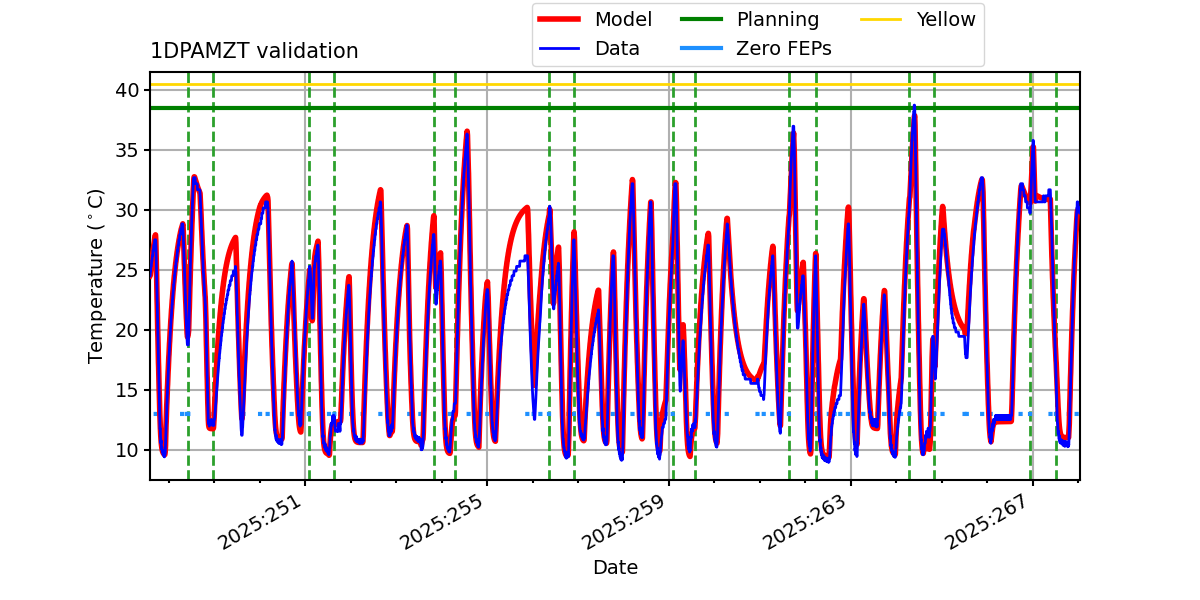

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

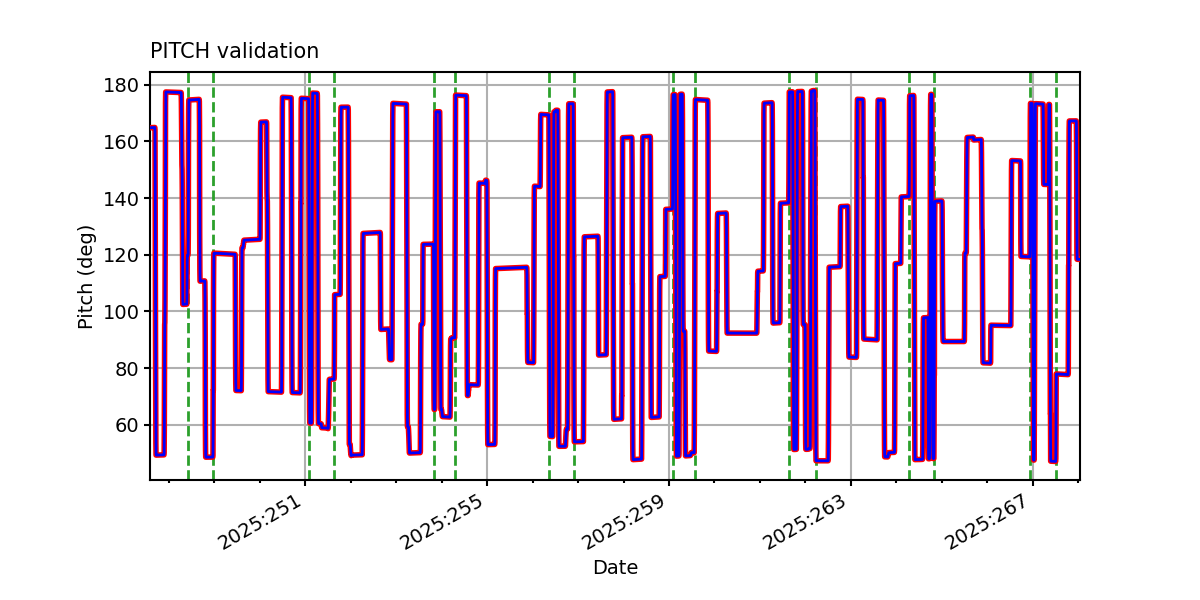

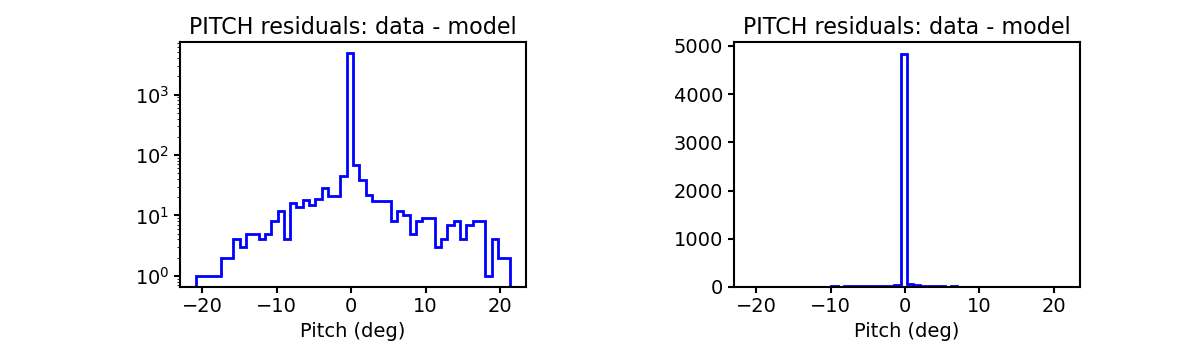

PITCH

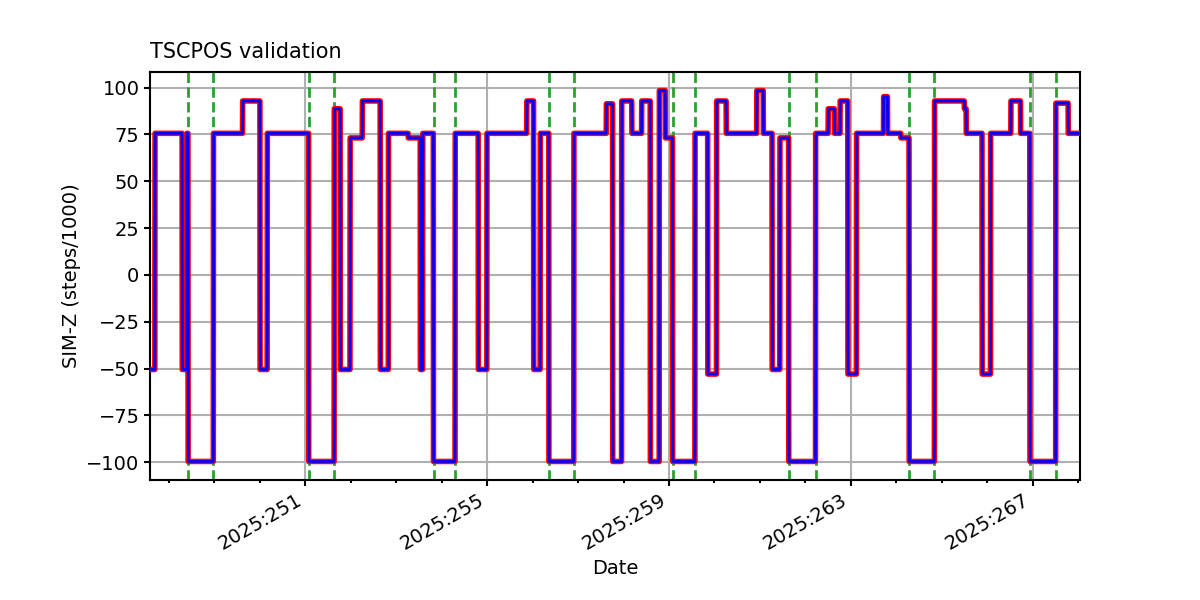

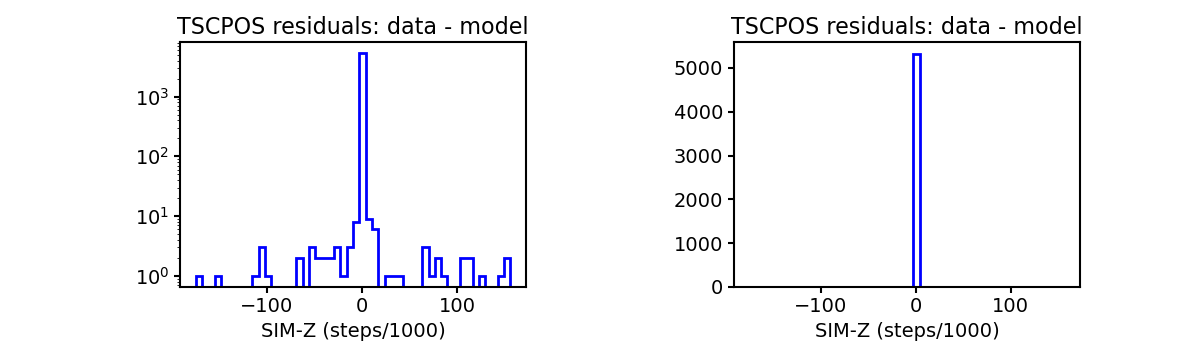

TSCPOS

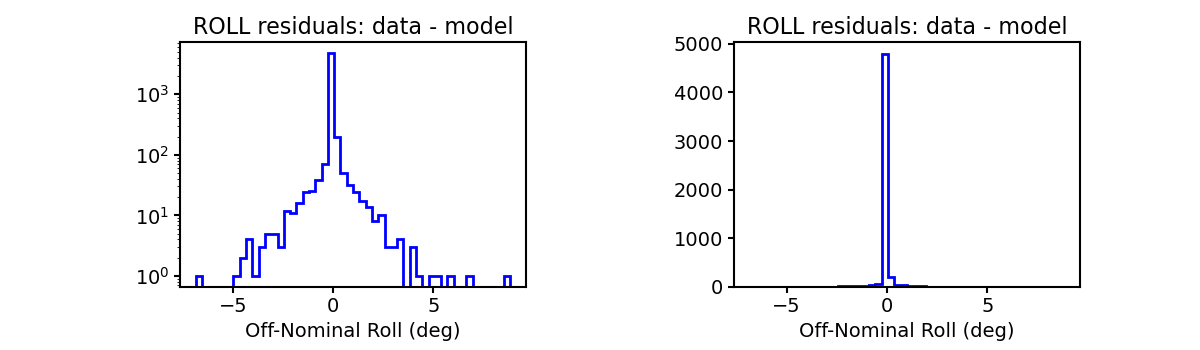

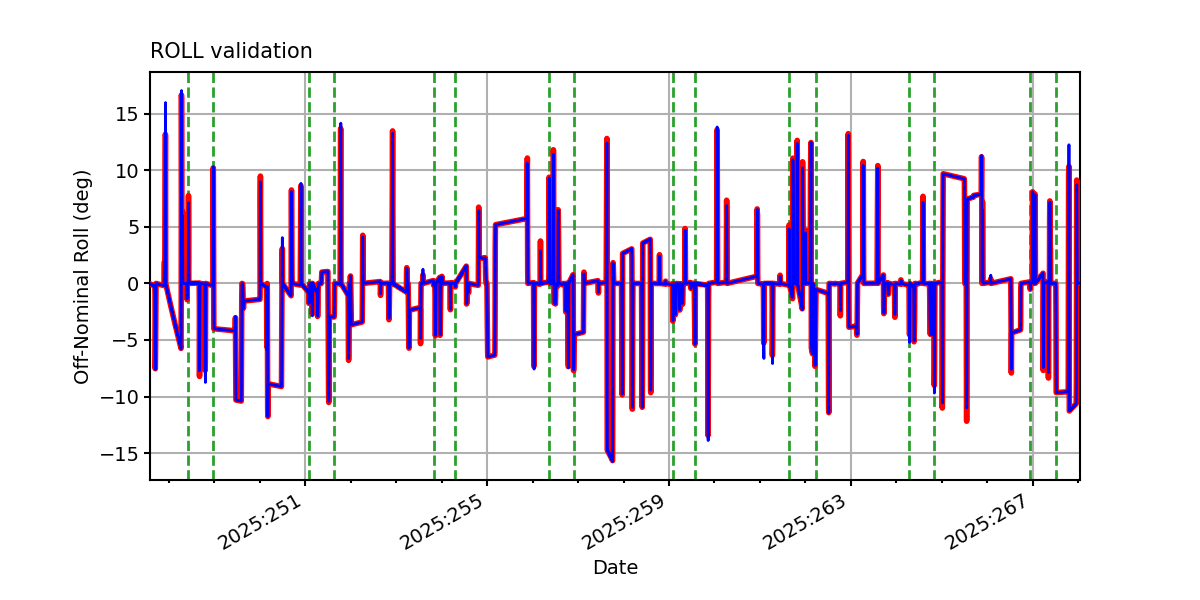

ROLL

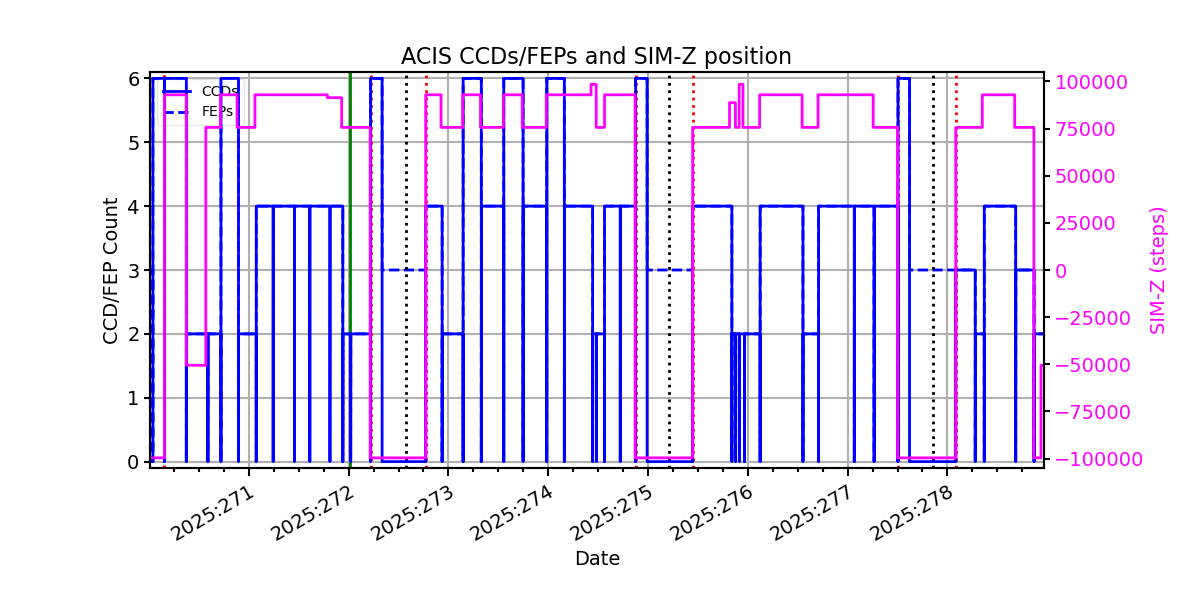

ACIS CCD/FEP Count
