FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:095:21:40:32.216 |
| Date stop | 2026:103:00:29:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR0626/oflsa |
| Run time | Thu Apr 2 10:49:50 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

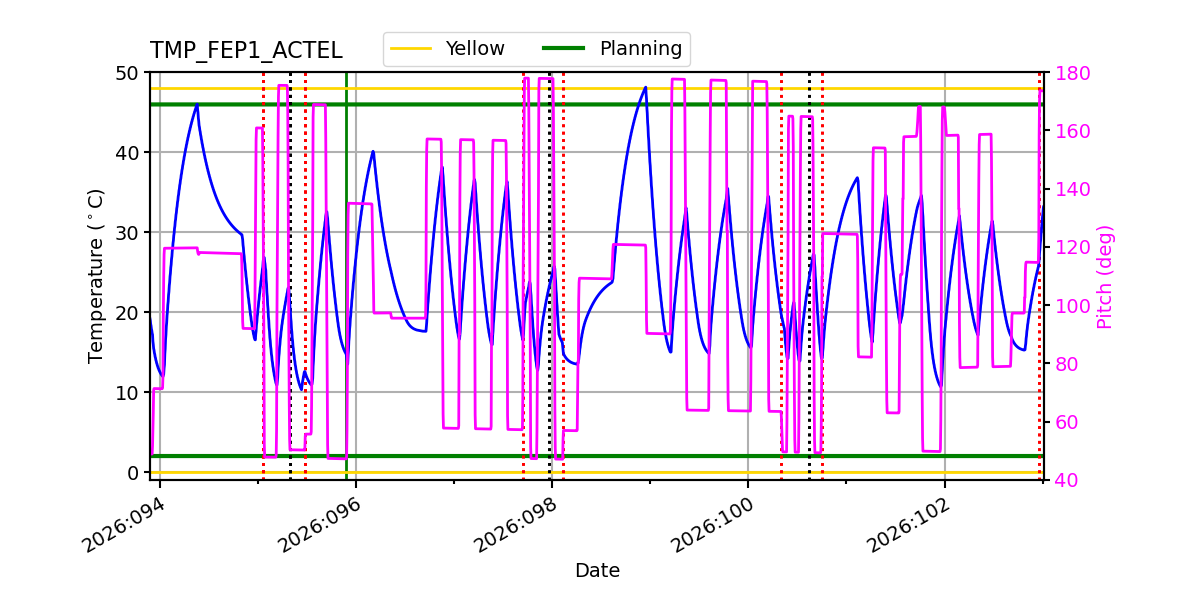

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:098:21:17:02.816 | 2026:098:23:06:22.816 | 6.56 | 48.16 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.20 | -4.94 | -3.26 | -0.83 | 1.57 | 2.42 | 3.44 |
| pitch | -12.422 | -1.472 | -0.004 | -0.000 | 0.004 | 1.737 | 13.037 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.473 | -0.316 | -0.010 | -0.000 | 0.010 | 0.239 | 2.113 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.2 | 2.00 |
| TMP_FEP1_ACTEL | 99 | 3.44 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 13.037 | 3.00 |

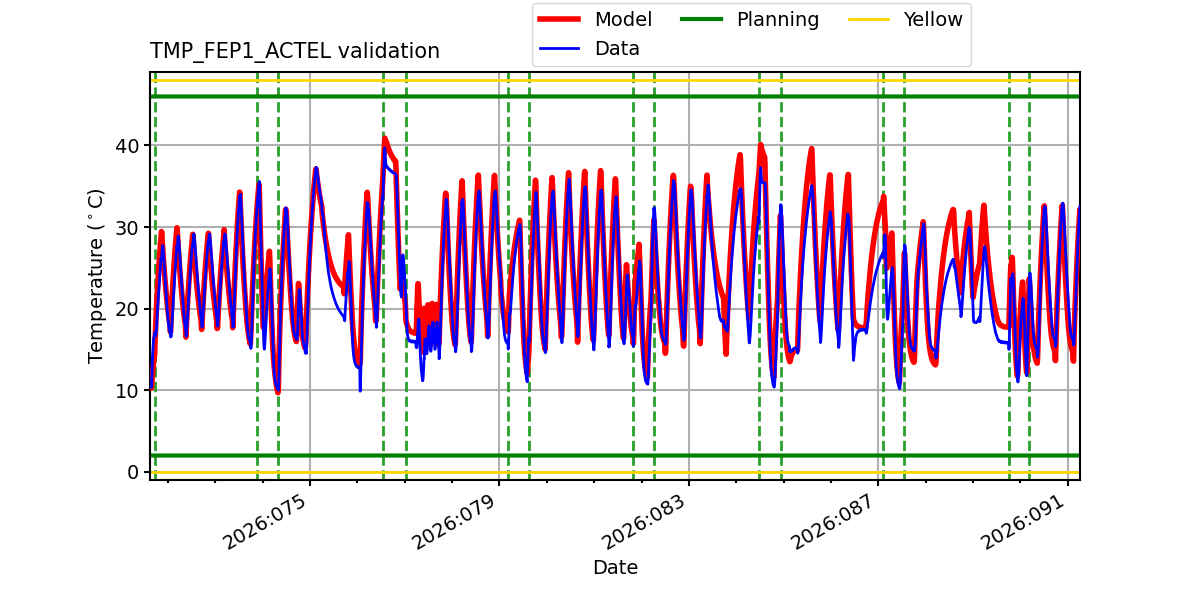

TMP_FEP1_ACTEL

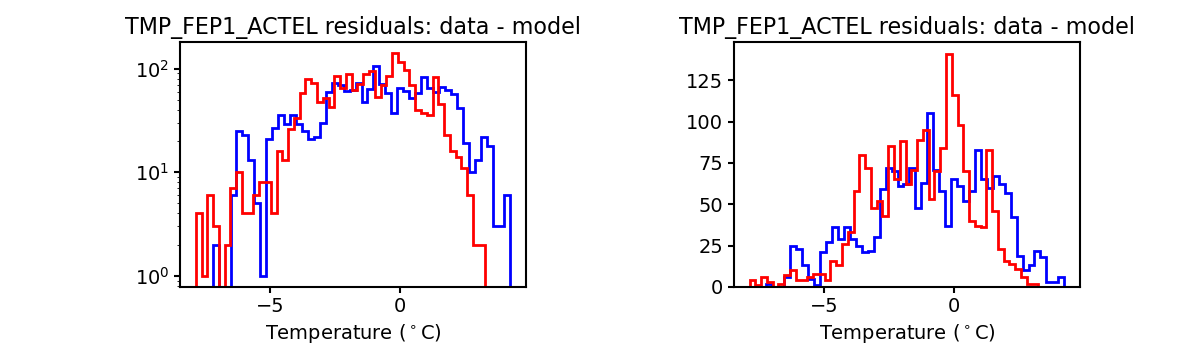

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

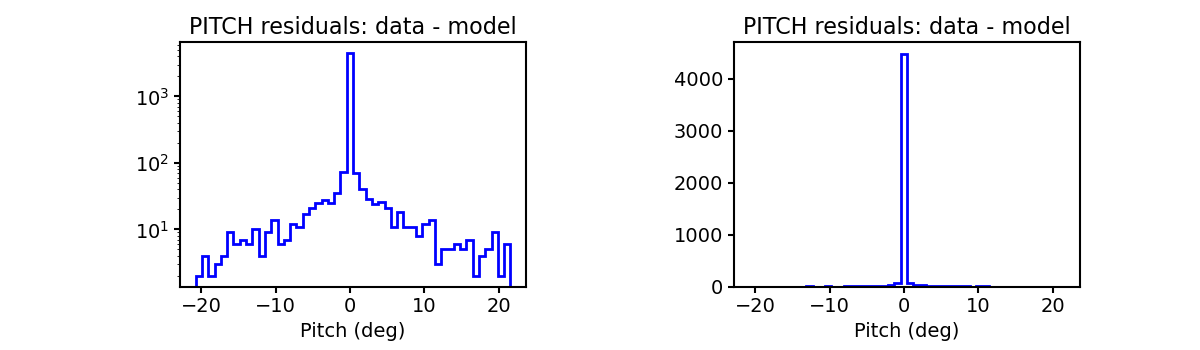

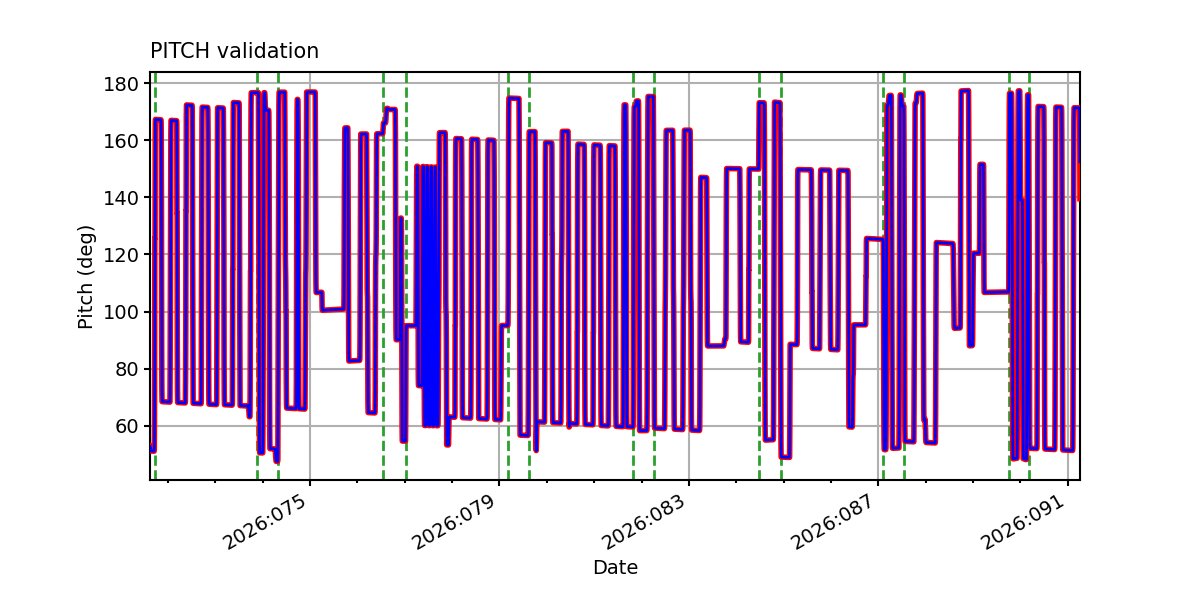

PITCH

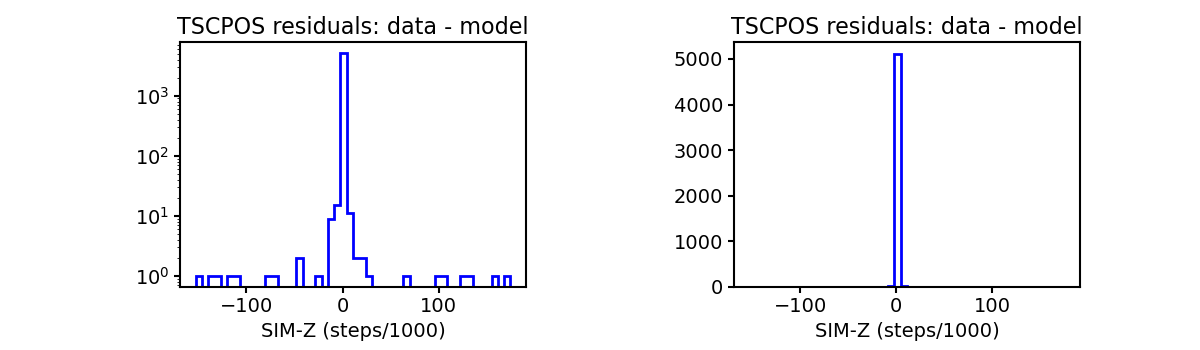

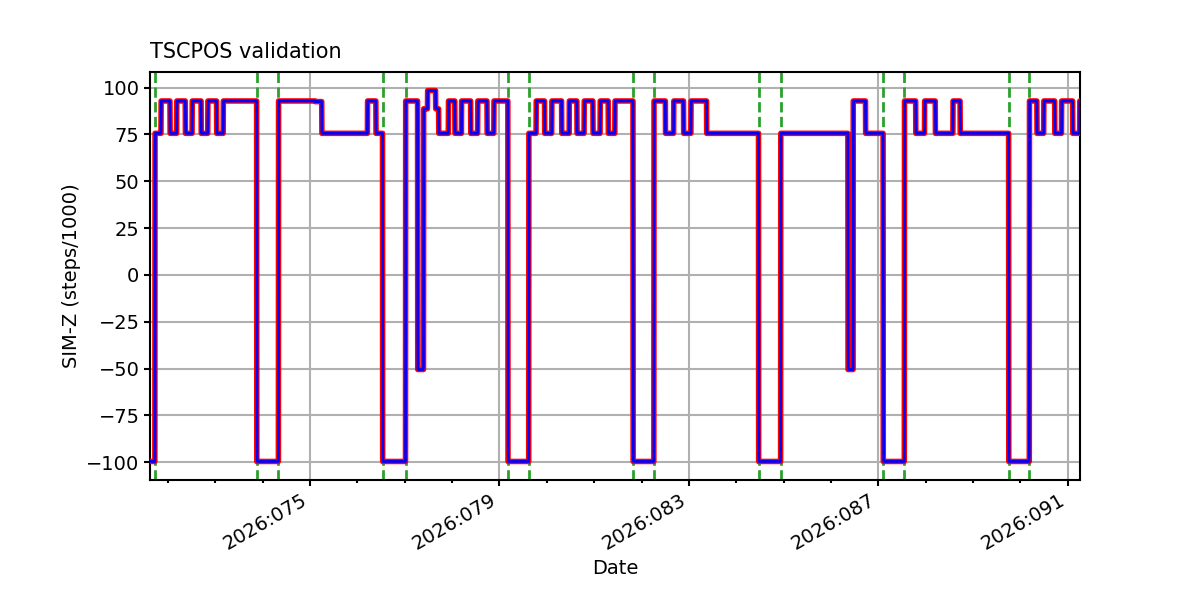

TSCPOS

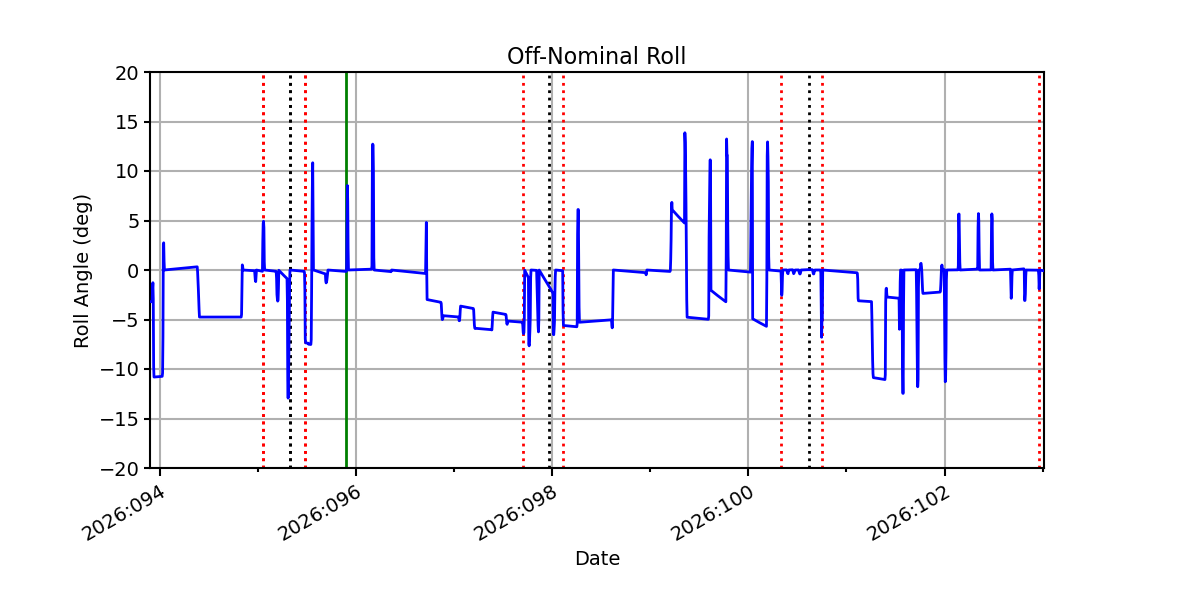

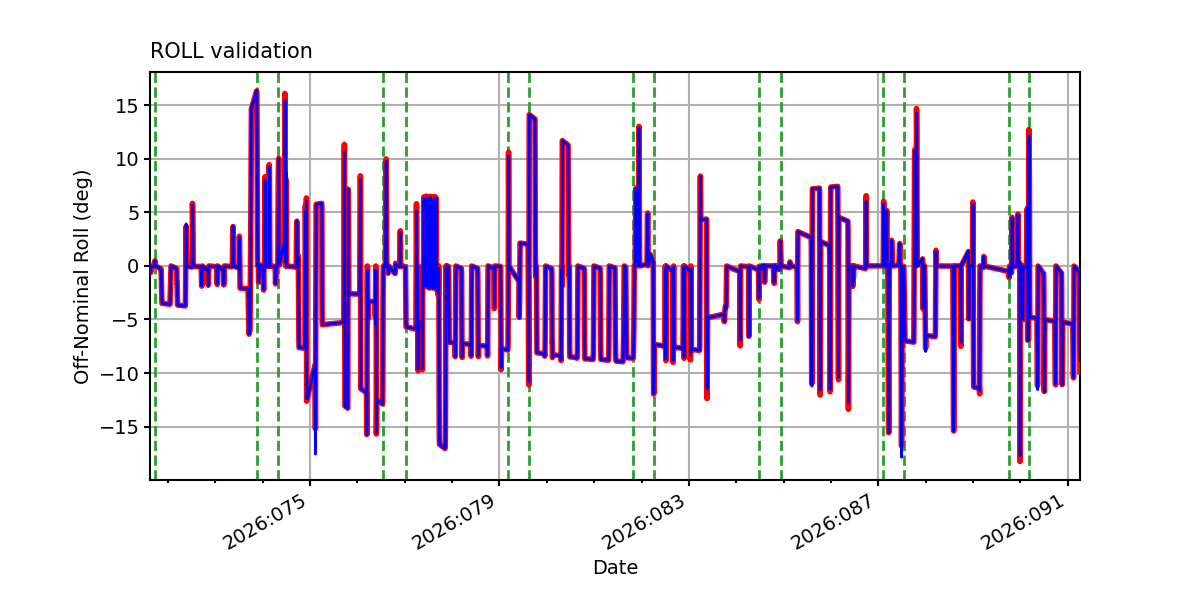

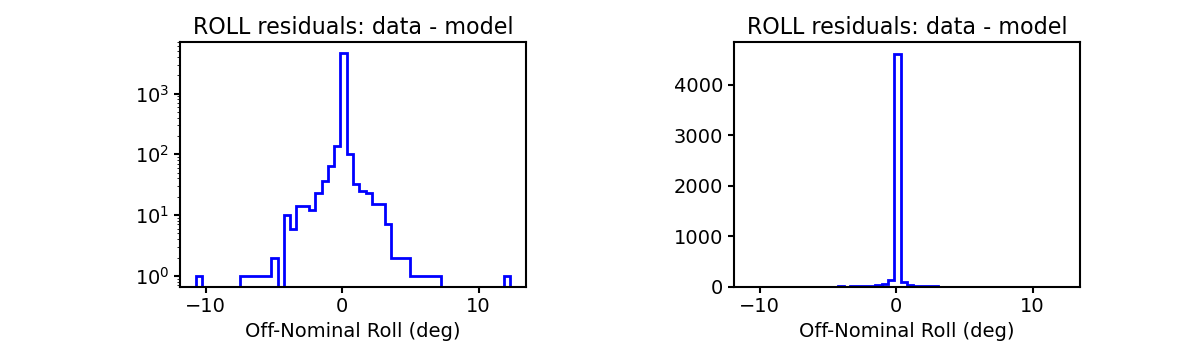

ROLL

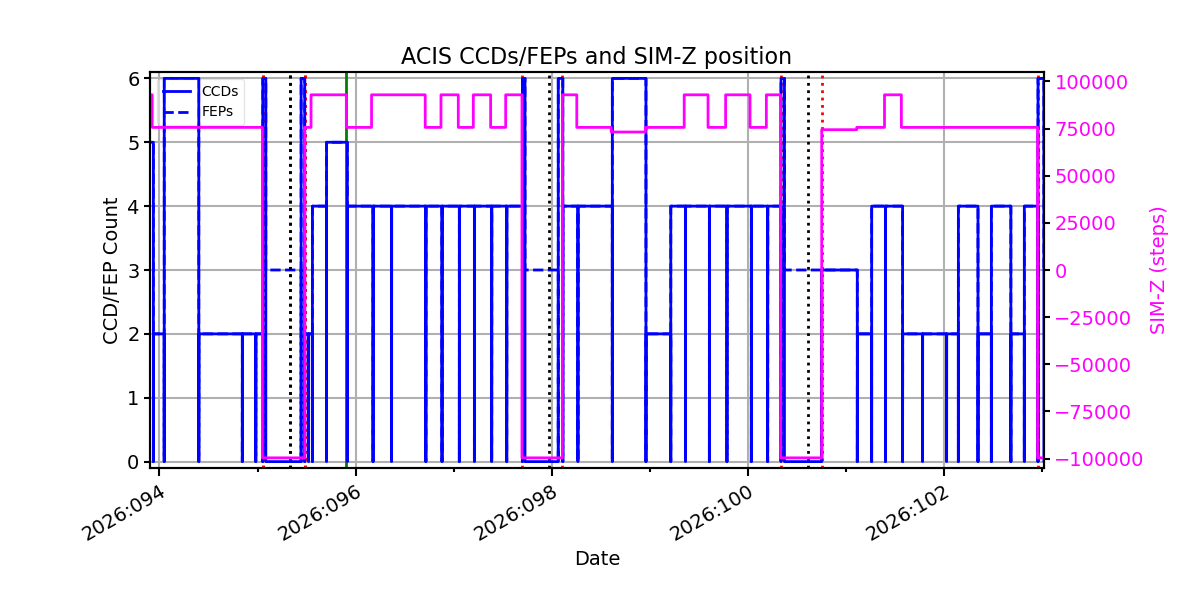

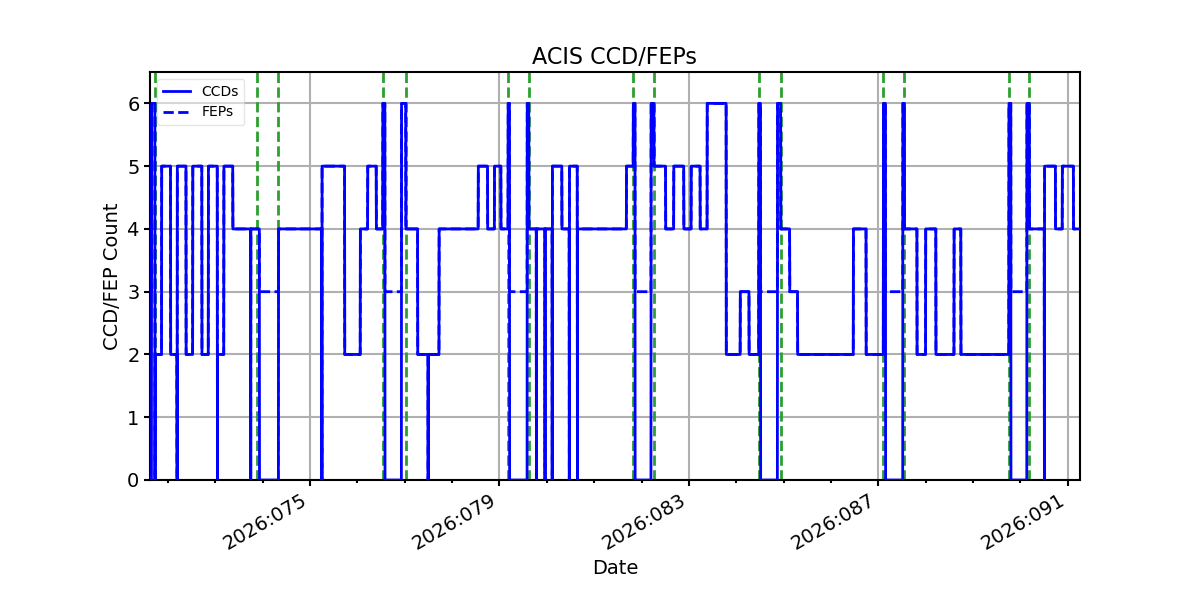

ACIS CCD/FEP Count
