FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:111:00:38:00.016 |
| Date stop | 2025:118:00:24:12.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/APR2125/ofls |
| Run time | Thu Apr 17 13:42:20 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.50 | -5.63 | -4.68 | -2.25 | 0.08 | 1.71 | 2.95 |
| pitch | -5.703 | -0.505 | -0.004 | 0.000 | 0.004 | 0.585 | 5.567 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.477 | -0.108 | -0.008 | 0.000 | 0.009 | 0.168 | 1.369 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.5 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.25 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.95 | 2.00 |
| PITCH | 1 | -5.703 | 3.00 |
| PITCH | 99 | 5.567 | 3.00 |
TMP_FEP1_ACTEL
Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

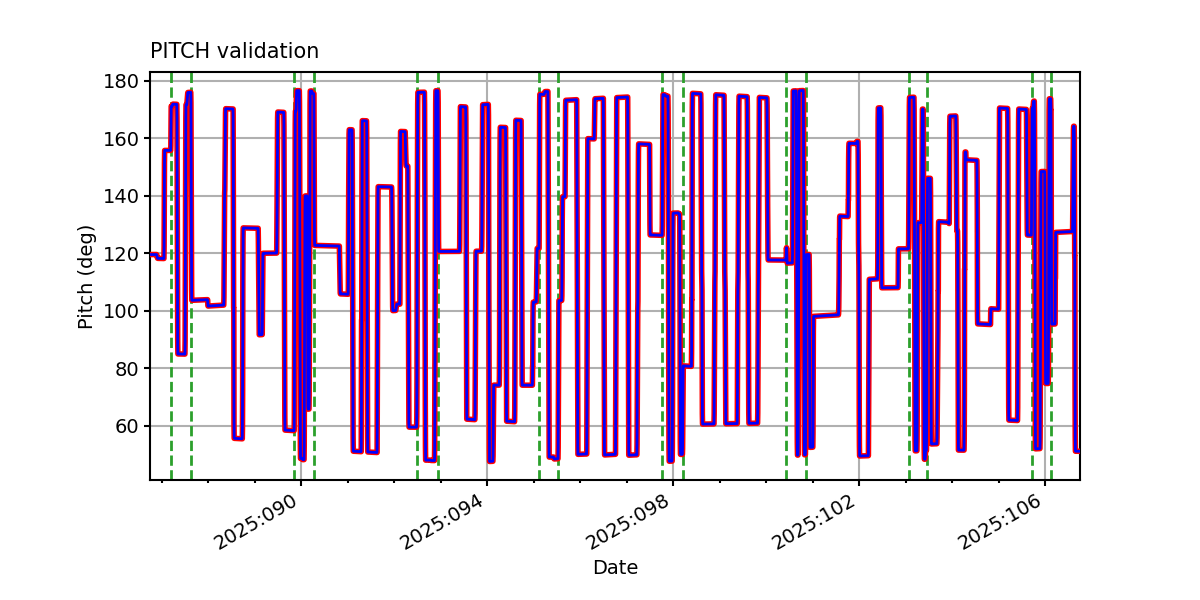

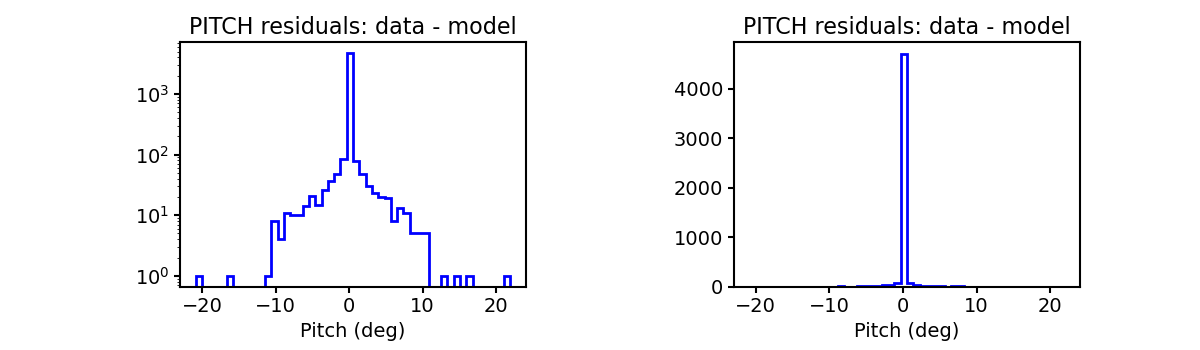

PITCH

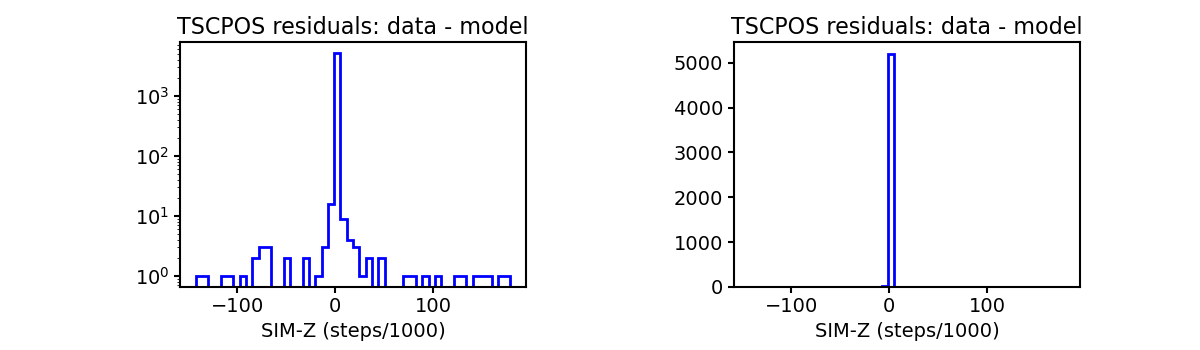

TSCPOS
ROLL
ACIS CCD/FEP Count
