FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:117:01:16:40.316 |
| Date stop | 2026:123:23:23:16.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR2726/oflsa |
| Run time | Wed Apr 22 09:33:05 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

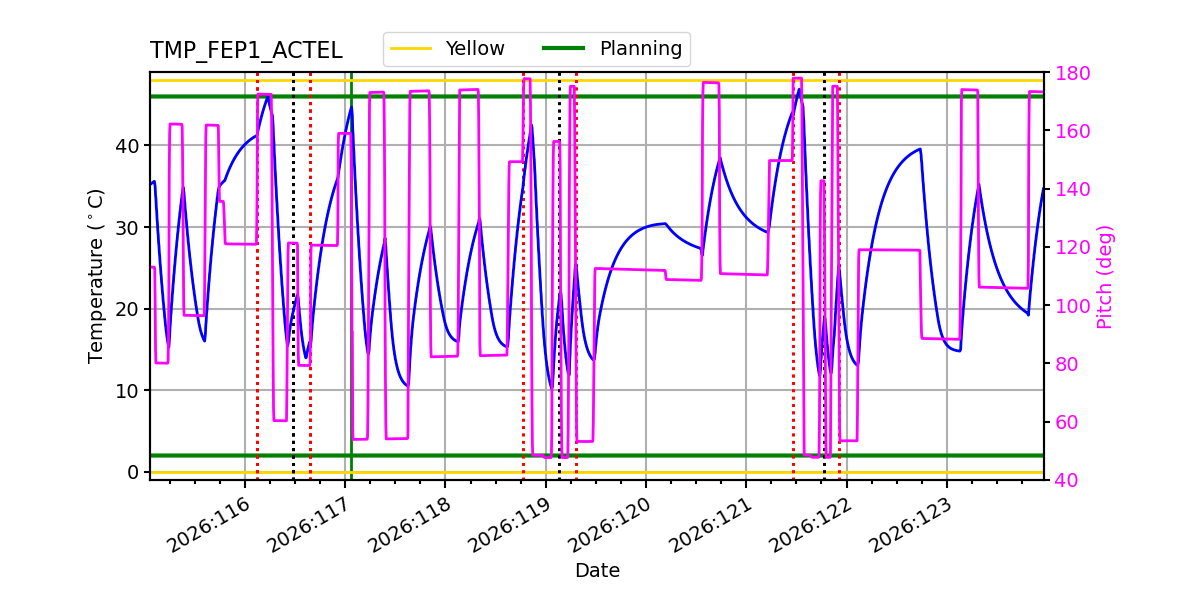

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:121:12:12:54.816 | 2026:121:13:02:06.816 | 2.95 | 46.89 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.54 | -6.92 | -6.10 | -2.88 | 0.49 | 2.60 | 3.57 |
| pitch | -11.137 | -0.636 | -0.004 | 0.000 | 0.004 | 1.016 | 11.287 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.938 | -0.143 | -0.007 | -0.000 | 0.007 | 0.143 | 1.934 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.54 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.88 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.57 | 2.00 |
| PITCH | 1 | -11.137 | 3.00 |
| PITCH | 99 | 11.287 | 3.00 |

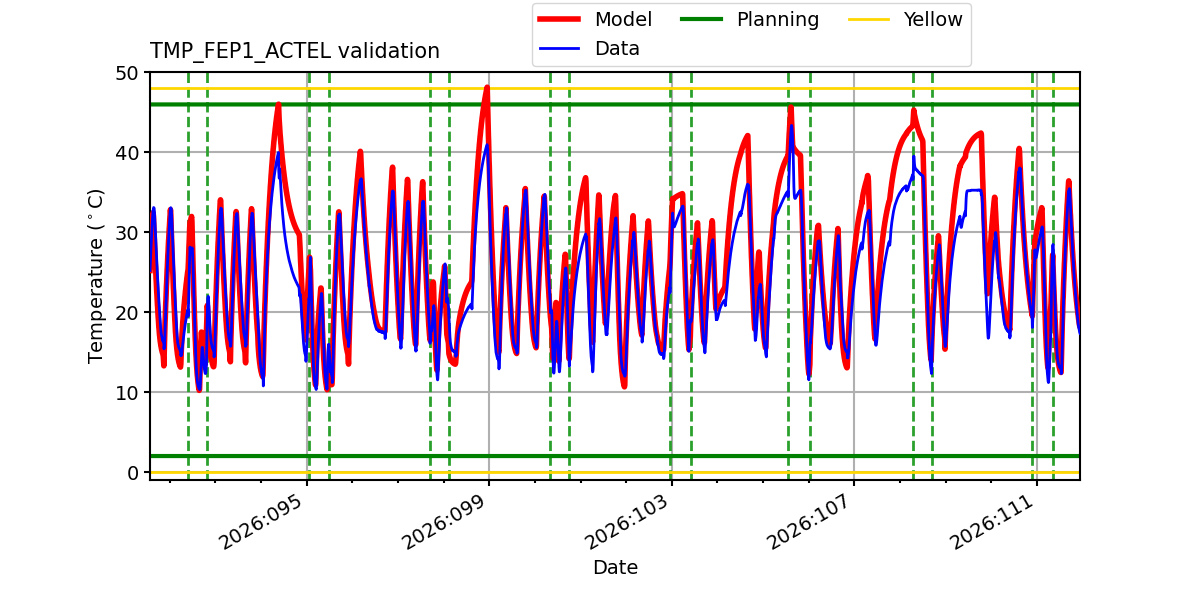

TMP_FEP1_ACTEL

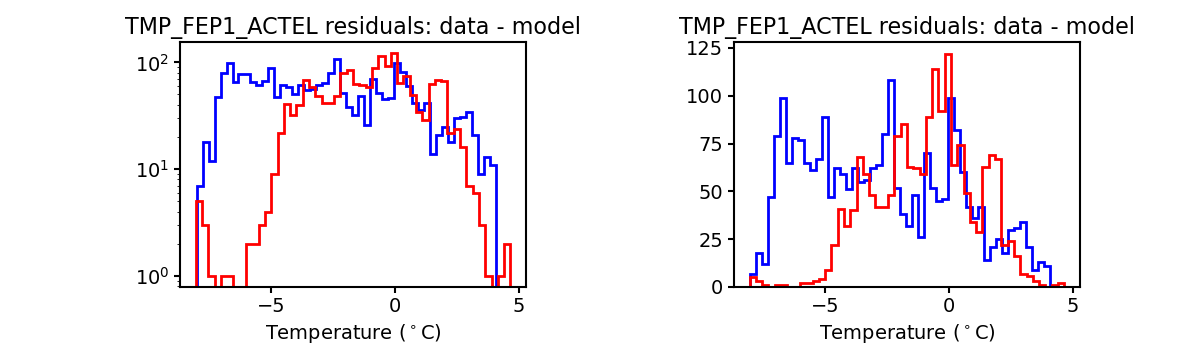

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

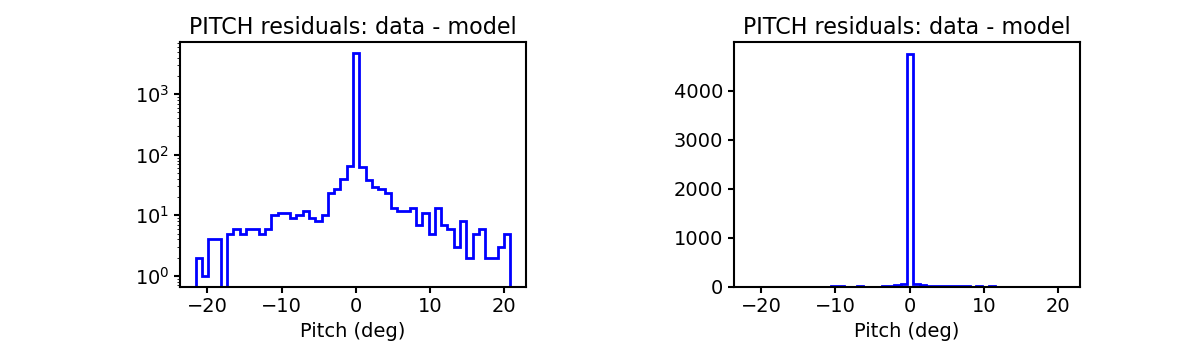

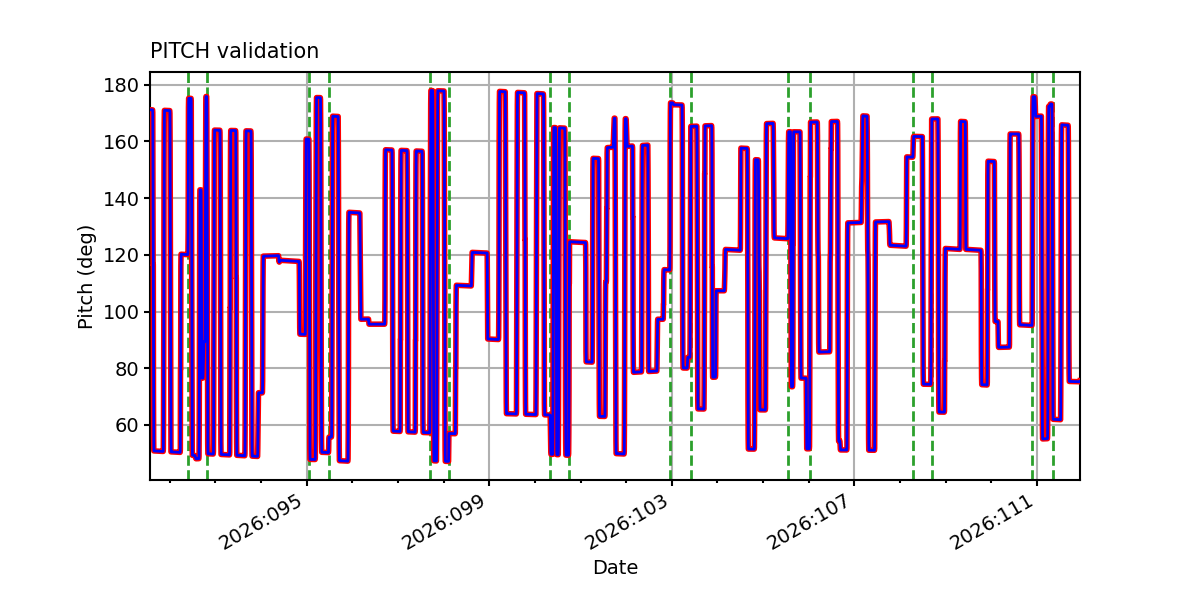

PITCH

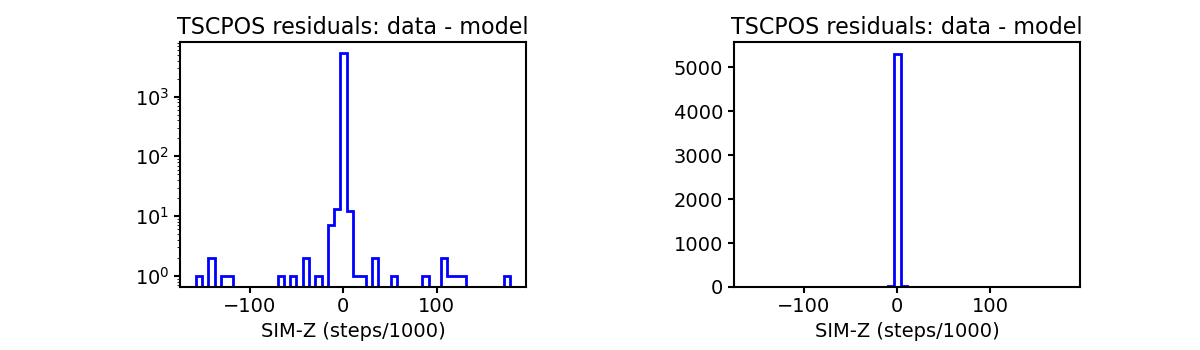

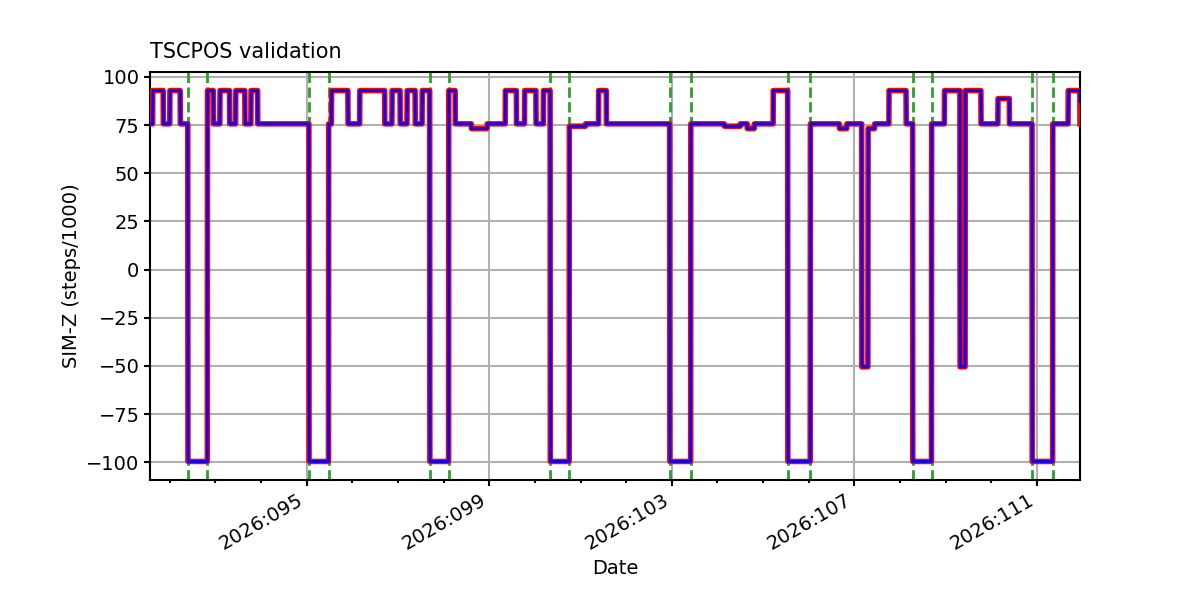

TSCPOS

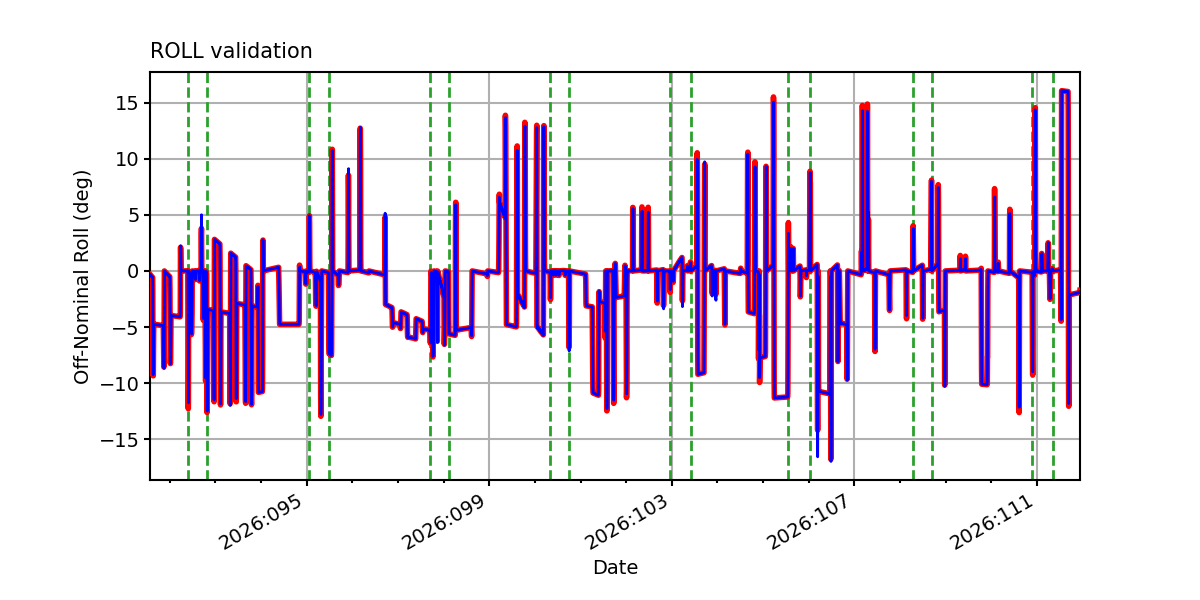

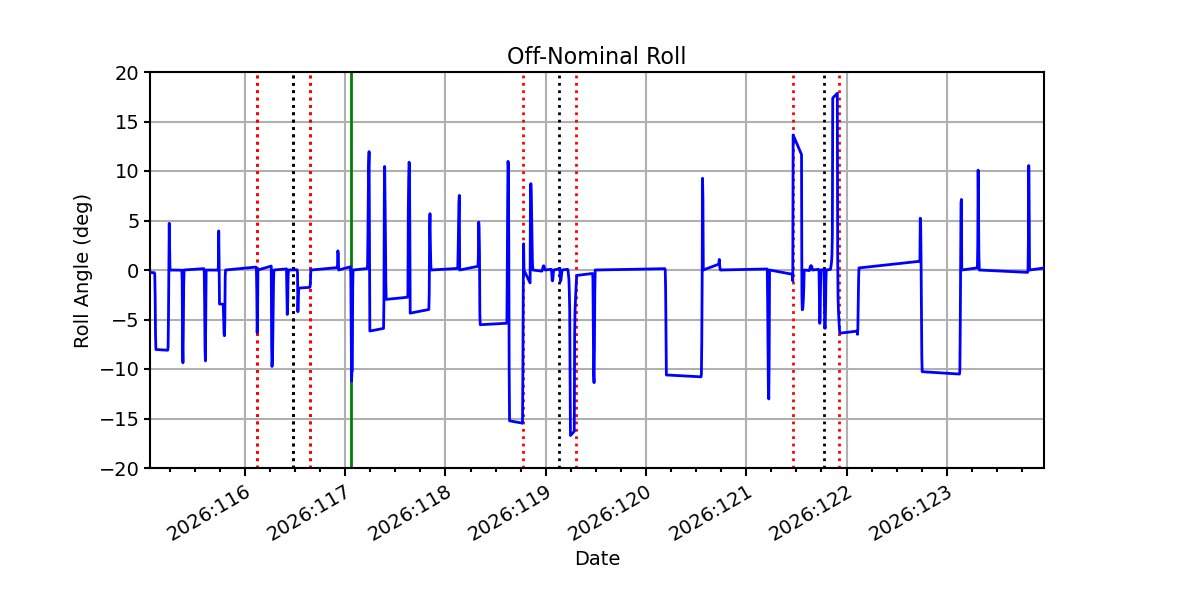

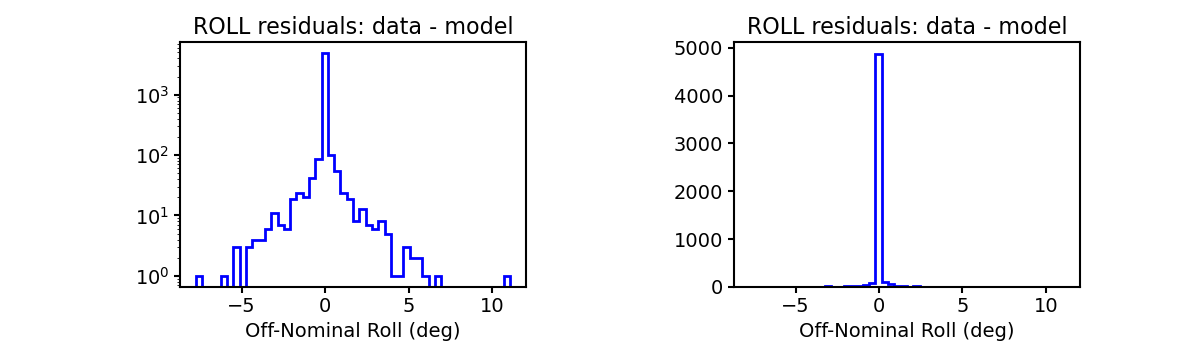

ROLL

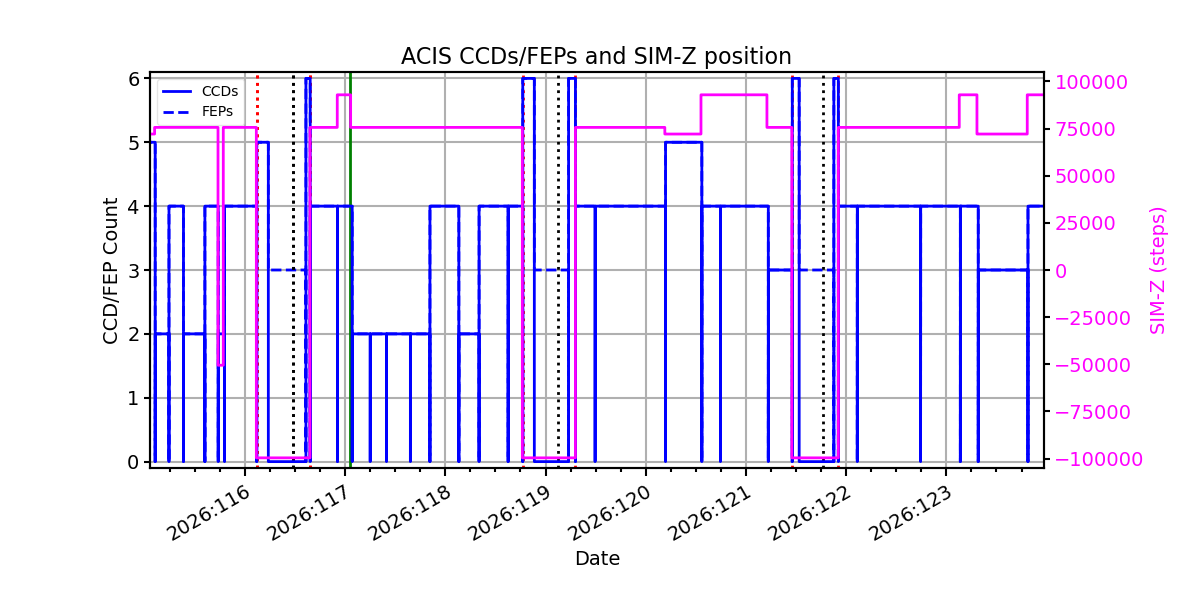

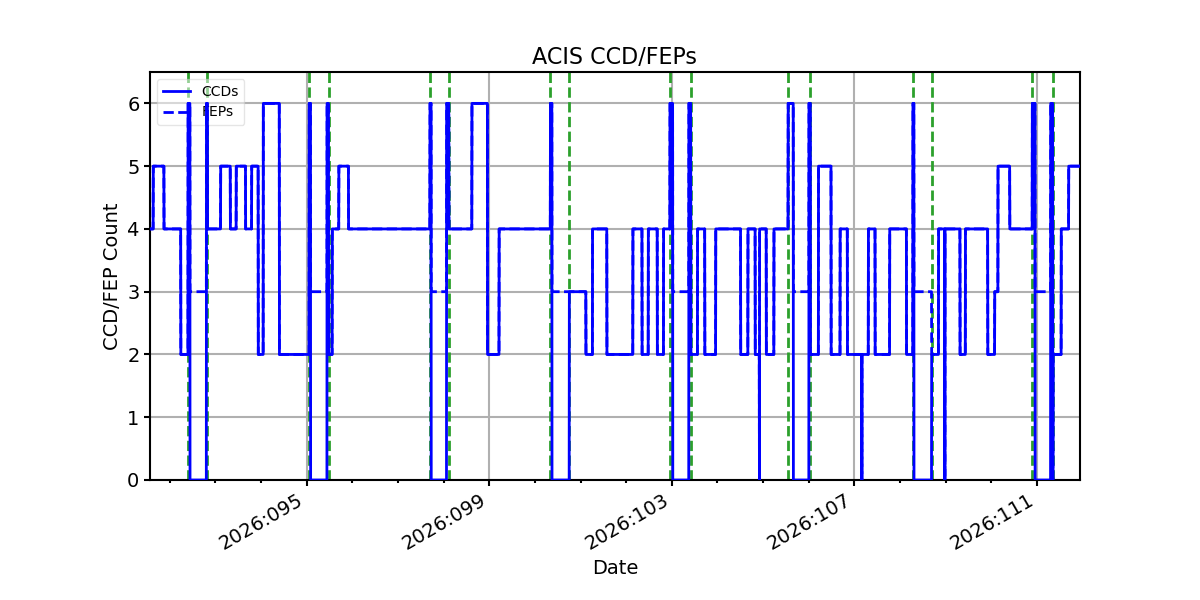

ACIS CCD/FEP Count
