FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:216:00:55:48.416 |
| Date stop | 2025:222:16:35:40.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG0425/ofls |
| Run time | Wed Jul 30 12:40:11 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:216:05:06:14.816 | 2025:216:06:57:03.191 | 6.65 | 47.39 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -5.43 | -4.48 | -3.33 | -1.89 | 0.39 | 1.65 | 2.81 |
| pitch | -9.335 | -0.136 | -0.004 | 0.000 | 0.004 | 0.360 | 8.459 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.035 | -0.106 | -0.006 | -0.000 | 0.006 | 0.093 | 1.802 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -5.43 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.89 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.81 | 2.00 |
| PITCH | 1 | -9.335 | 3.00 |
| PITCH | 99 | 8.459 | 3.00 |

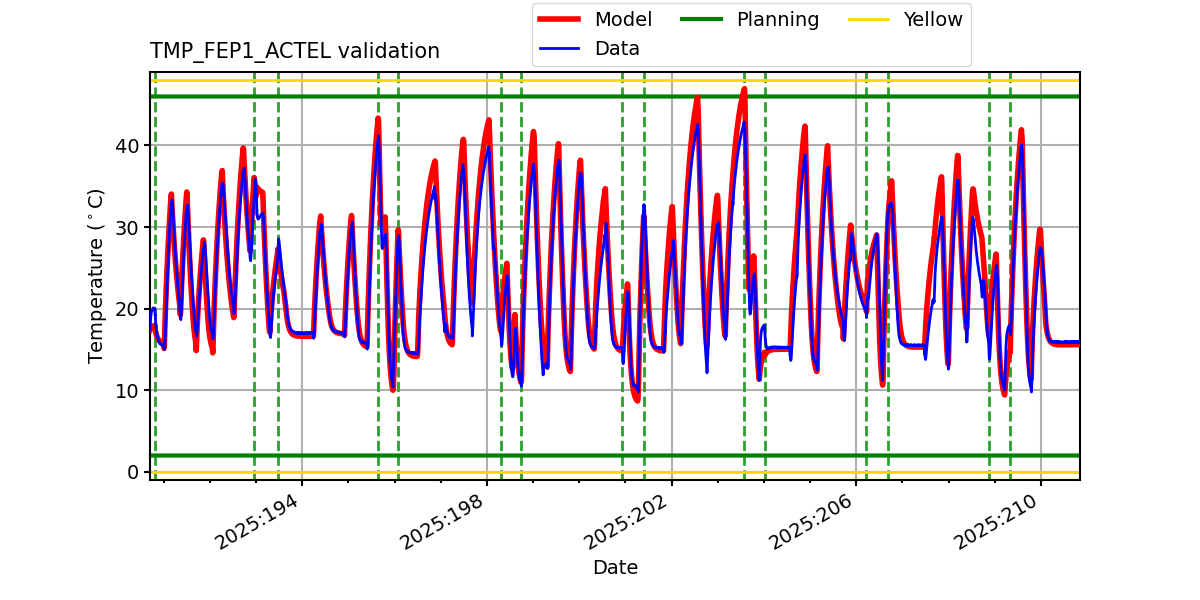

TMP_FEP1_ACTEL
Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

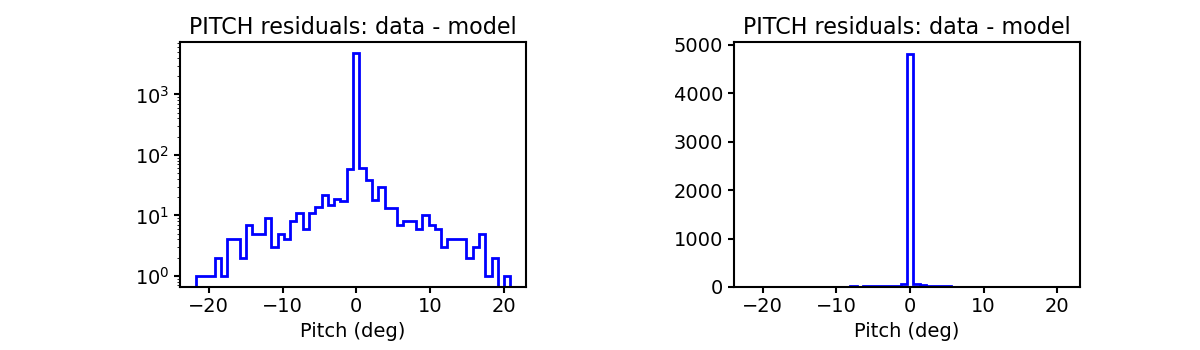

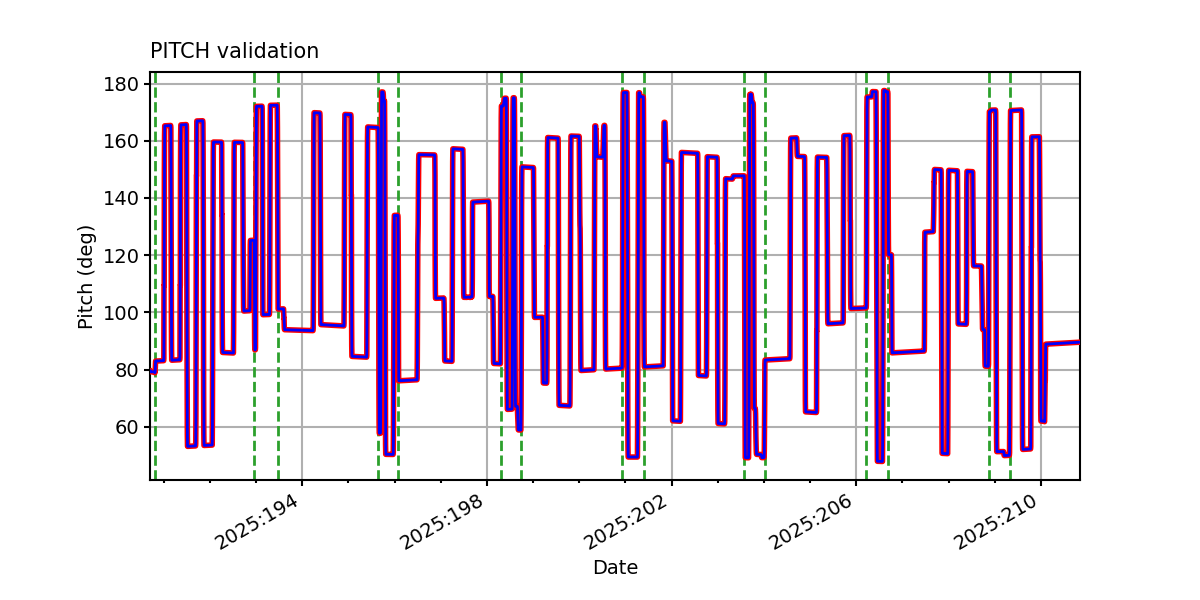

PITCH

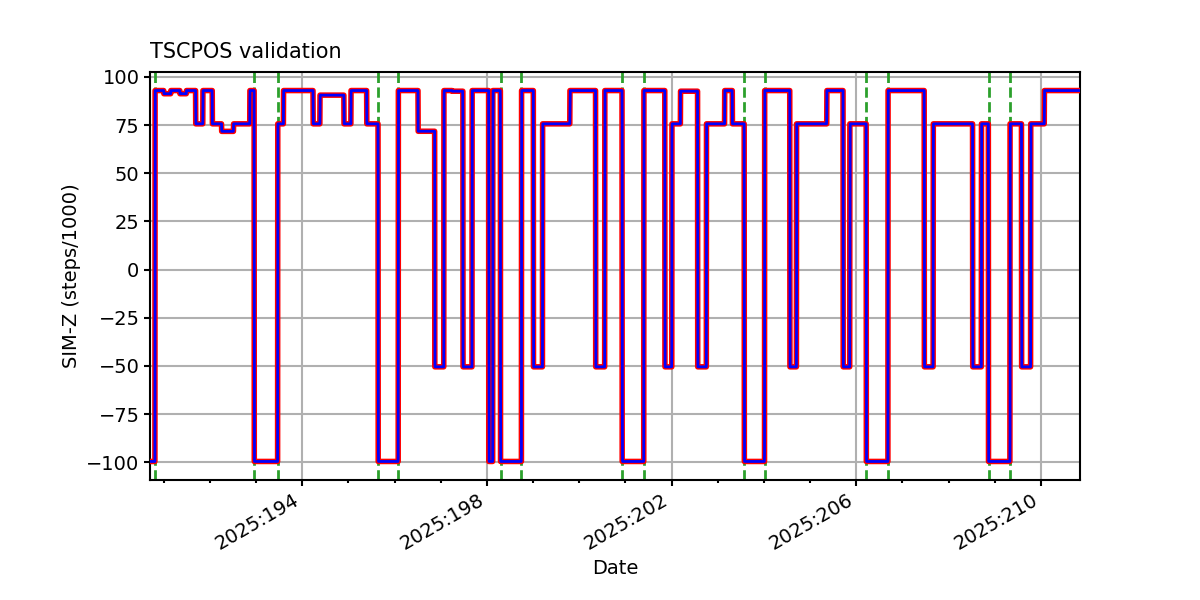

TSCPOS

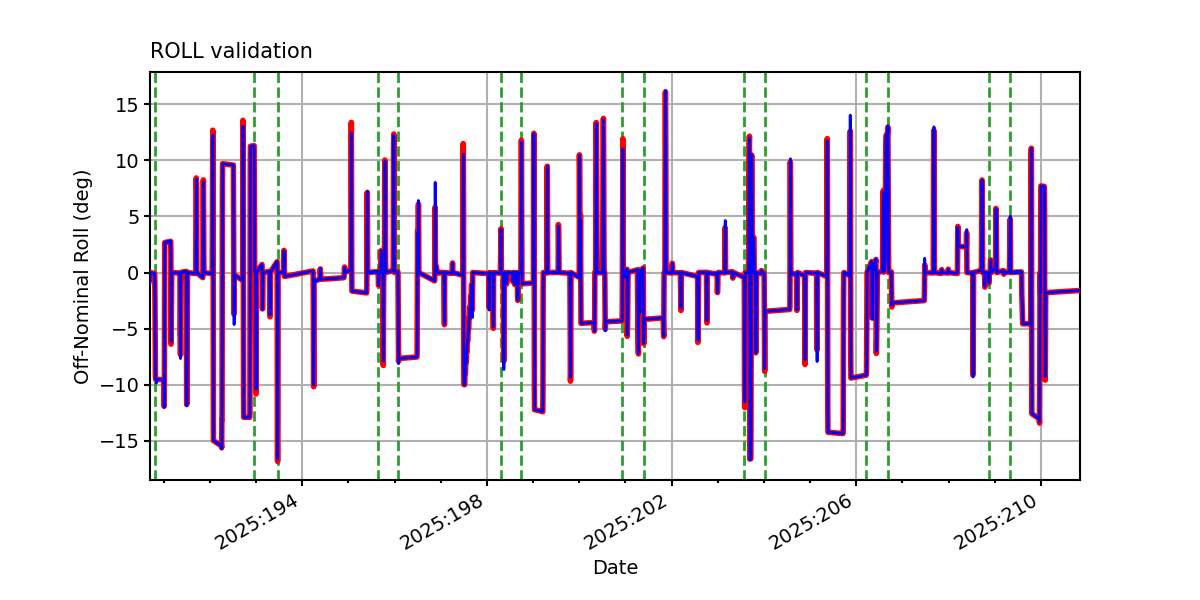

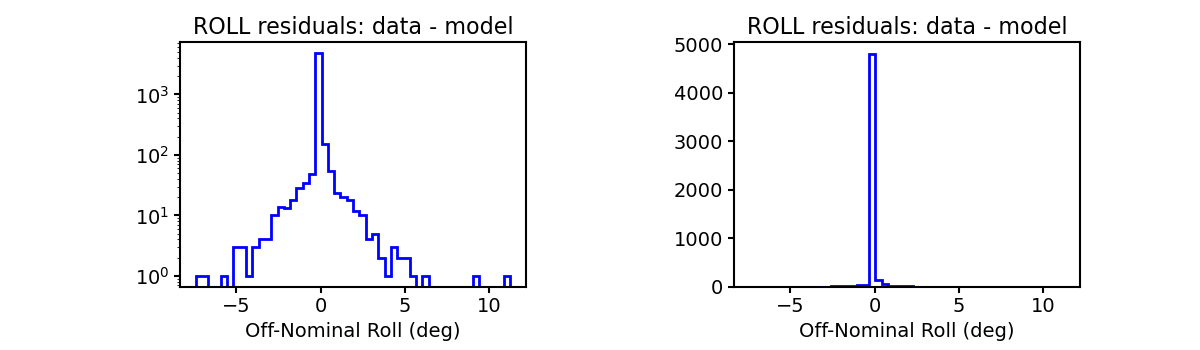

ROLL

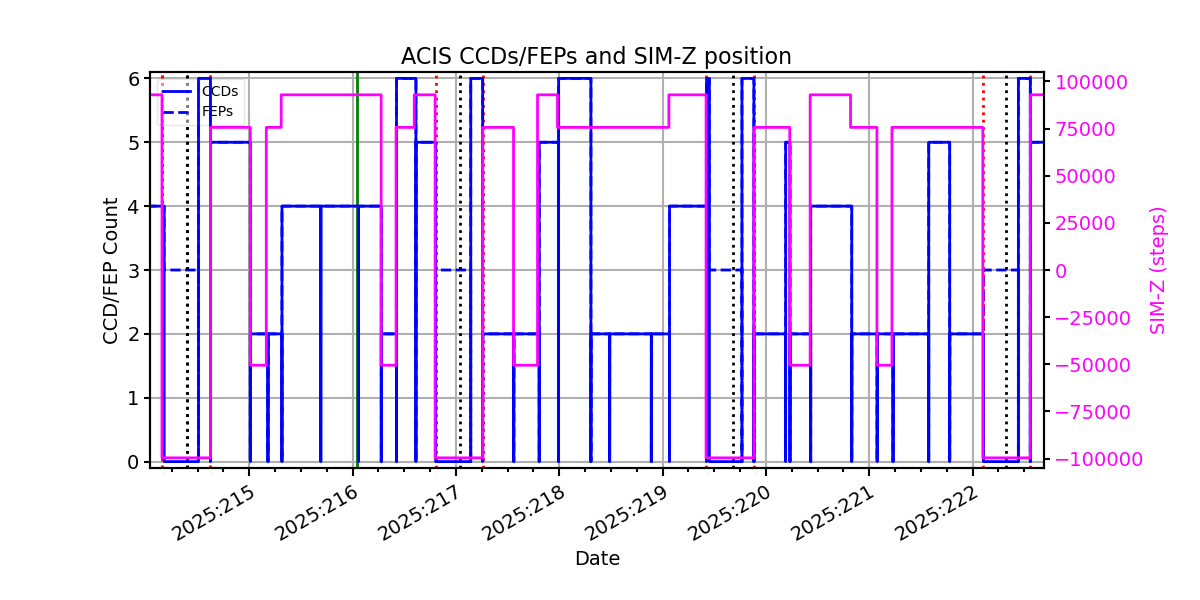

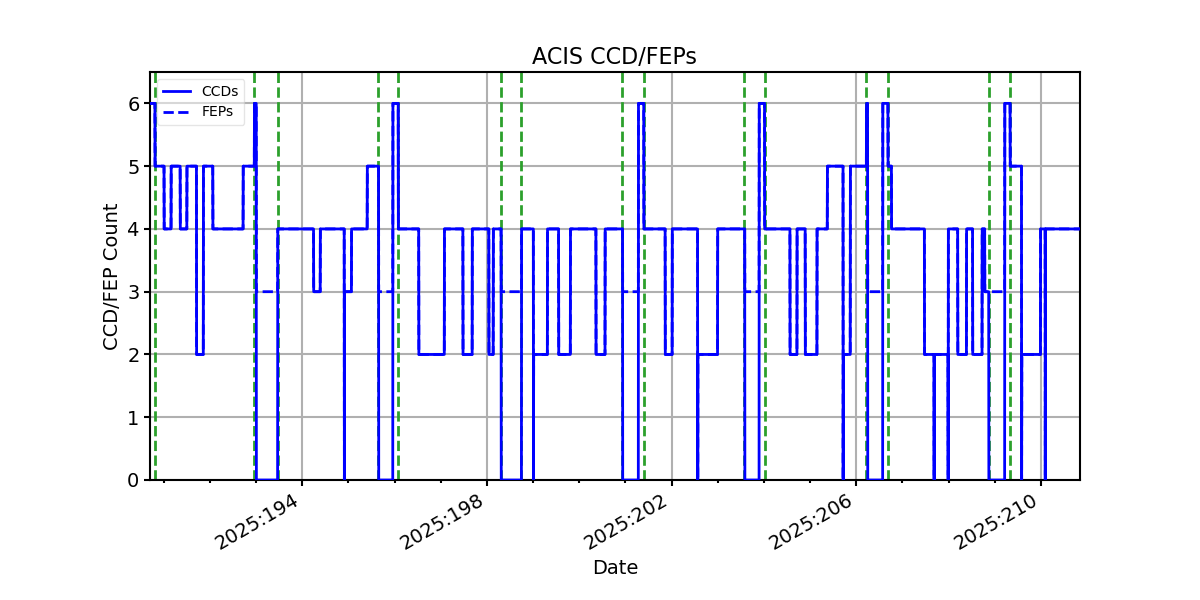

ACIS CCD/FEP Count
