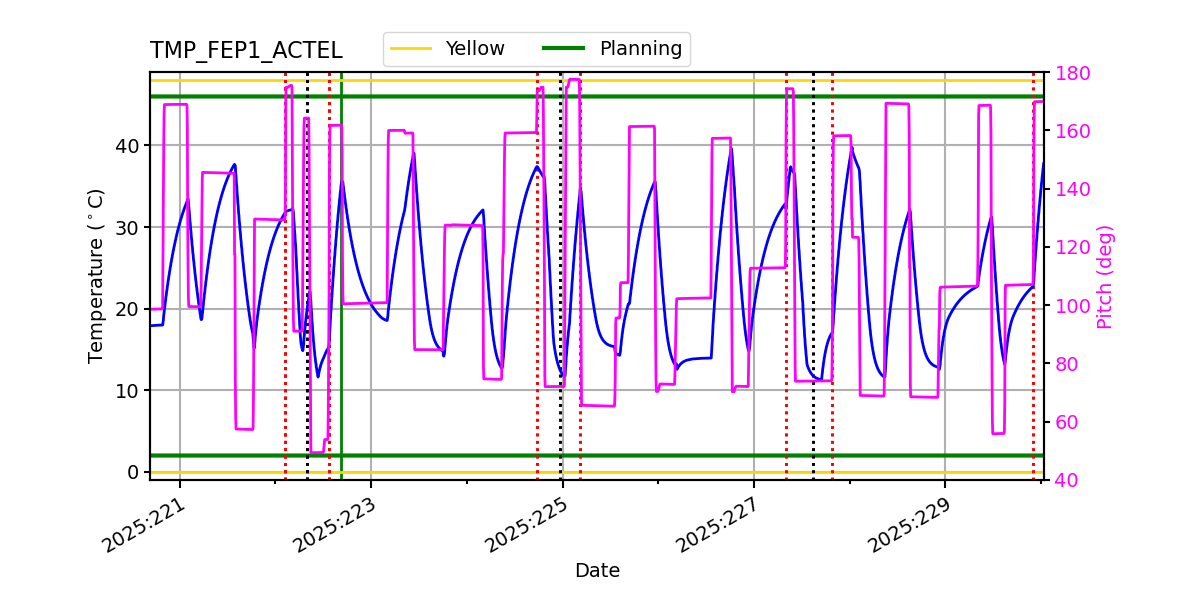

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:222:16:32:40.916 |
| Date stop | 2025:230:00:53:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1125/oflsa |
| Run time | Wed Aug 6 15:44:46 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations

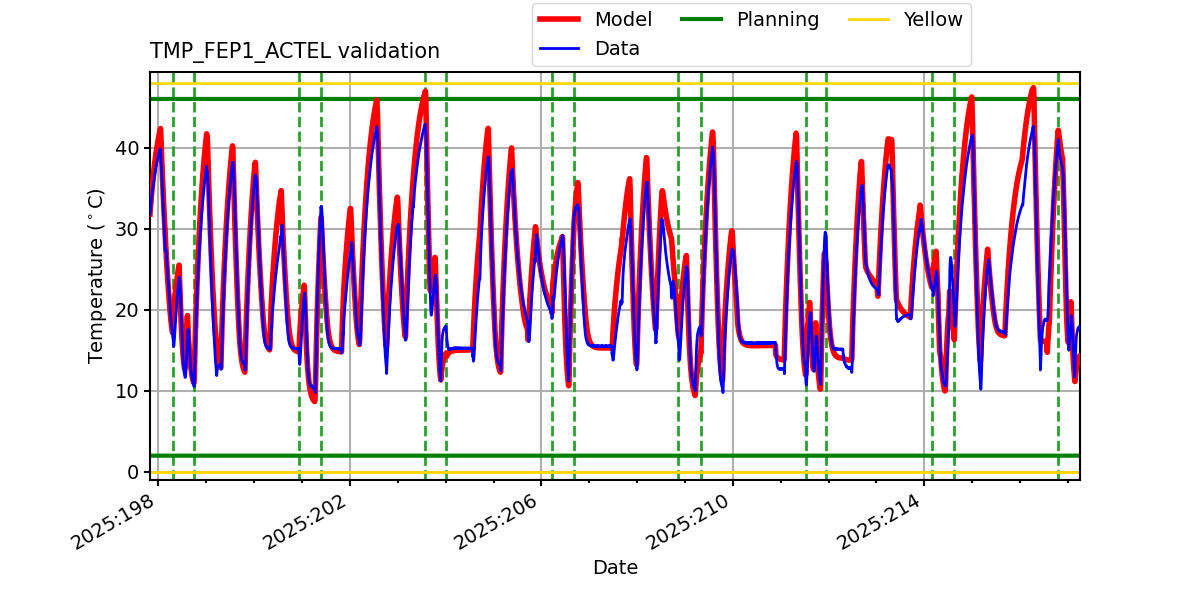

FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -5.75 | -5.25 | -3.95 | -2.12 | 0.28 | 1.51 | 3.76 |
| pitch | -10.949 | -0.309 | -0.004 | 0.000 | 0.004 | 0.542 | 9.724 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.780 | -0.108 | -0.006 | -0.000 | 0.005 | 0.121 | 1.591 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -5.75 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.12 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.76 | 2.00 |
| PITCH | 1 | -10.949 | 3.00 |
| PITCH | 99 | 9.724 | 3.00 |
TMP_FEP1_ACTEL
Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

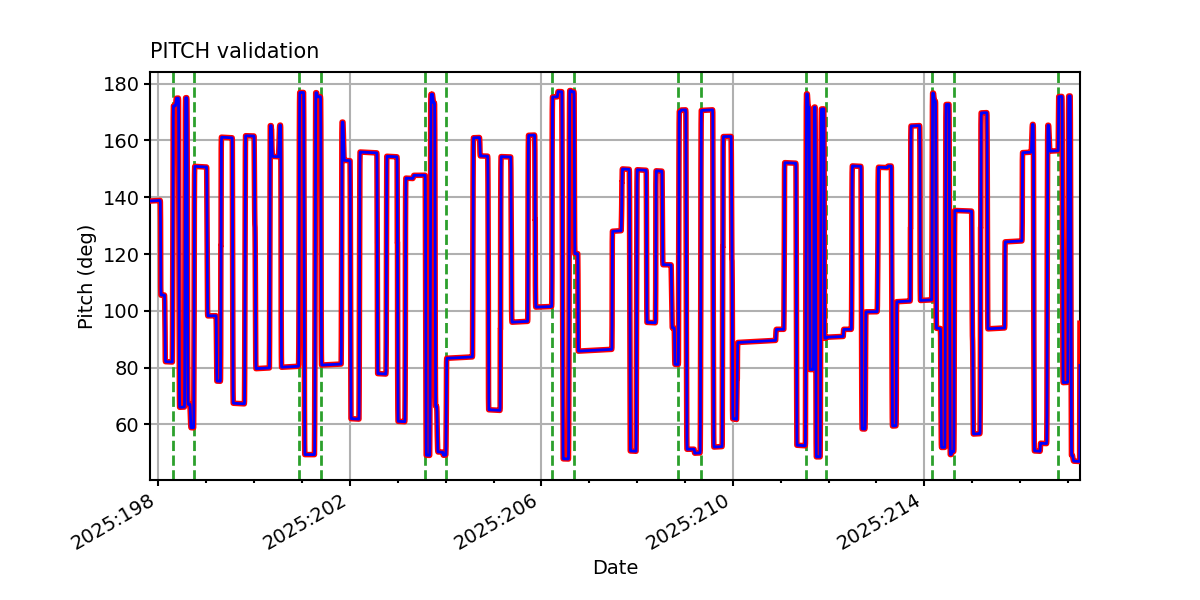

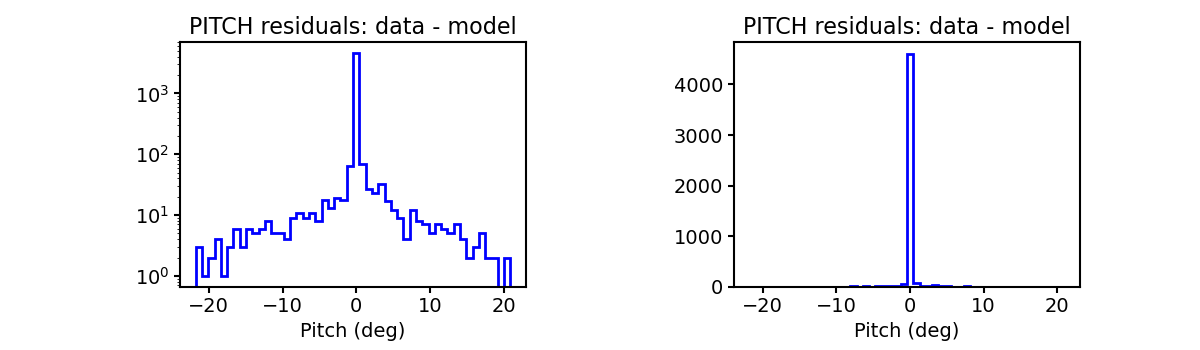

PITCH

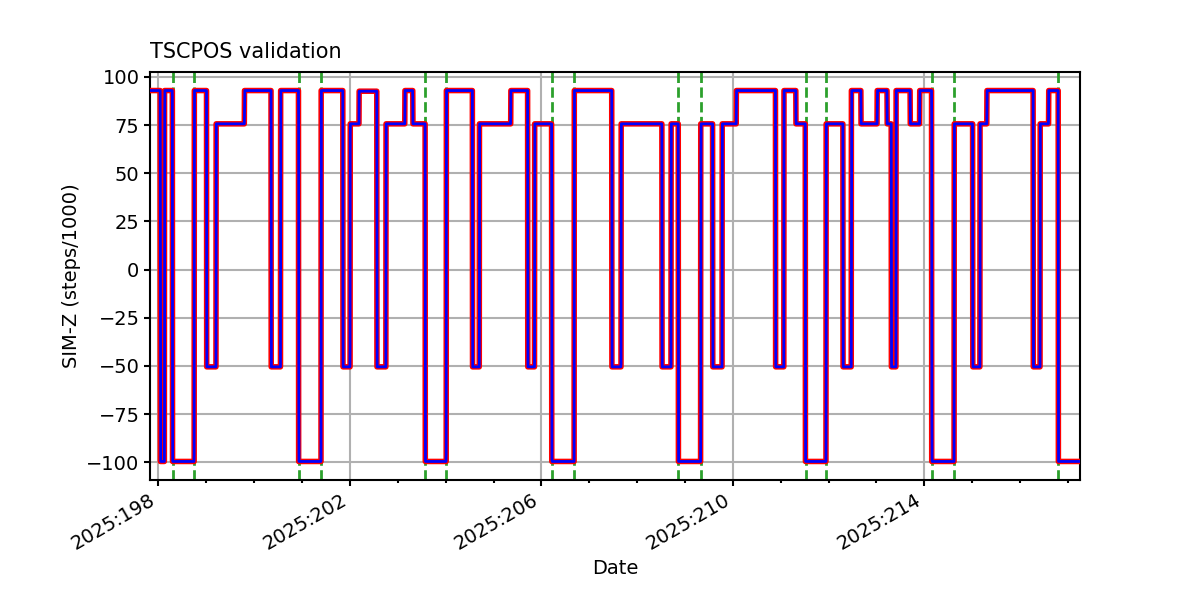

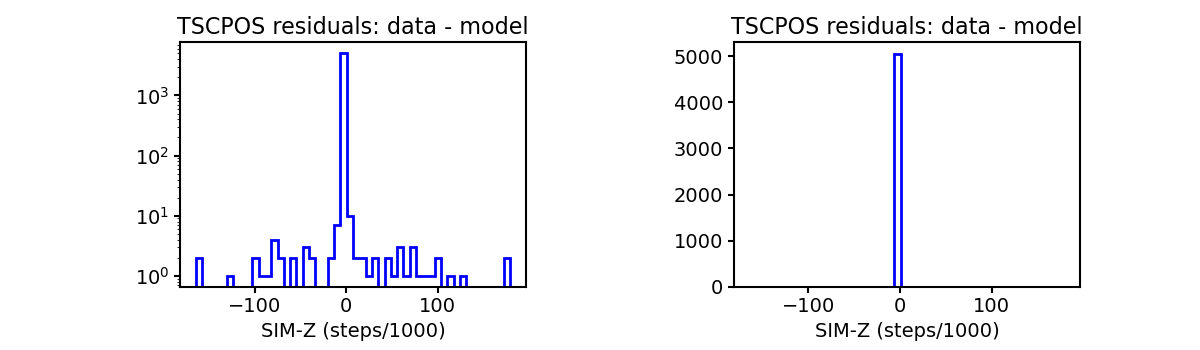

TSCPOS

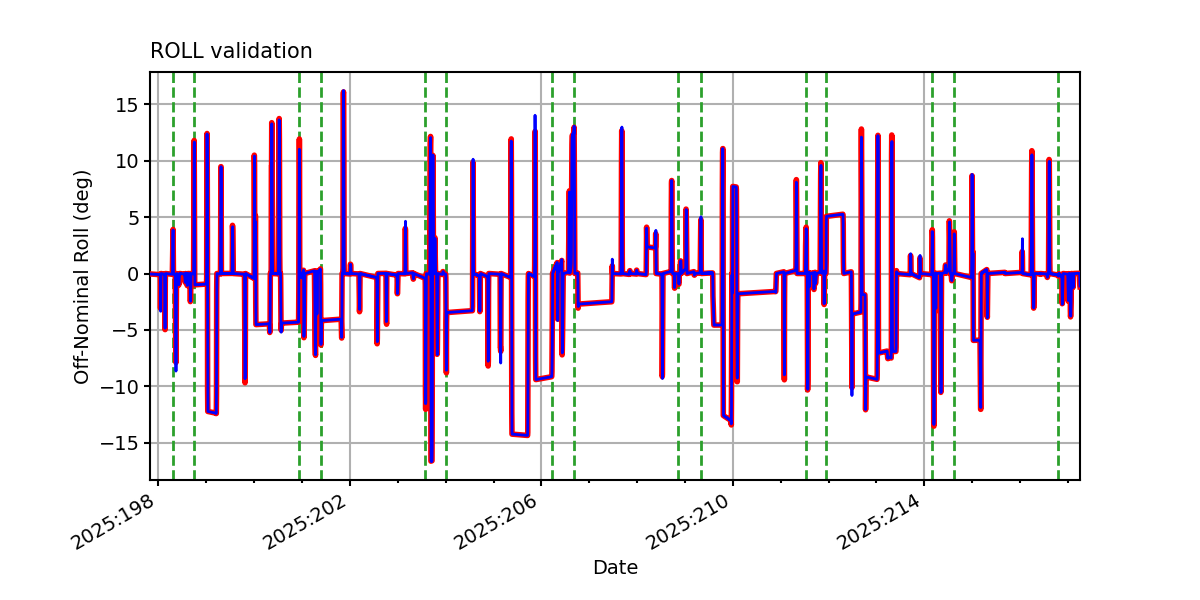

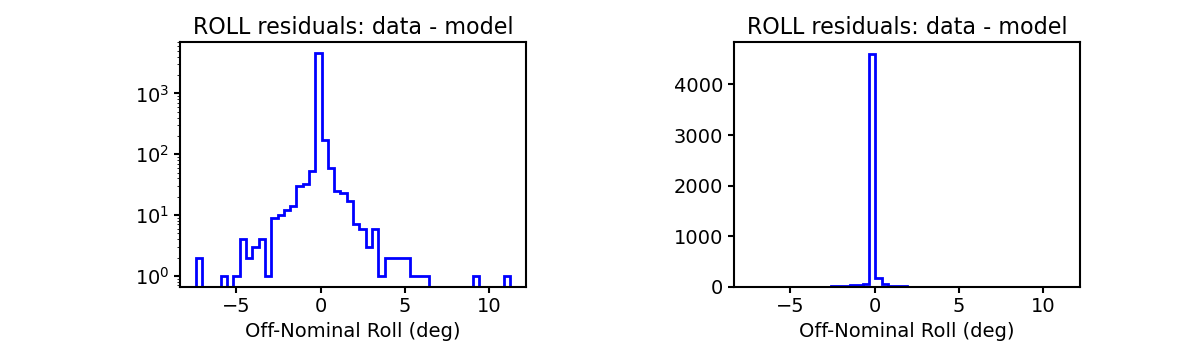

ROLL

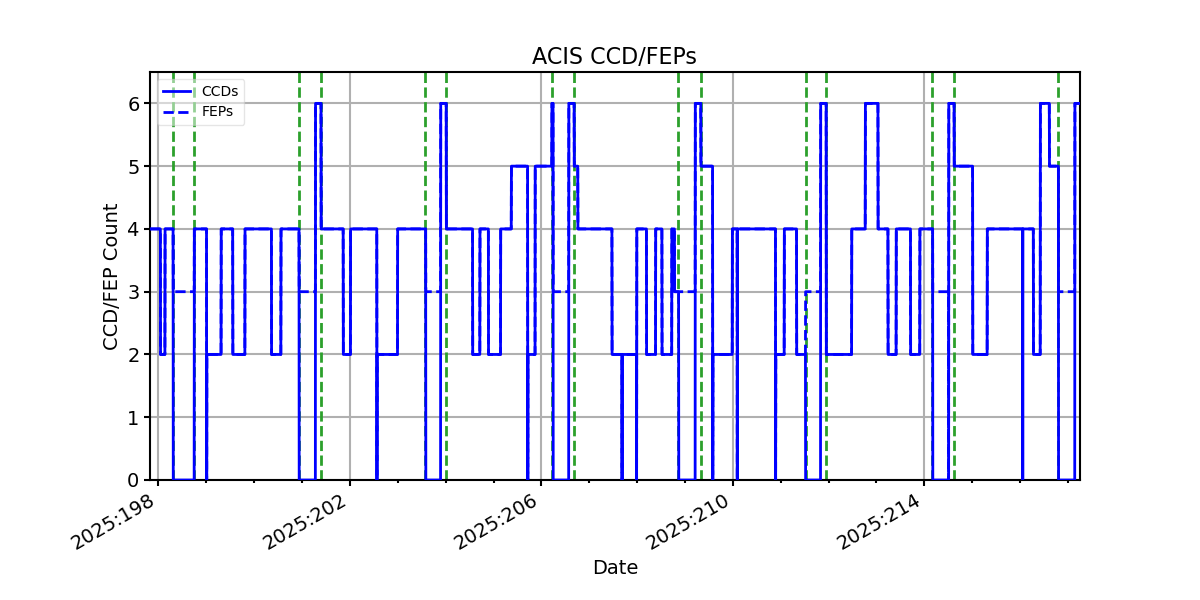

ACIS CCD/FEP Count
