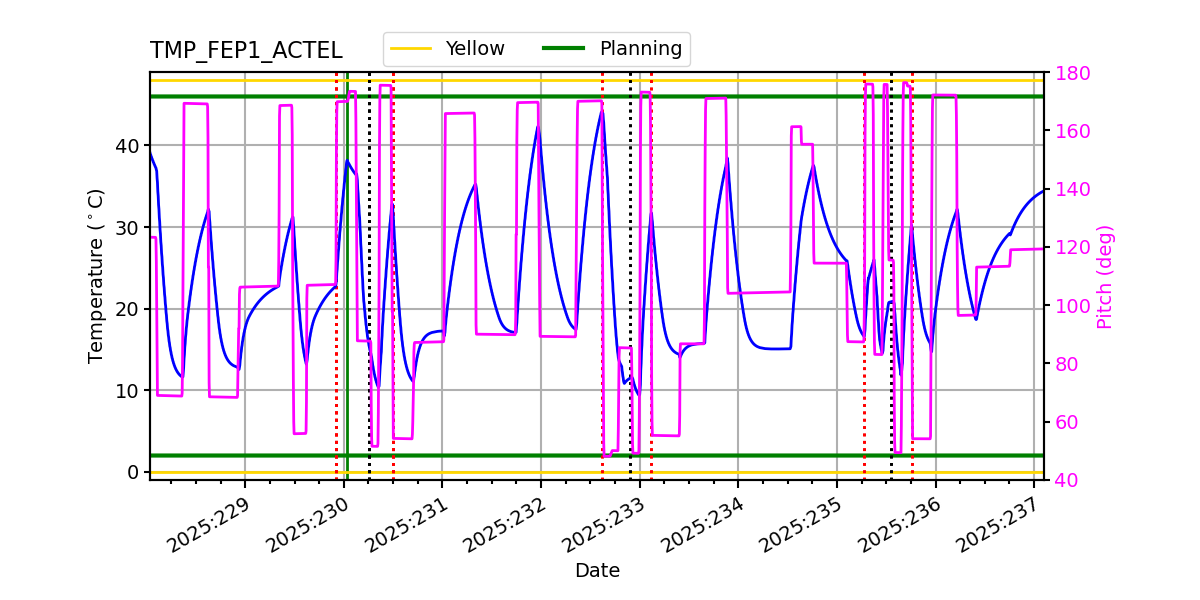

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:230:00:50:00.016 |
| Date stop | 2025:237:02:29:32.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1825/oflsb |
| Run time | Fri Aug 15 09:29:22 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -5.86 | -5.33 | -4.68 | -2.11 | 0.67 | 2.58 | 6.15 |
| pitch | -9.857 | -0.323 | -0.004 | -0.000 | 0.004 | 0.285 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.302 | -0.081 | -0.004 | -0.000 | 0.005 | 0.099 | 1.685 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -5.86 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.11 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 6.15 | 2.00 |
| PITCH | 1 | -9.857 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |

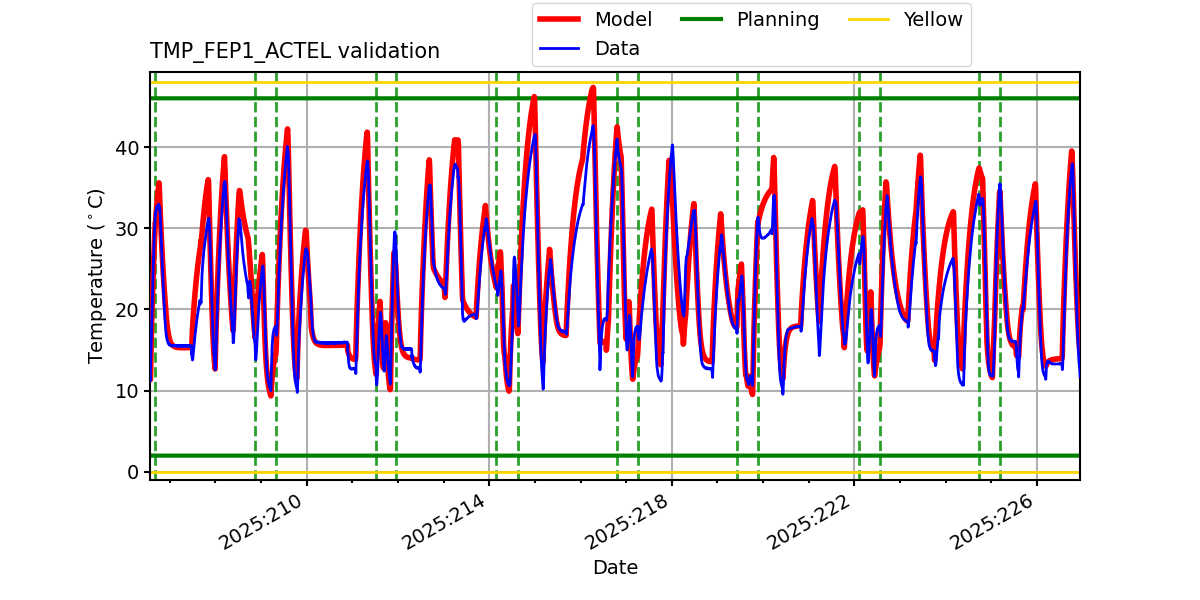

TMP_FEP1_ACTEL

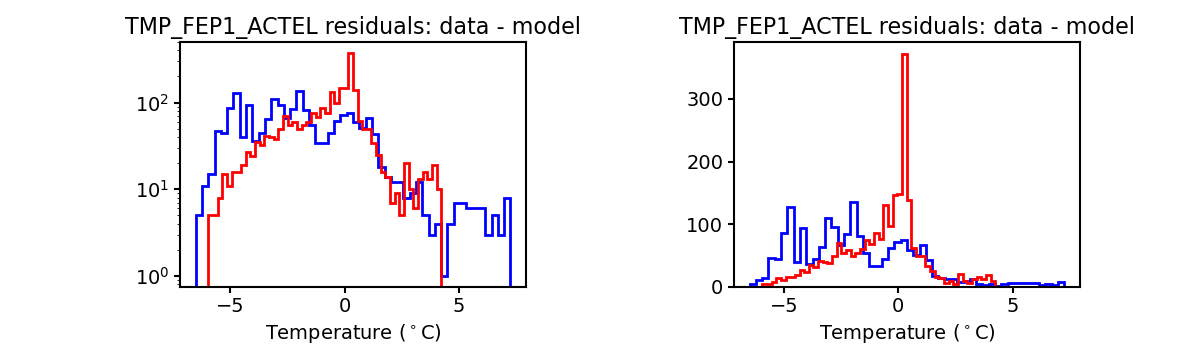

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

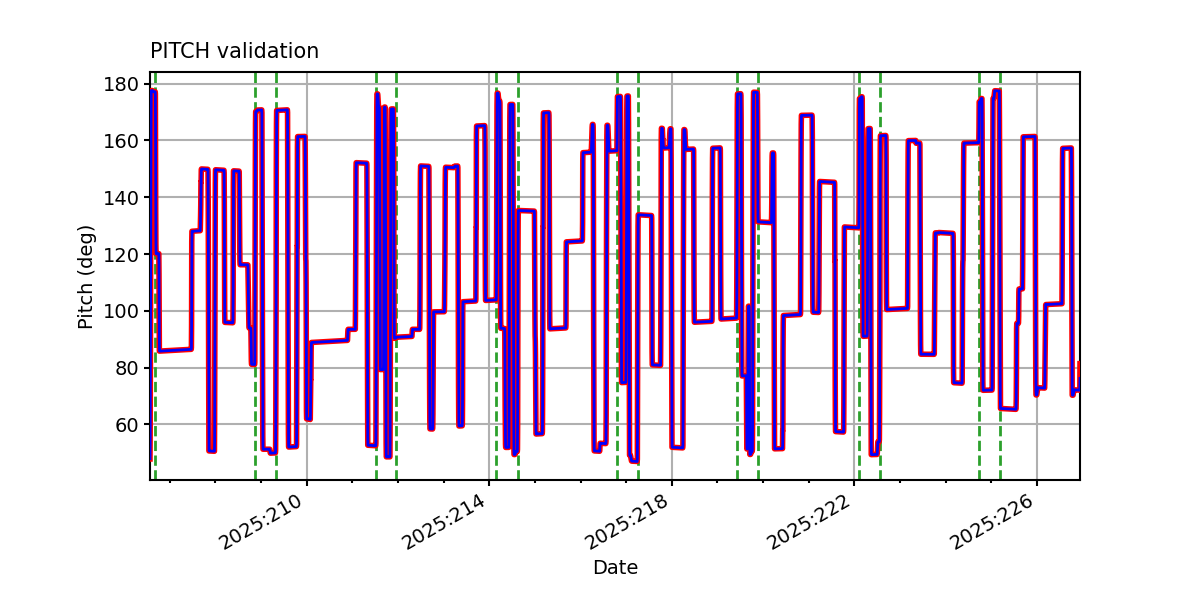

PITCH

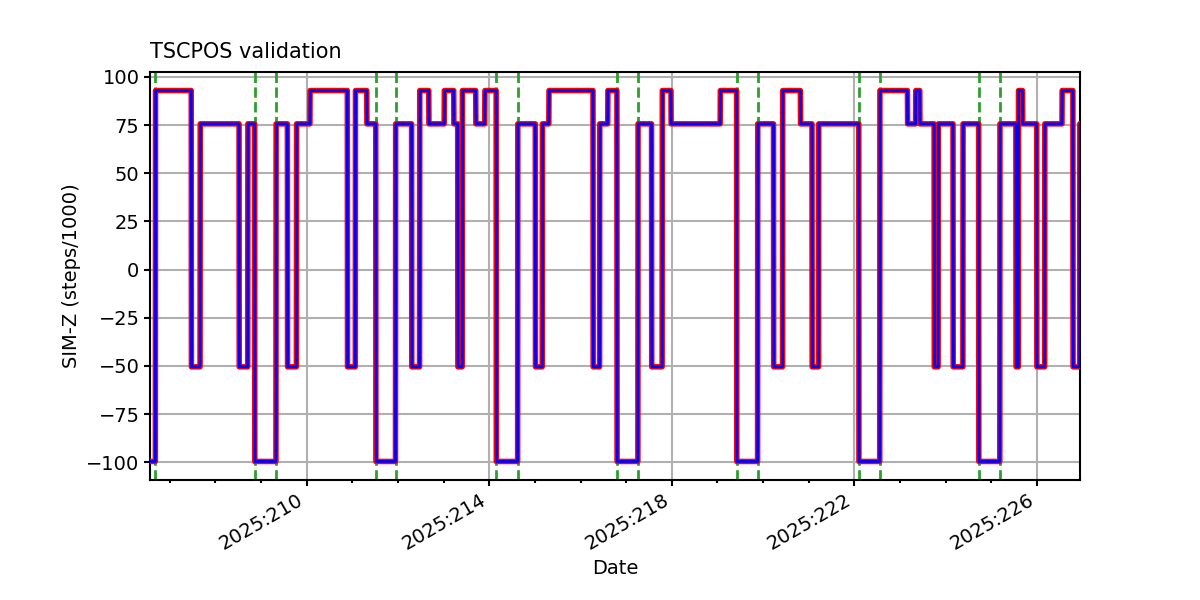

TSCPOS

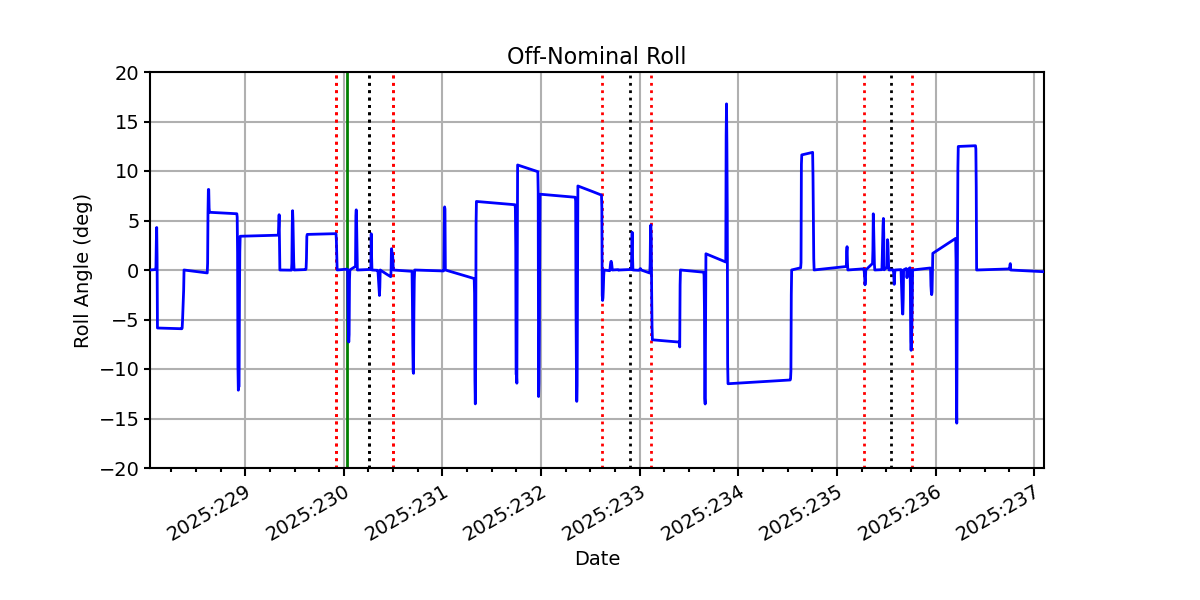

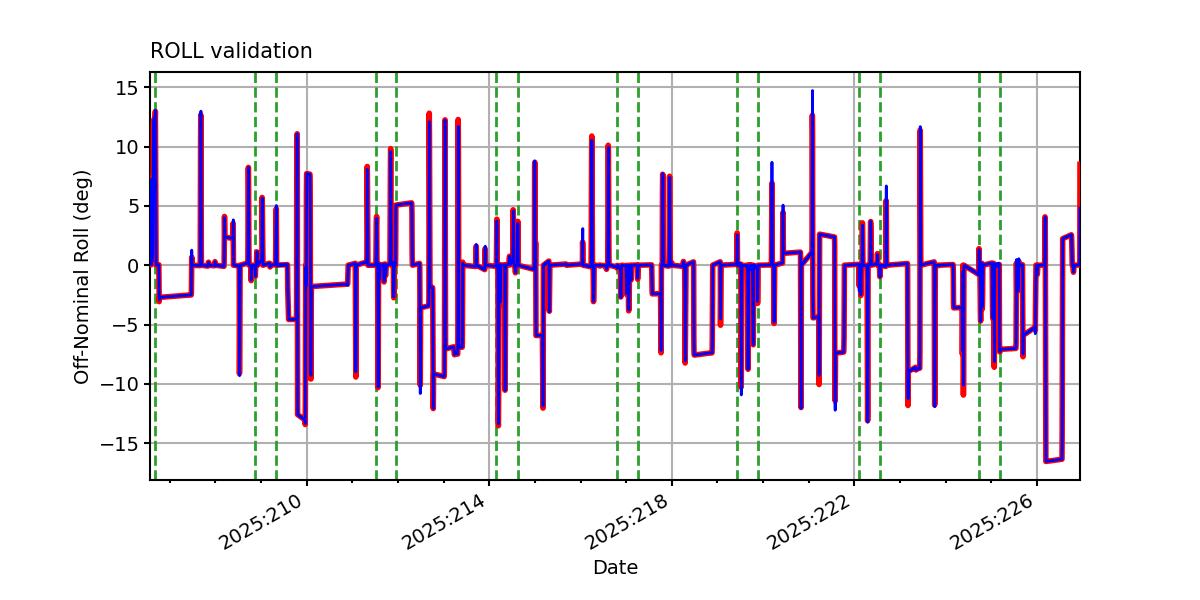

ROLL

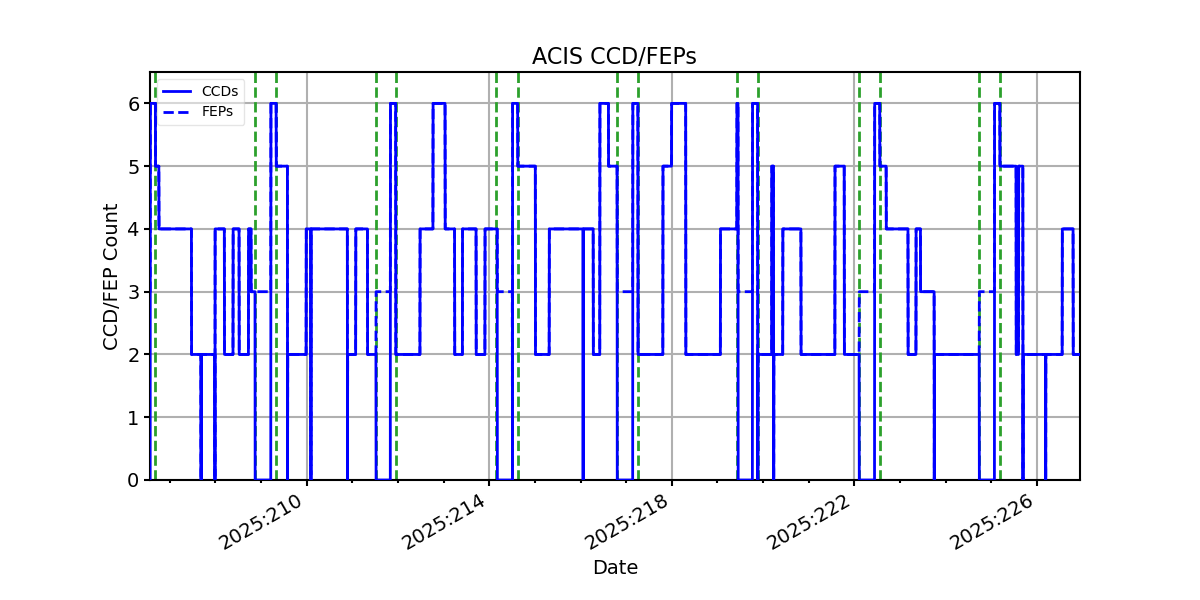

ACIS CCD/FEP Count
