FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:242:22:03:33.816 |
| Date stop | 2026:250:02:17:56.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG3126/oflsa |
| Run time | Thu Aug 27 09:17:35 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.66 | -7.06 | -5.17 | -2.24 | 0.74 | 2.47 | 3.34 |
| pitch | -8.664 | -0.599 | -0.004 | 0.000 | 0.004 | 0.541 | 8.419 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.786 | -0.155 | -0.006 | -0.000 | 0.006 | 0.196 | 1.747 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.66 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.24 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.34 | 2.00 |
| PITCH | 1 | -8.664 | 3.00 |
| PITCH | 99 | 8.419 | 3.00 |

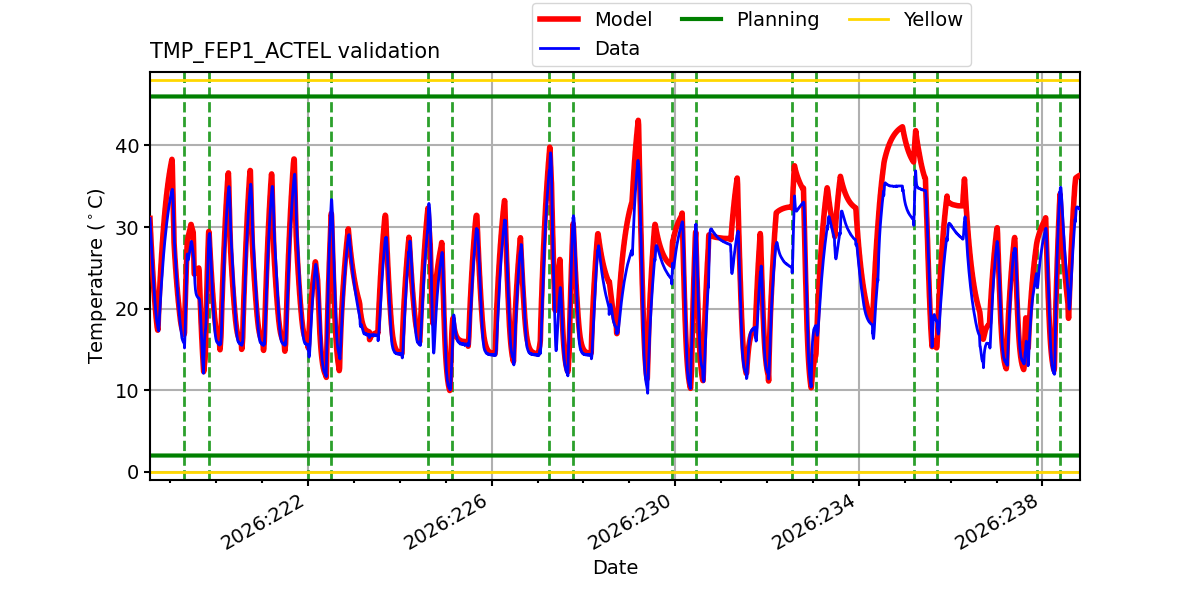

TMP_FEP1_ACTEL

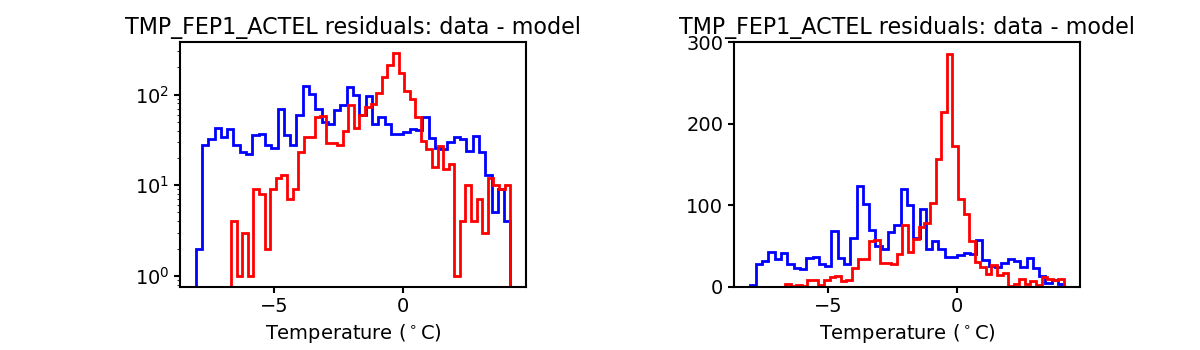

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

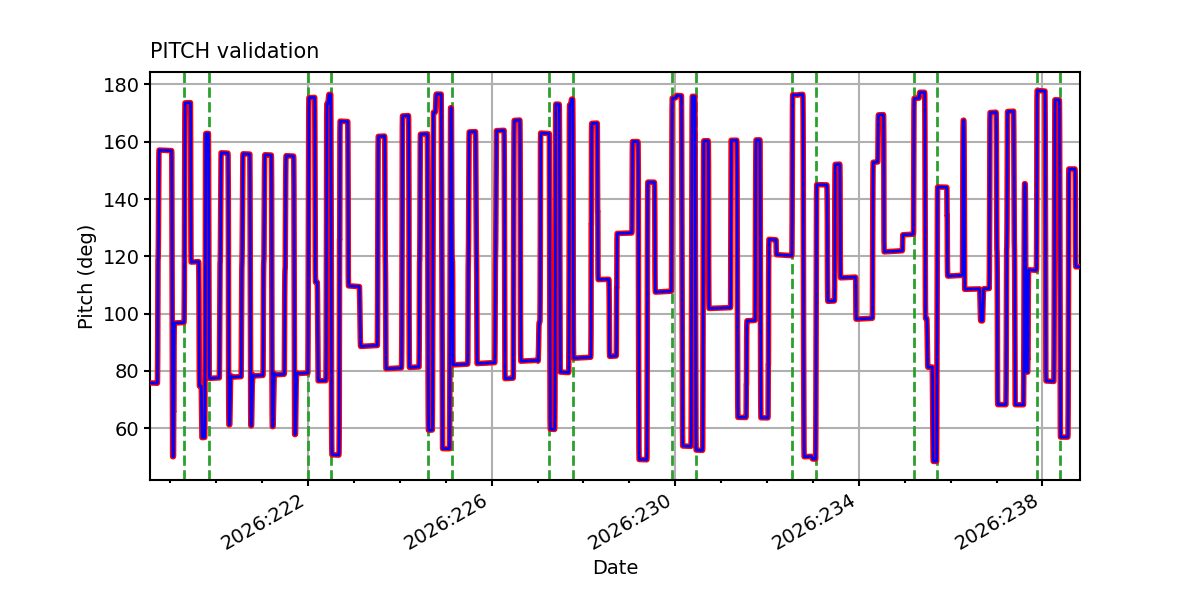

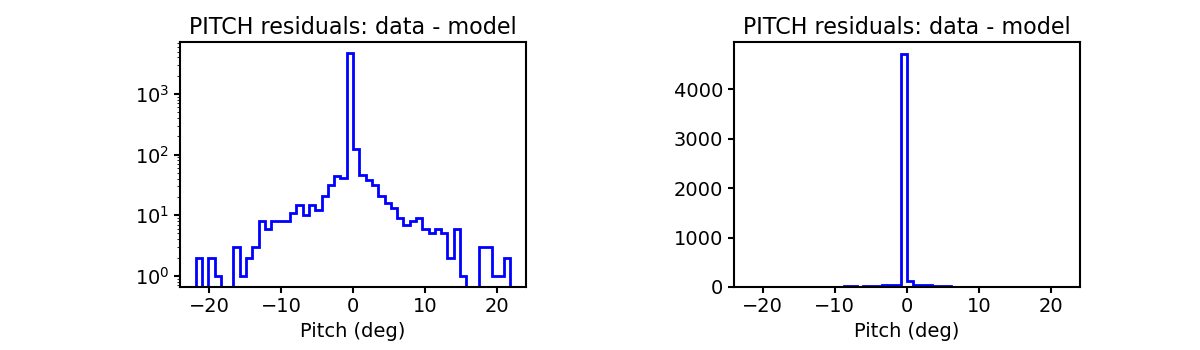

PITCH

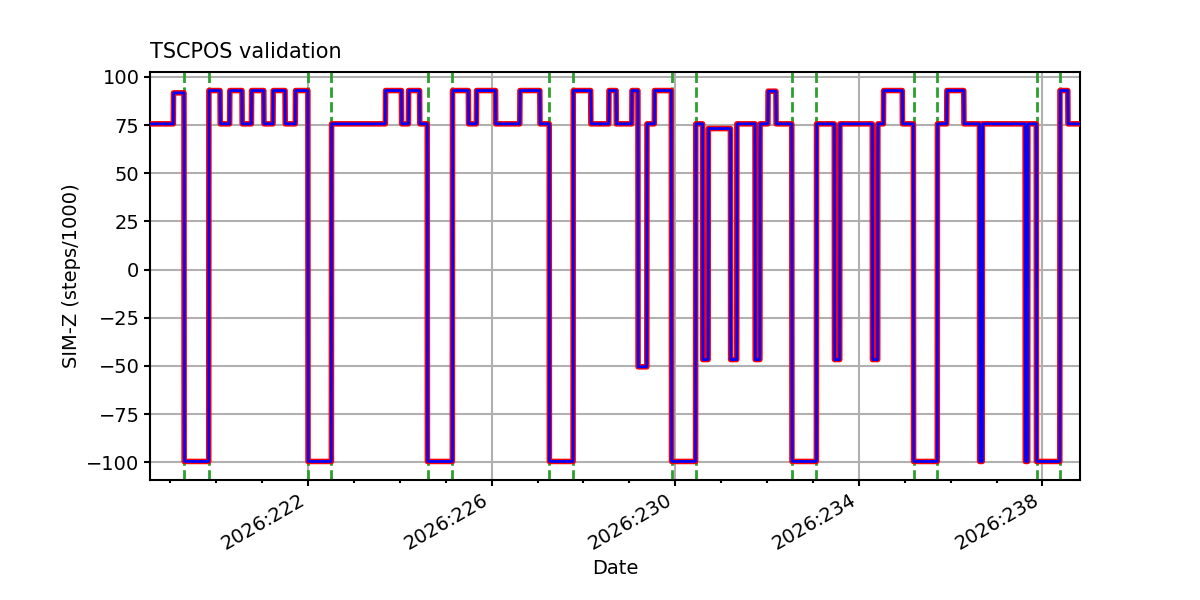

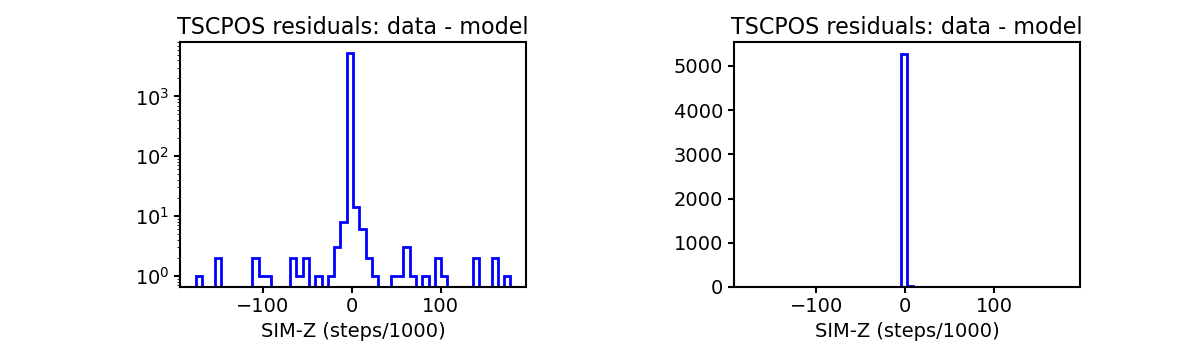

TSCPOS

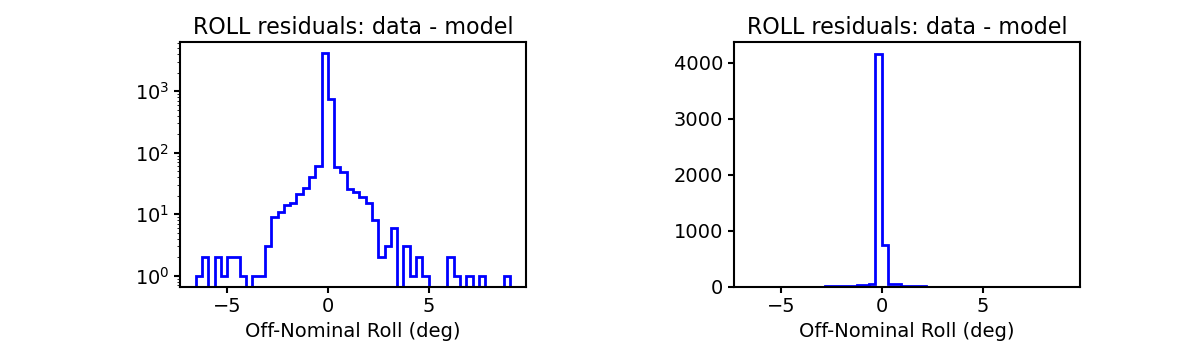

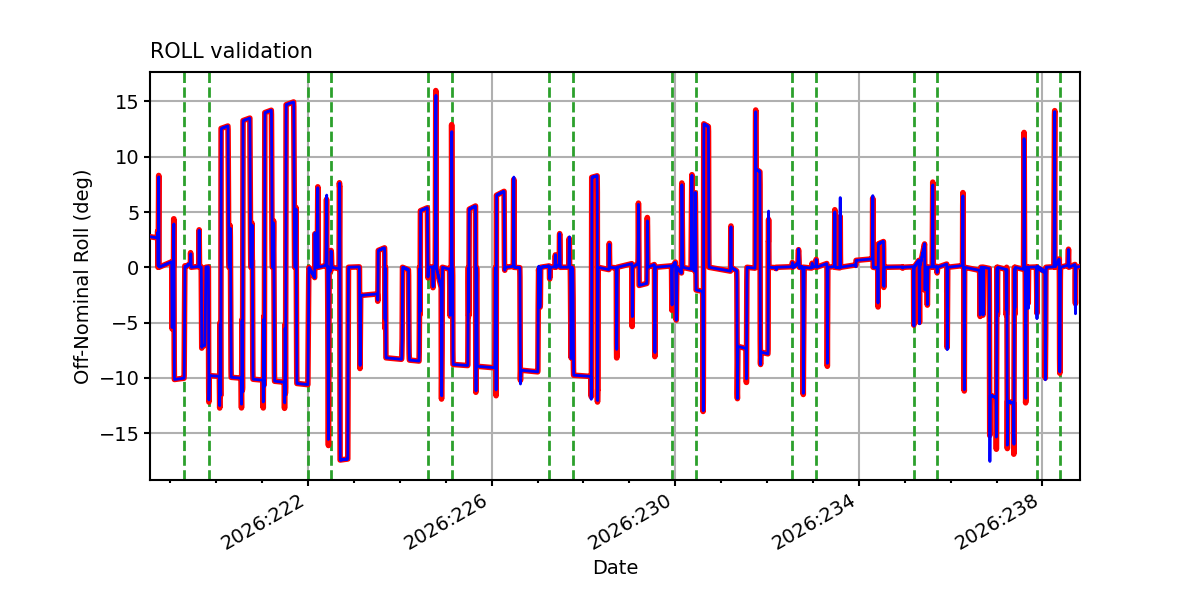

ROLL

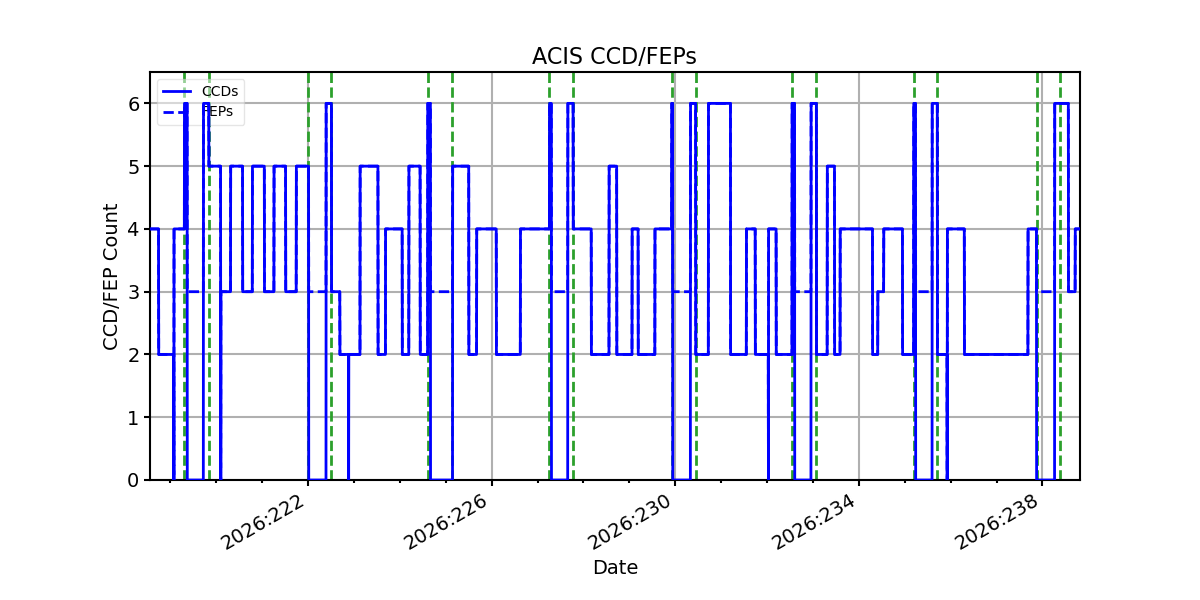

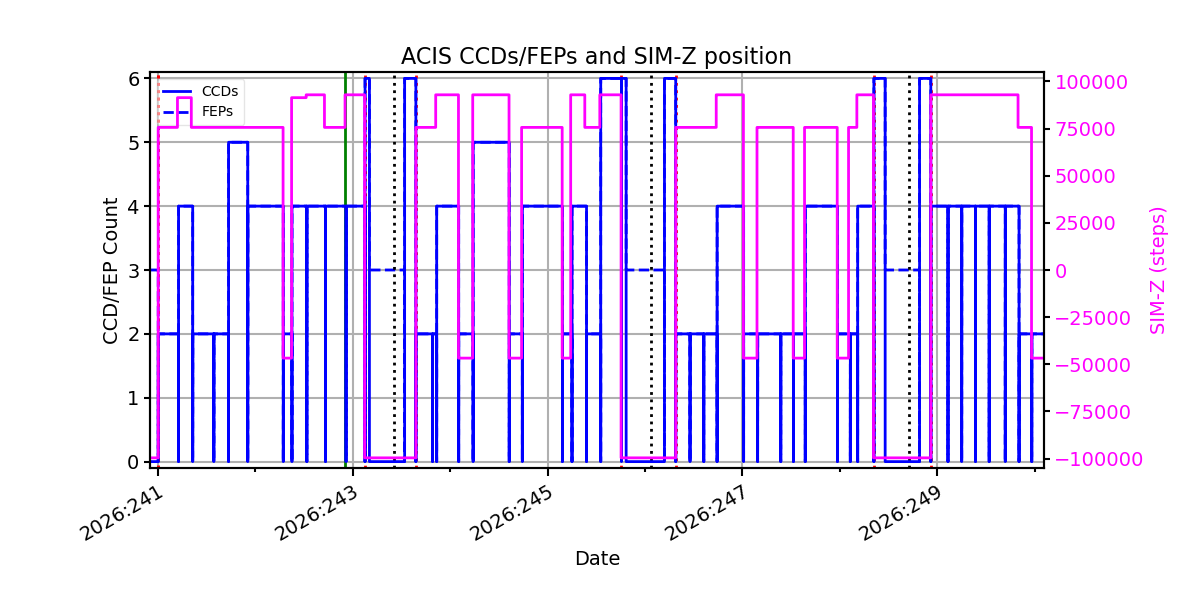

ACIS CCD/FEP Count
