FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:335:01:19:35.216 |
| Date stop | 2025:342:01:01:51.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0125/oflsa |
| Run time | Tue Nov 25 12:11:20 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.49 | -6.22 | -4.48 | -2.65 | 0.27 | 1.71 | 2.88 |
| pitch | -12.482 | -1.597 | -0.004 | 0.000 | 0.004 | 1.278 | 12.001 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.636 | -0.223 | -0.007 | -0.000 | 0.008 | 0.291 | 2.789 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.49 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.65 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.88 | 2.00 |
| PITCH | 1 | -12.482 | 3.00 |
| PITCH | 99 | 12.001 | 3.00 |

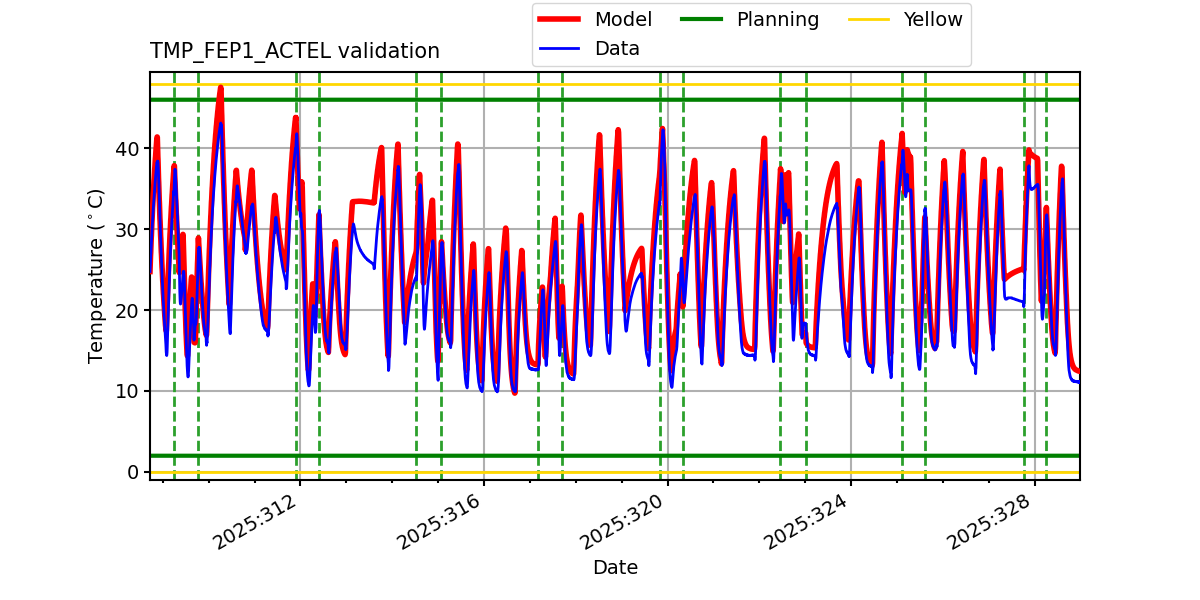

TMP_FEP1_ACTEL

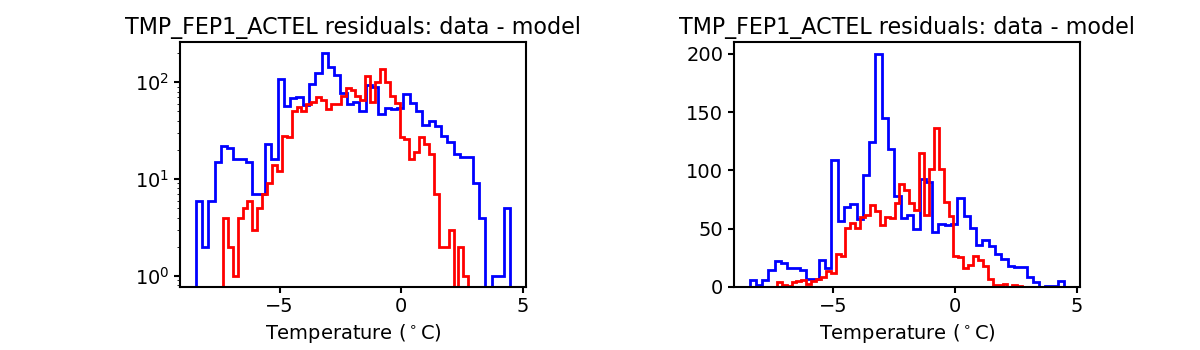

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

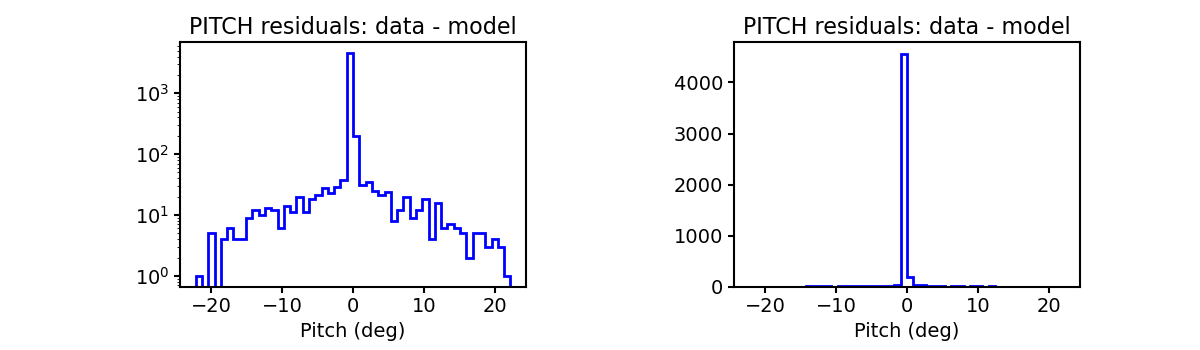

PITCH

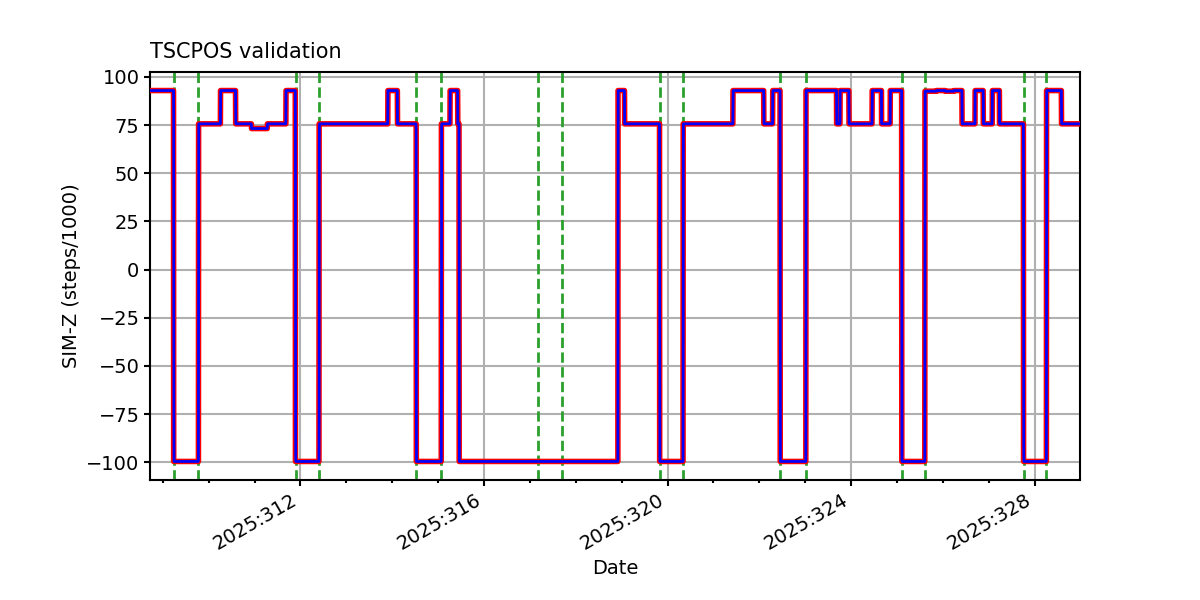

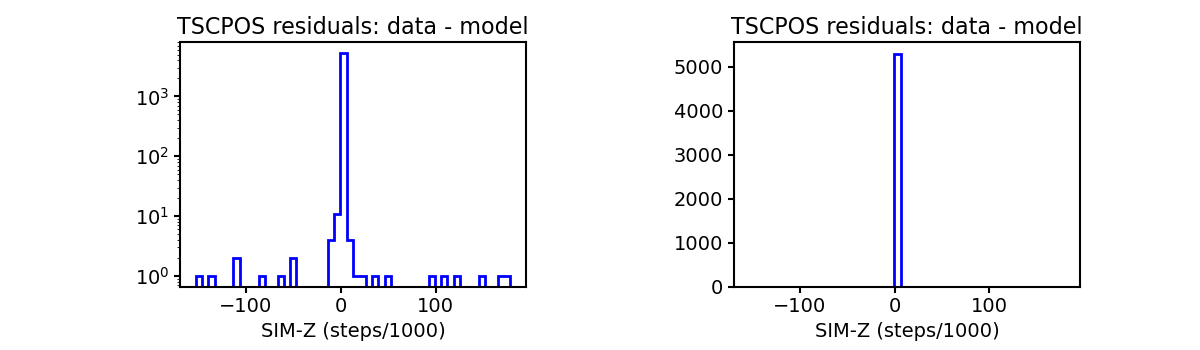

TSCPOS

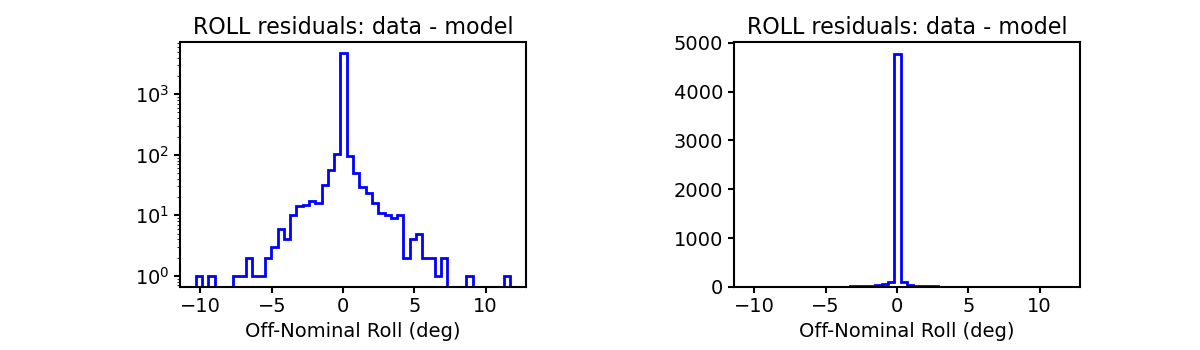

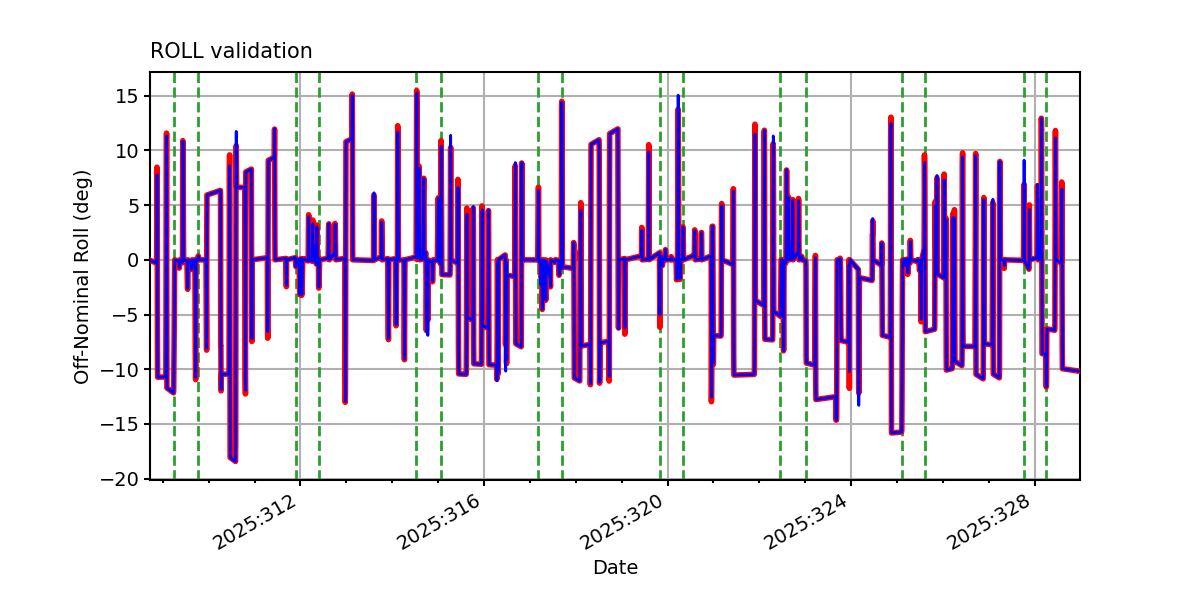

ROLL

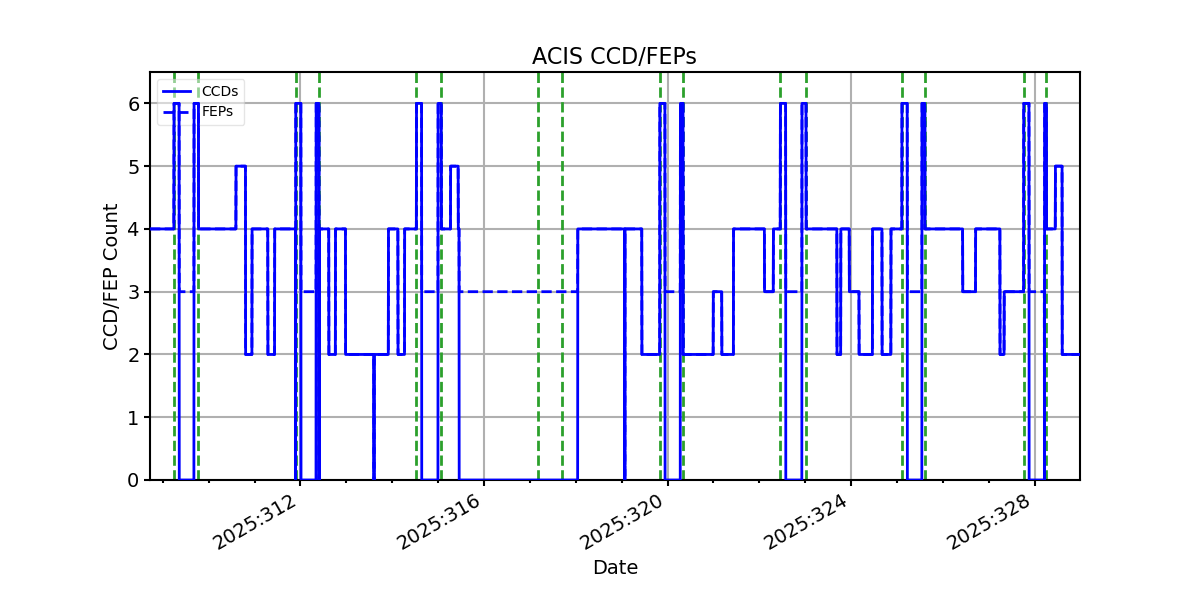

ACIS CCD/FEP Count
