FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:342:00:58:51.816 |
| Date stop | 2025:349:00:38:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0825/oflsa |
| Run time | Wed Dec 3 15:28:56 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:346:08:45:26.816 | 2025:346:09:23:42.816 | 2.30 | 46.69 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -4.99 | -4.83 | -3.54 | -2.08 | 1.09 | 3.17 | 6.13 |
| pitch | -10.648 | -0.769 | -0.004 | 0.000 | 0.004 | 0.656 | 10.791 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.503 | -0.188 | -0.007 | -0.000 | 0.008 | 0.193 | 2.235 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -4.99 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.08 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 6.13 | 2.00 |
| PITCH | 1 | -10.648 | 3.00 |
| PITCH | 99 | 10.791 | 3.00 |

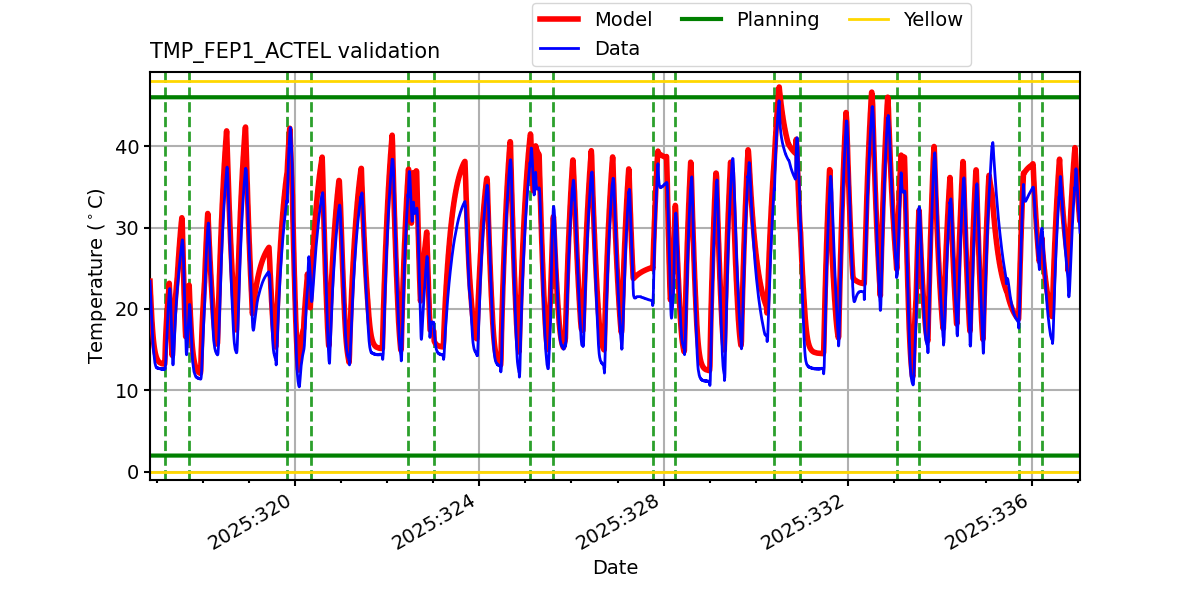

TMP_FEP1_ACTEL

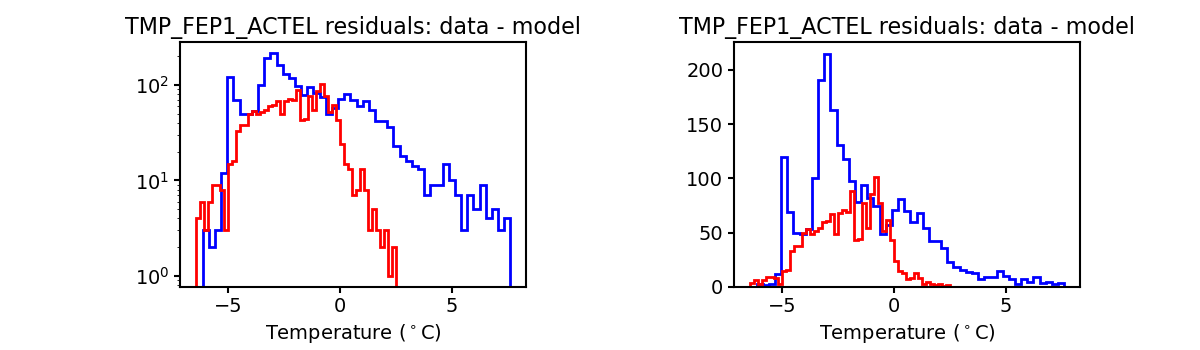

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

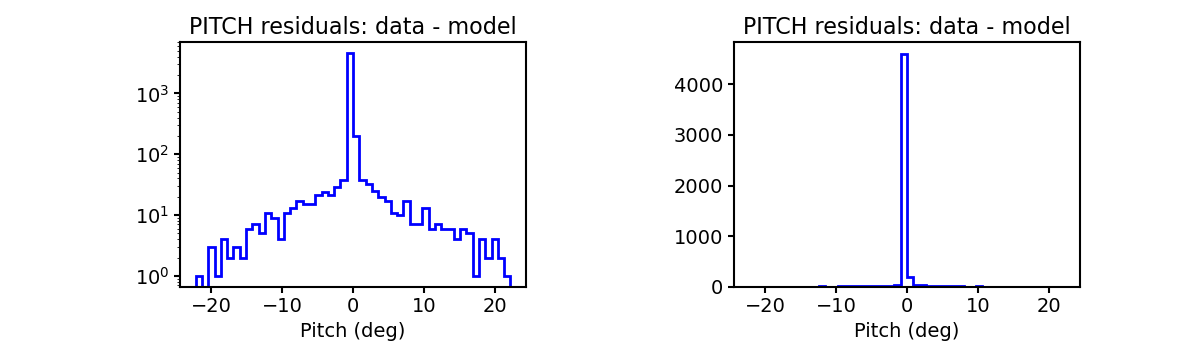

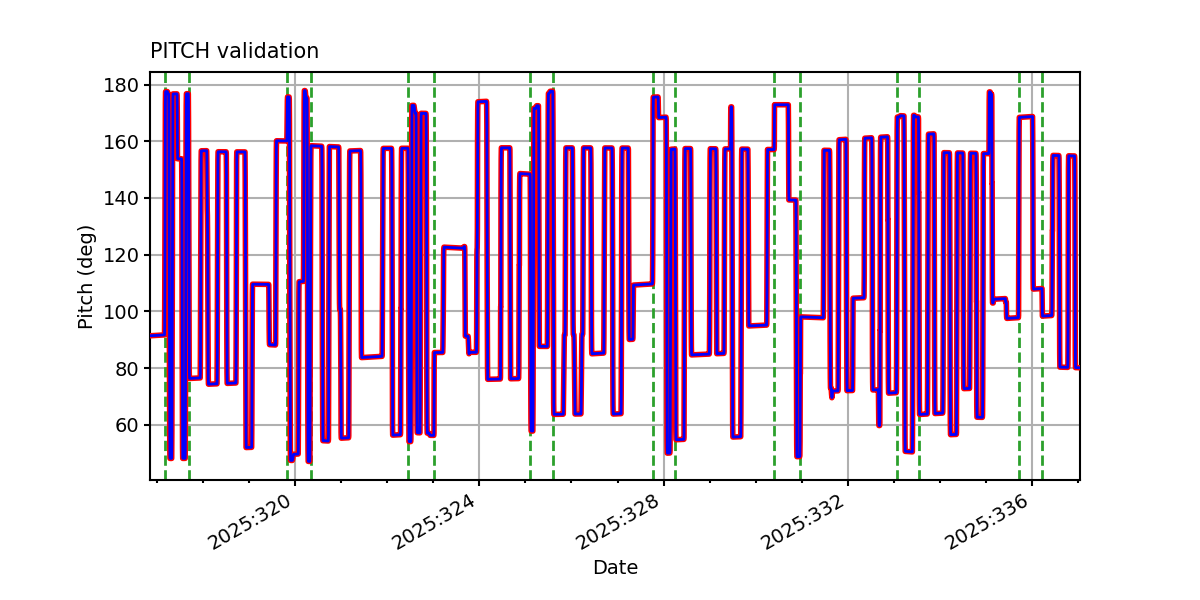

PITCH

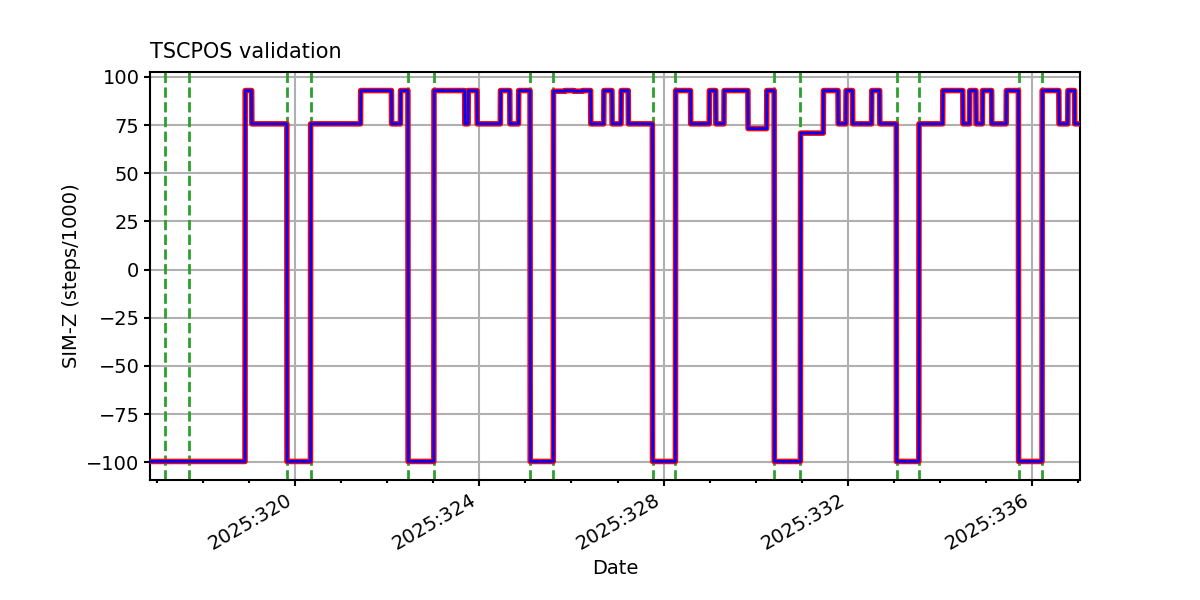

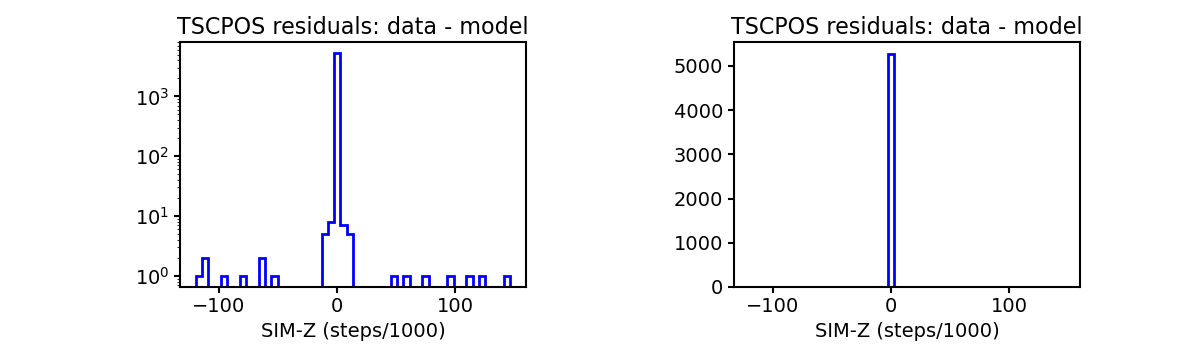

TSCPOS

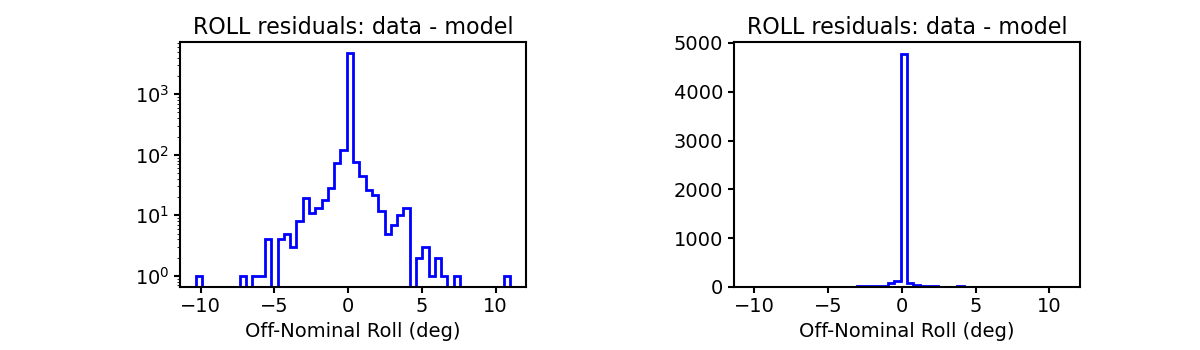

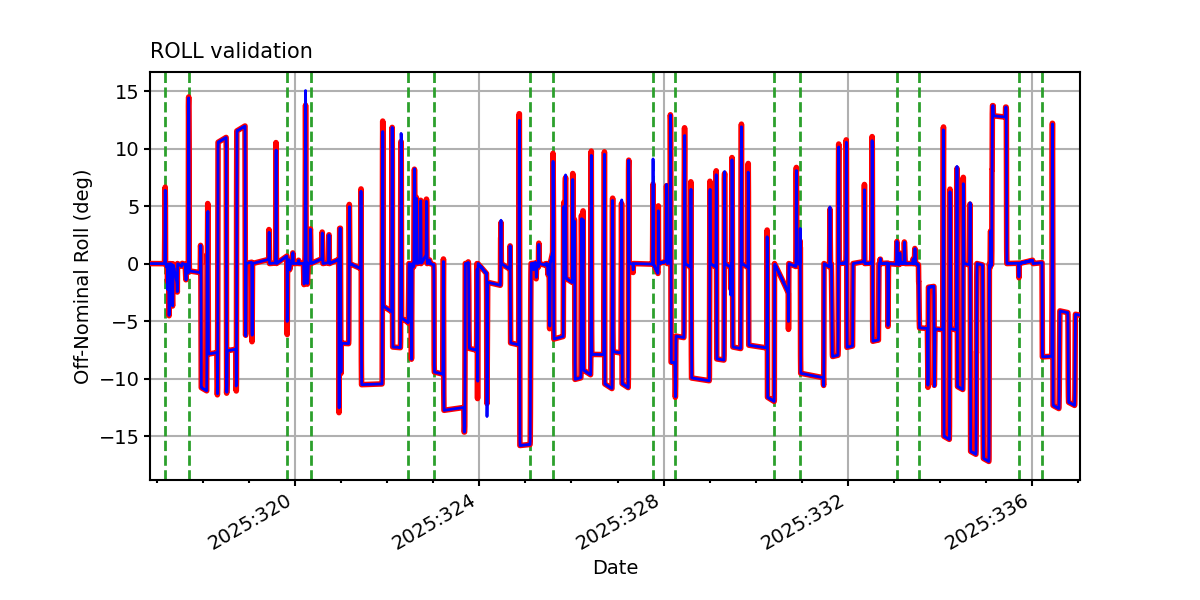

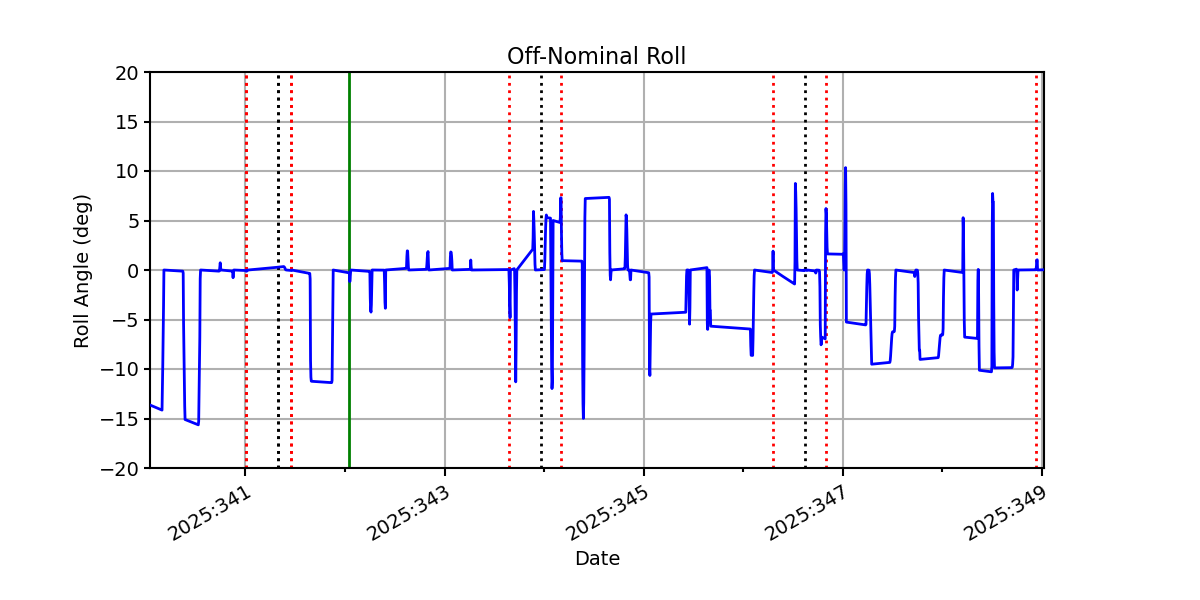

ROLL

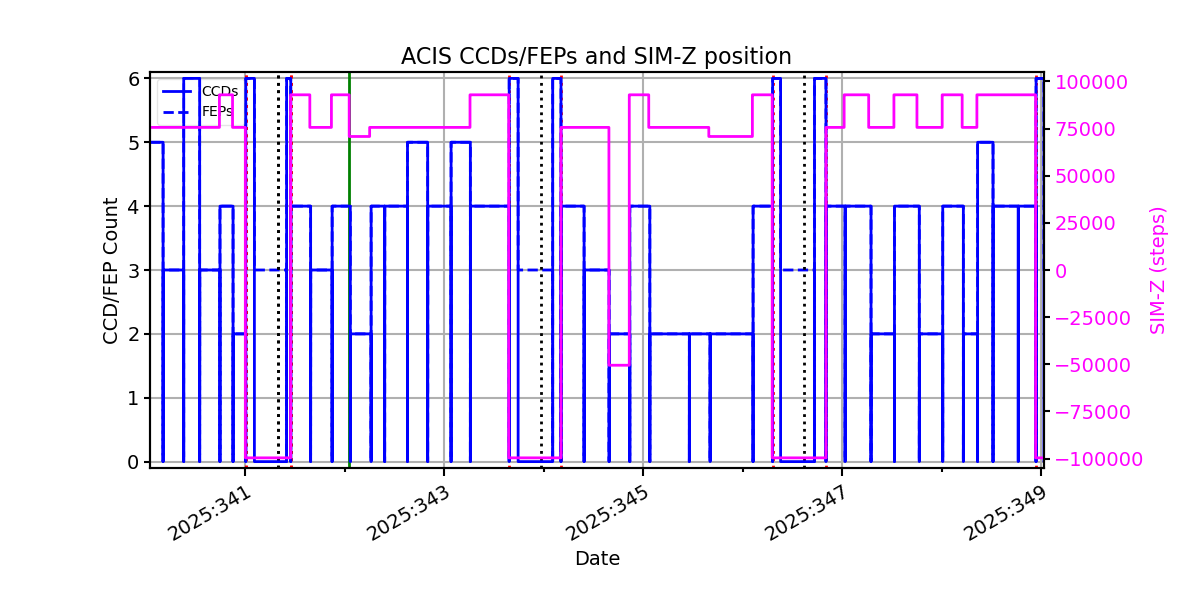

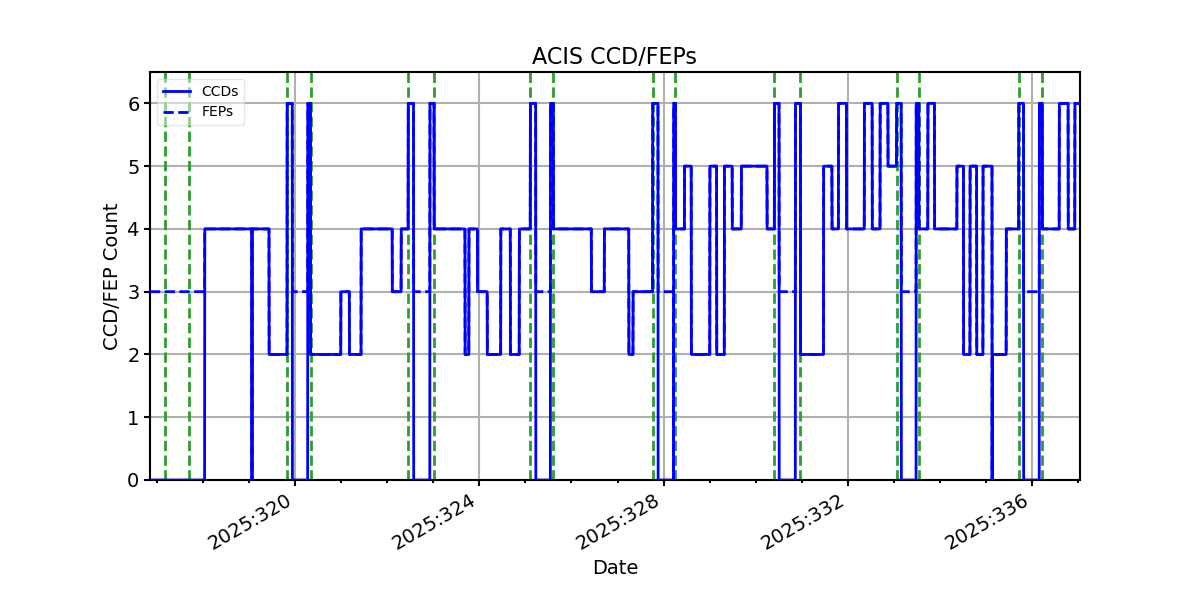

ACIS CCD/FEP Count
