FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:355:22:55:21.916 |
| Date stop | 2025:363:02:43:37.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2225/oflsa |
| Run time | Thu Dec 18 20:09:18 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

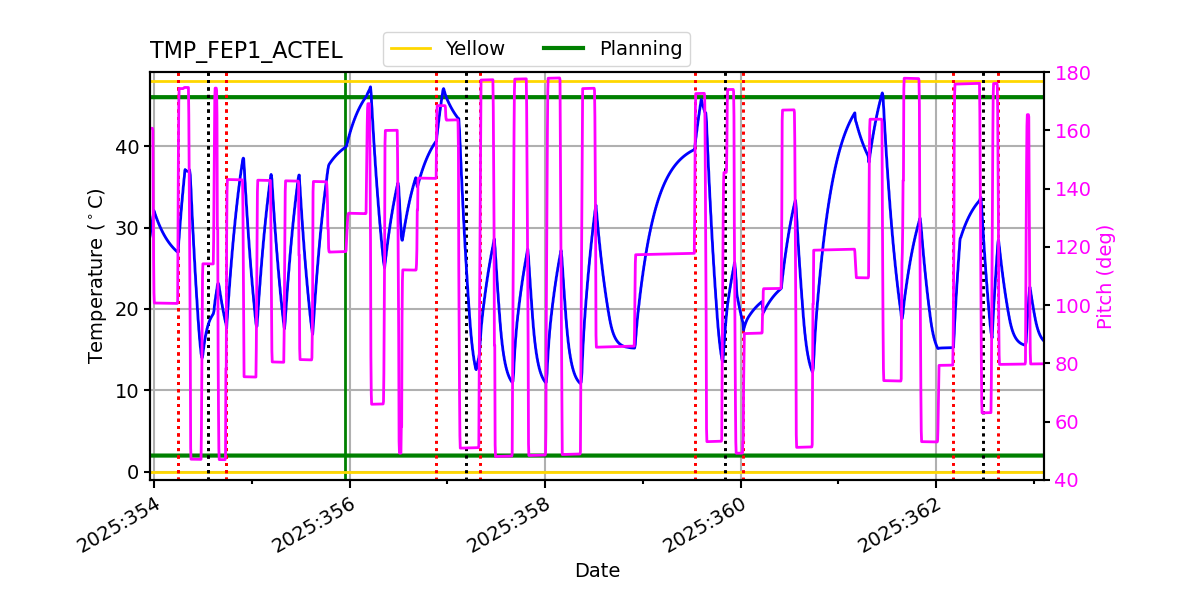

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:356:03:54:54.816 | 2025:356:05:16:54.816 | 4.92 | 47.27 / 46.00 |
| 2025:356:22:41:02.816 | 2025:356:23:42:01.684 | 3.66 | 47.06 / 46.00 |
| 2025:361:10:33:34.816 | 2025:361:11:00:54.816 | 1.64 | 46.52 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -5.99 | -4.90 | -3.57 | -1.84 | 0.94 | 2.57 | 5.92 |
| pitch | -10.709 | -0.383 | -0.004 | 0.000 | 0.004 | 0.546 | 11.156 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.555 | -0.091 | -0.007 | 0.000 | 0.007 | 0.126 | 1.573 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -5.99 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.84 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 5.92 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 11.156 | 3.00 |
TMP_FEP1_ACTEL
Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

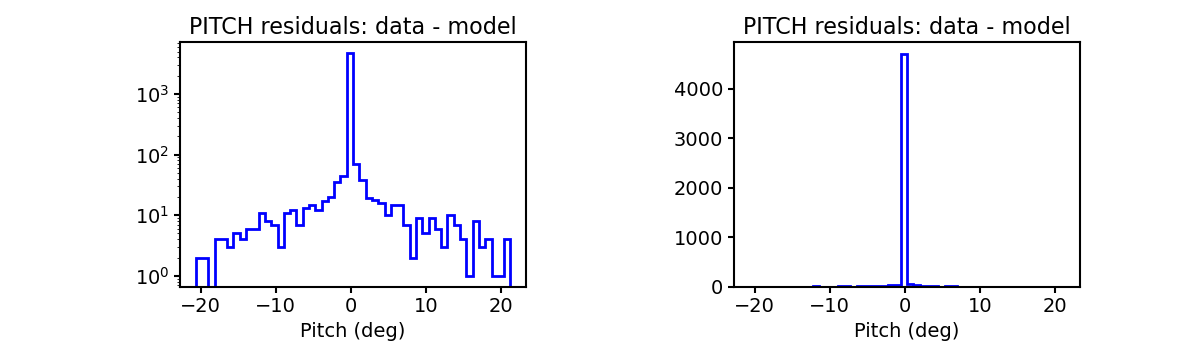

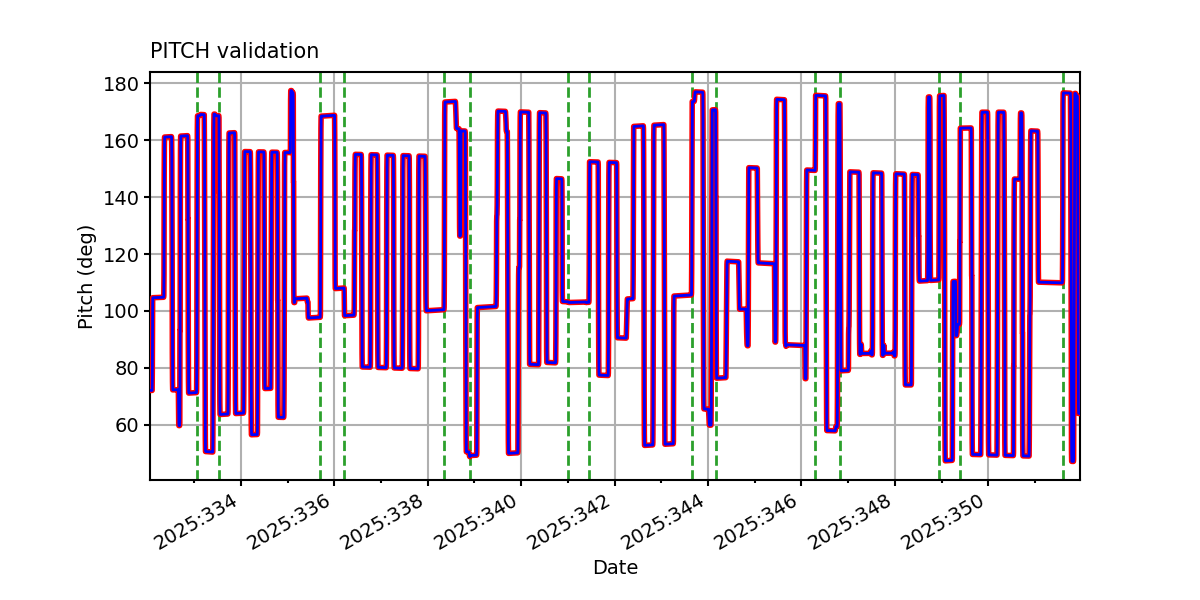

PITCH

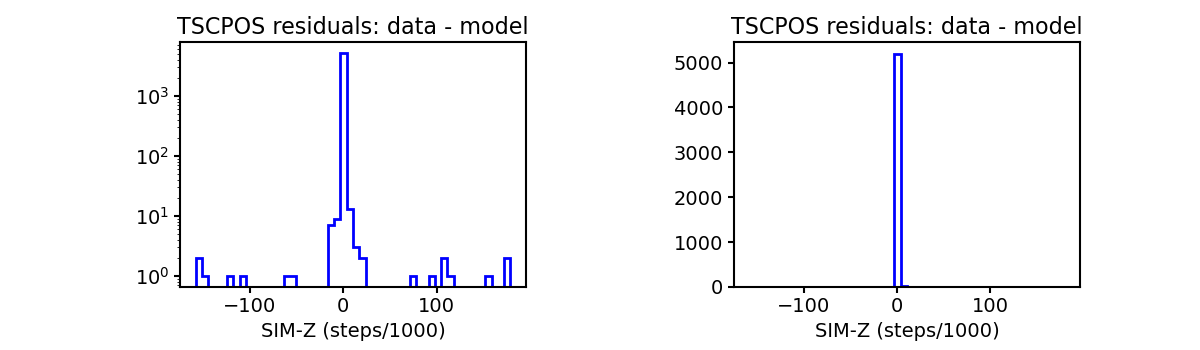

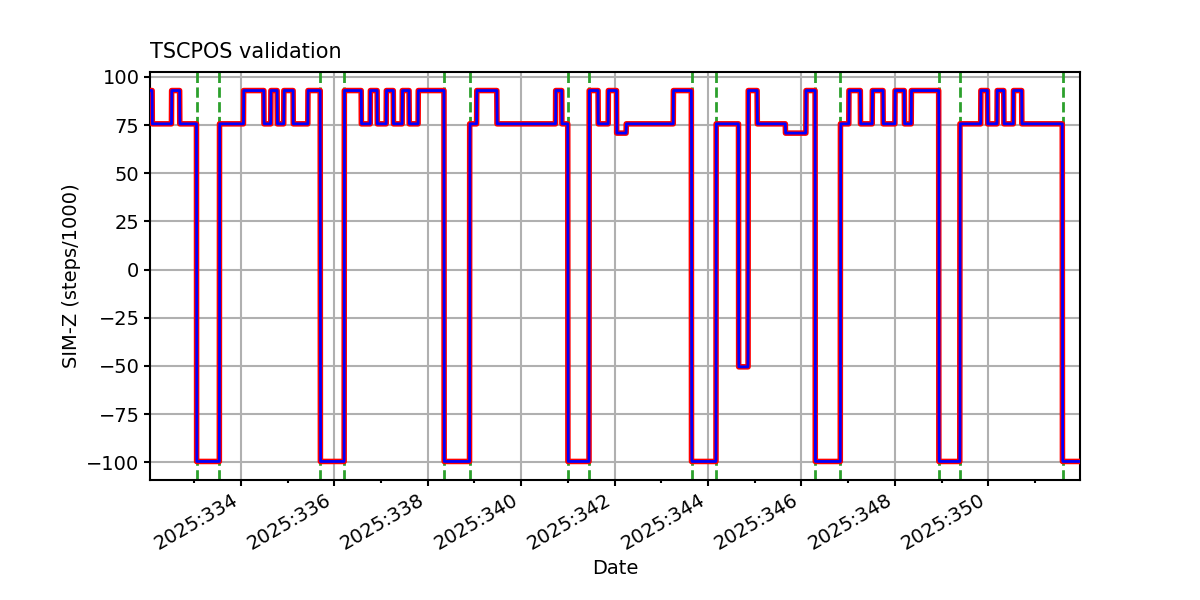

TSCPOS

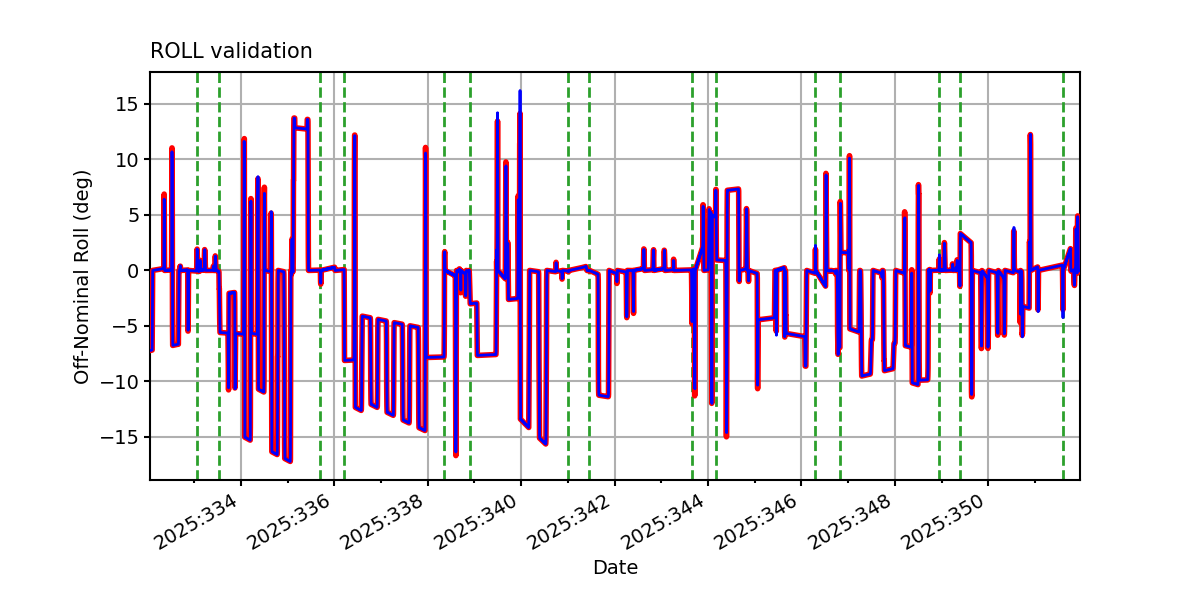

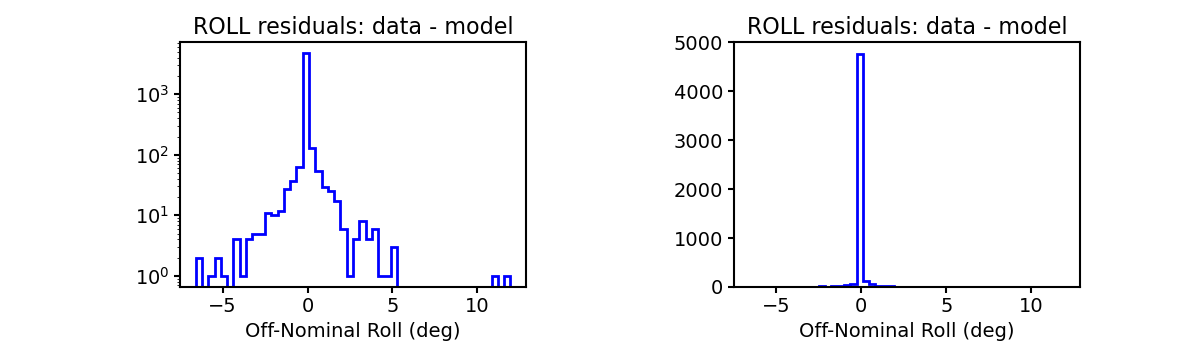

ROLL

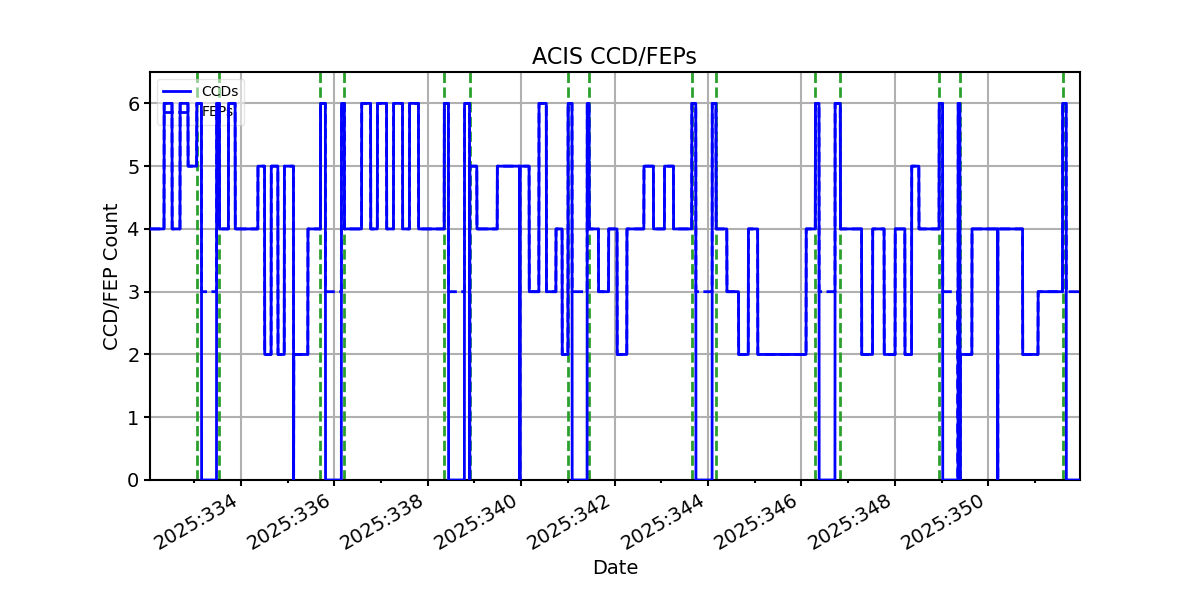

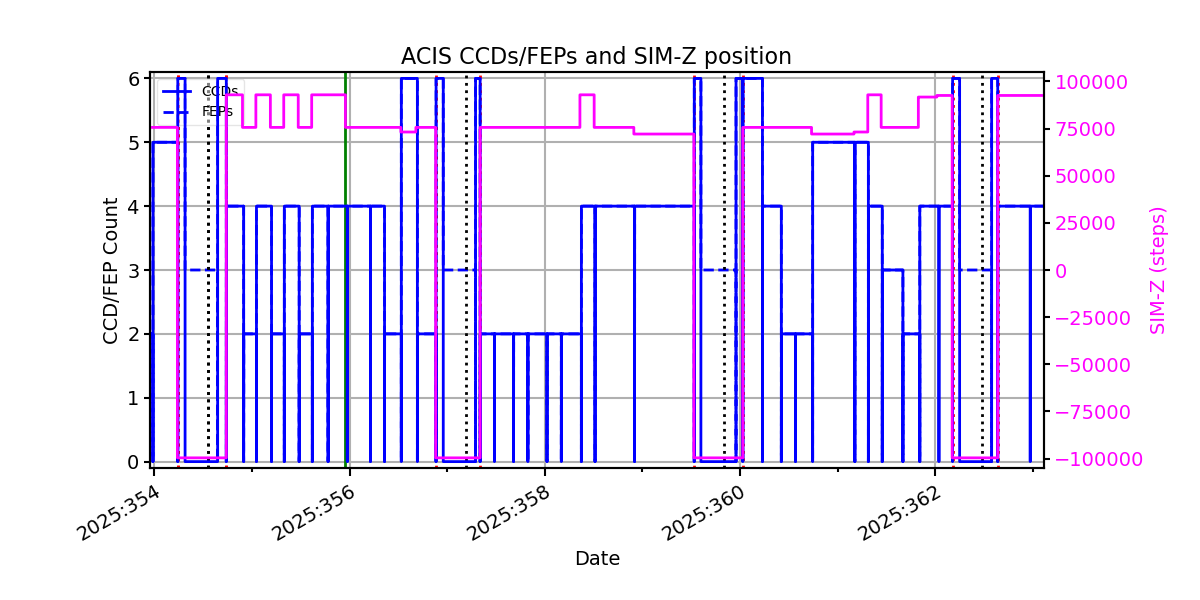

ACIS CCD/FEP Count
