FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:037:13:10:00.016 |
| Date stop | 2026:046:22:07:13.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0626/oflsa |
| Run time | Tue Feb 3 16:05:46 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.76 | -6.22 | -5.00 | -3.01 | -0.64 | 0.82 | 2.15 |
| pitch | -9.086 | -0.459 | -0.004 | 0.000 | 0.004 | 0.449 | 8.479 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.044 | -0.166 | -0.007 | -0.000 | 0.004 | 0.070 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.76 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -3.01 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.15 | 2.00 |
| PITCH | 1 | -9.086 | 3.00 |
| PITCH | 99 | 8.479 | 3.00 |

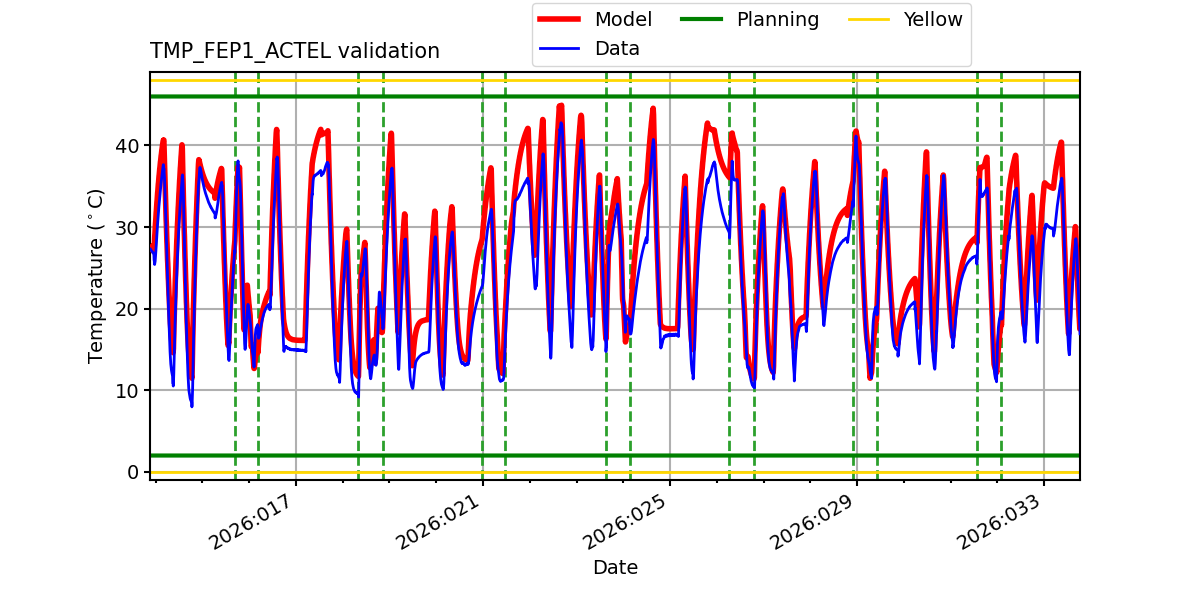

TMP_FEP1_ACTEL

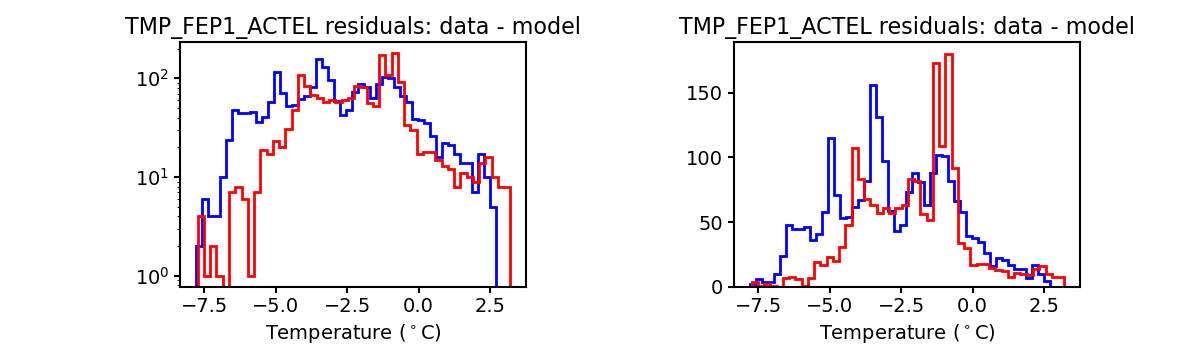

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

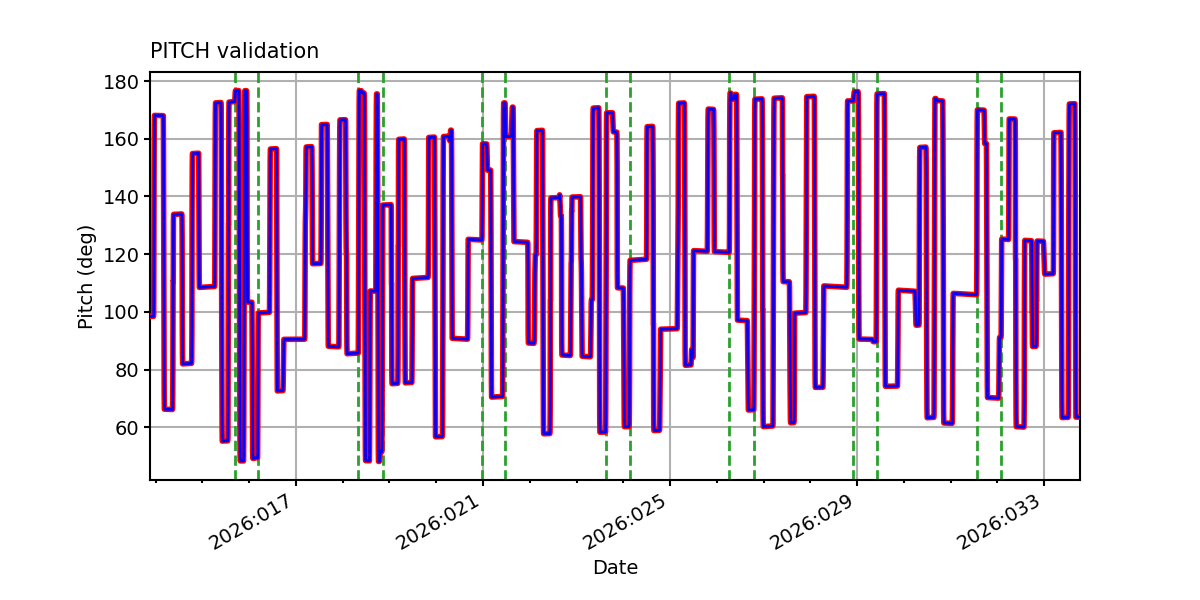

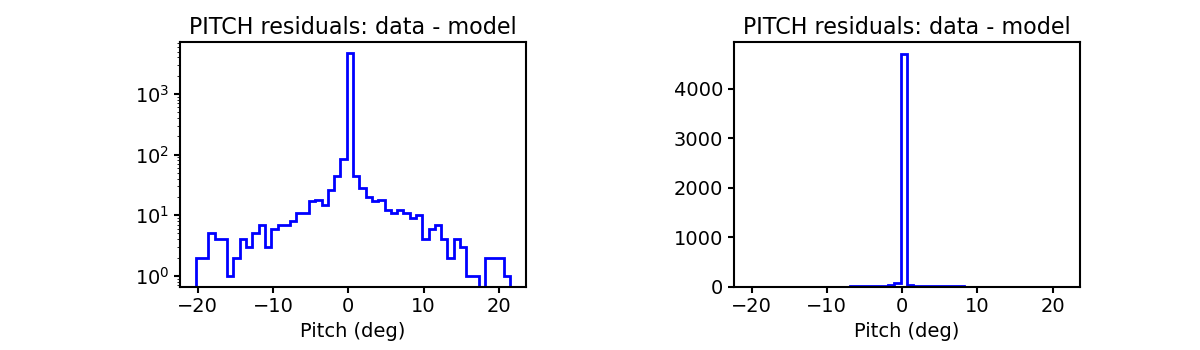

PITCH

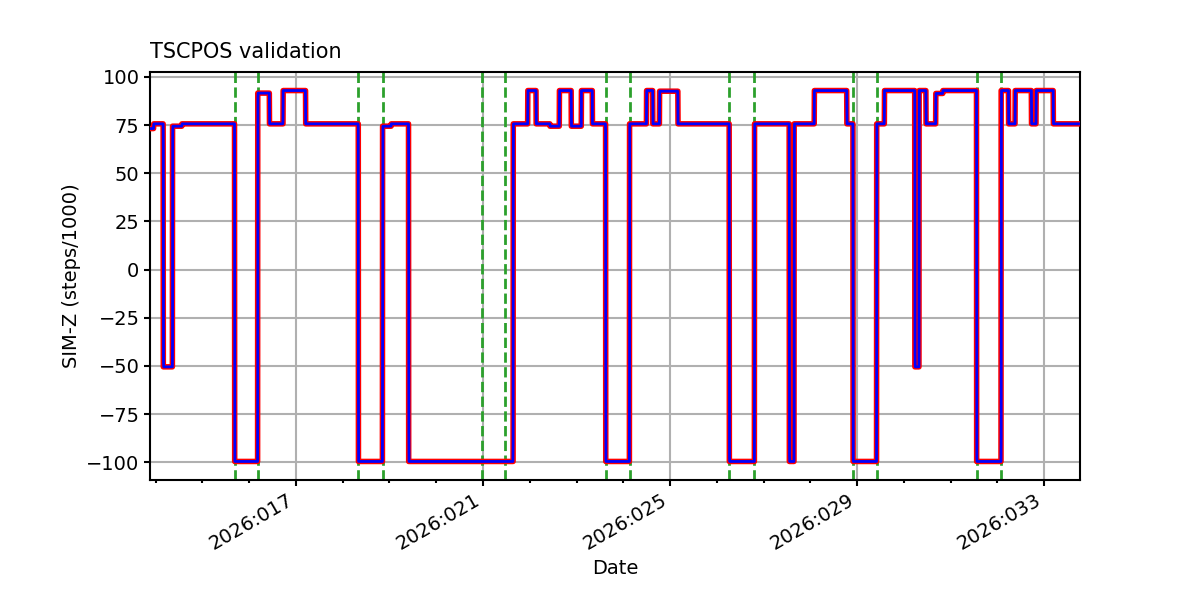

TSCPOS

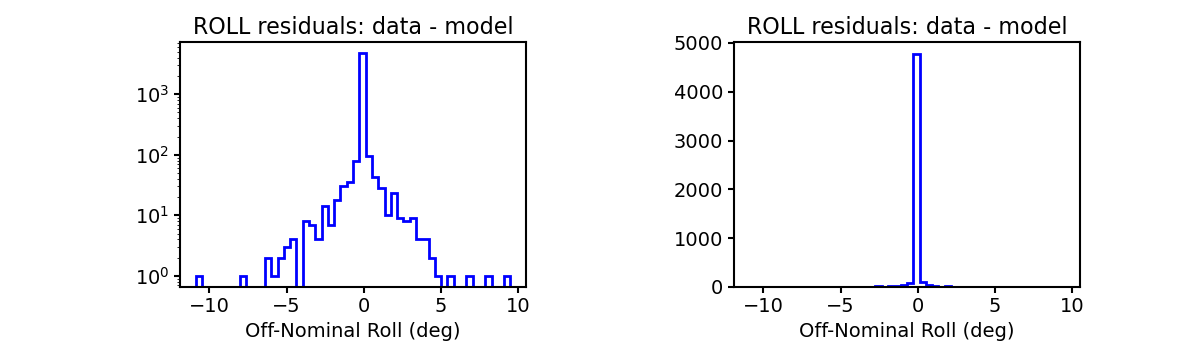

ROLL

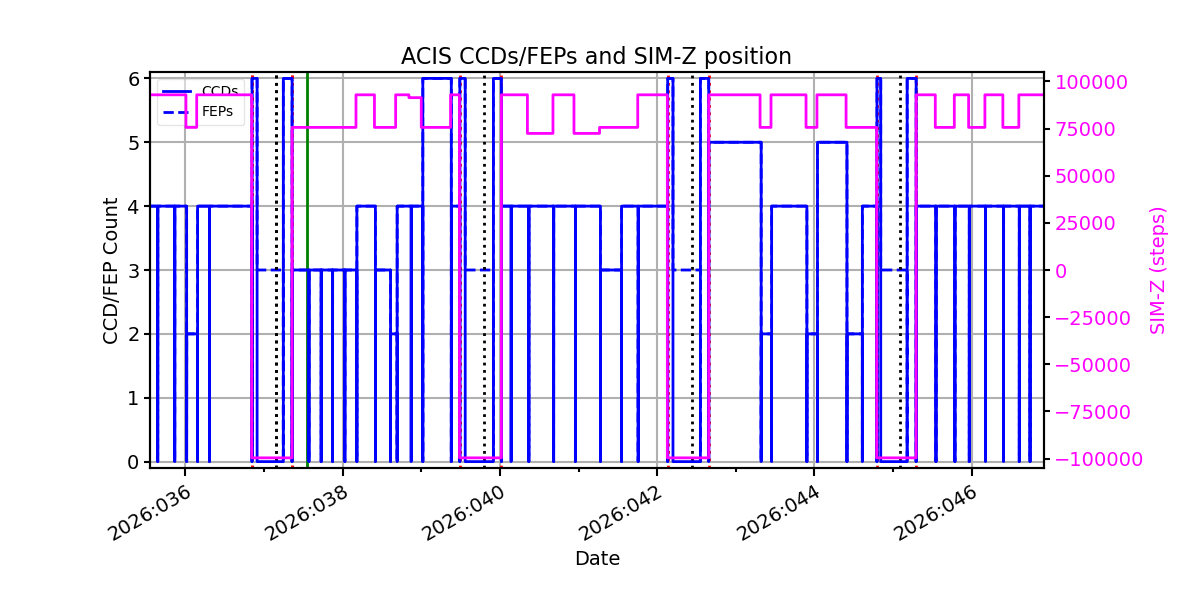

ACIS CCD/FEP Count
