FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:012:00:51:56.516 |
| Date stop | 2026:019:00:52:29.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1226/oflsa |
| Run time | Thu Jan 8 08:42:30 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.30 | -6.29 | -5.14 | -2.53 | 0.21 | 1.89 | 2.71 |
| pitch | -11.683 | -0.797 | -0.004 | -0.000 | 0.004 | 0.560 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.739 | -0.205 | -0.007 | -0.000 | 0.007 | 0.152 | 2.005 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.3 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.53 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.71 | 2.00 |
| PITCH | 1 | -11.683 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

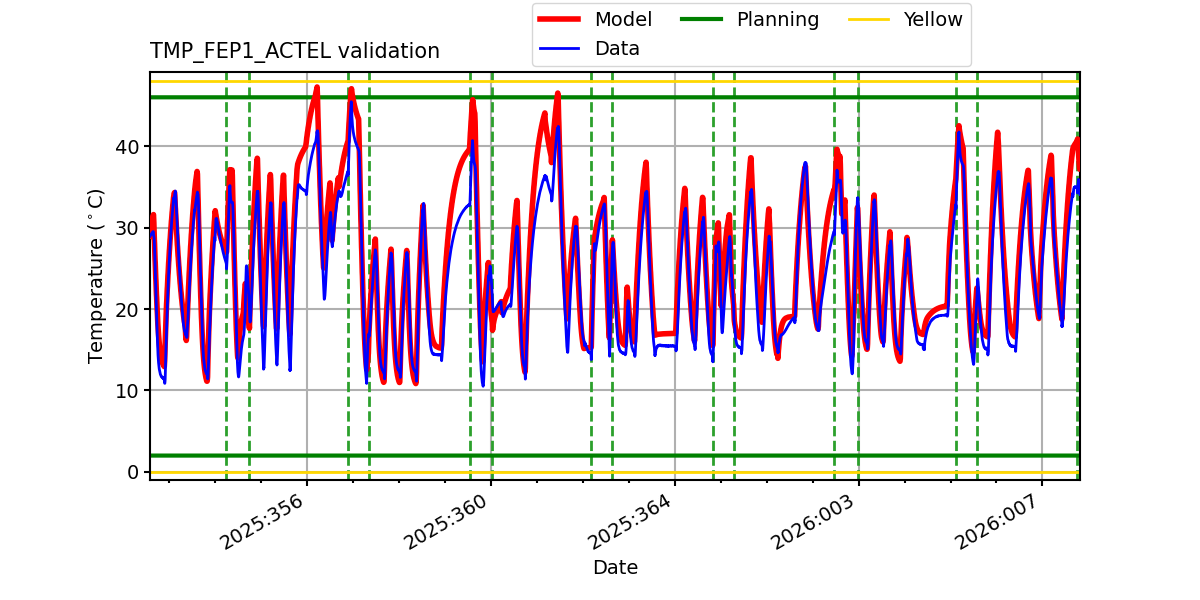

TMP_FEP1_ACTEL

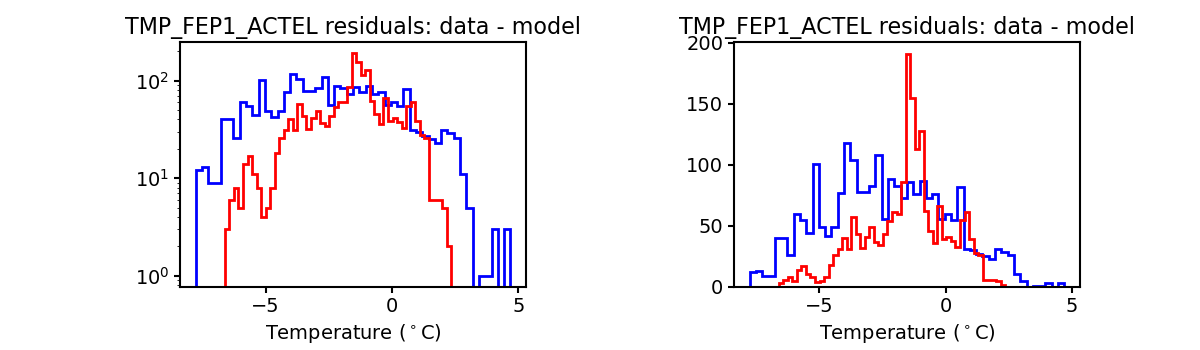

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

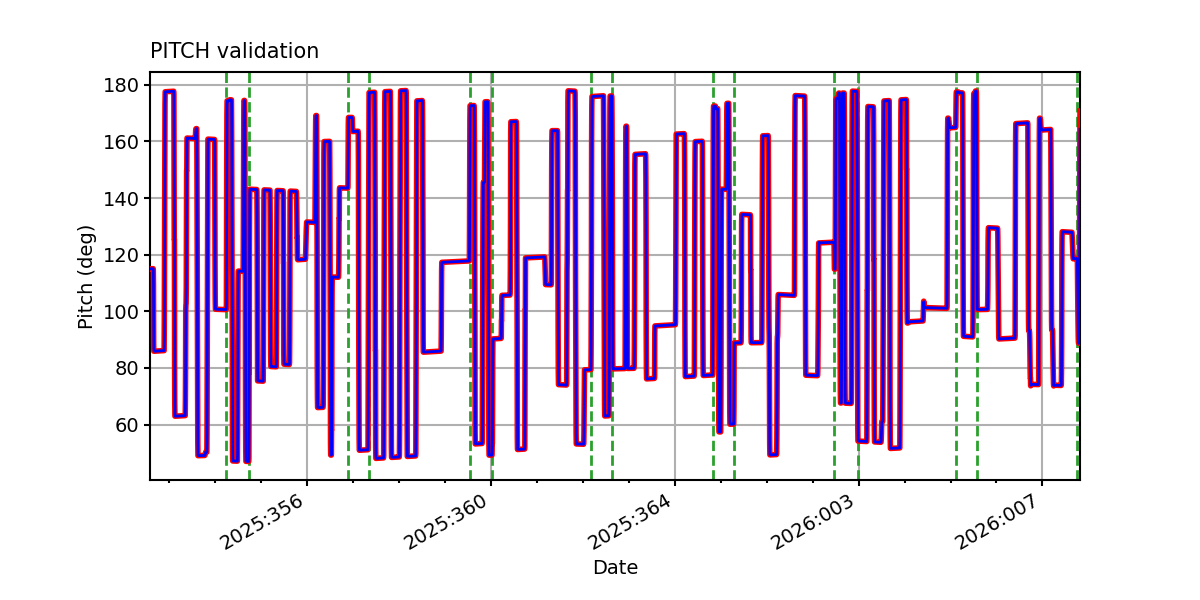

PITCH

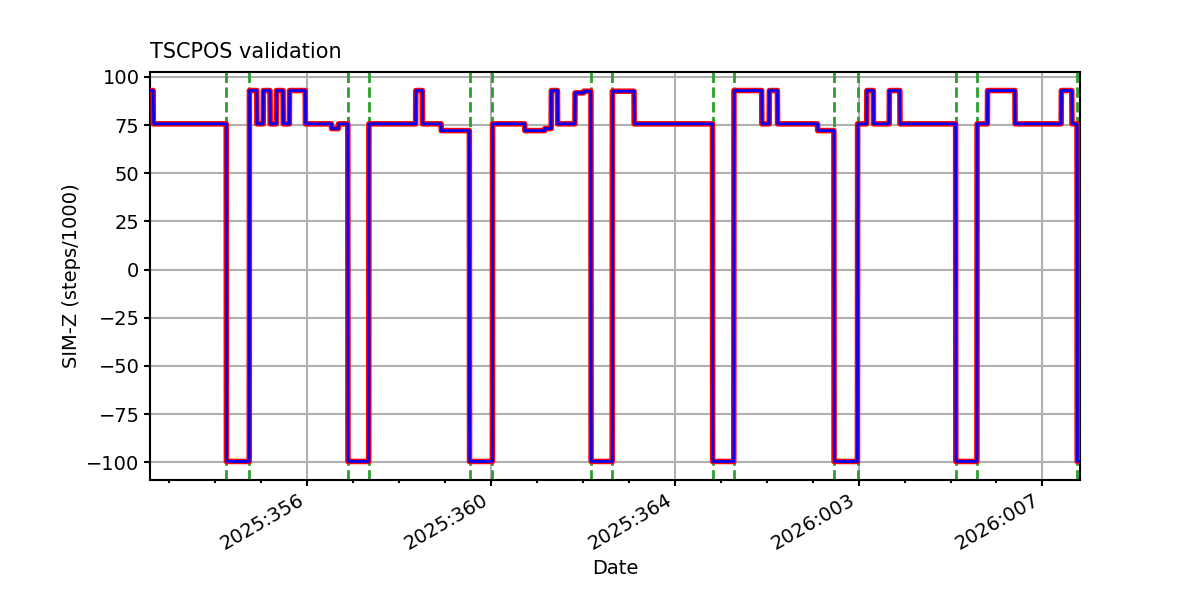

TSCPOS

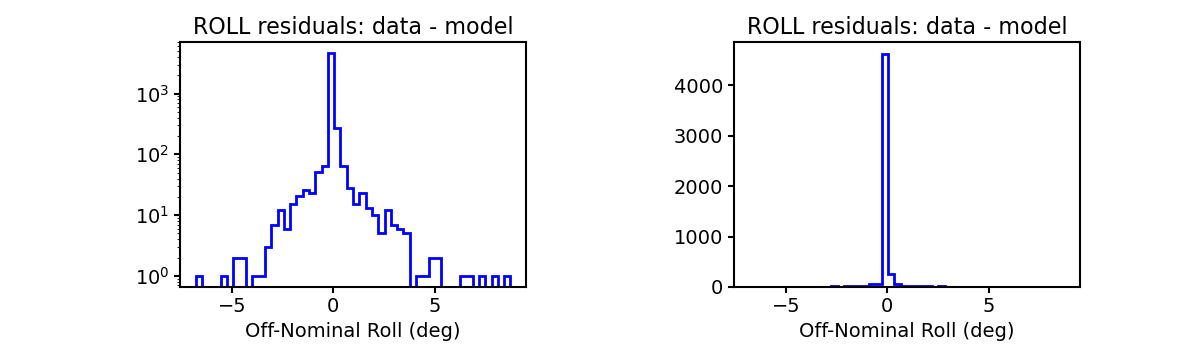

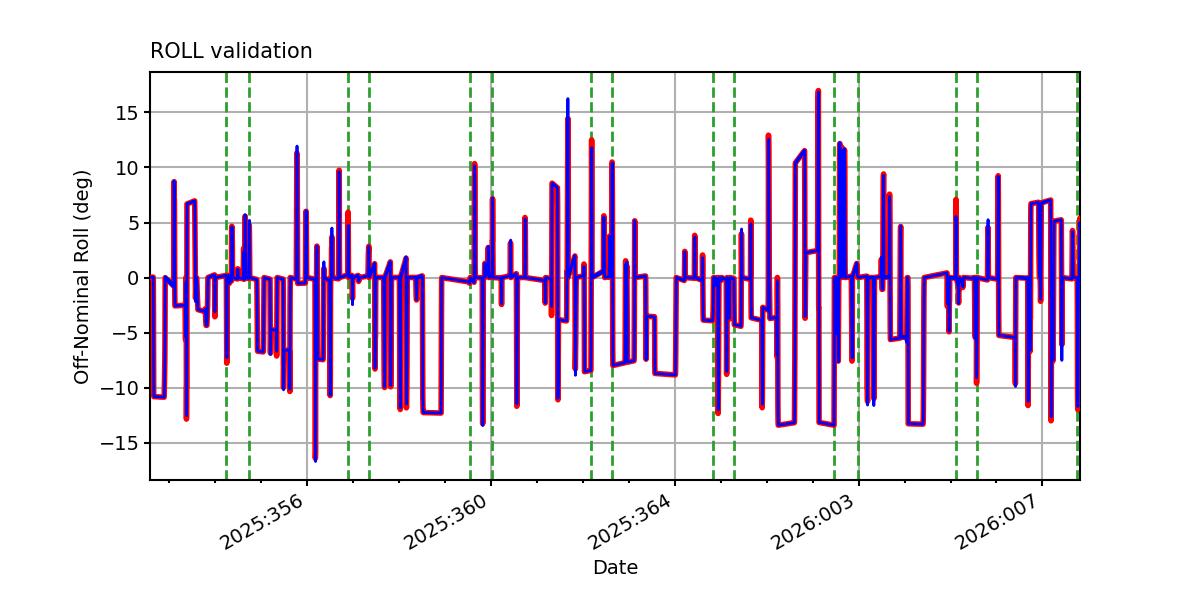

ROLL

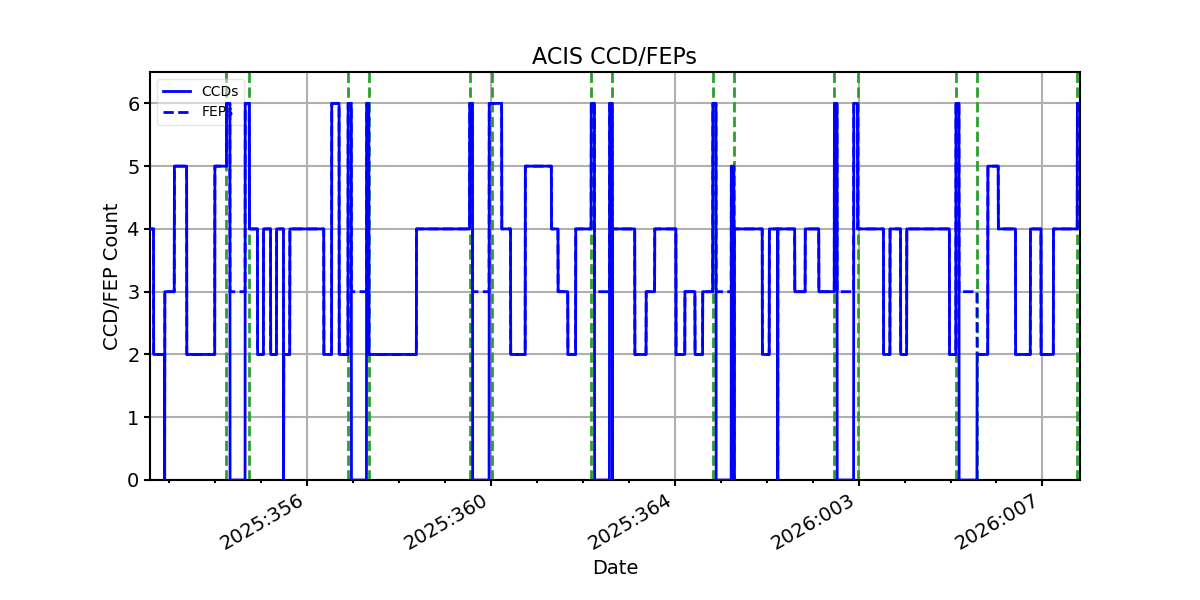

ACIS CCD/FEP Count
