FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:30:25.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsa |
| Run time | Wed Jan 14 14:22:10 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:021:00:46:38.816 | 2026:021:02:41:26.816 | 6.89 | 47.48 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.23 | -6.49 | -5.20 | -2.24 | 0.30 | 1.89 | 3.01 |
| pitch | -11.371 | -0.613 | -0.004 | -0.000 | 0.004 | 0.617 | 11.702 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.892 | -0.231 | -0.008 | -0.000 | 0.007 | 0.143 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.23 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.24 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.01 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.702 | 3.00 |

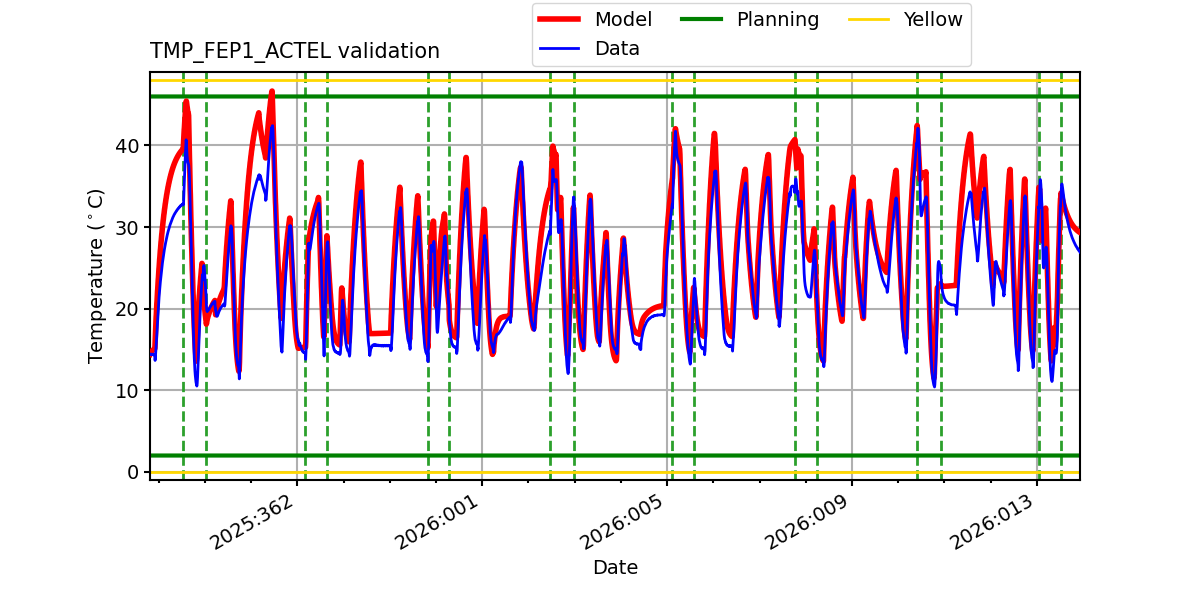

TMP_FEP1_ACTEL

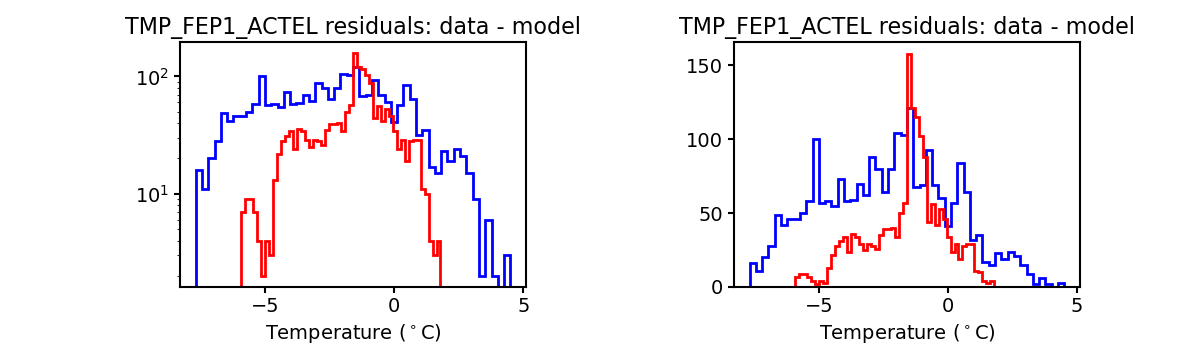

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

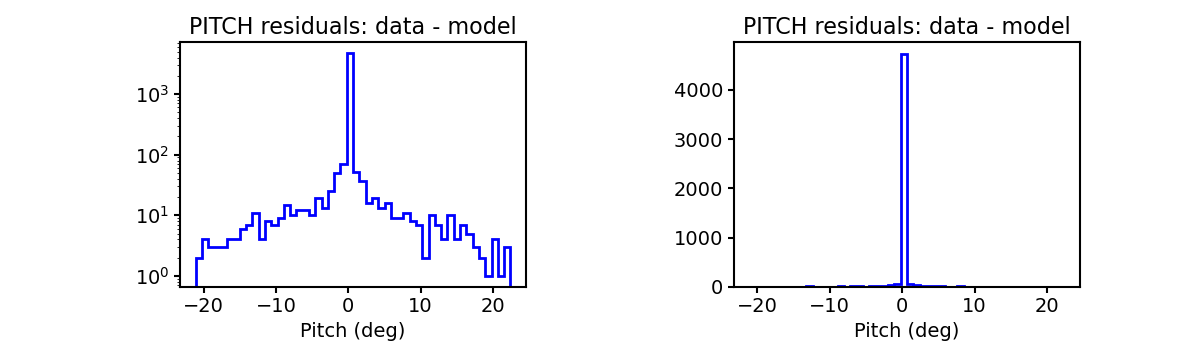

PITCH

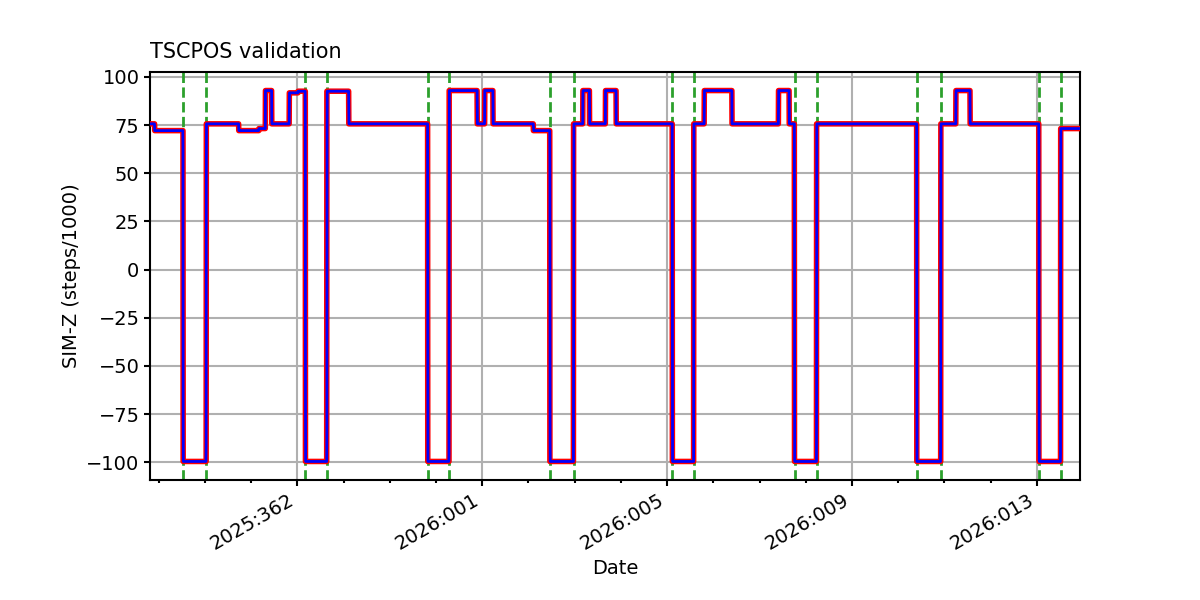

TSCPOS

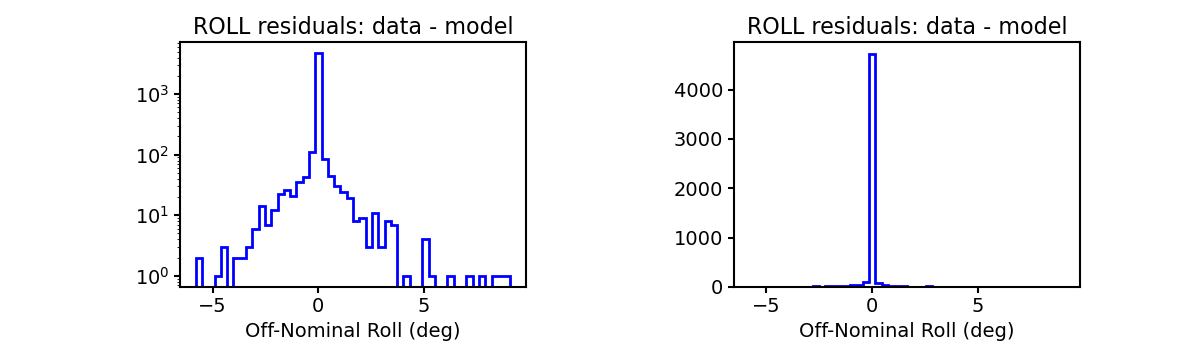

ROLL

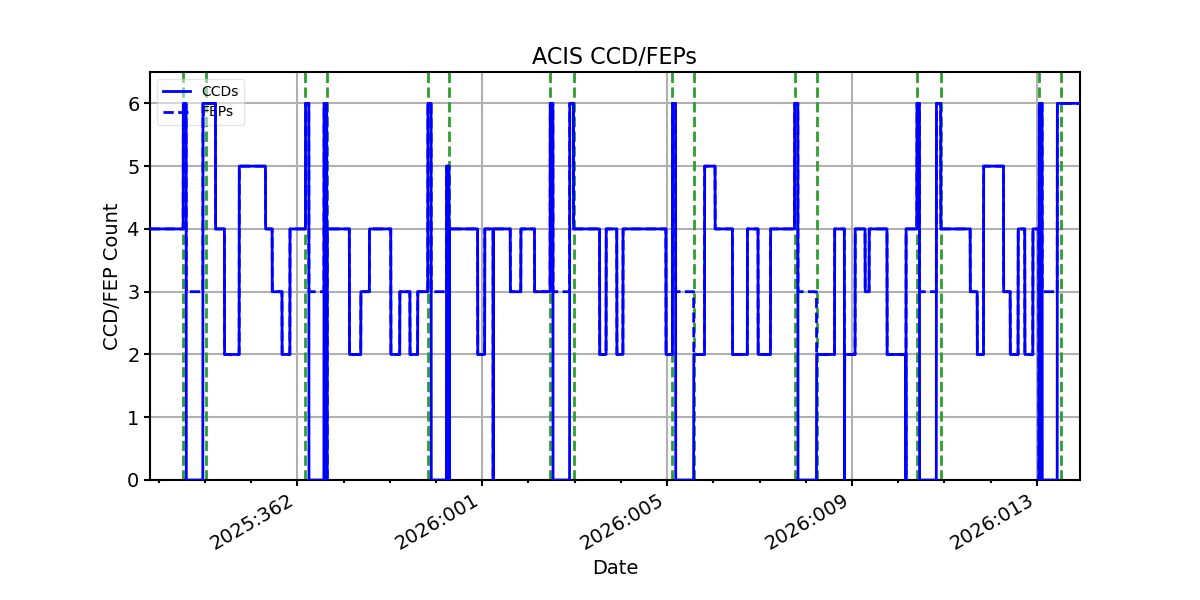

ACIS CCD/FEP Count
