FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:025:19:05:18.516 |
| Date stop | 2026:032:23:33:17.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2626/oflsa |
| Run time | Thu Jan 22 13:02:47 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.76 | -5.52 | -4.53 | -2.14 | 0.11 | 1.64 | 2.82 |
| pitch | -11.371 | -0.587 | -0.004 | -0.000 | 0.004 | 0.706 | 11.234 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.128 | -0.234 | -0.009 | -0.000 | 0.007 | 0.175 | 1.777 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.76 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.14 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.82 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.234 | 3.00 |

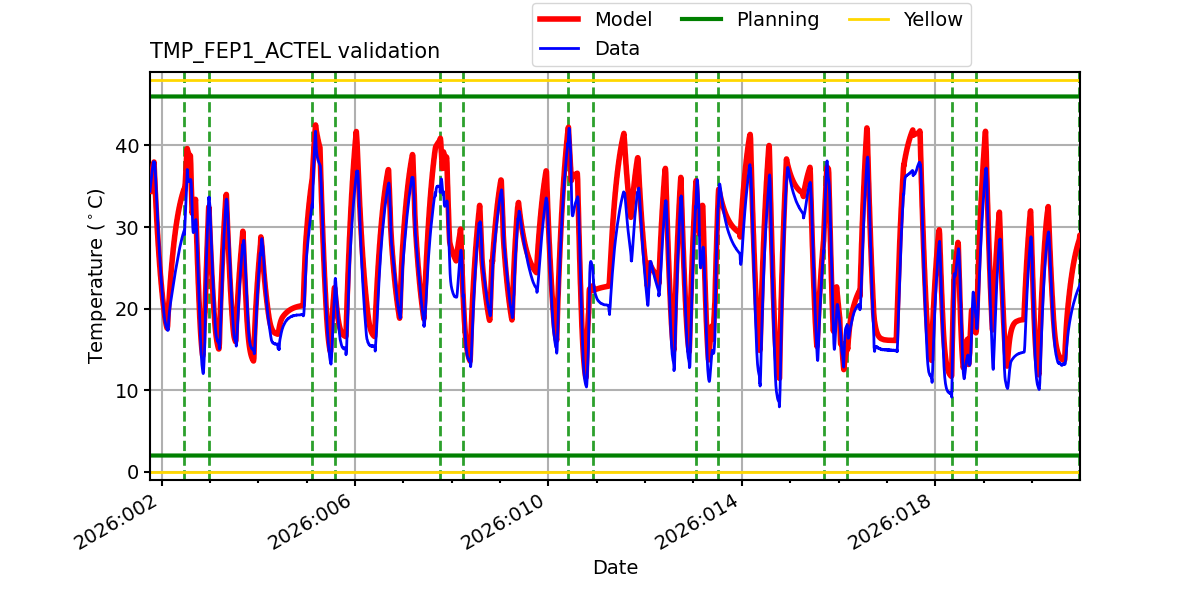

TMP_FEP1_ACTEL

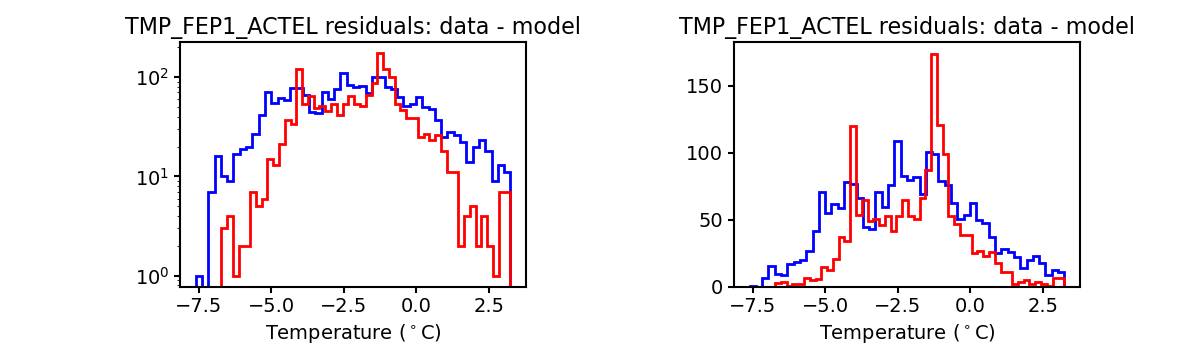

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

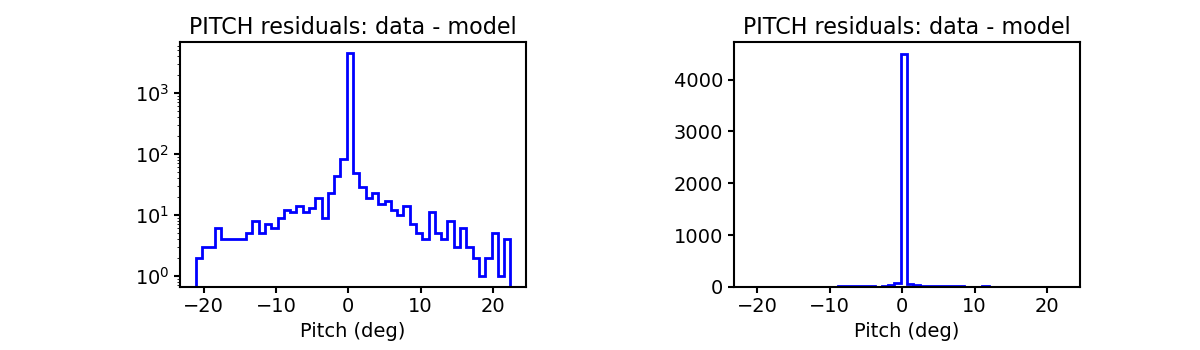

PITCH

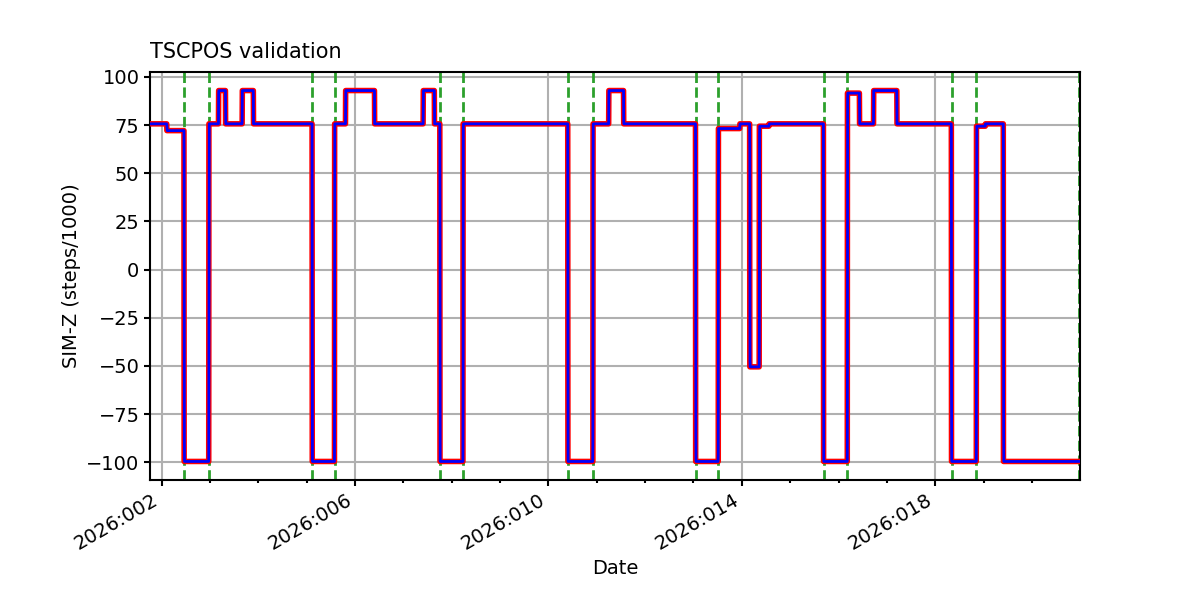

TSCPOS

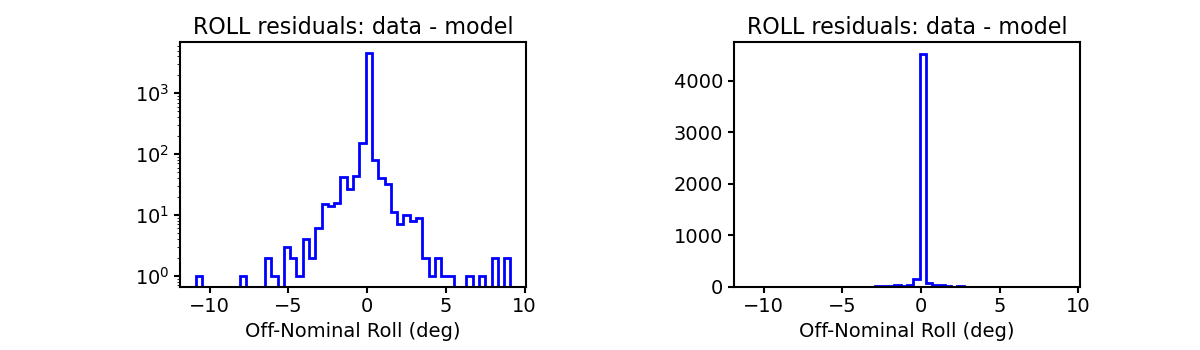

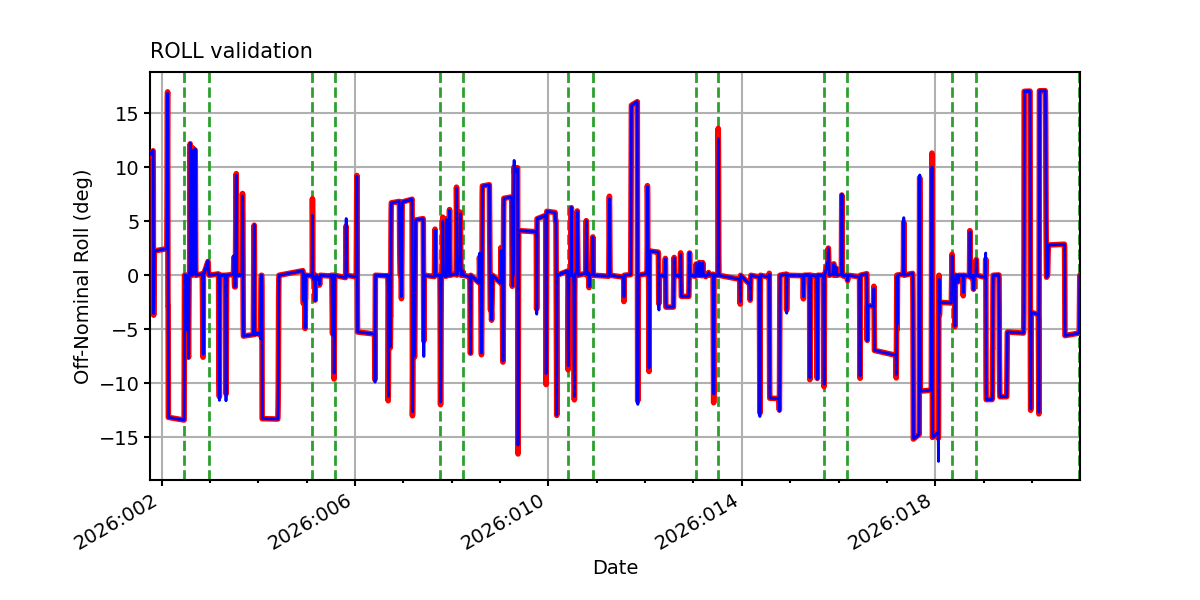

ROLL

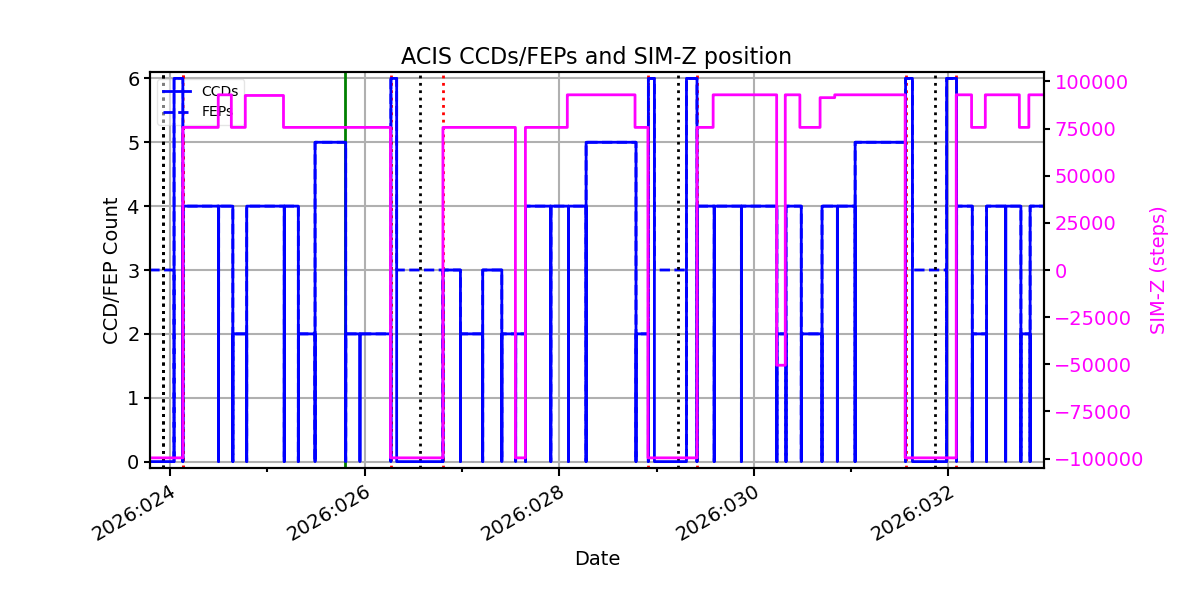

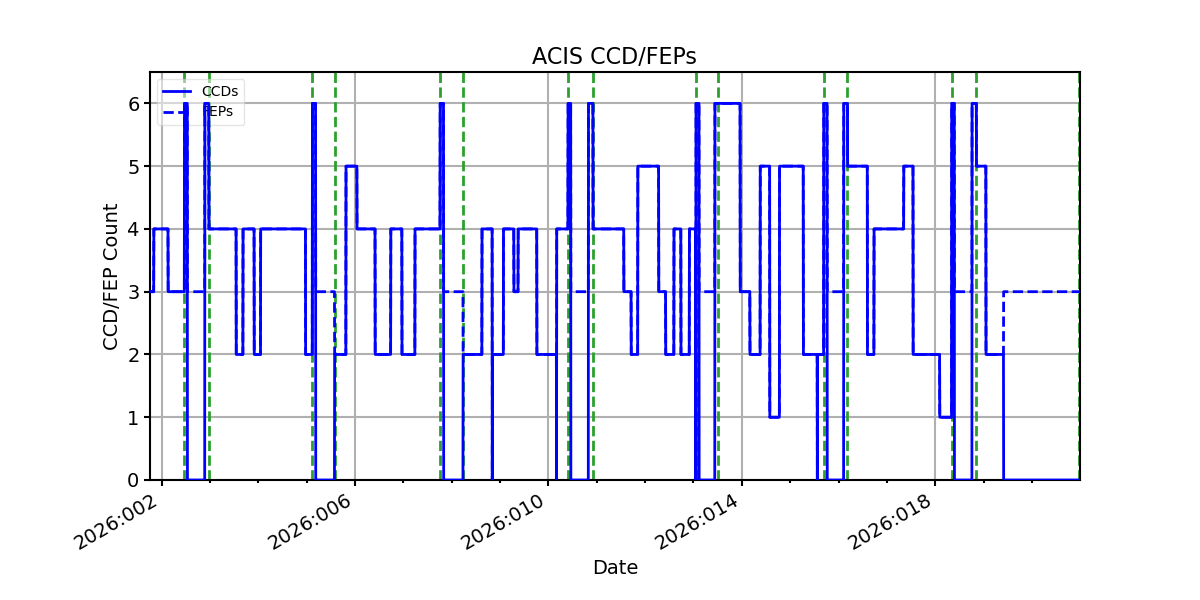

ACIS CCD/FEP Count
