FEP1_ACTEL Temperatures Check

Summary

Date start 2025:208:21:28:00.016
Date stop 2025:216:00:58:48.416
Model status NOT OK
Load directory /data/acis/LoadReviews/2025/JUL2825/ofls
Run time Wed Jul 23 18:25:06 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

TMP_FEP1_ACTEL Upper Limit Violations

Date start Date stop Duration (ks) Max Temperature / Limit
2025:214:23:35:02.816 2025:214:23:47:17.125 0.73 46.25 / 46.00

No TMP_FEP1_ACTEL Lower Limit Violations

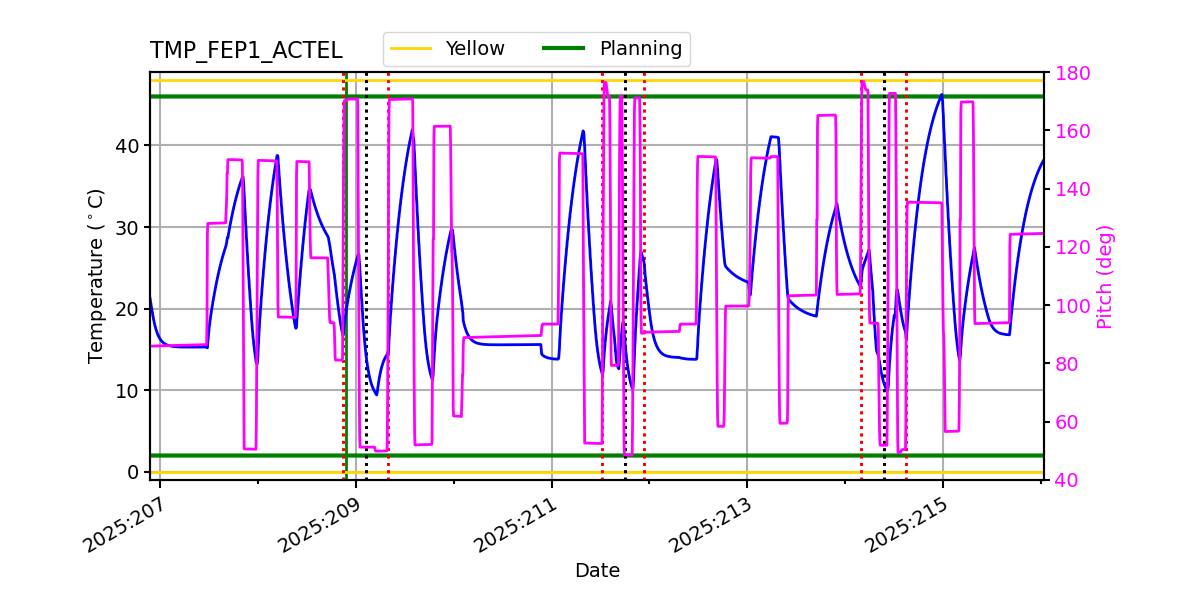

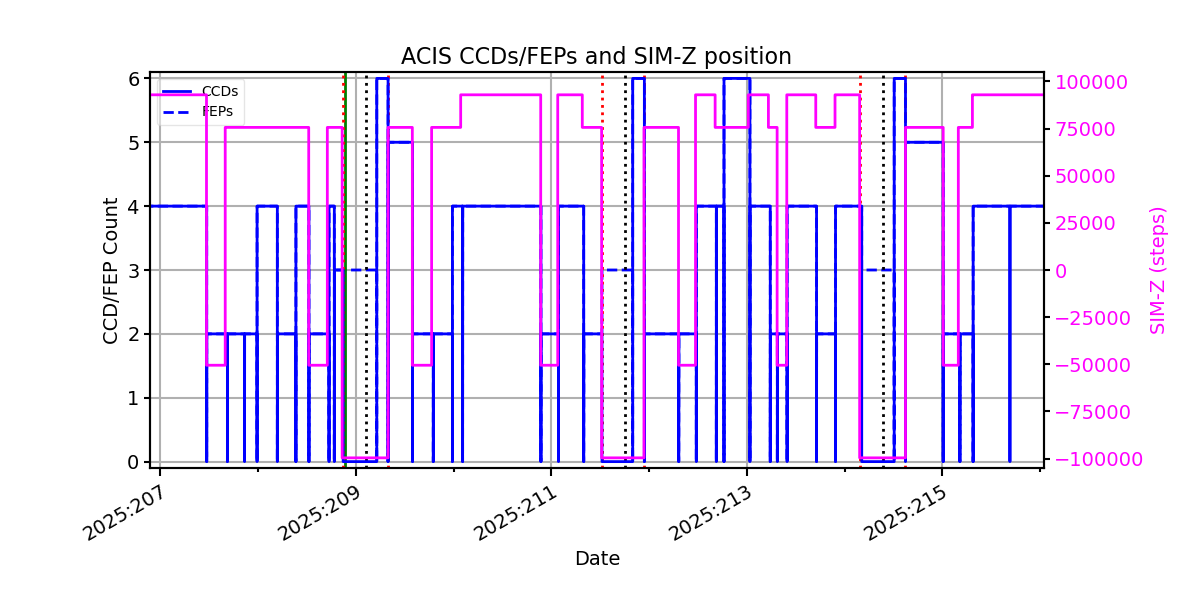

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -5.39 -3.76 -2.99 -1.69 0.92 1.88 2.81
pitch -8.836 -0.401 -0.004 0.000 0.004 0.467 9.377
tscpos -1 -1 -1 0 0 1 1
roll -2.050 -0.136 -0.007 0.000 0.007 0.168 1.773

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -5.39 2.00
TMP_FEP1_ACTEL 50 -1.69 1.00
TMP_FEP1_ACTEL 99 2.81 2.00
PITCH 1 -8.836 3.00
PITCH 99 9.377 3.00

TMP_FEP1_ACTEL

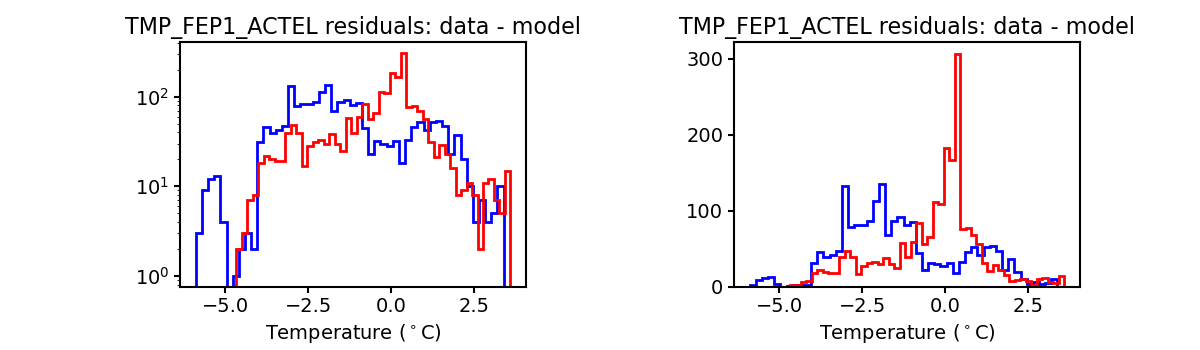

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

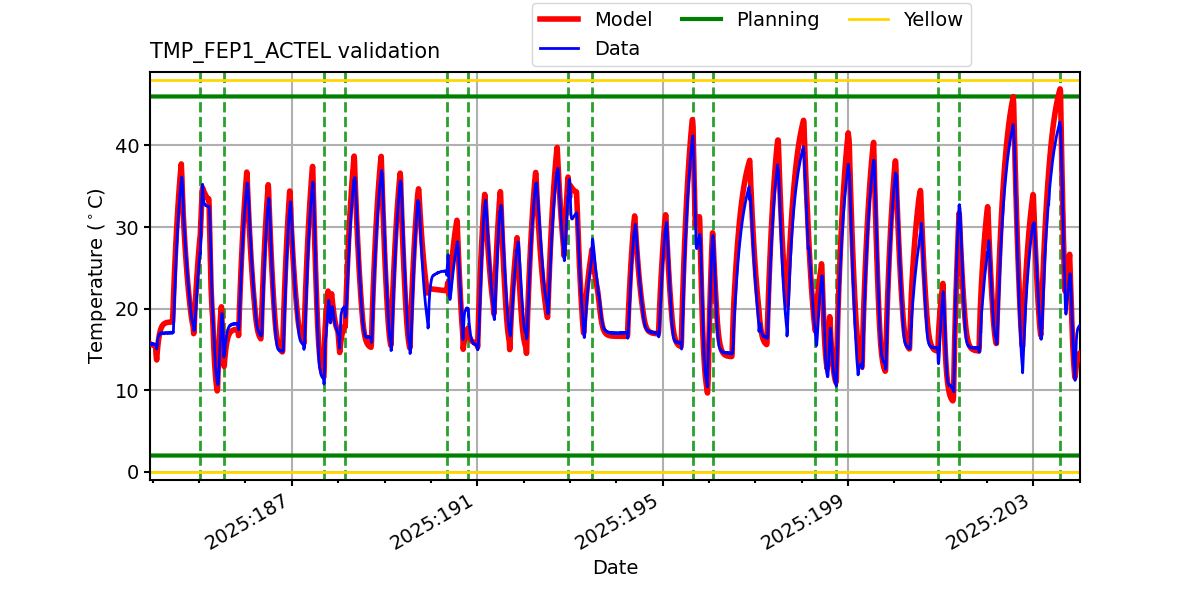

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

PITCH

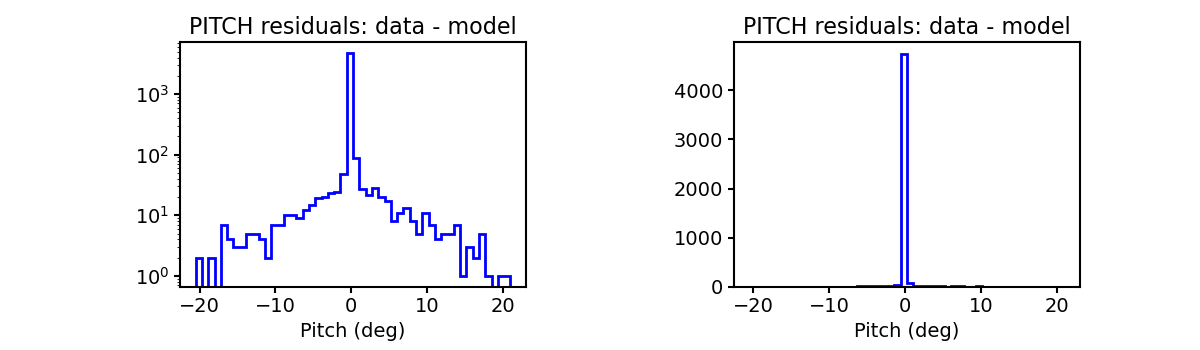

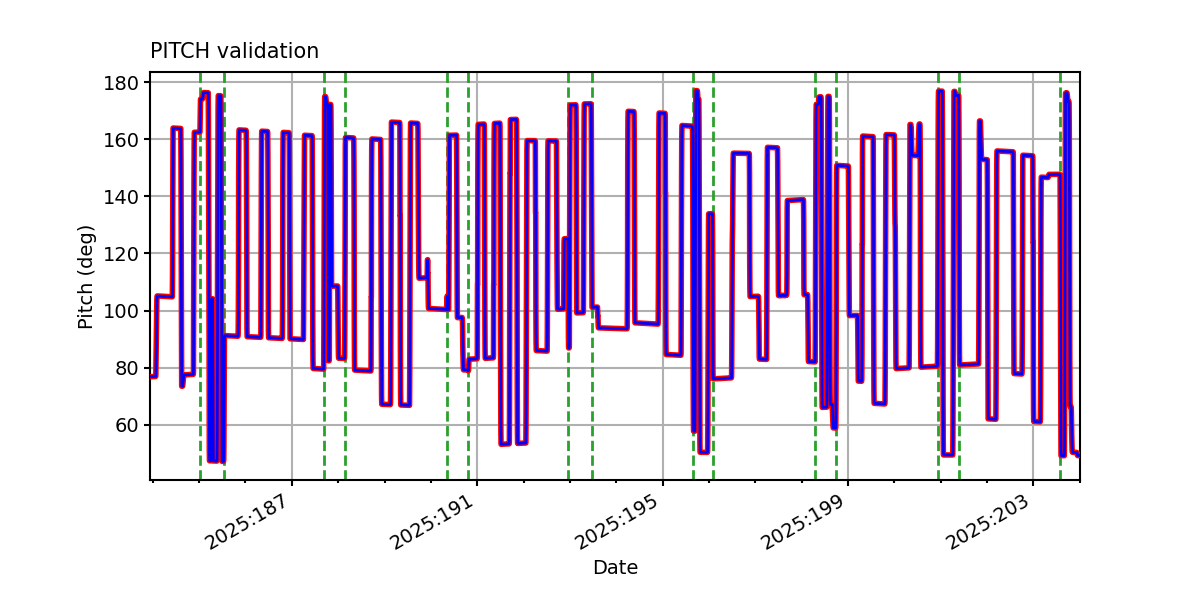

pitch_valid.png pitch_valid_hist.png

TSCPOS

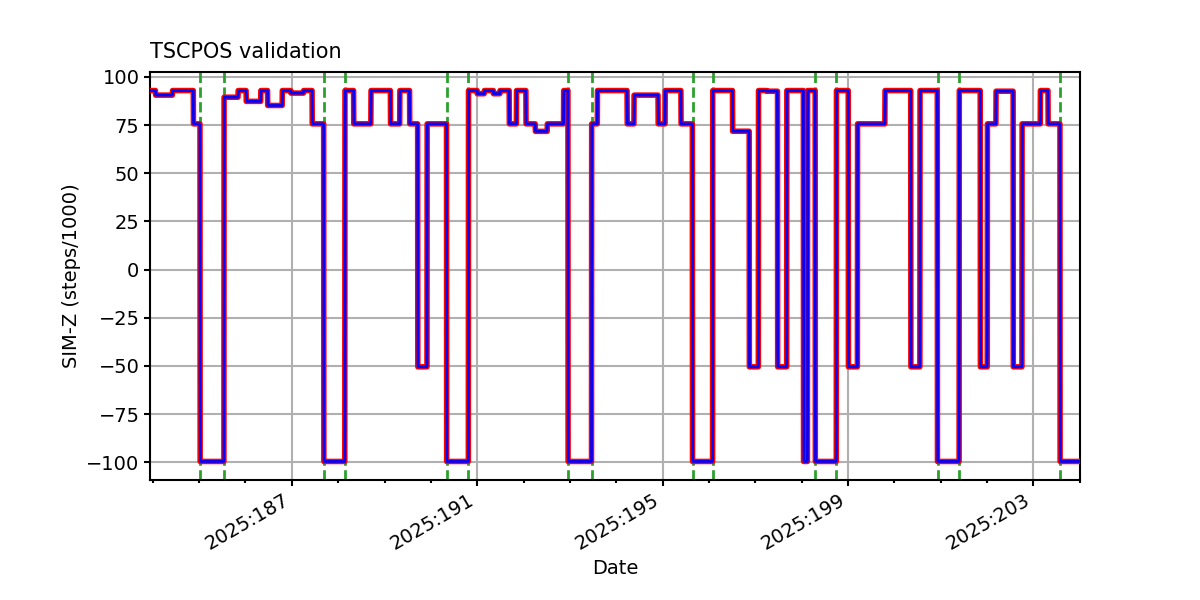

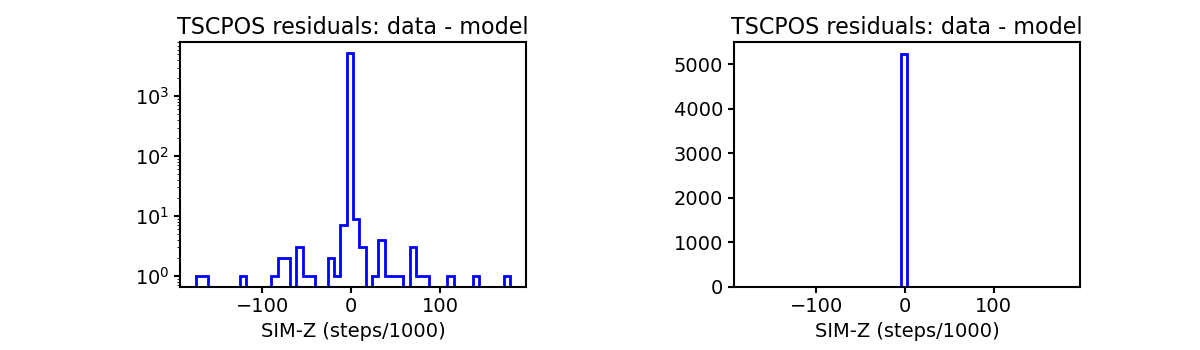

tscpos_valid.png tscpos_valid_hist.png

ROLL

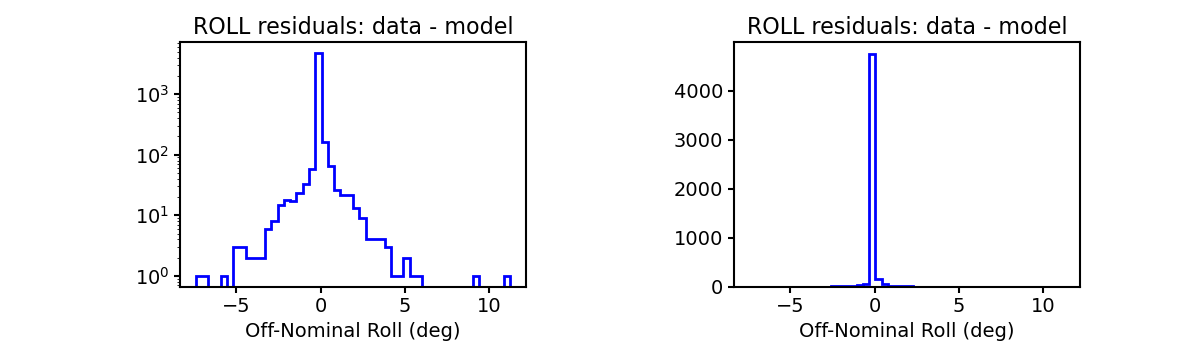

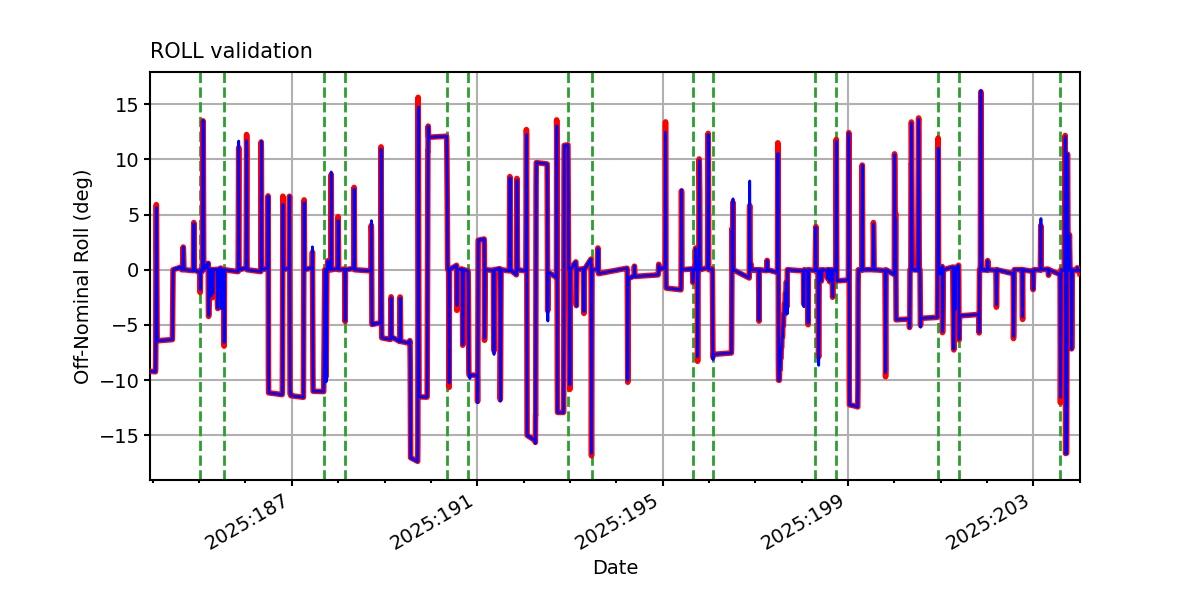

roll_valid.png roll_valid_hist.png

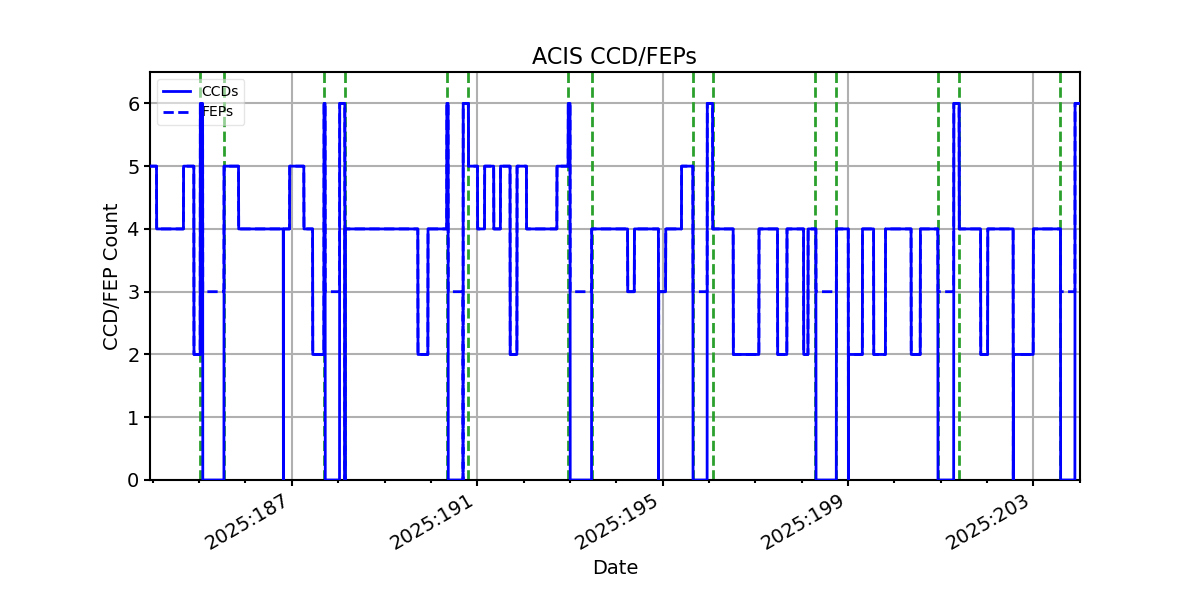

ACIS CCD/FEP Count
