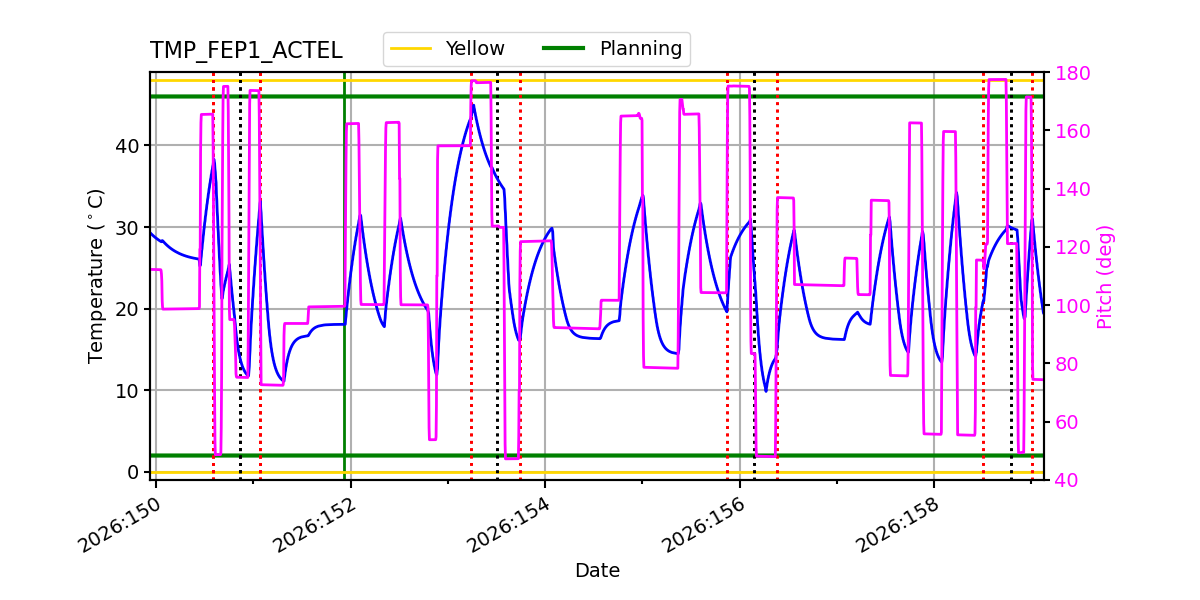

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu May 28 08:19:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.60 | -5.84 | -4.40 | -1.44 | 1.35 | 2.85 | 4.30 |
| pitch | -7.524 | -0.393 | -0.004 | -0.000 | 0.004 | 0.118 | 9.520 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.816 | -0.080 | -0.005 | -0.000 | 0.005 | 0.092 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.6 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.44 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 4.3 | 2.00 |
| PITCH | 1 | -7.524 | 3.00 |
| PITCH | 99 | 9.52 | 3.00 |

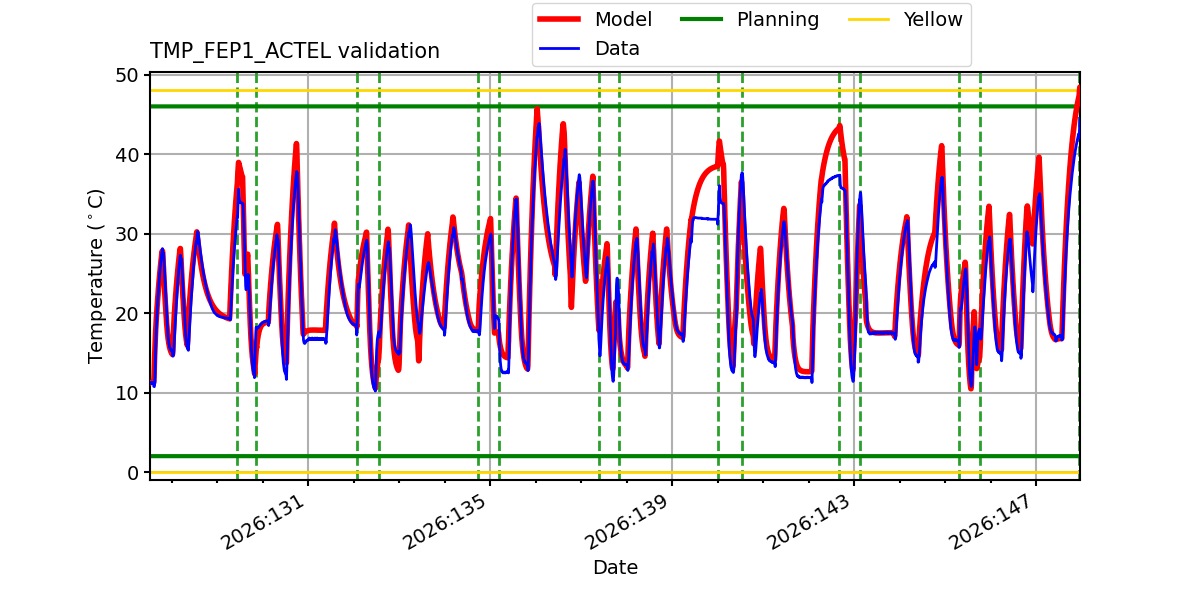

TMP_FEP1_ACTEL

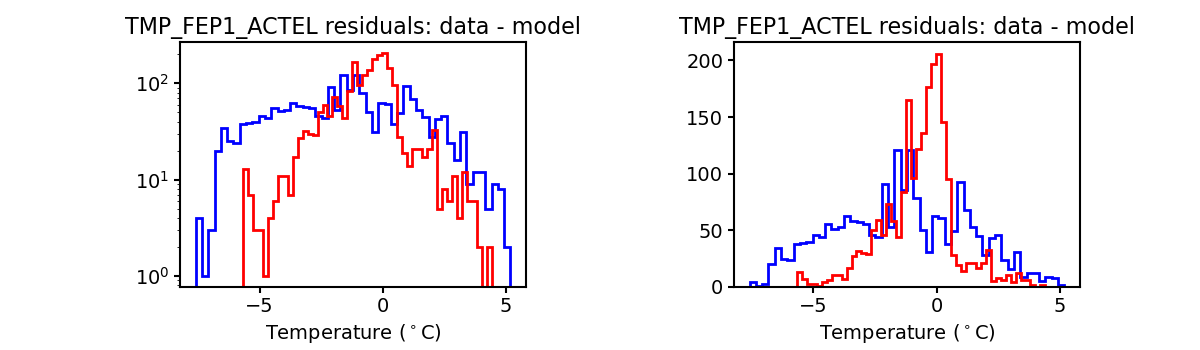

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

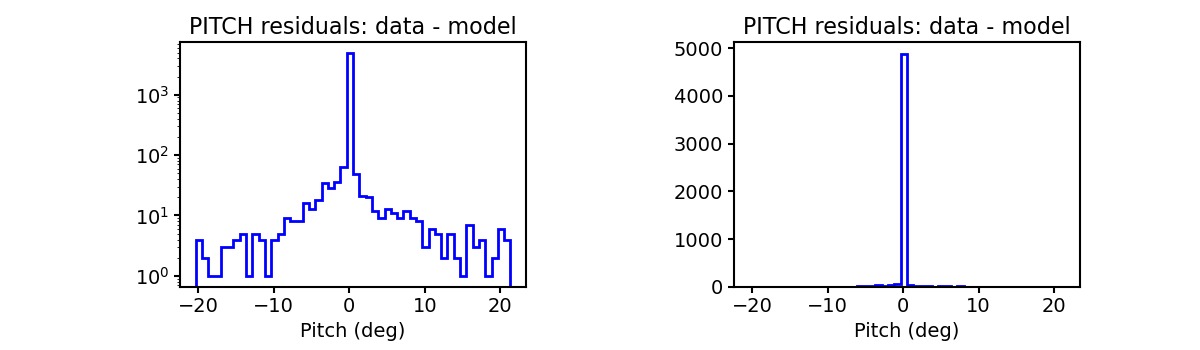

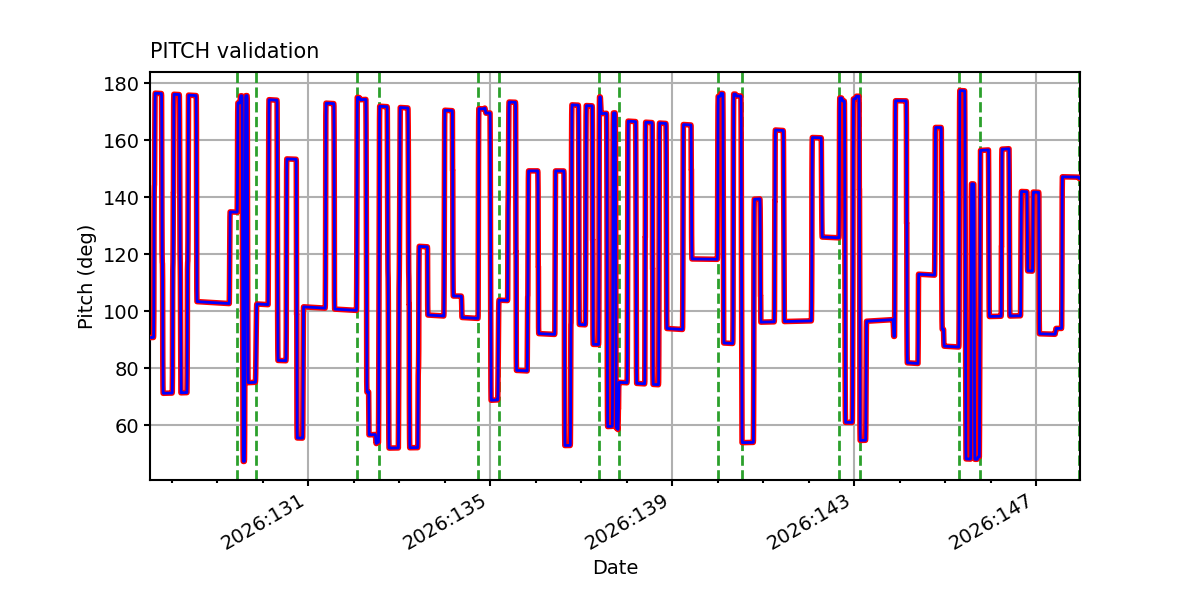

PITCH

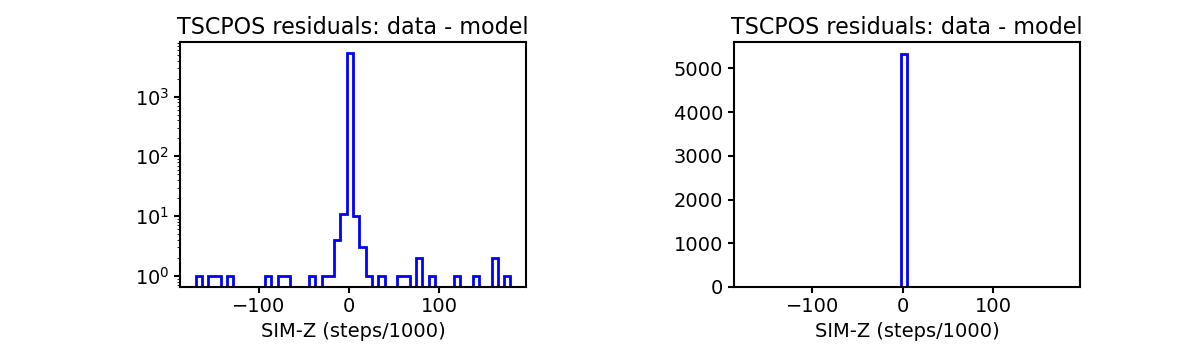

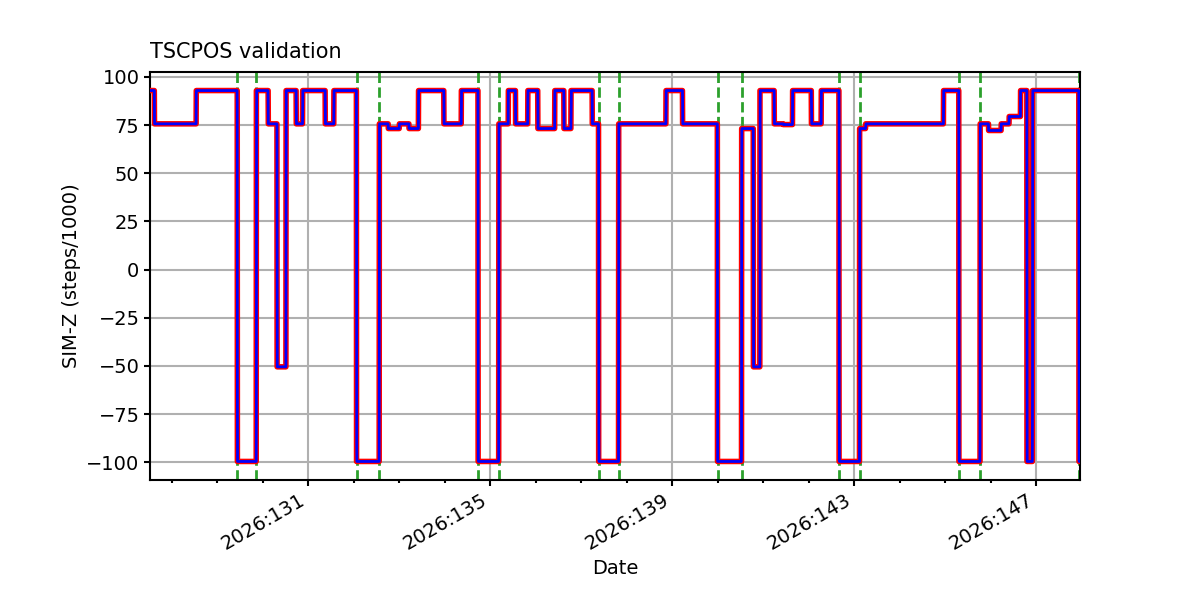

TSCPOS

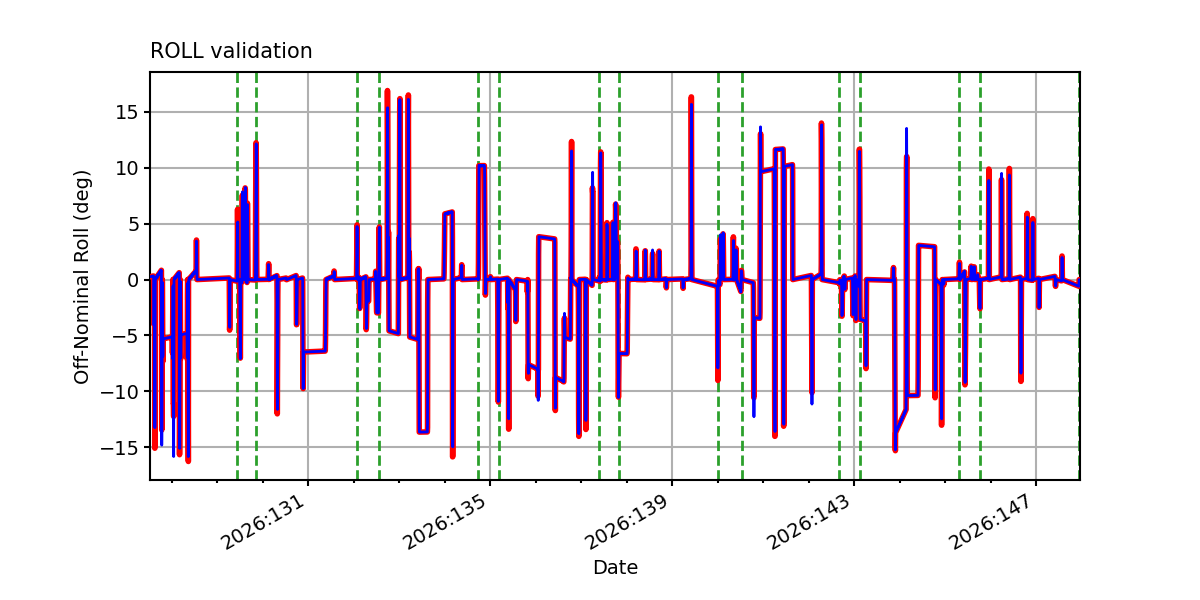

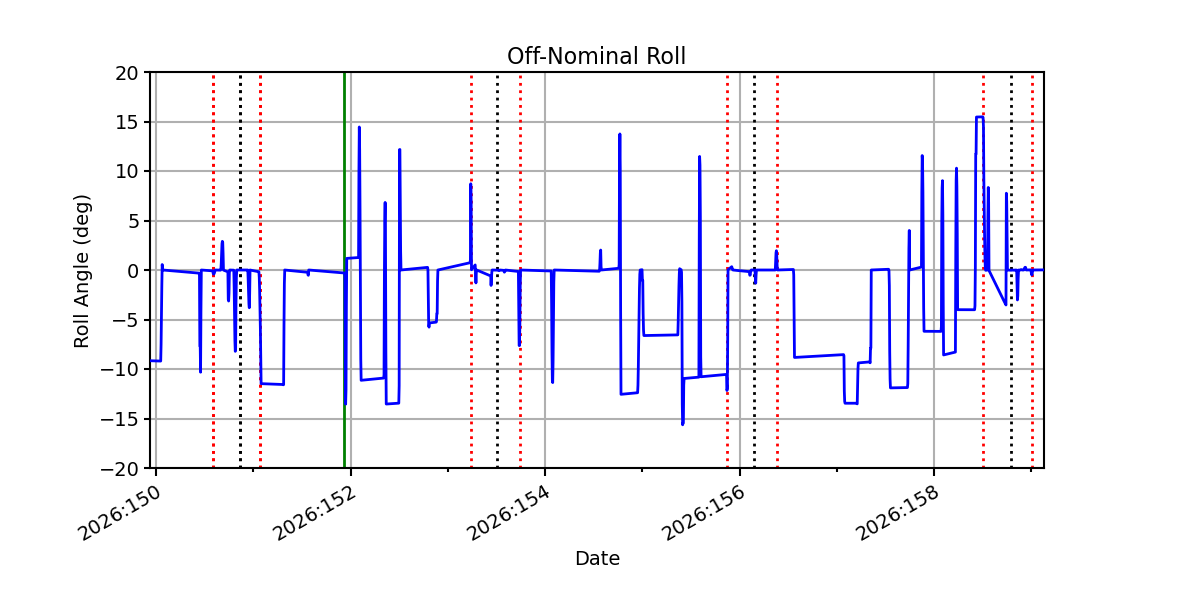

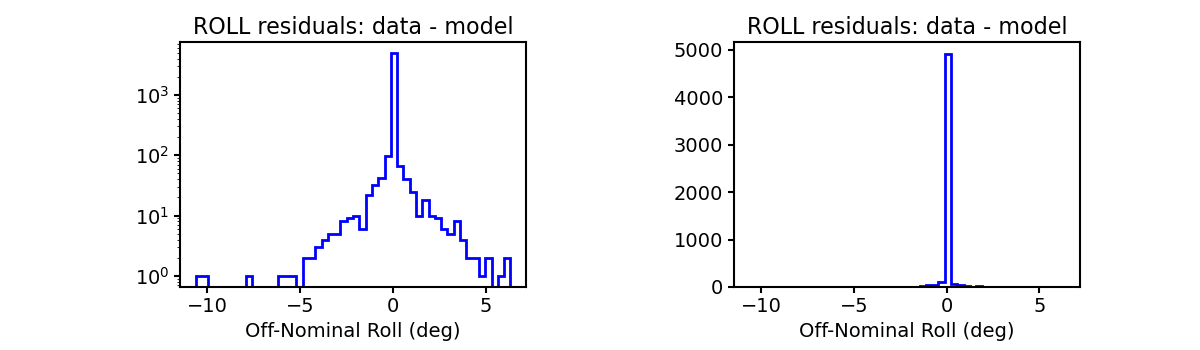

ROLL

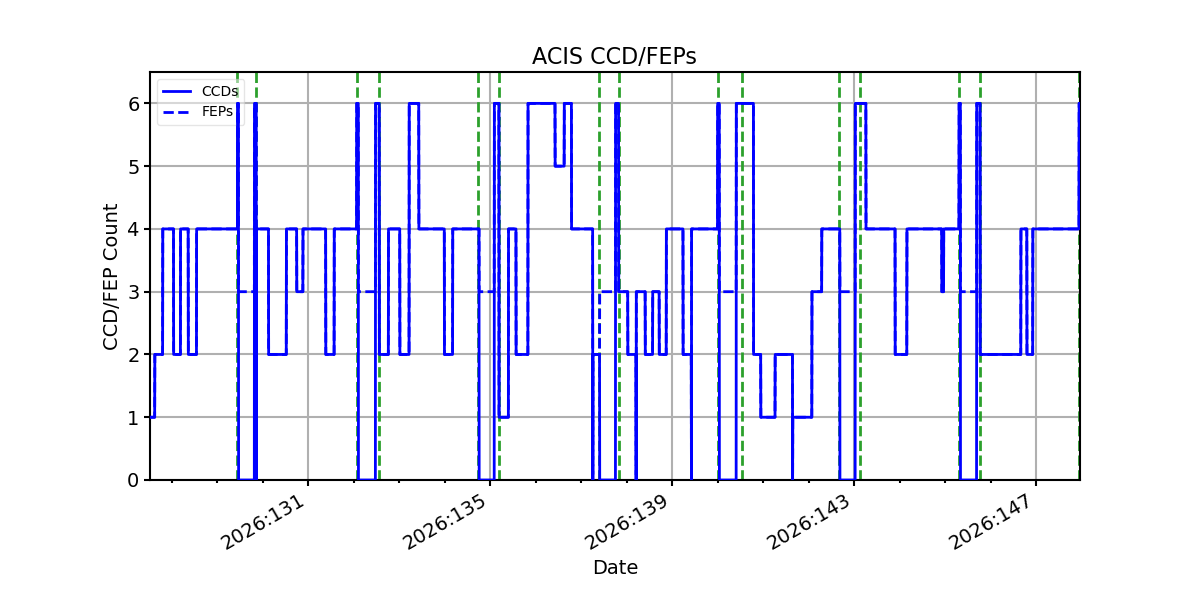

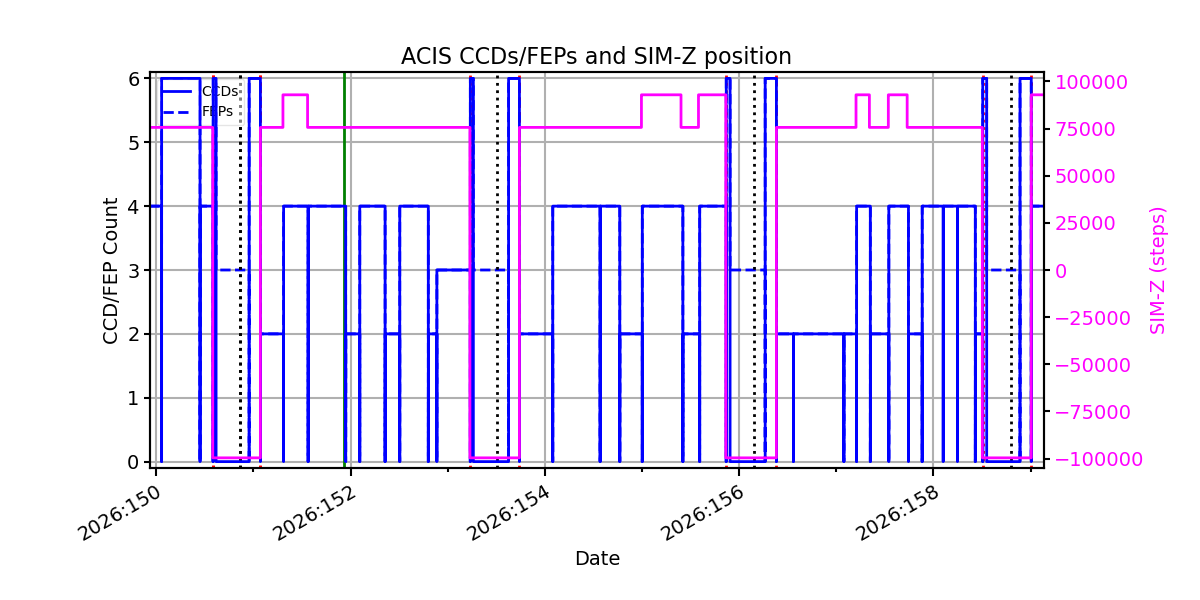

ACIS CCD/FEP Count
