FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:153:19:50:00.016 |
| Date stop | 2025:159:23:43:43.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0225/ofls |
| Run time | Sun Jun 1 12:29:51 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:158:14:51:26.816 | 2025:158:15:13:18.816 | 1.31 | 46.42 / 46.00 |
| 2025:159:16:54:54.816 | 2025:159:17:45:53.807 | 3.06 | 47.22 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.80 | -5.52 | -3.79 | -1.77 | 0.22 | 2.95 | 9.09 |
| pitch | -5.124 | -0.299 | -0.004 | -0.000 | 0.004 | 0.414 | 5.374 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.291 | -0.119 | -0.006 | -0.000 | 0.006 | 0.123 | 1.314 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.8 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.77 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 9.09 | 2.00 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.374 | 3.00 |

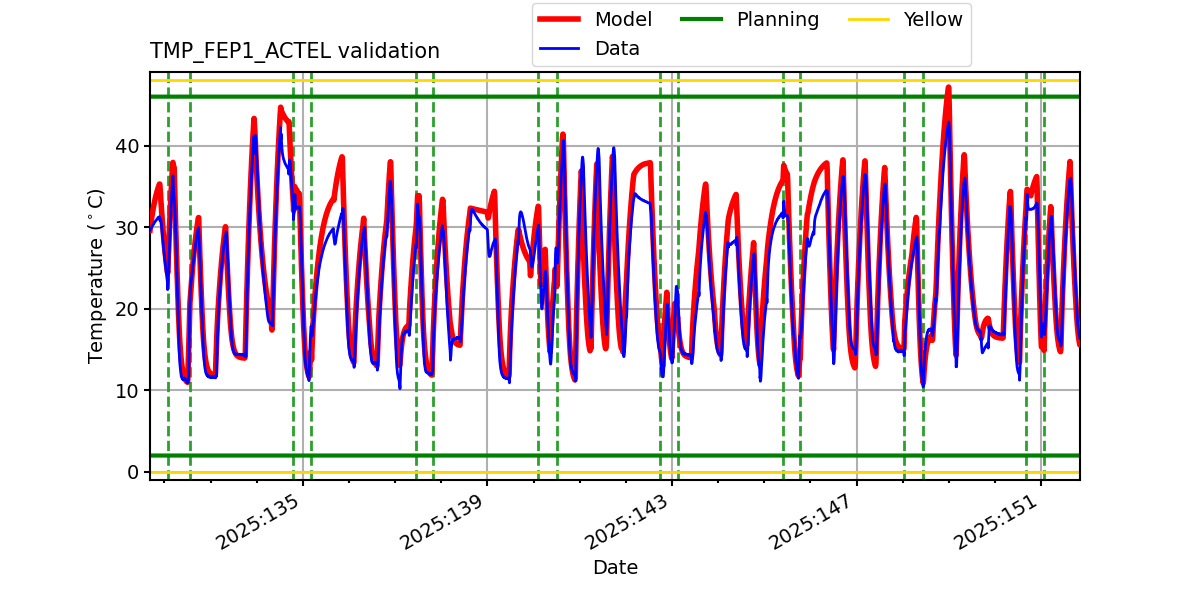

TMP_FEP1_ACTEL

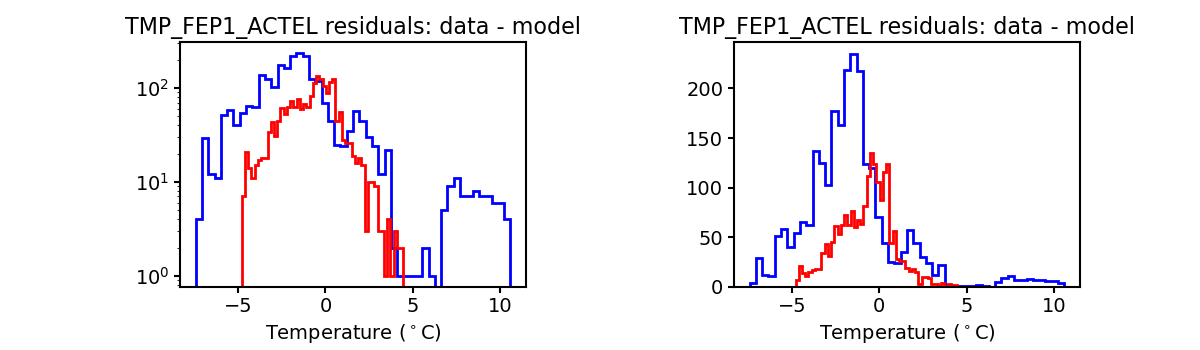

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

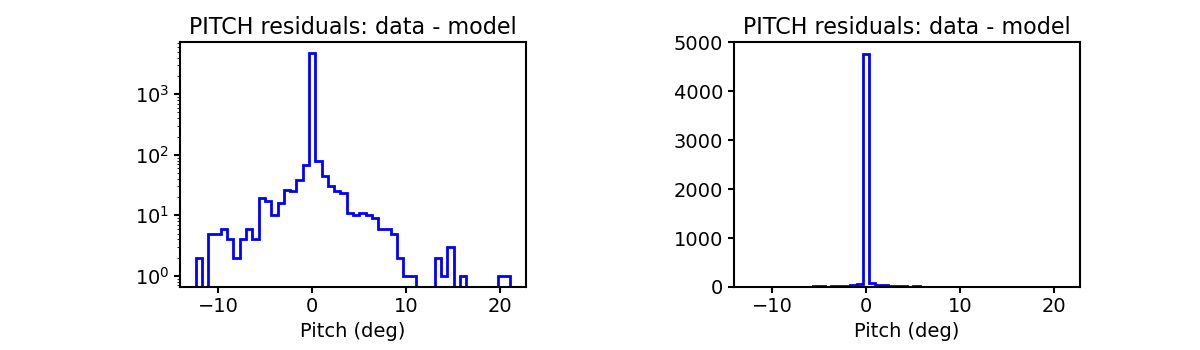

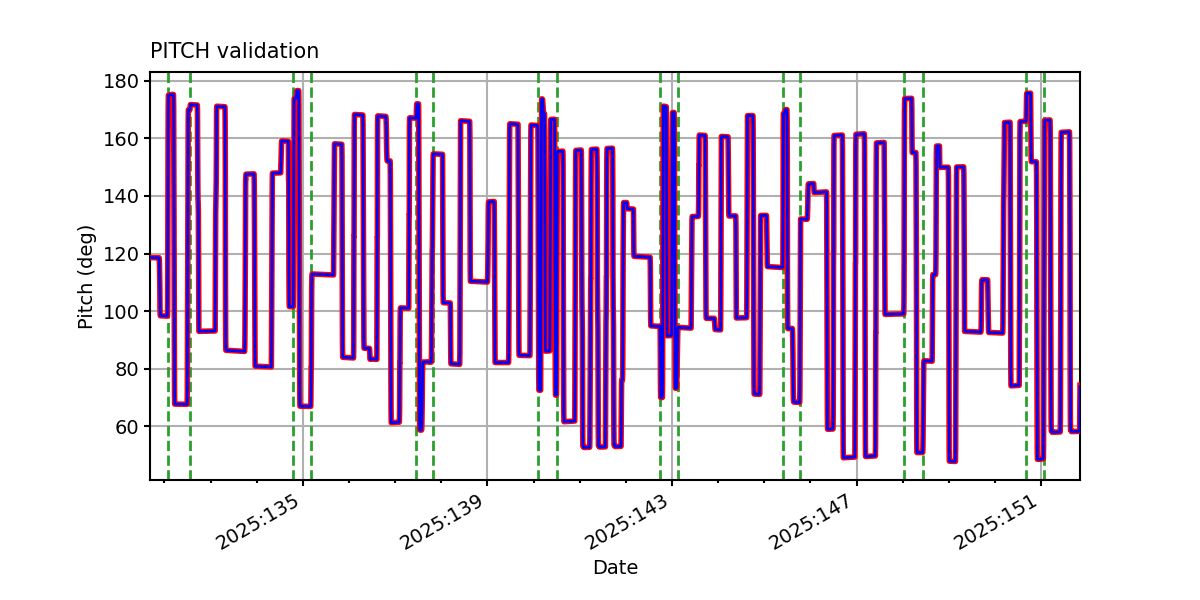

PITCH

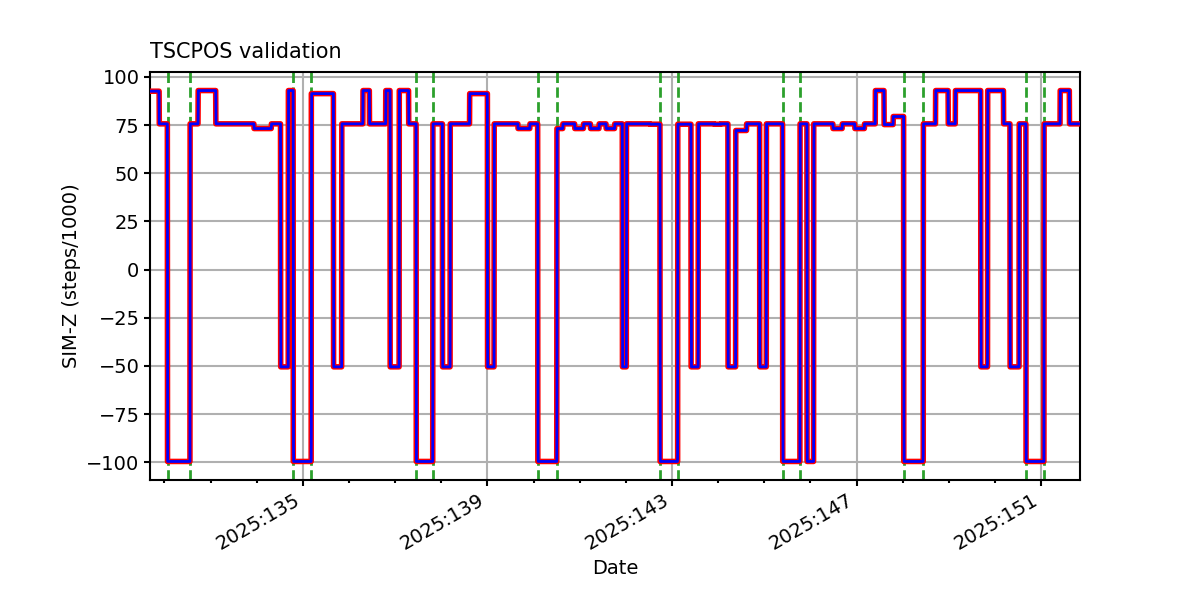

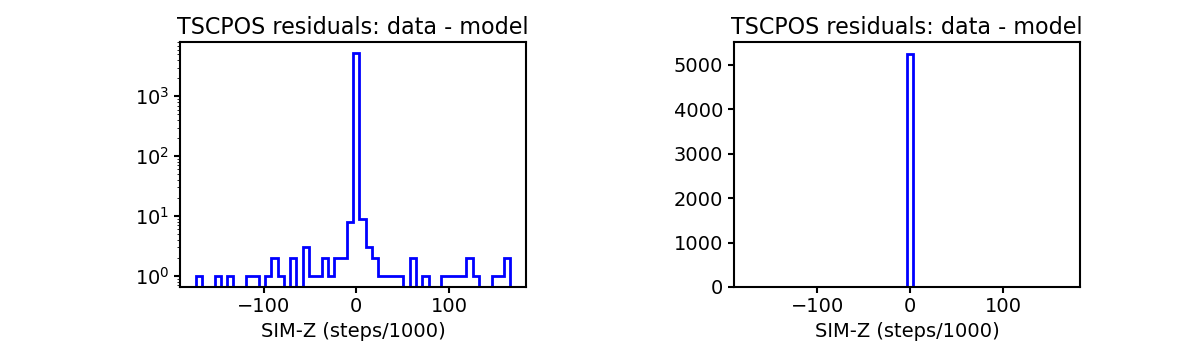

TSCPOS

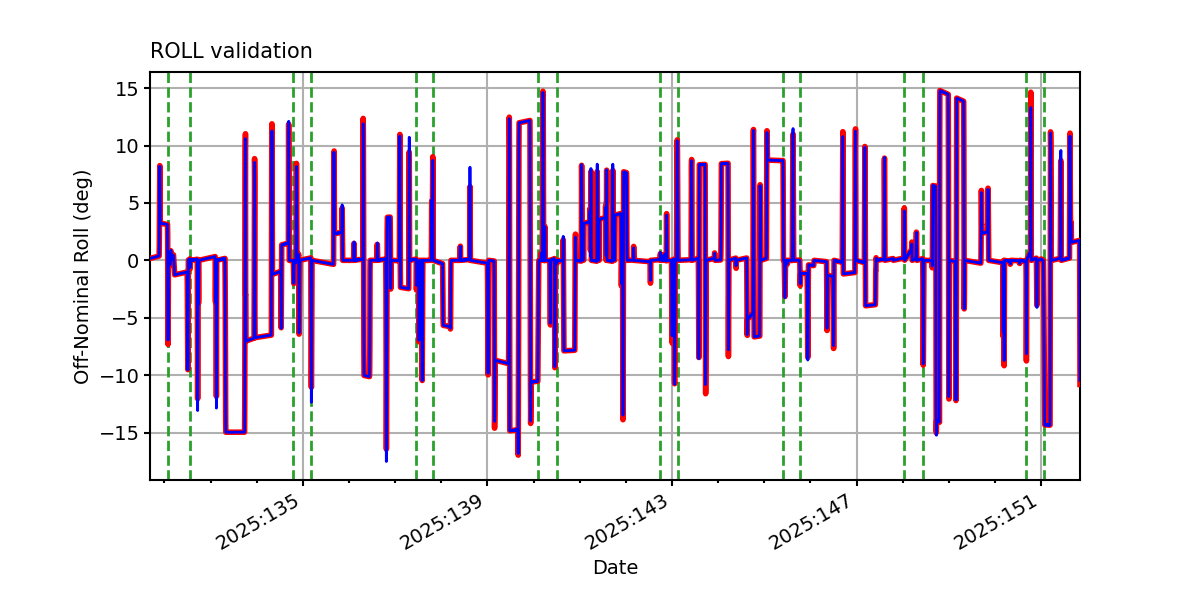

ROLL

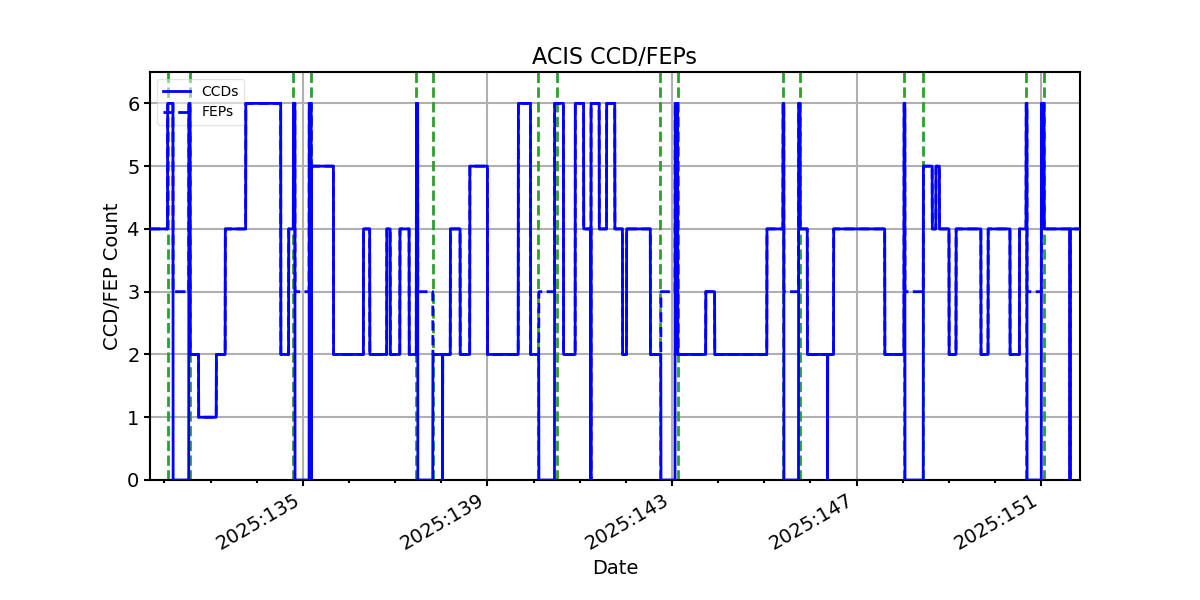

ACIS CCD/FEP Count
