FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Fri Jun 5 06:03:29 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.59 | -5.77 | -4.35 | -1.80 | 1.23 | 2.72 | 3.82 |
| pitch | -8.500 | -0.176 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.318 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.59 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.8 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 3.82 | 2.00 |
| PITCH | 1 | -8.5 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |

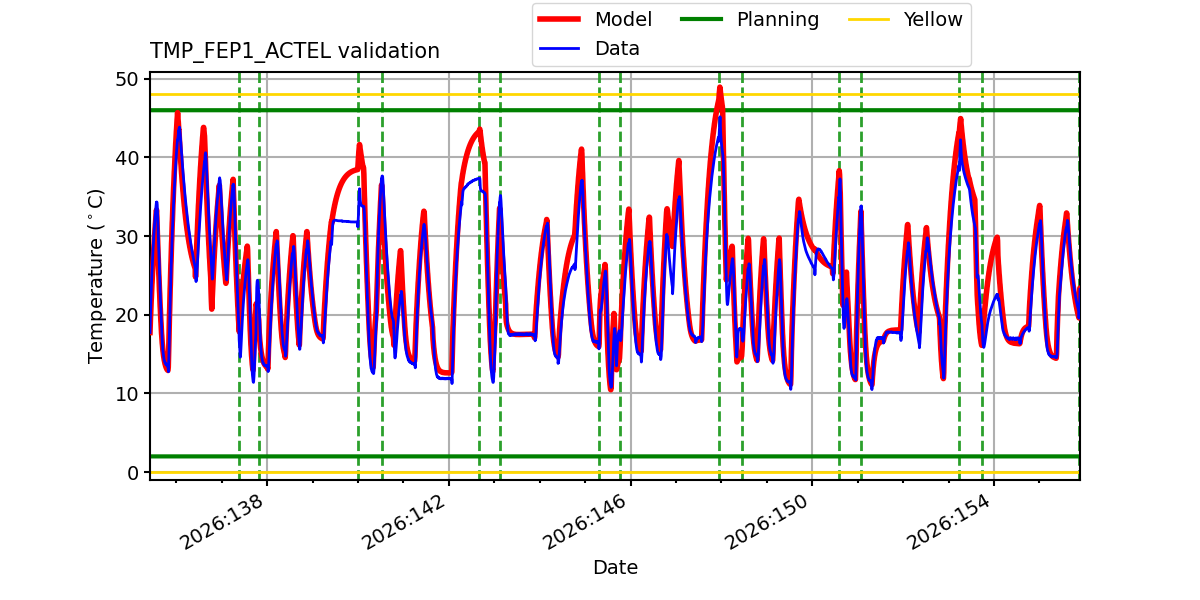

TMP_FEP1_ACTEL

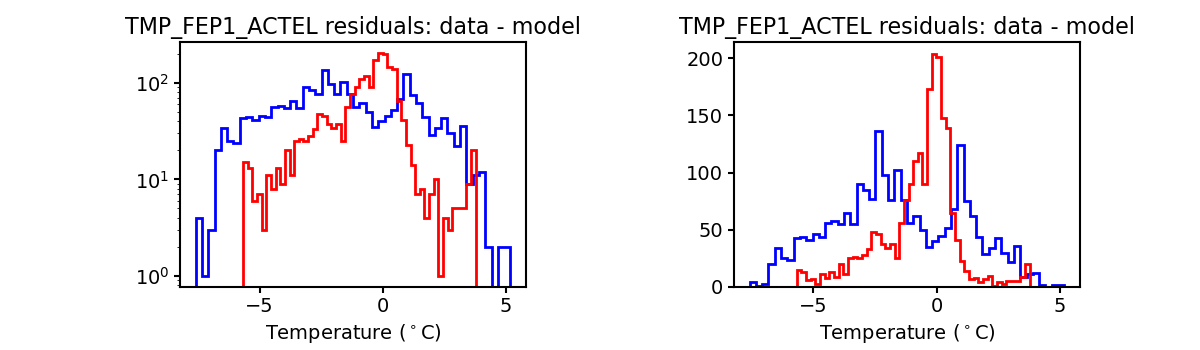

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

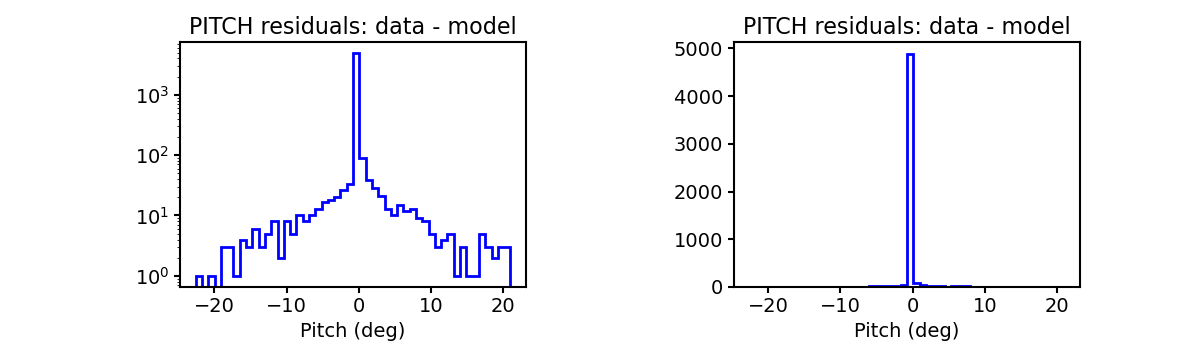

PITCH

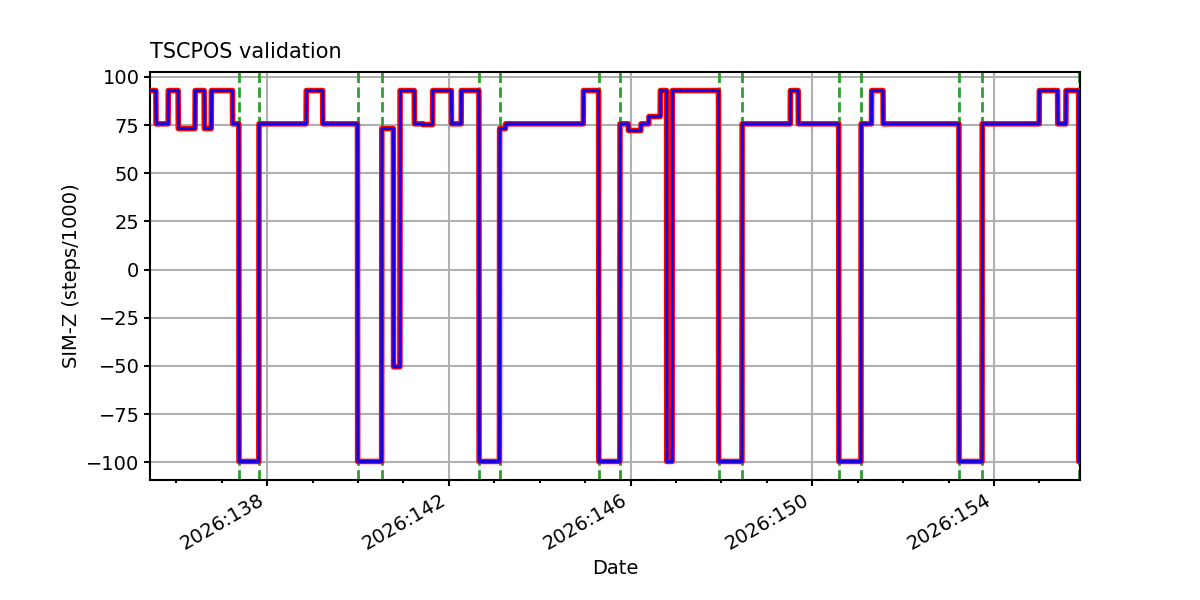

TSCPOS

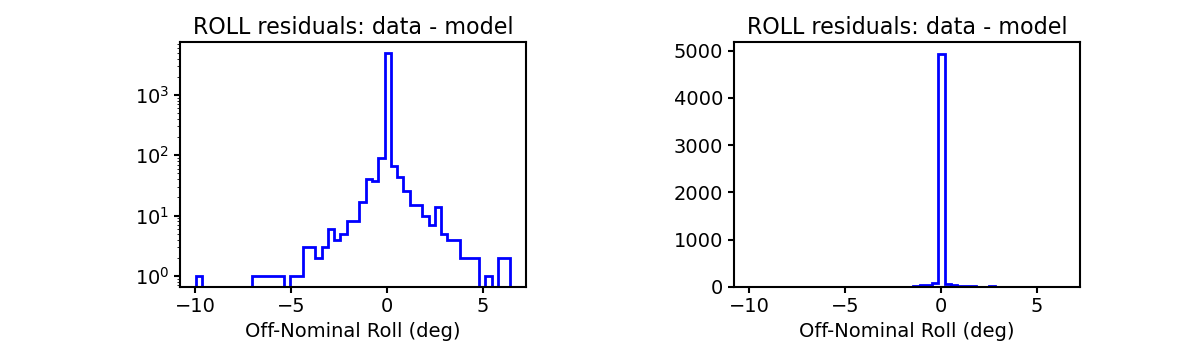

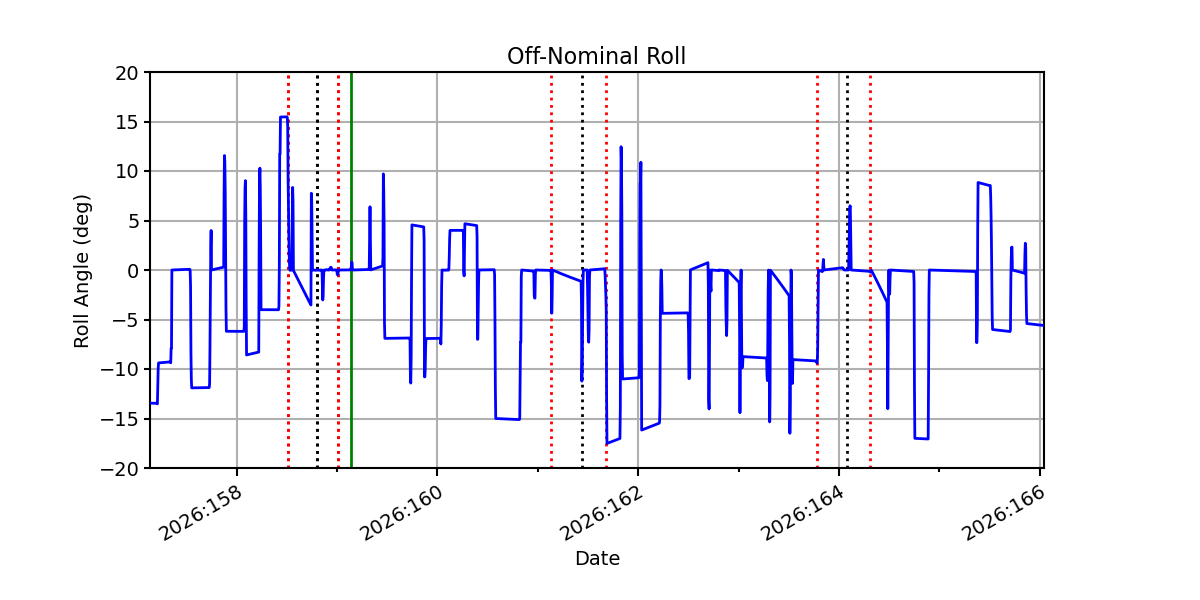

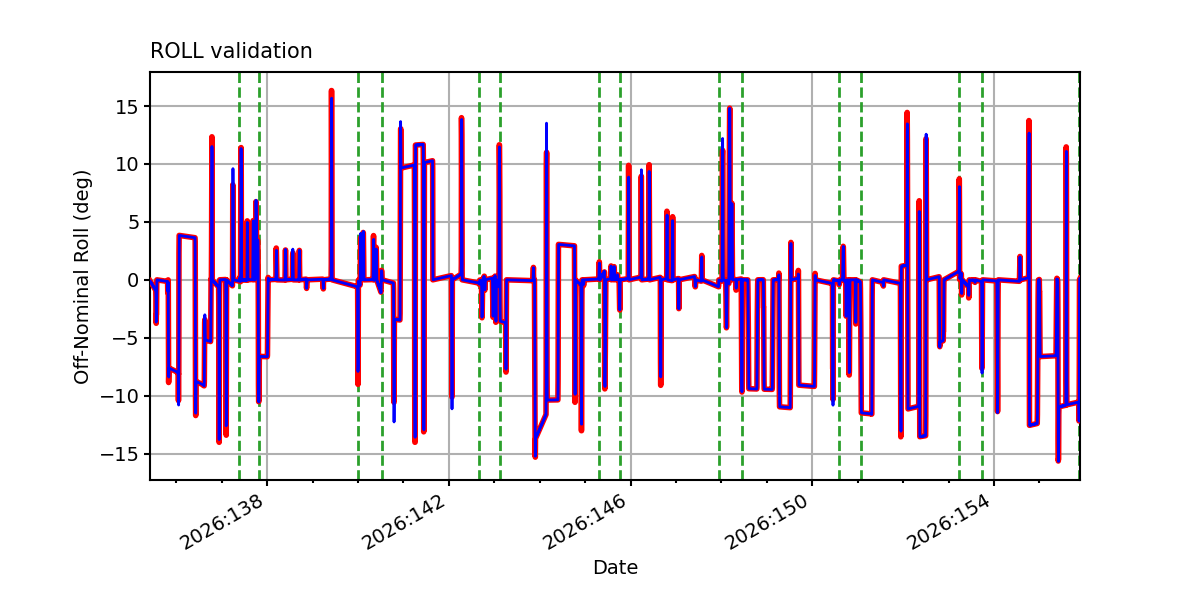

ROLL

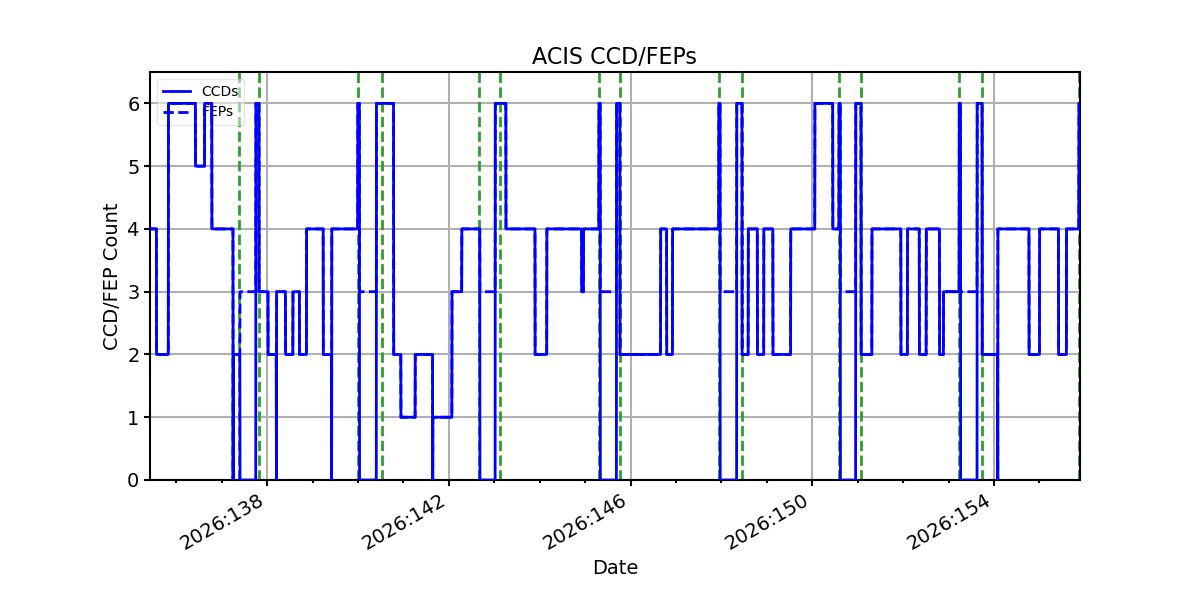

ACIS CCD/FEP Count
