FEP1_ACTEL Temperatures Check

Summary

Date start 2025:159:23:40:43.816
Date stop 2025:166:13:54:00.016
Model status OK
Load directory /data/acis/LoadReviews/2025/JUN0925/ofls
Run time Wed Jun 4 13:44:41 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No TMP_FEP1_ACTEL Upper Limit Violations

No TMP_FEP1_ACTEL Lower Limit Violations

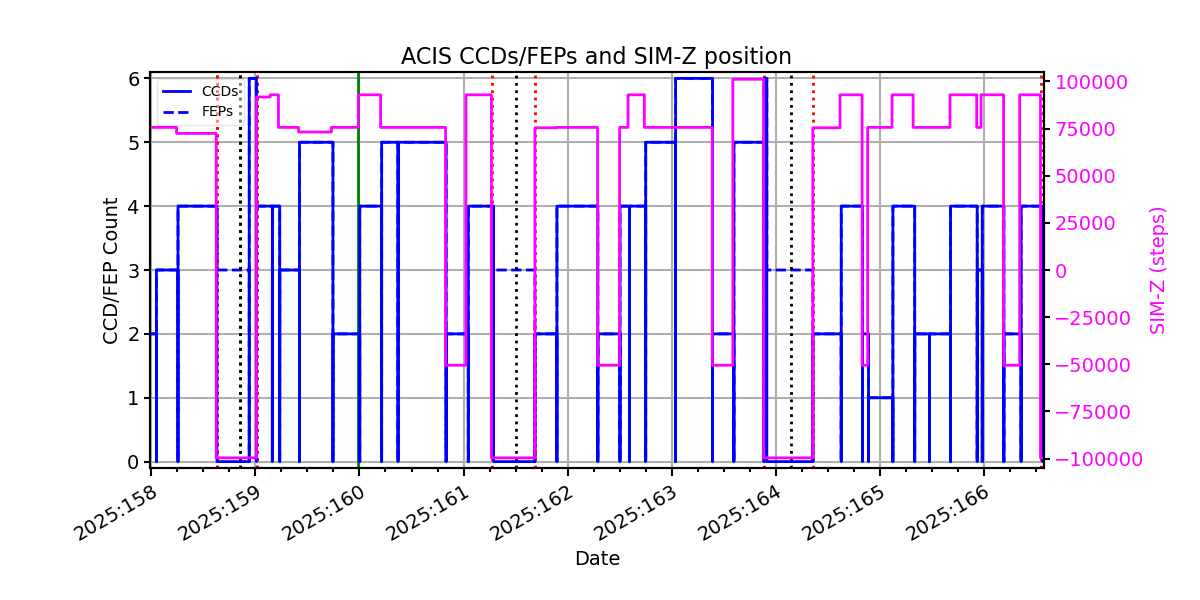

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -6.71 -5.70 -3.98 -1.98 0.13 2.85 9.04
pitch -5.013 -0.349 -0.004 -0.000 0.004 0.358 5.016
tscpos -1 -1 -1 0 0 0 1
roll -1.277 -0.128 -0.006 -0.000 0.005 0.126 1.353

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -6.71 2.00
TMP_FEP1_ACTEL 50 -1.98 1.00
TMP_FEP1_ACTEL 99 9.04 2.00
PITCH 1 -5.013 3.00
PITCH 99 5.016 3.00

TMP_FEP1_ACTEL

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

PITCH

pitch_valid.png pitch_valid_hist.png

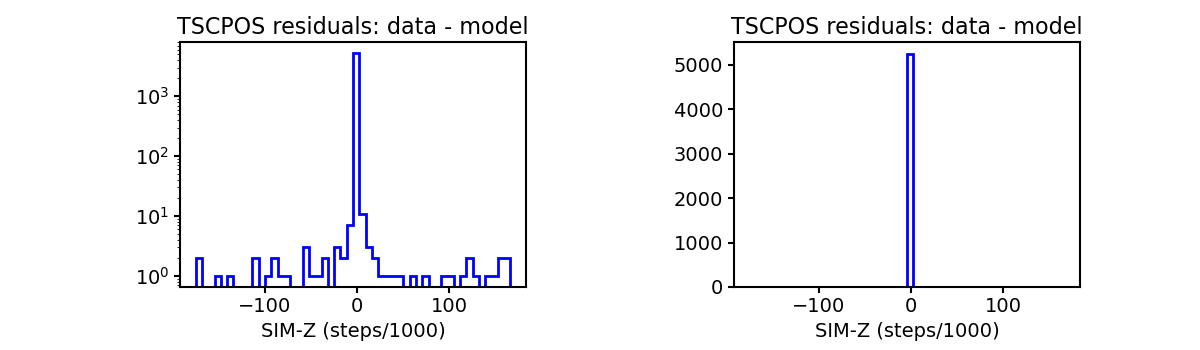

TSCPOS

tscpos_valid.png tscpos_valid_hist.png

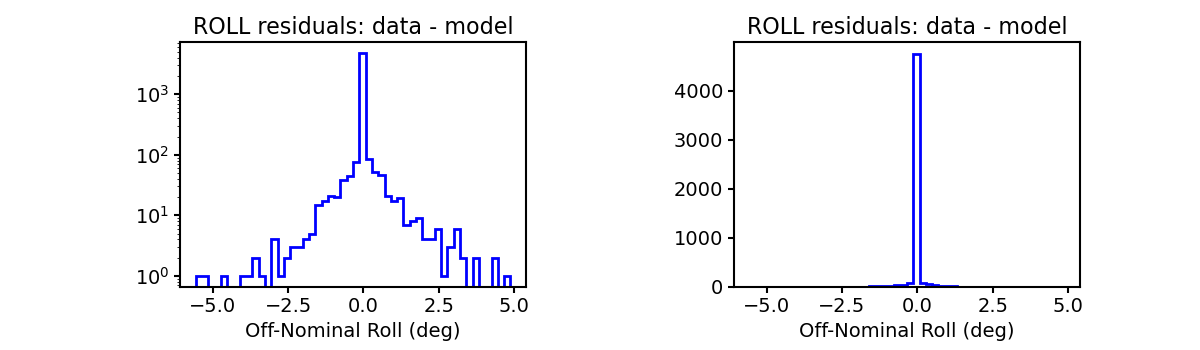

ROLL

roll_valid.png roll_valid_hist.png

ACIS CCD/FEP Count
