FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:173:00:11:21.816 |
| Date stop | 2026:179:17:09:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2226/oflsa |
| Run time | Wed Jun 17 18:35:59 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

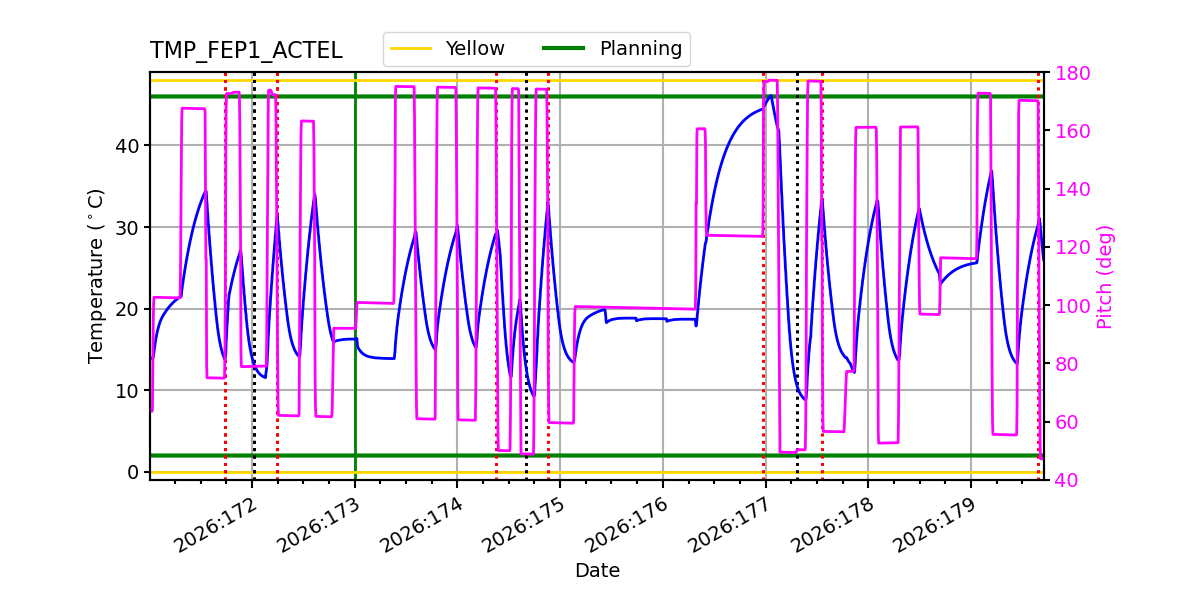

TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:177:01:04:46.816 | 2026:177:01:18:54.757 | 0.85 | 46.13 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -4.15 | -3.44 | -2.58 | -0.85 | 1.08 | 2.56 | 3.28 |
| pitch | -10.750 | -0.265 | -0.004 | 0.000 | 0.004 | 0.681 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.148 | -0.110 | -0.007 | -0.000 | 0.007 | 0.108 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -4.15 | 2.00 |
| TMP_FEP1_ACTEL | 99 | 3.28 | 2.00 |
| PITCH | 1 | -10.75 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |

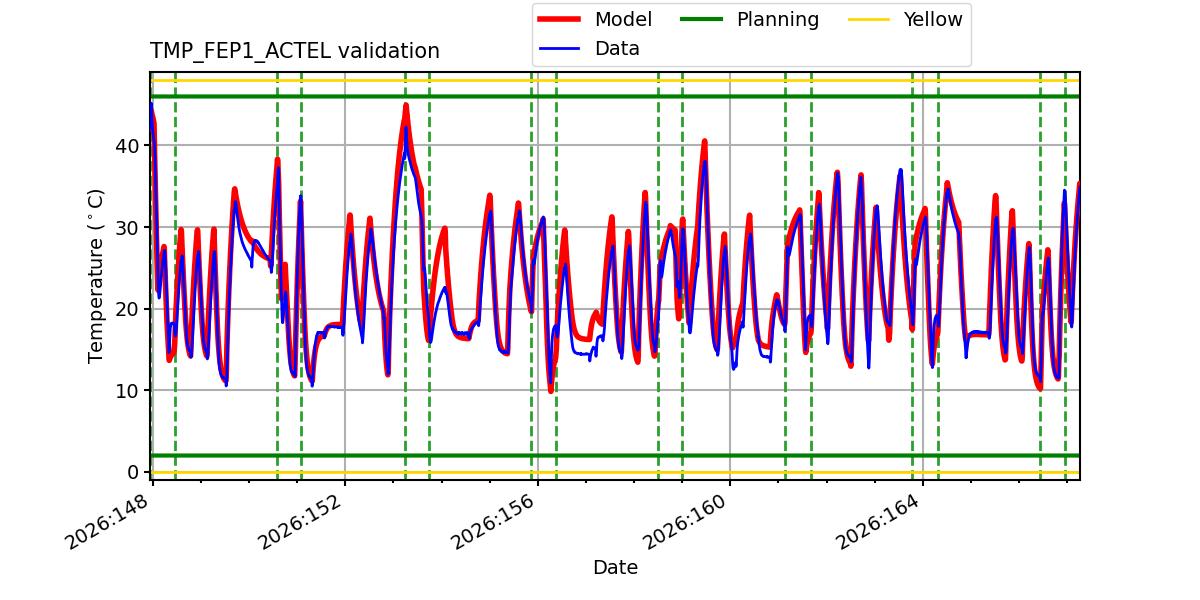

TMP_FEP1_ACTEL

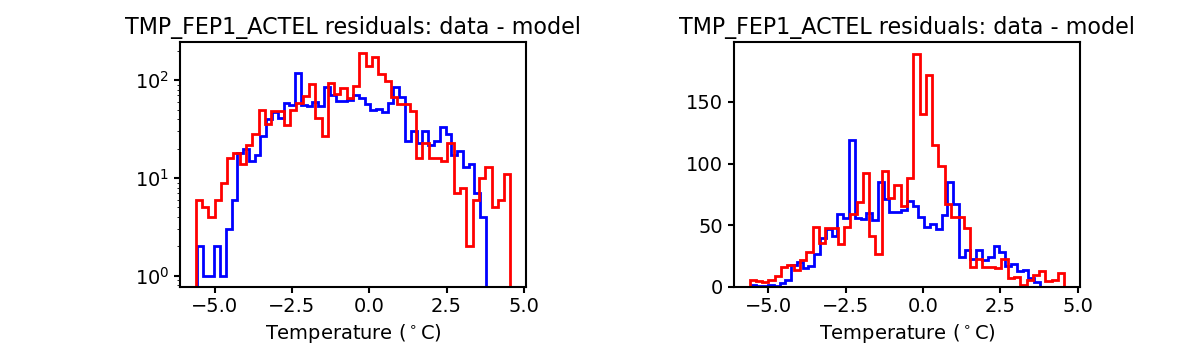

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

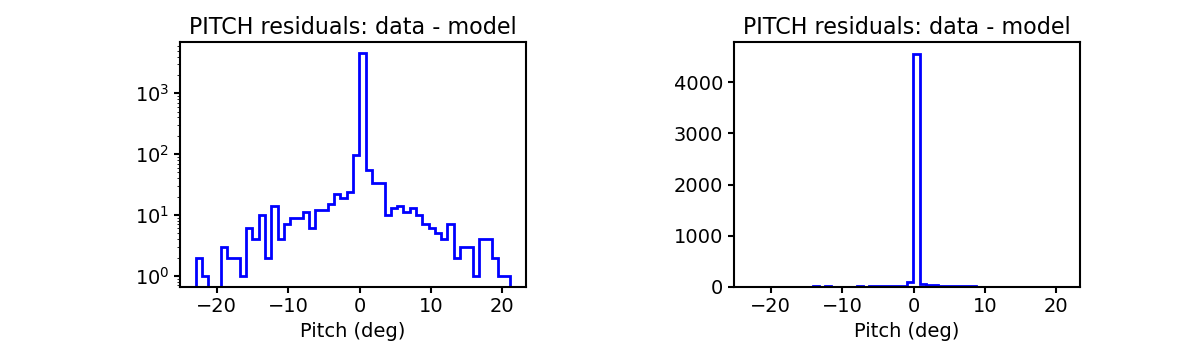

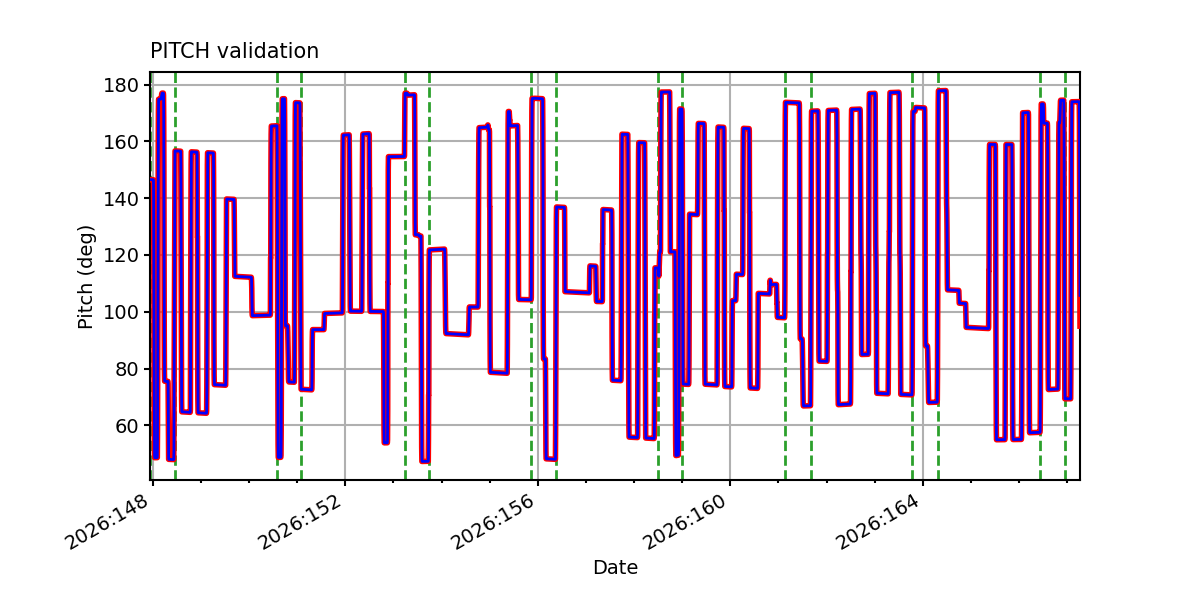

PITCH

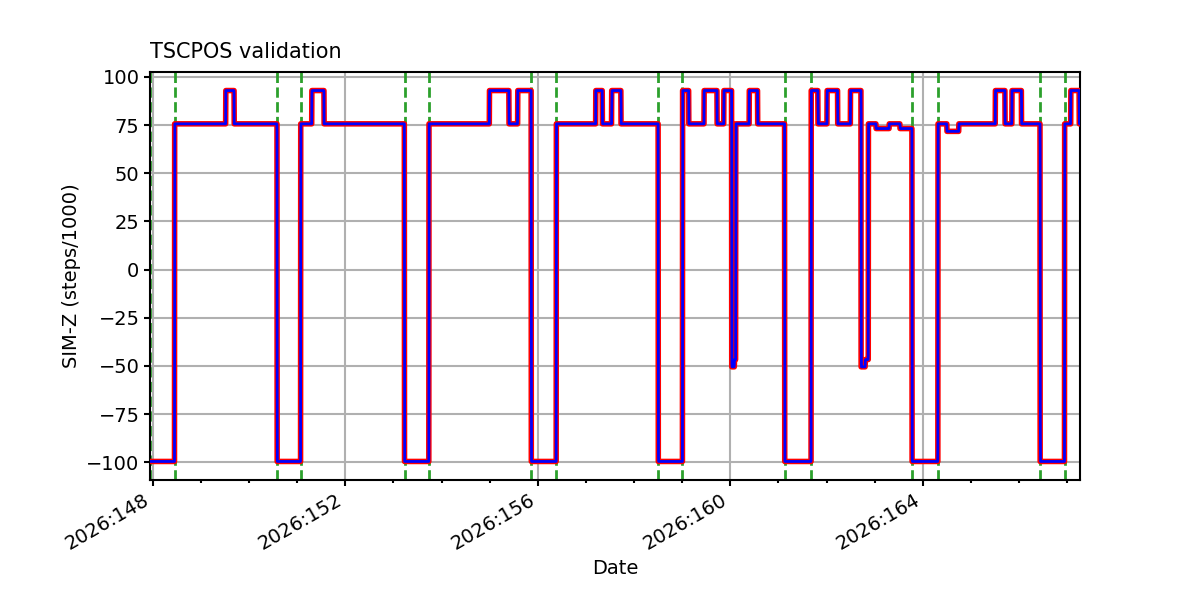

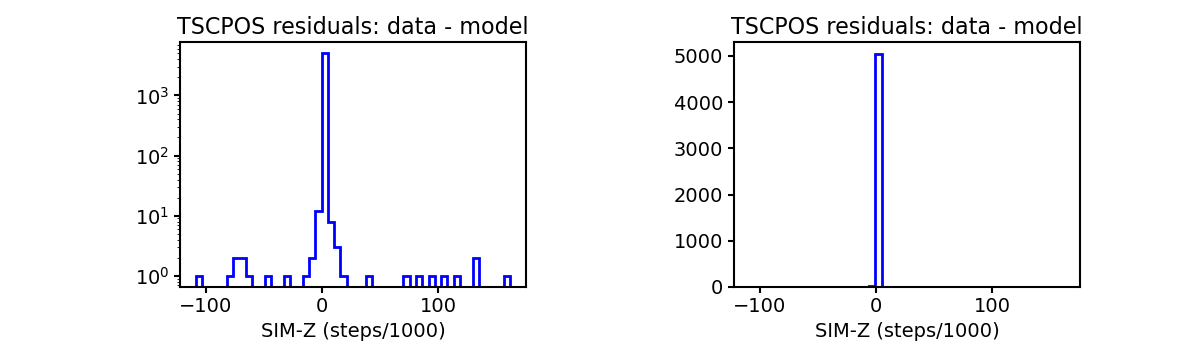

TSCPOS

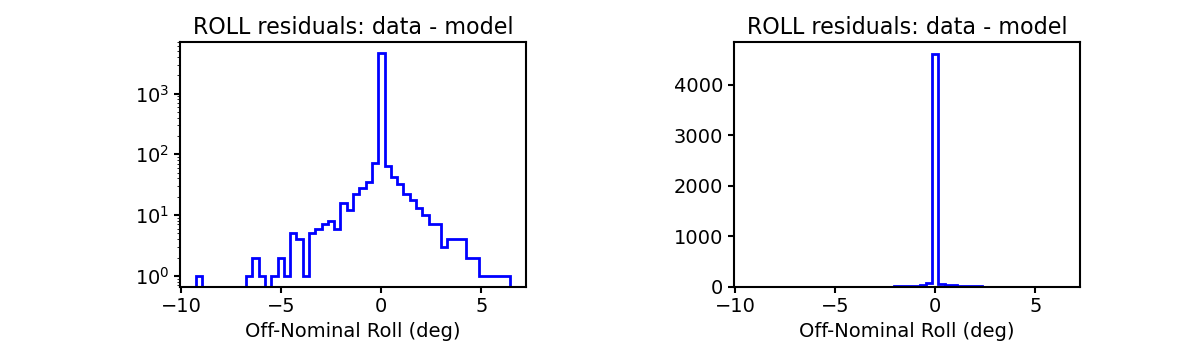

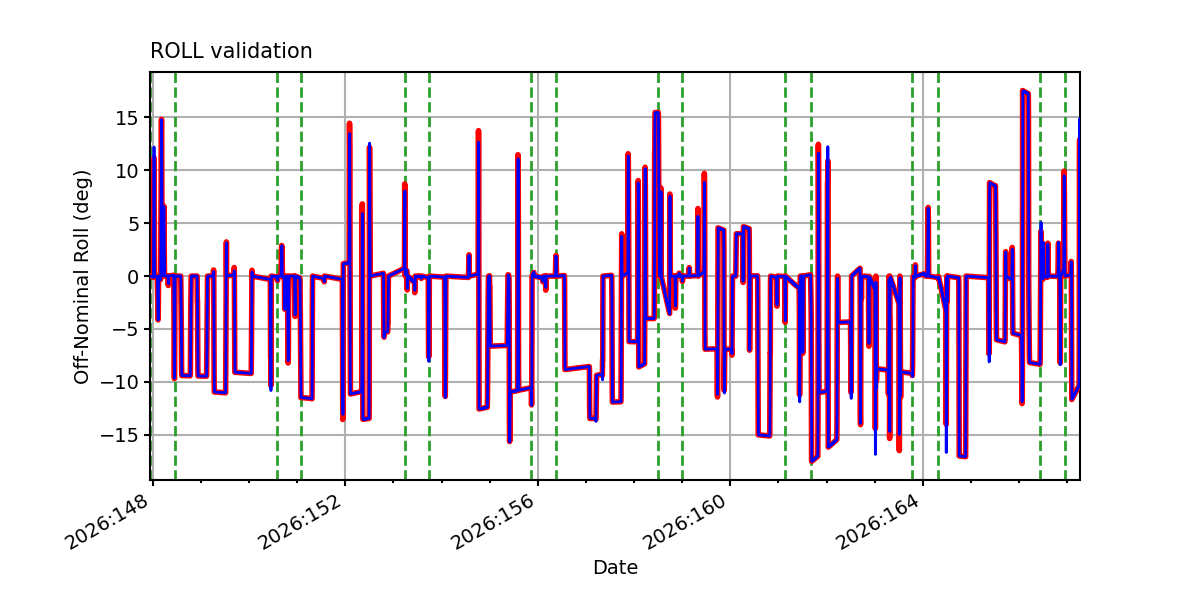

ROLL

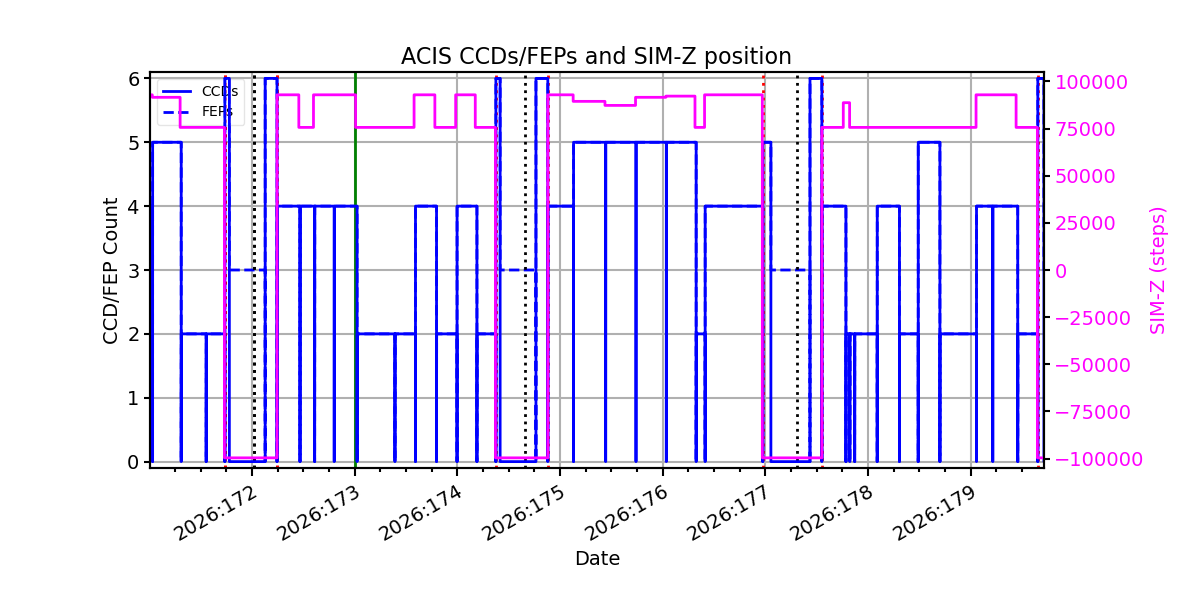

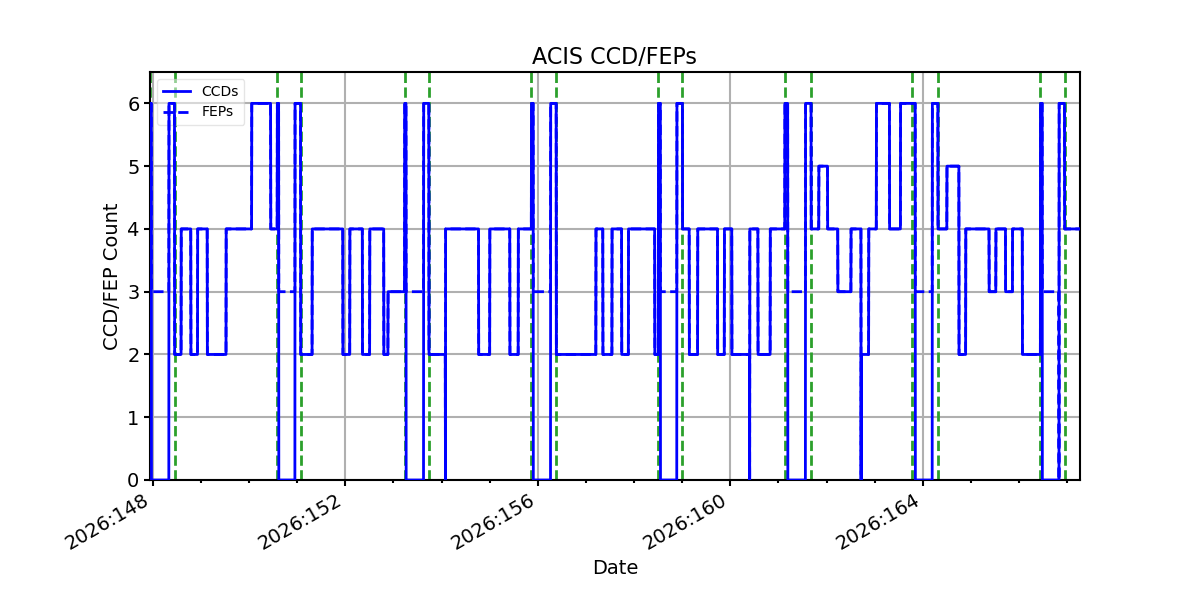

ACIS CCD/FEP Count
