FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:174:00:01:24.716 |
| Date stop | 2025:181:00:15:08.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN2325/ofls |
| Run time | Wed Jun 18 08:11:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.73 | -5.92 | -4.19 | -2.40 | -0.12 | 1.49 | 2.40 |
| pitch | -25.949 | -2.562 | -0.004 | -0.000 | 0.004 | 0.293 | 5.719 |
| tscpos | -125625 | -1 | -1 | 0 | 0 | 0 | 126128 |
| roll | -3.858 | -0.259 | -0.007 | 0.000 | 0.008 | 0.379 | 9.213 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.73 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.4 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.4 | 2.00 |
| PITCH | 1 | -25.949 | 3.00 |
| PITCH | 99 | 5.719 | 3.00 |
| TSCPOS | 1 | -125625.0 | 2.50 |
| TSCPOS | 99 | 126128.0 | 2.50 |

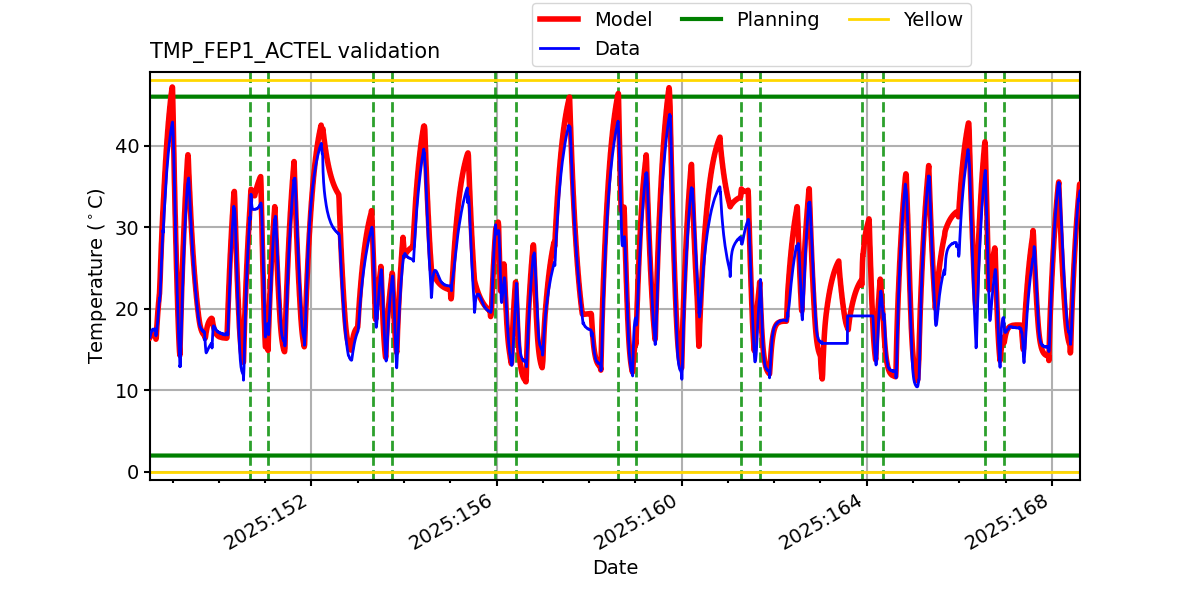

TMP_FEP1_ACTEL

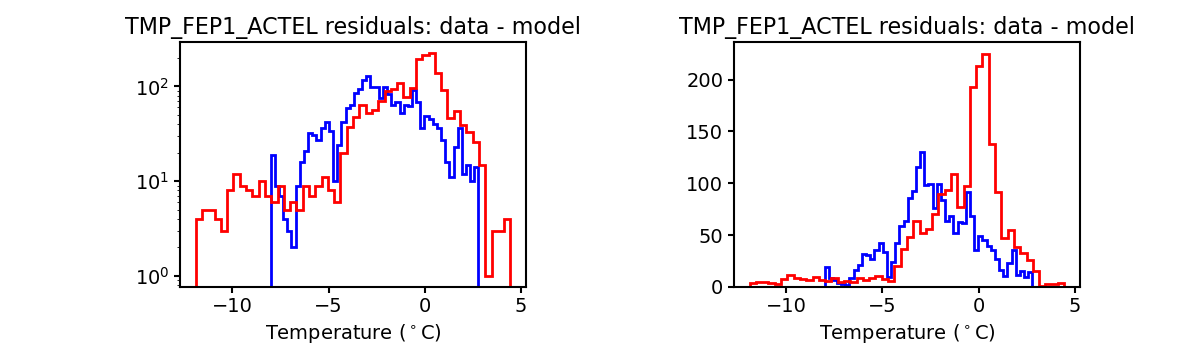

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

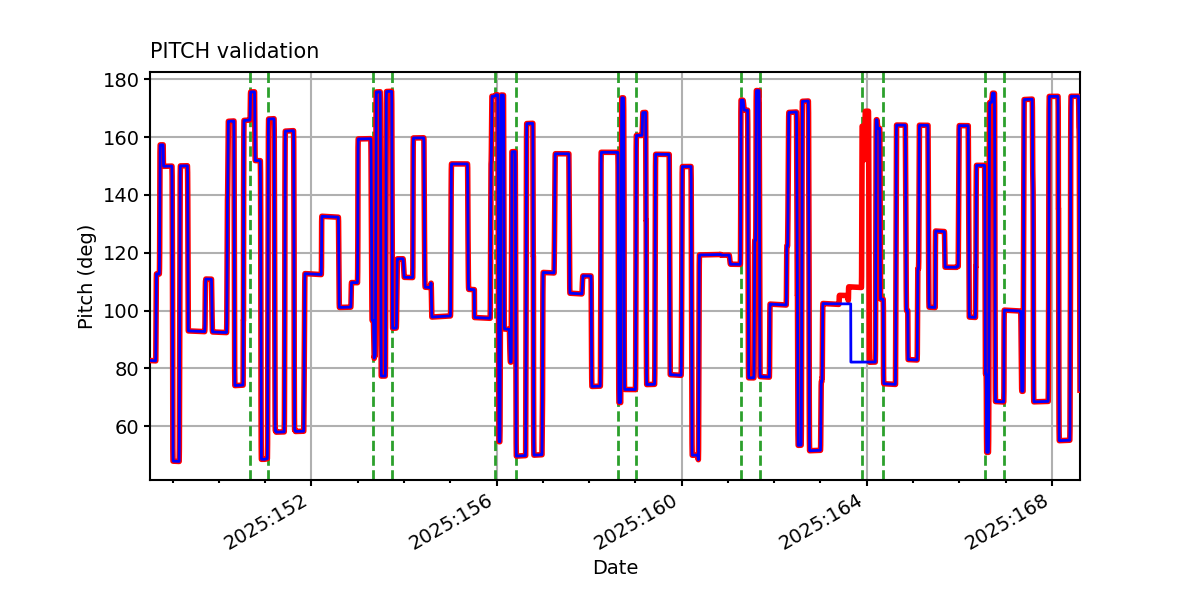

PITCH

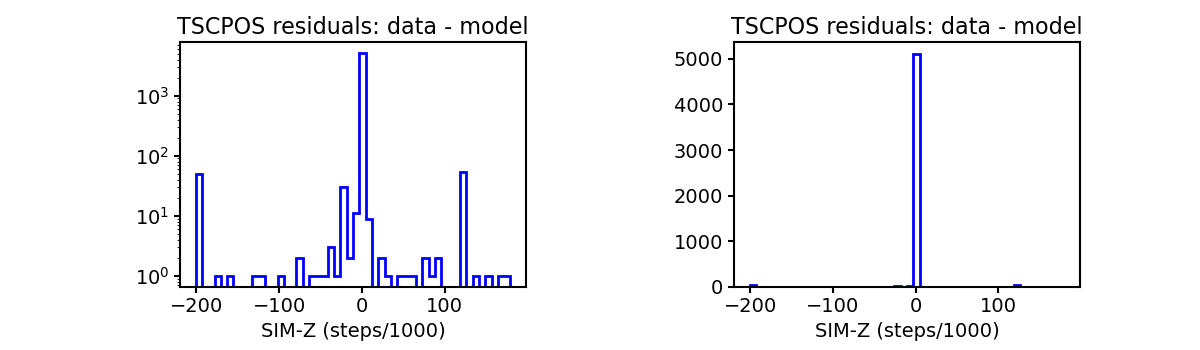

TSCPOS

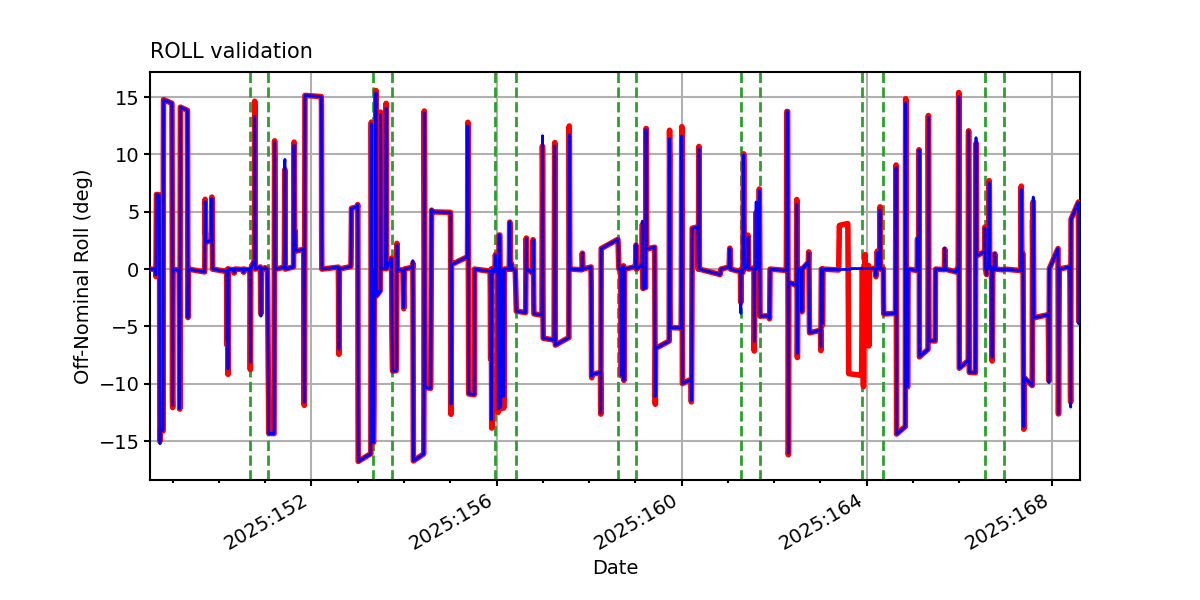

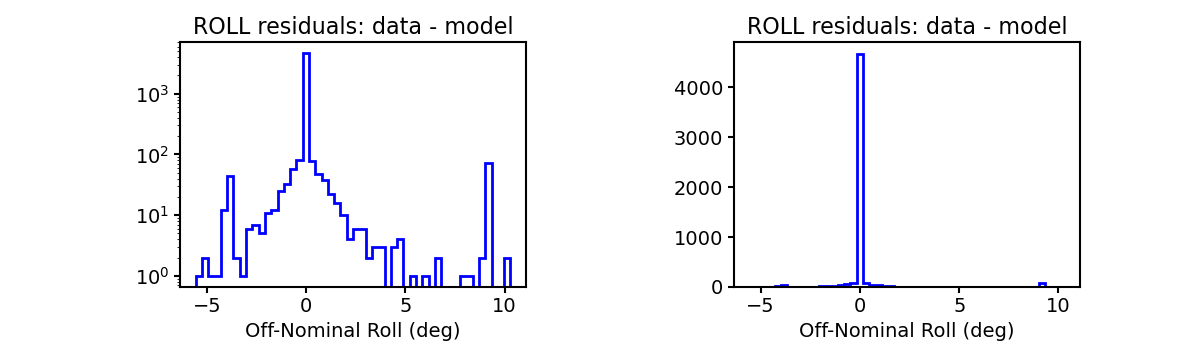

ROLL

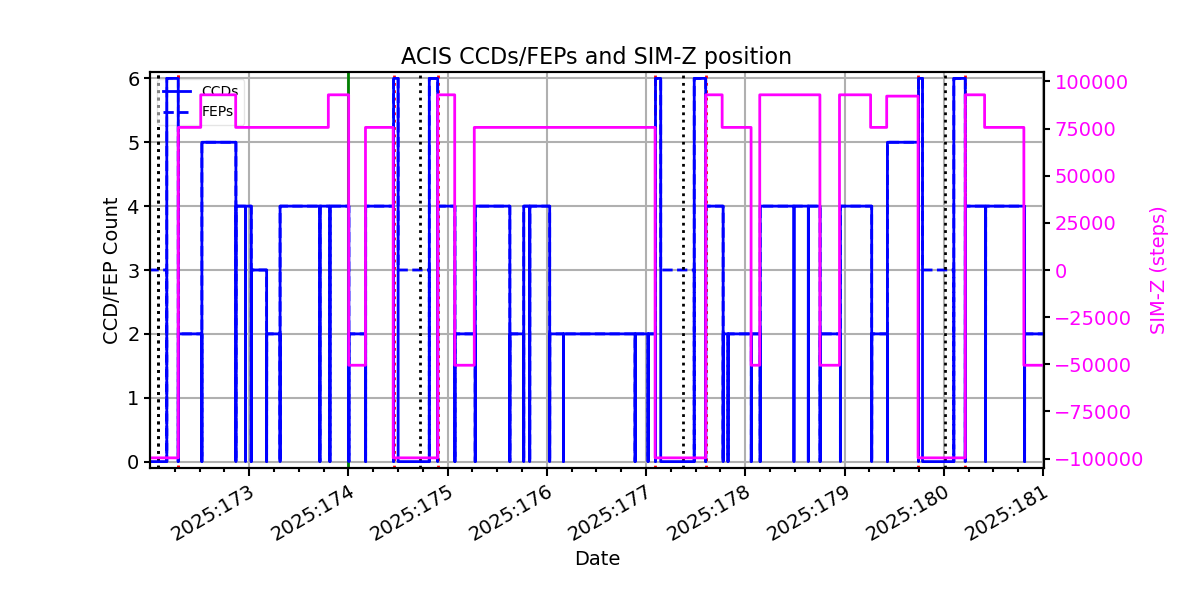

ACIS CCD/FEP Count
