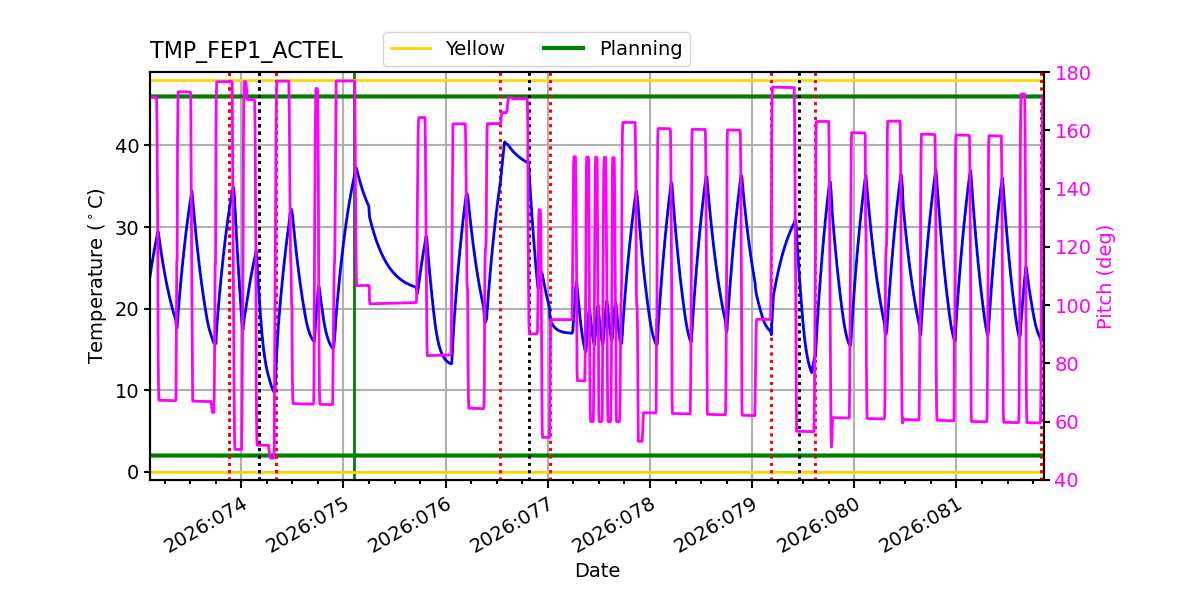

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:075:02:32:52.916 |
| Date stop | 2026:081:20:44:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR1626/oflsb |
| Run time | Fri Mar 13 13:19:28 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -4.76 | -4.22 | -3.46 | -1.21 | 0.96 | 1.96 | 2.78 |
| pitch | -12.788 | -0.762 | -0.004 | 0.000 | 0.004 | 1.301 | 11.385 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.968 | -0.186 | -0.010 | 0.000 | 0.012 | 0.253 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -4.76 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.21 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.78 | 2.00 |
| PITCH | 1 | -12.788 | 3.00 |
| PITCH | 99 | 11.385 | 3.00 |

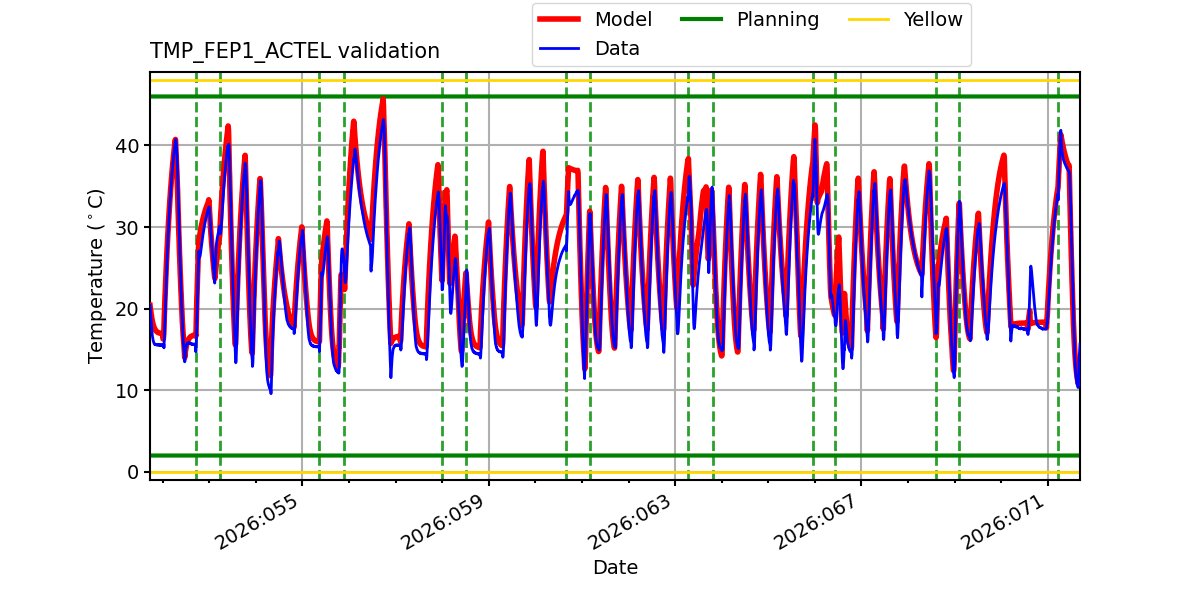

TMP_FEP1_ACTEL

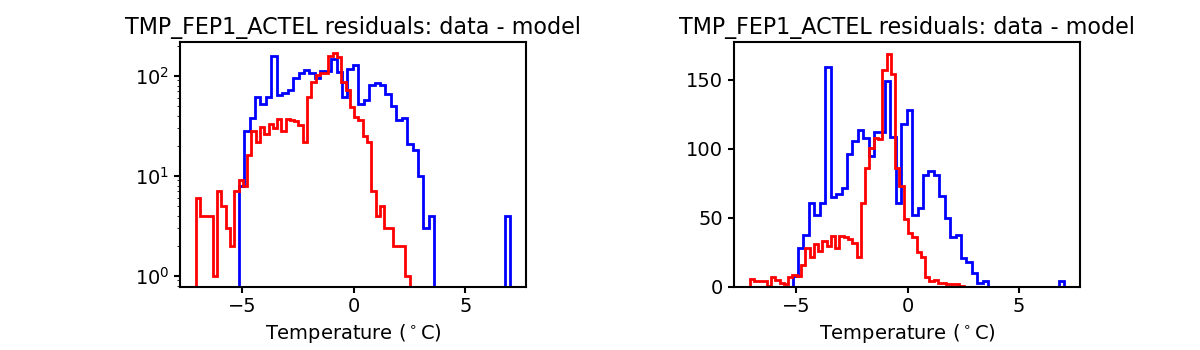

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

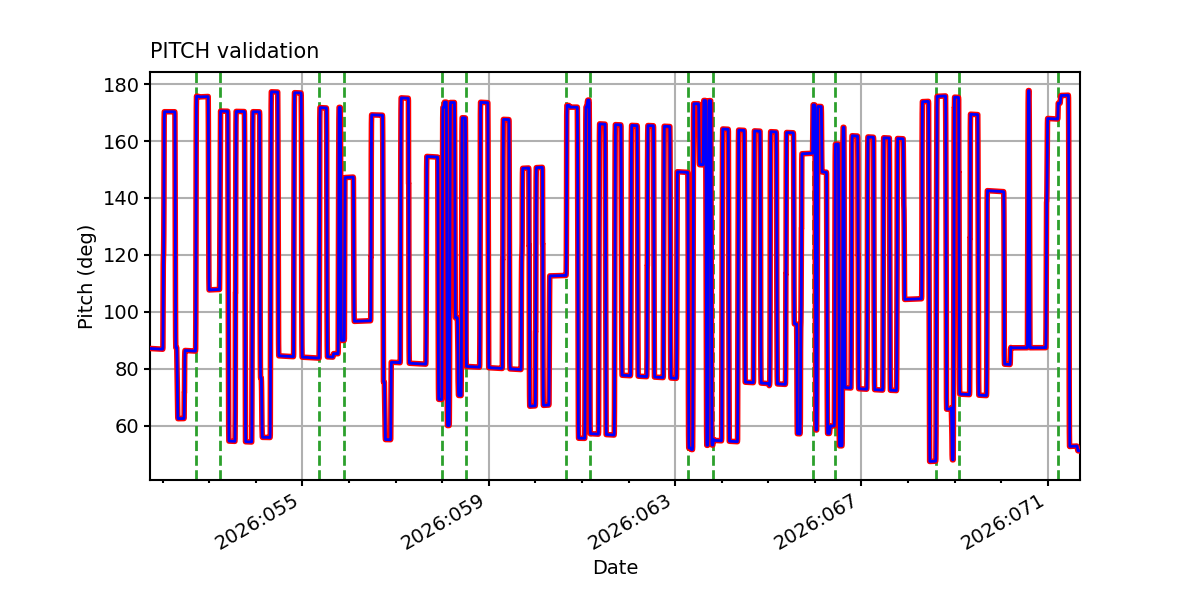

PITCH

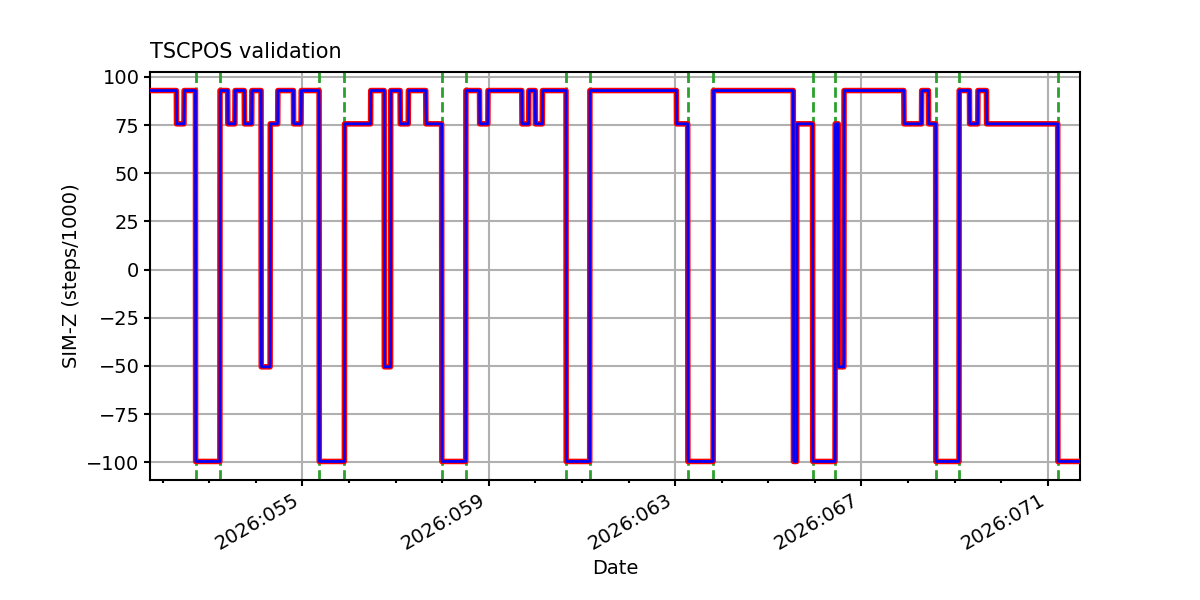

TSCPOS

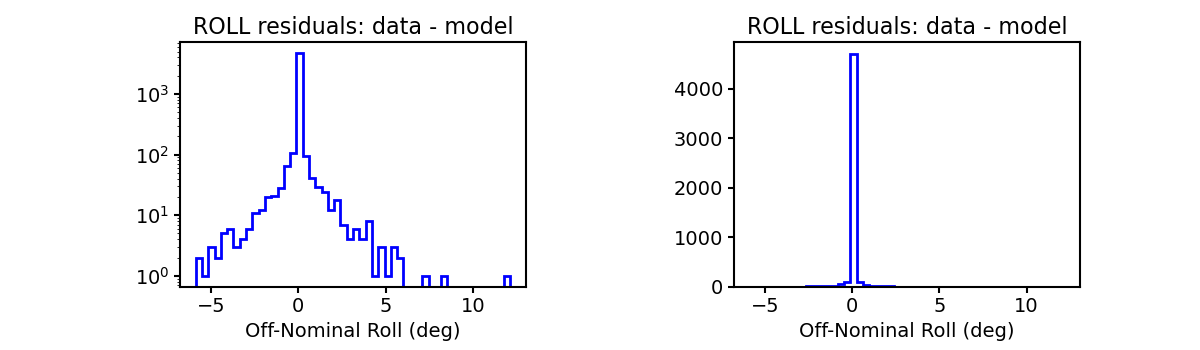

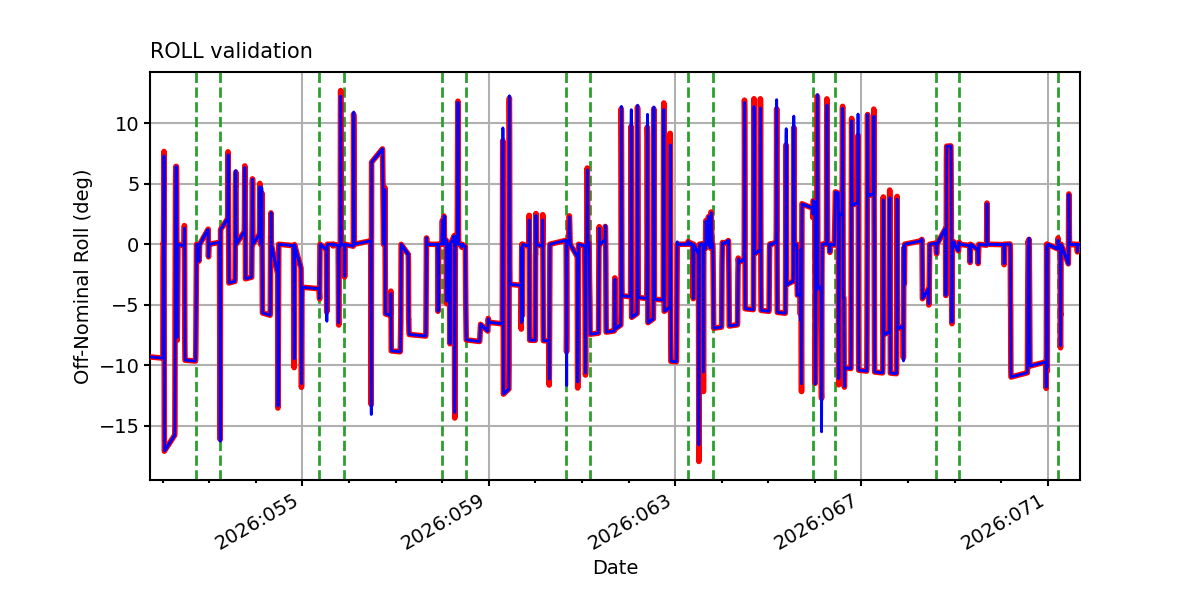

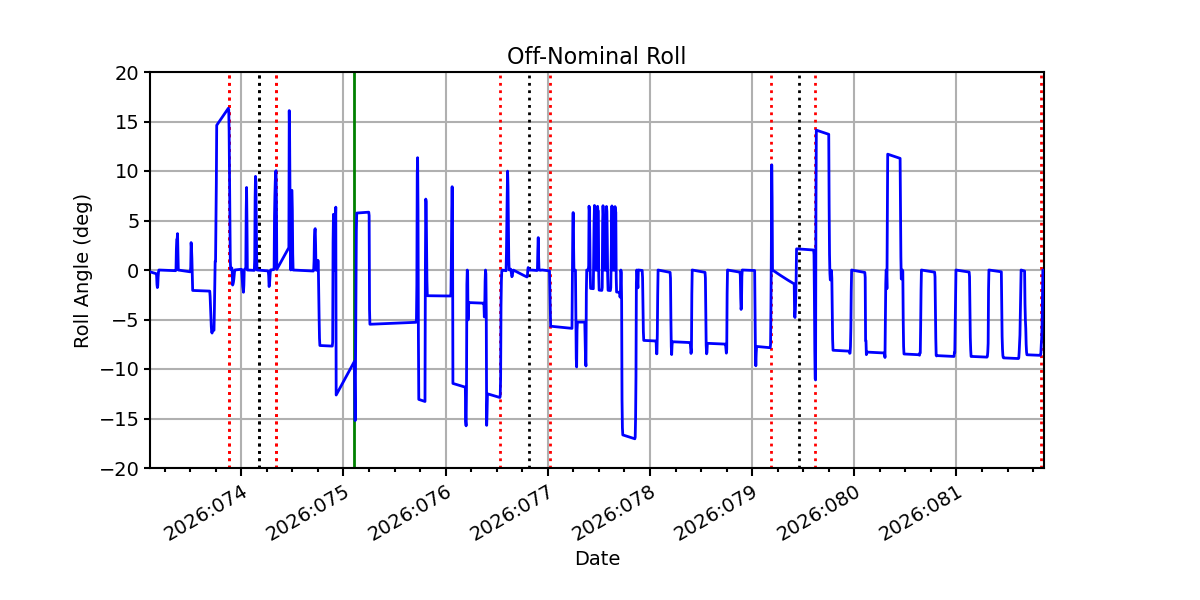

ROLL

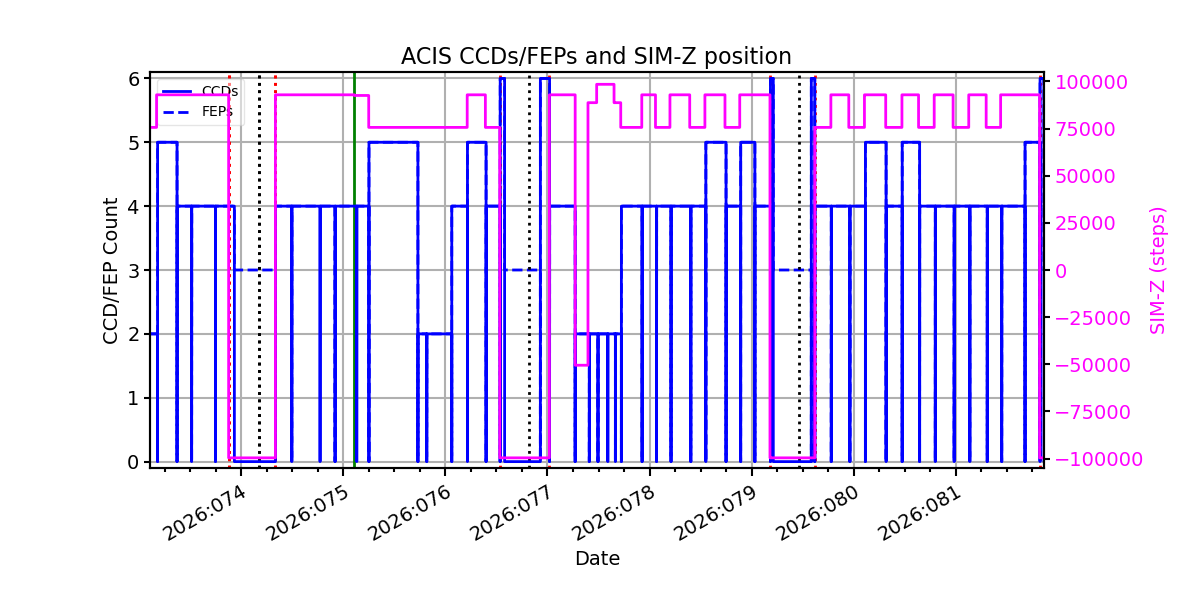

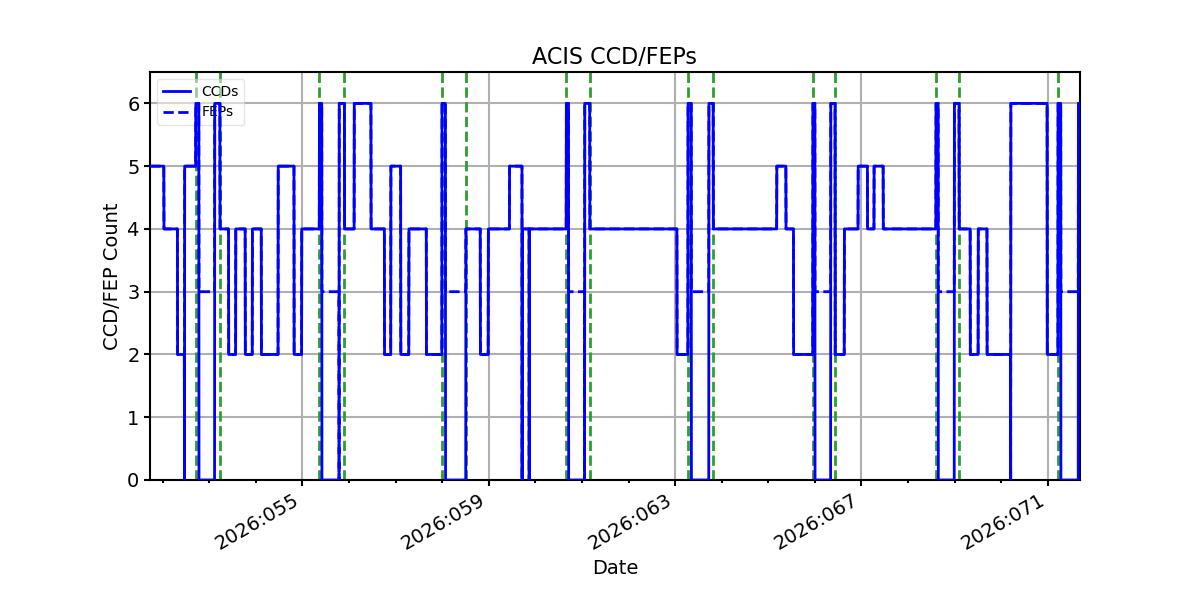

ACIS CCD/FEP Count
