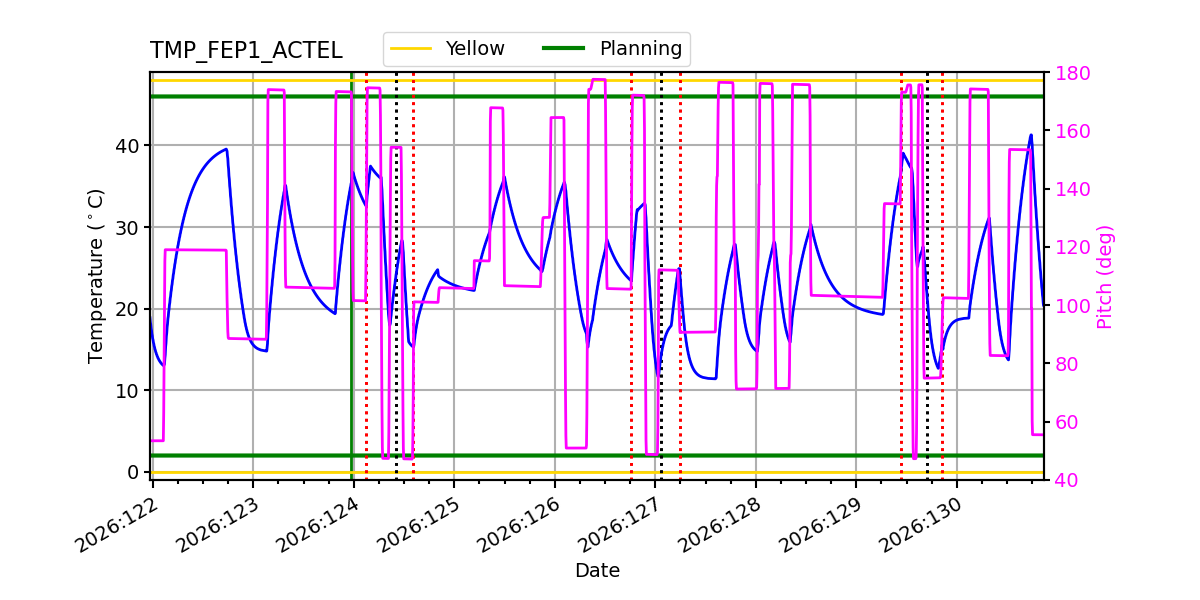

FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:123:23:20:16.016 |
| Date stop | 2026:130:20:58:40.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY0426/oflsa |
| Run time | Thu Apr 30 10:23:07 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_FEP1_ACTEL Upper Limit Violations
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -7.61 | -6.91 | -5.90 | -3.30 | 0.07 | 1.57 | 2.87 |
| pitch | -10.339 | -0.634 | -0.004 | 0.000 | 0.004 | 0.599 | 11.057 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.838 | -0.137 | -0.007 | -0.000 | 0.008 | 0.158 | 2.137 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -7.61 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -3.3 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 2.87 | 2.00 |
| PITCH | 1 | -10.339 | 3.00 |
| PITCH | 99 | 11.057 | 3.00 |

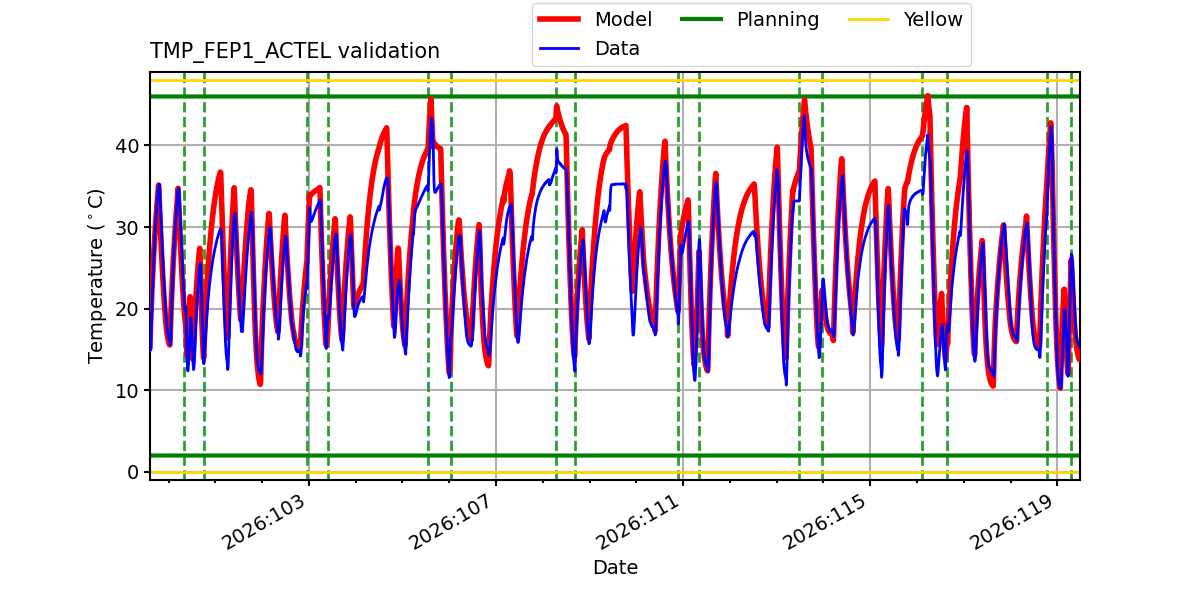

TMP_FEP1_ACTEL

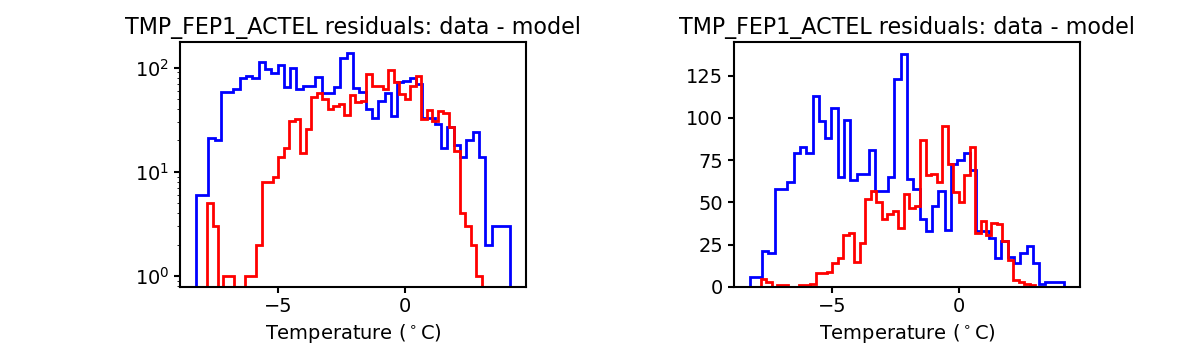

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

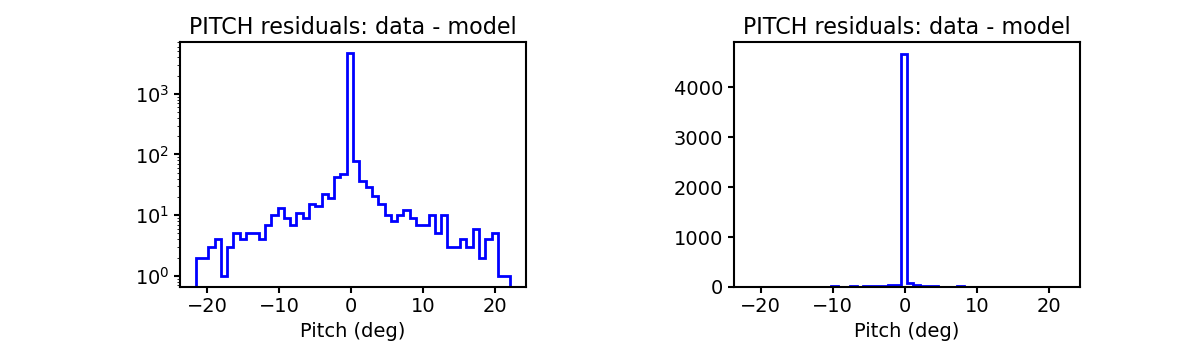

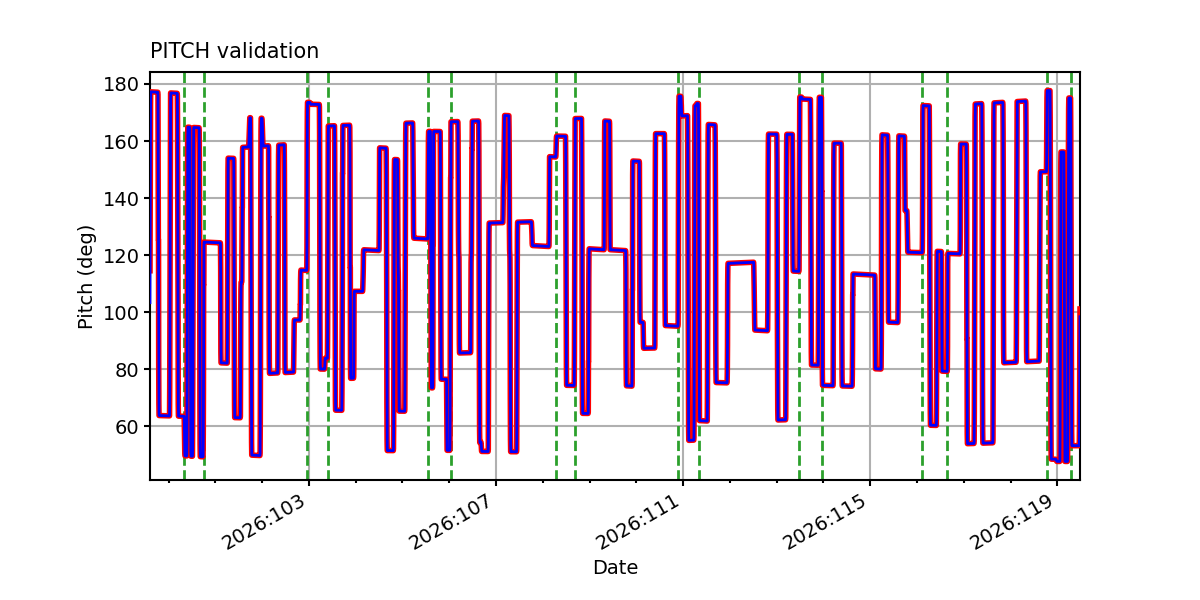

PITCH

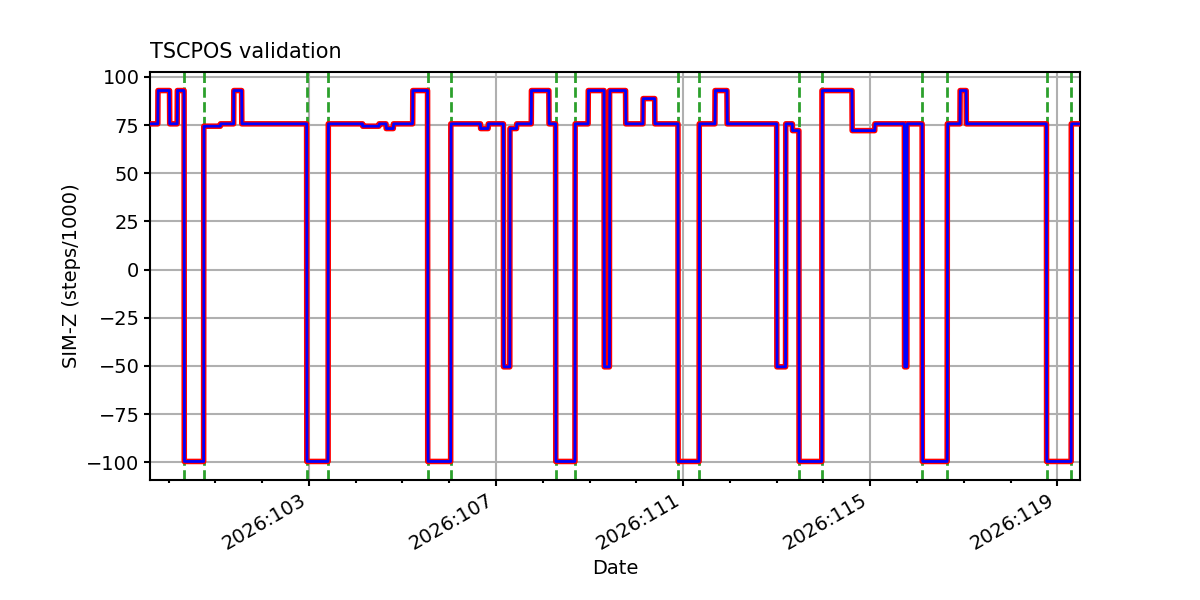

TSCPOS

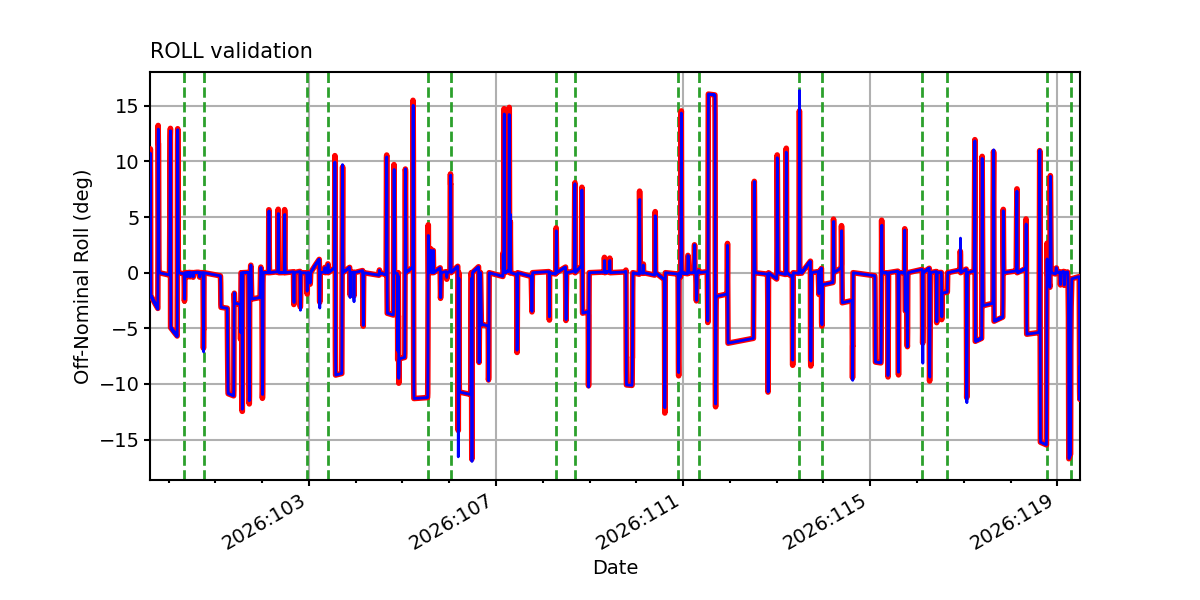

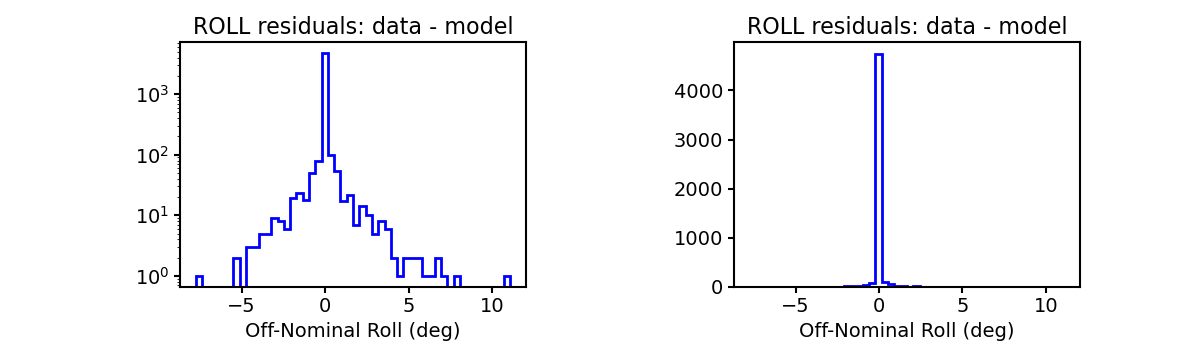

ROLL

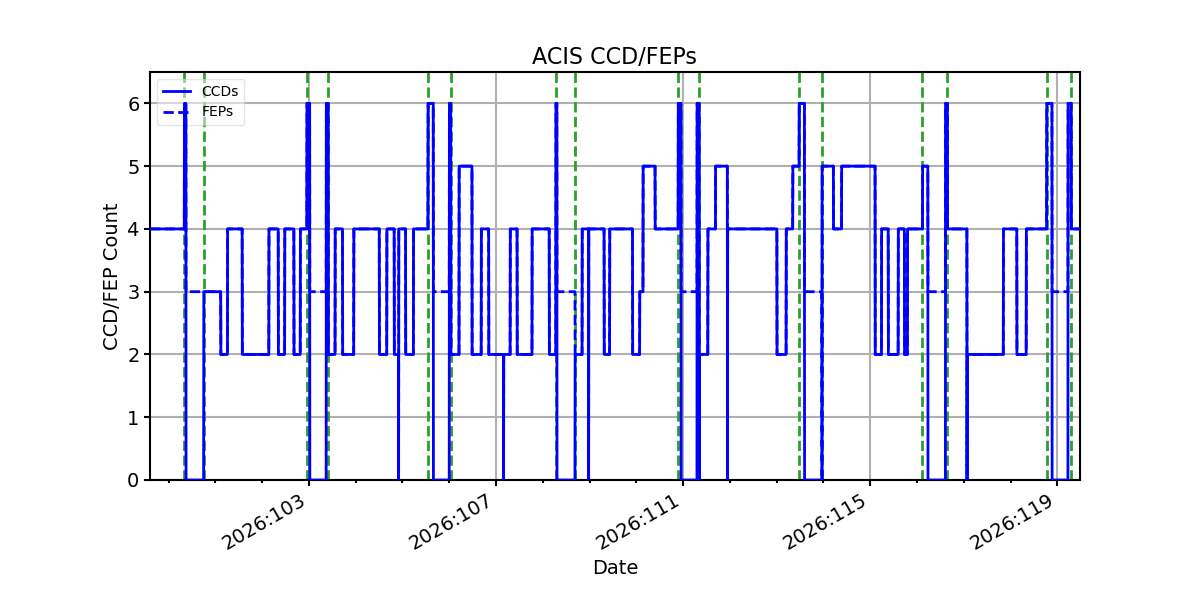

ACIS CCD/FEP Count
