FEP1_ACTEL Temperatures Check
Summary
| Date start | 2025:125:01:49:24.916 |
| Date stop | 2025:131:21:15:39.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/MAY0525/ofls |
| Run time | Wed Apr 30 12:18:00 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:126:10:08:38.816 | 2025:126:10:45:17.726 | 2.20 | 46.95 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.12 | -5.18 | -4.20 | -2.00 | -0.13 | 1.90 | 5.76 |
| pitch | -6.644 | -0.416 | -0.004 | 0.000 | 0.004 | 0.666 | 5.803 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.413 | -0.079 | -0.004 | 0.000 | 0.006 | 0.166 | 1.367 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.12 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -2.0 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 5.76 | 2.00 |
| PITCH | 1 | -6.644 | 3.00 |
| PITCH | 99 | 5.803 | 3.00 |

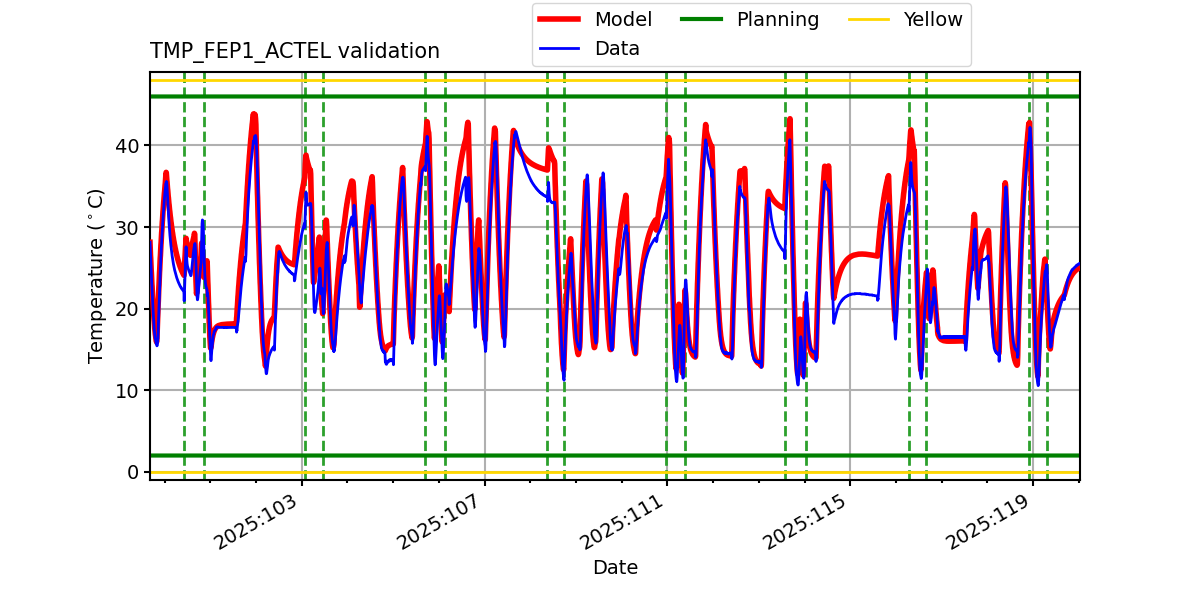

TMP_FEP1_ACTEL

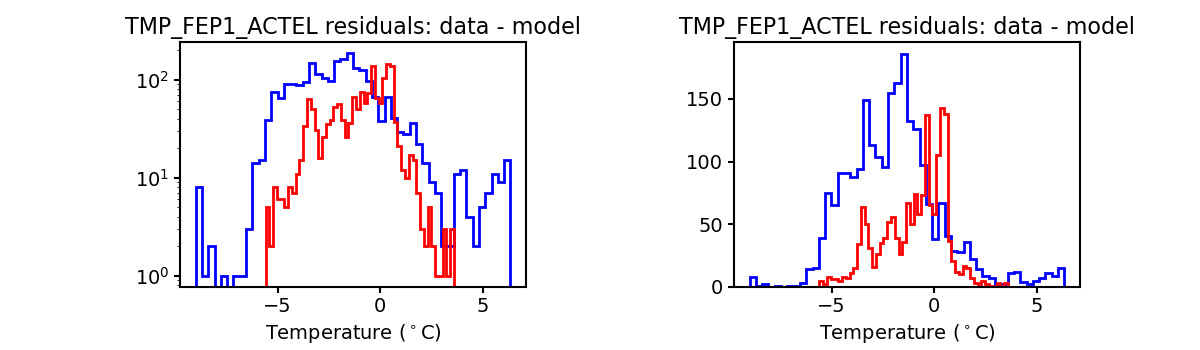

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

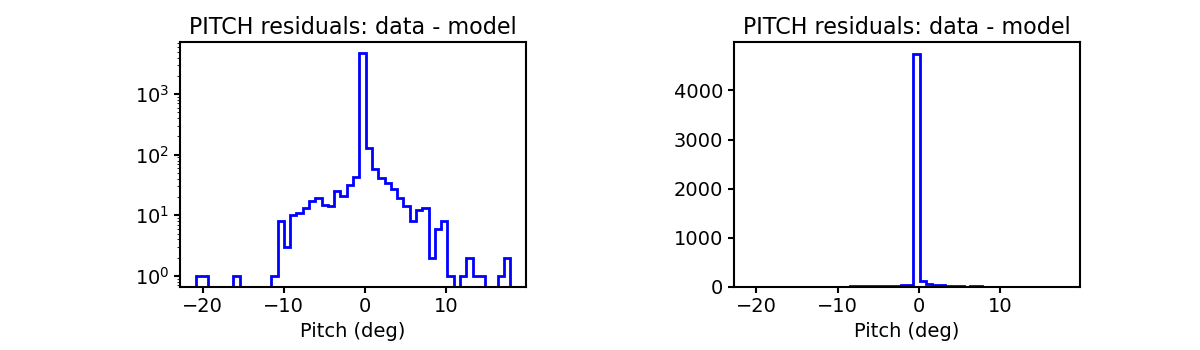

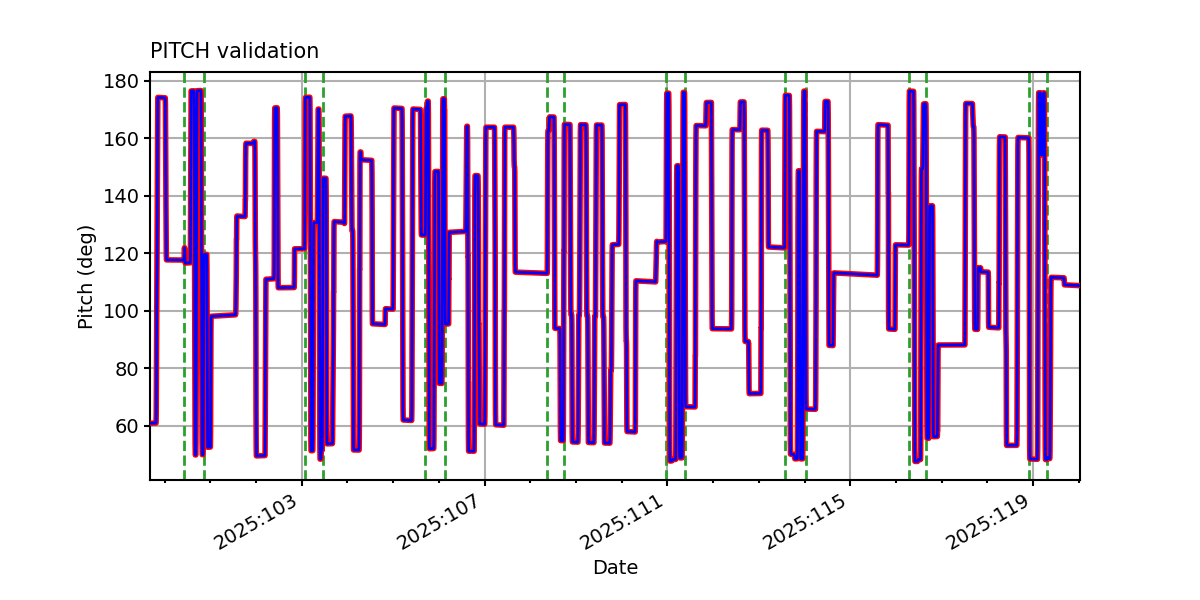

PITCH
TSCPOS

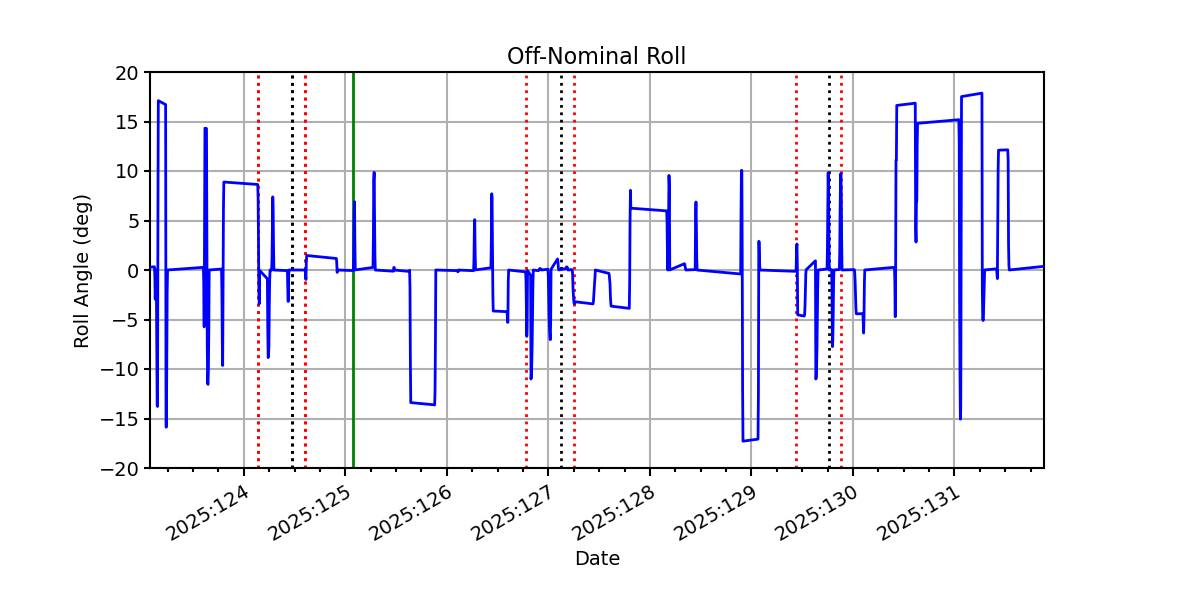

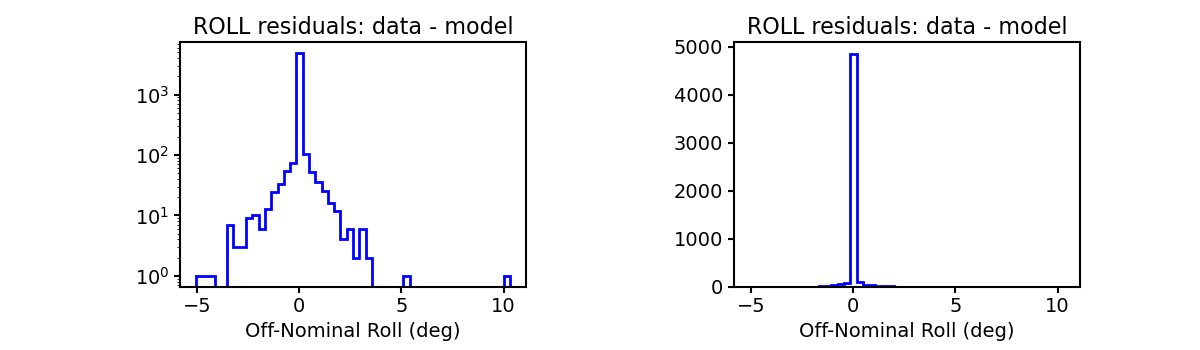

ROLL

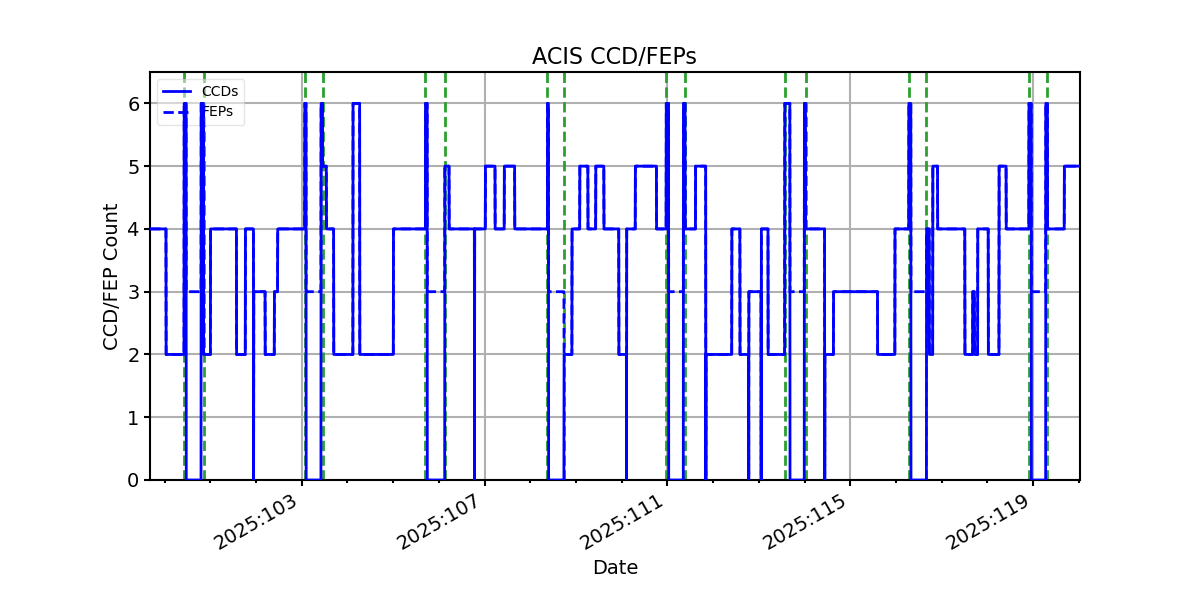

ACIS CCD/FEP Count
