FEP1_ACTEL Temperatures Check
Summary
| Date start | 2026:144:21:49:00.916 |
| Date stop | 2026:151:22:30:10.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAY2526/oflsa |
| Run time | Thu May 21 07:11:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_FEP1_ACTEL Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:147:21:31:42.816 | 2026:148:00:37:34.816 | 11.15 | 48.94 / 46.00 |
No TMP_FEP1_ACTEL Lower Limit Violations
FEP1_ACTEL Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_fep1_actel | -6.85 | -6.31 | -4.62 | -1.13 | 1.62 | 3.06 | 4.65 |
| pitch | -8.666 | -0.451 | -0.004 | -0.000 | 0.004 | 0.190 | 11.255 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.973 | -0.100 | -0.006 | -0.000 | 0.006 | 0.103 | 1.896 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_FEP1_ACTEL | 1 | -6.85 | 2.00 |
| TMP_FEP1_ACTEL | 50 | -1.13 | 1.00 |
| TMP_FEP1_ACTEL | 99 | 4.65 | 2.00 |
| PITCH | 1 | -8.666 | 3.00 |
| PITCH | 99 | 11.255 | 3.00 |

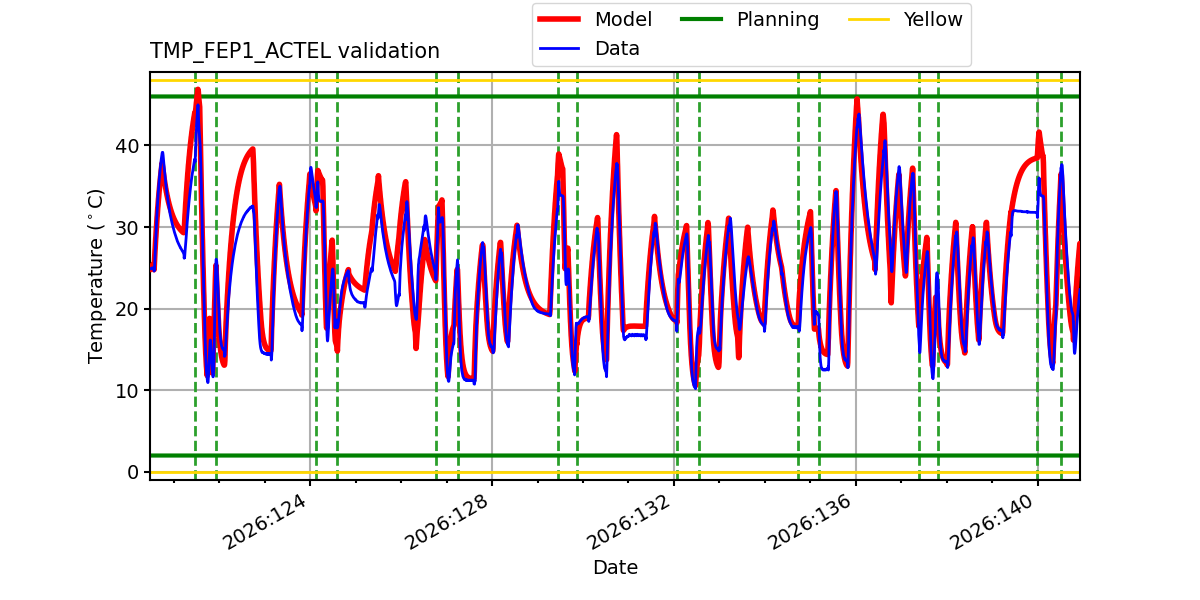

TMP_FEP1_ACTEL

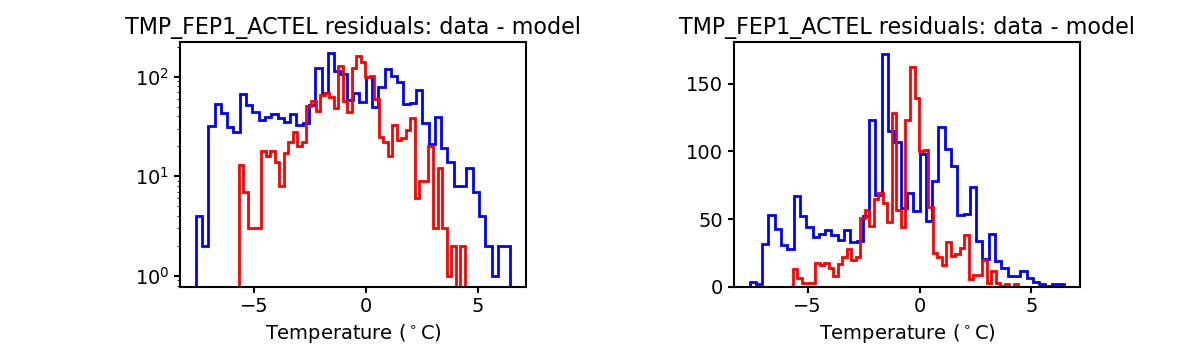

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

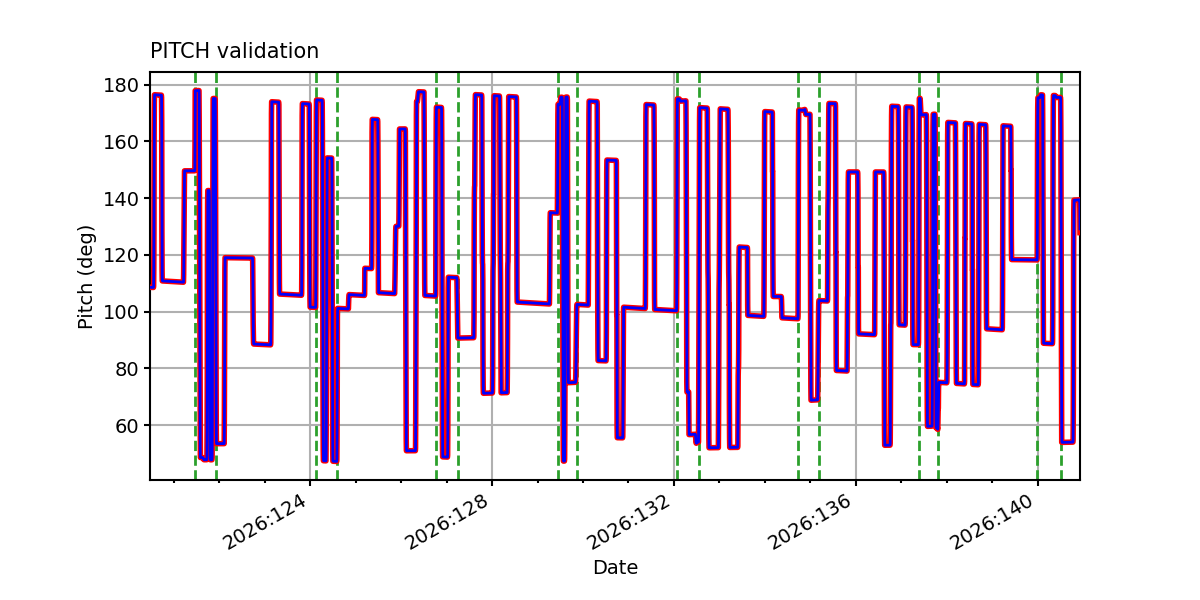

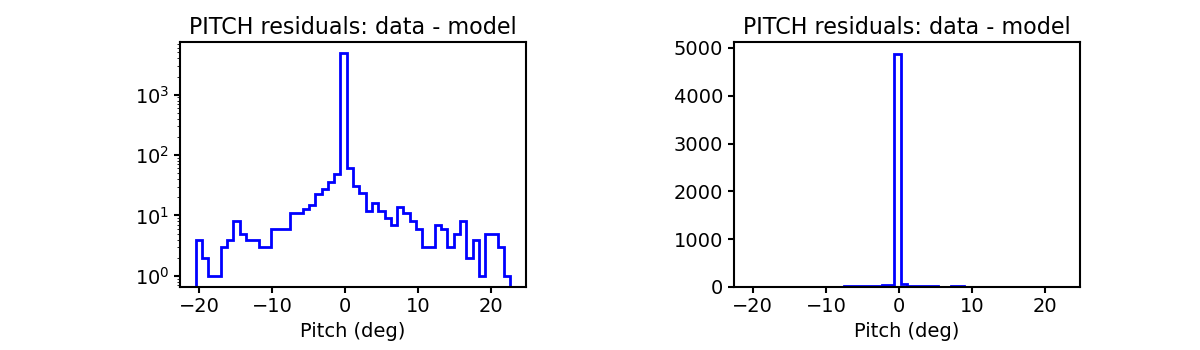

PITCH

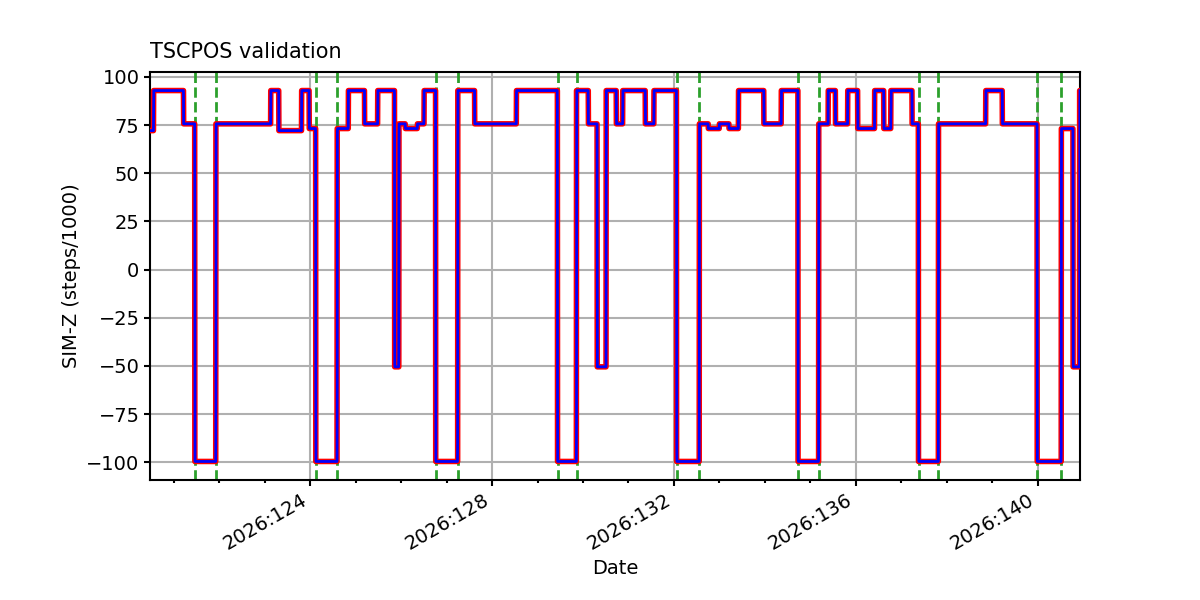

TSCPOS

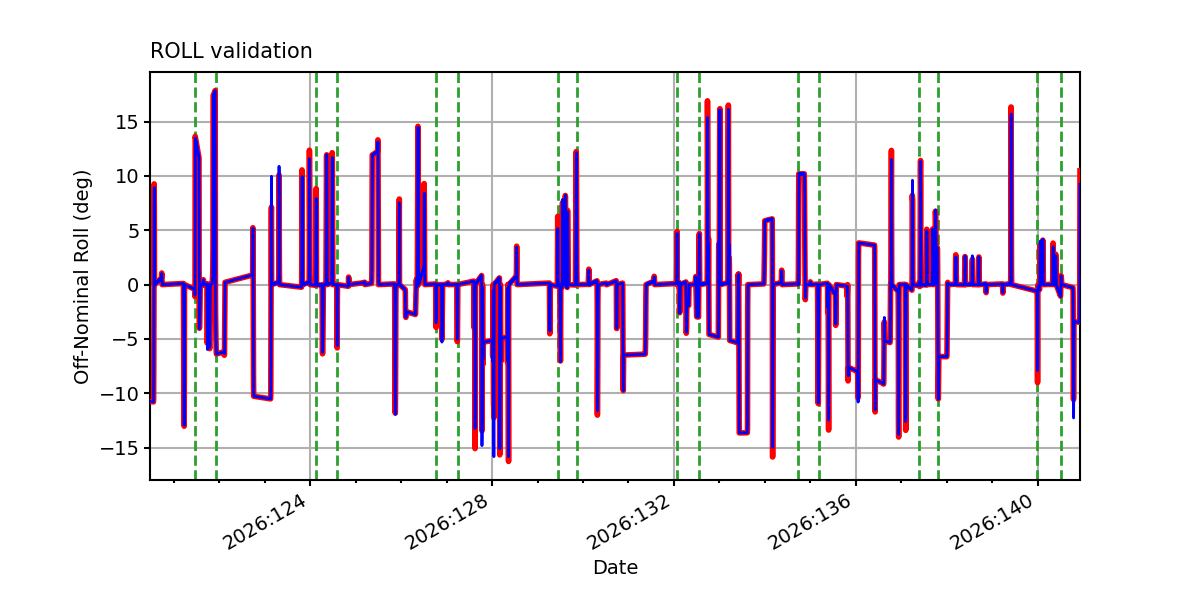

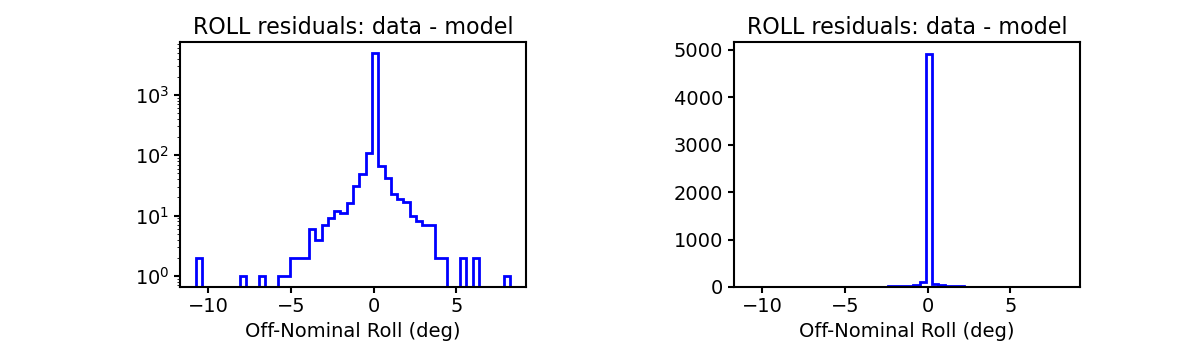

ROLL

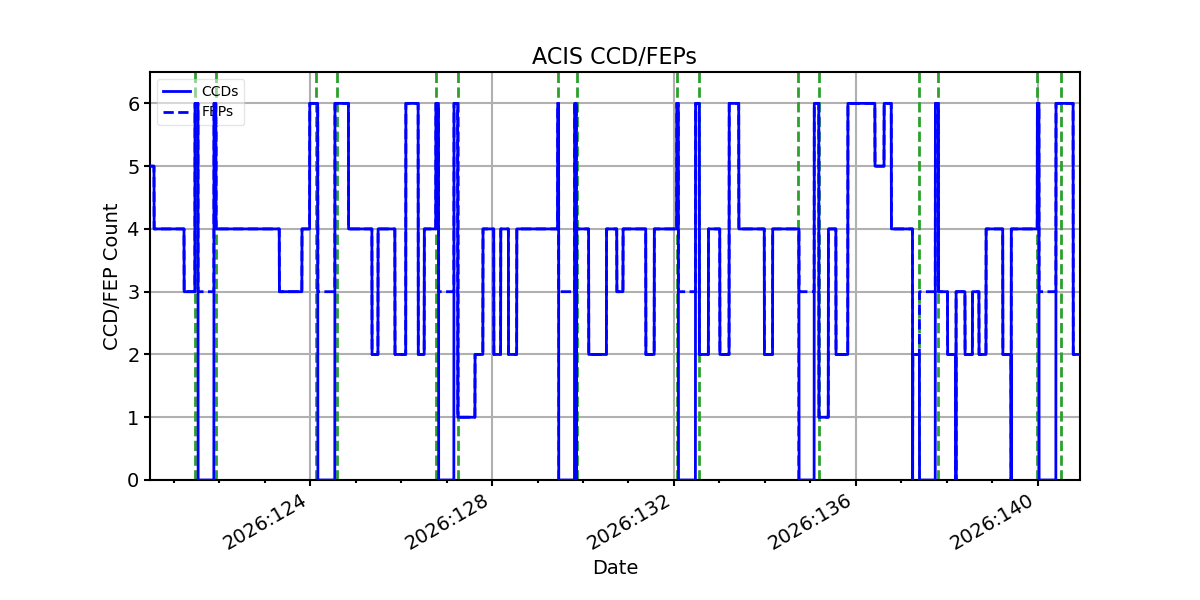

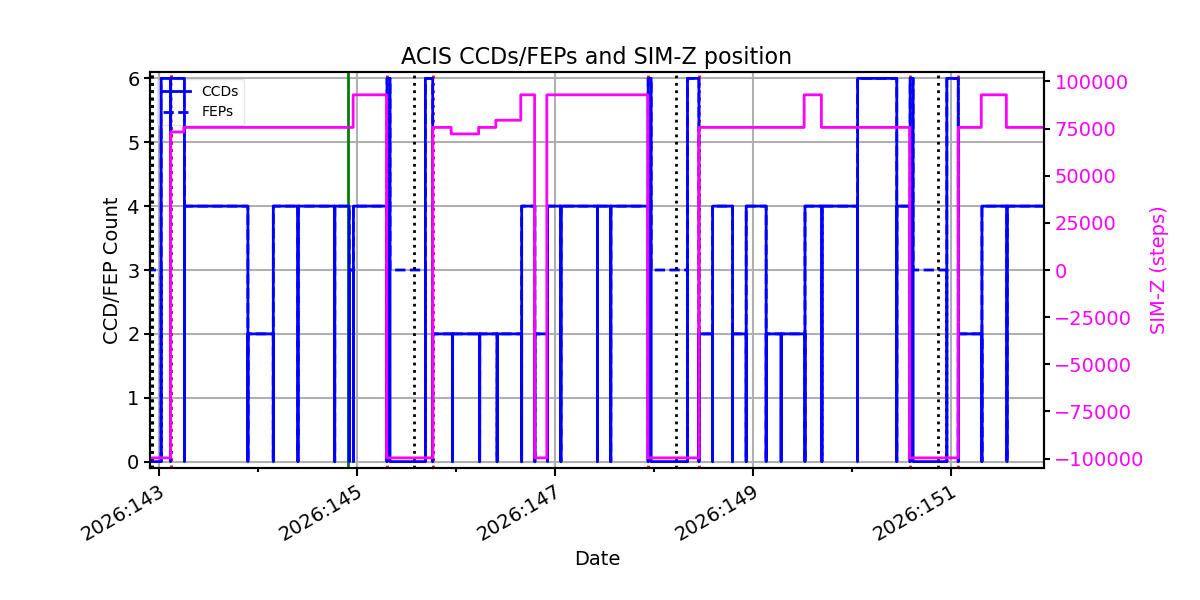

ACIS CCD/FEP Count
