FEP1_ACTEL Temperatures Check

Summary

Date start 2025:146:01:40:21.716
Date stop 2025:152:23:54:14.516
Model status NOT OK
Load directory /data/acis/LoadReviews/2025/MAY2625/ofls
Run time Fri May 23 11:21:51 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

TMP_FEP1_ACTEL Upper Limit Violations

Date start Date stop Duration (ks) Max Temperature / Limit
2025:148:23:15:10.816 2025:149:00:05:57.014 3.05 47.17 / 46.00

No TMP_FEP1_ACTEL Lower Limit Violations

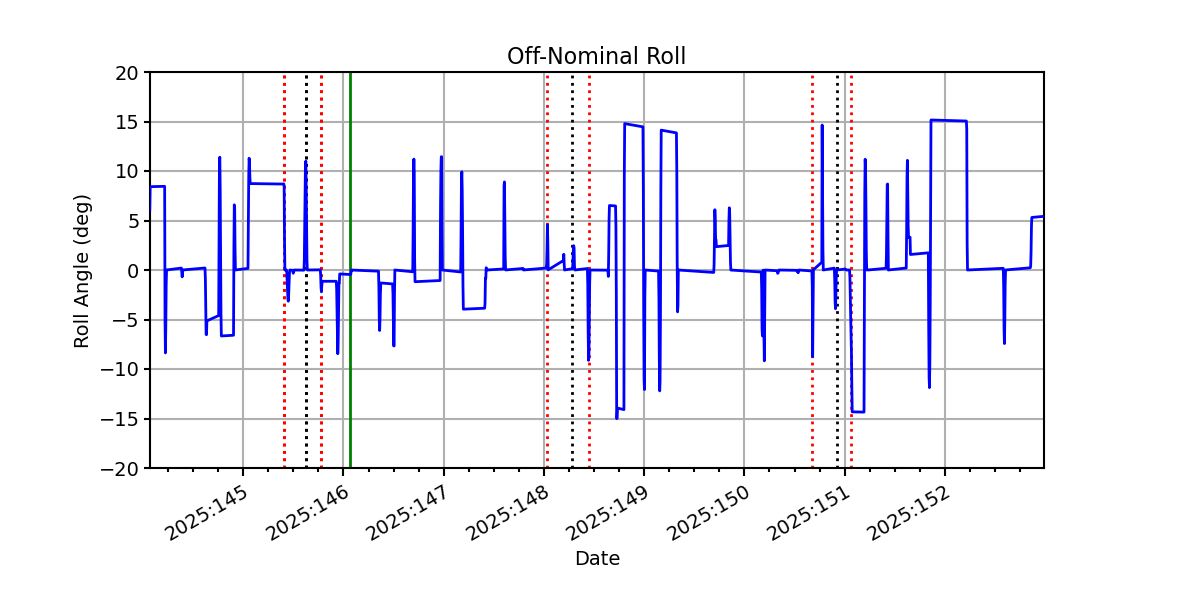

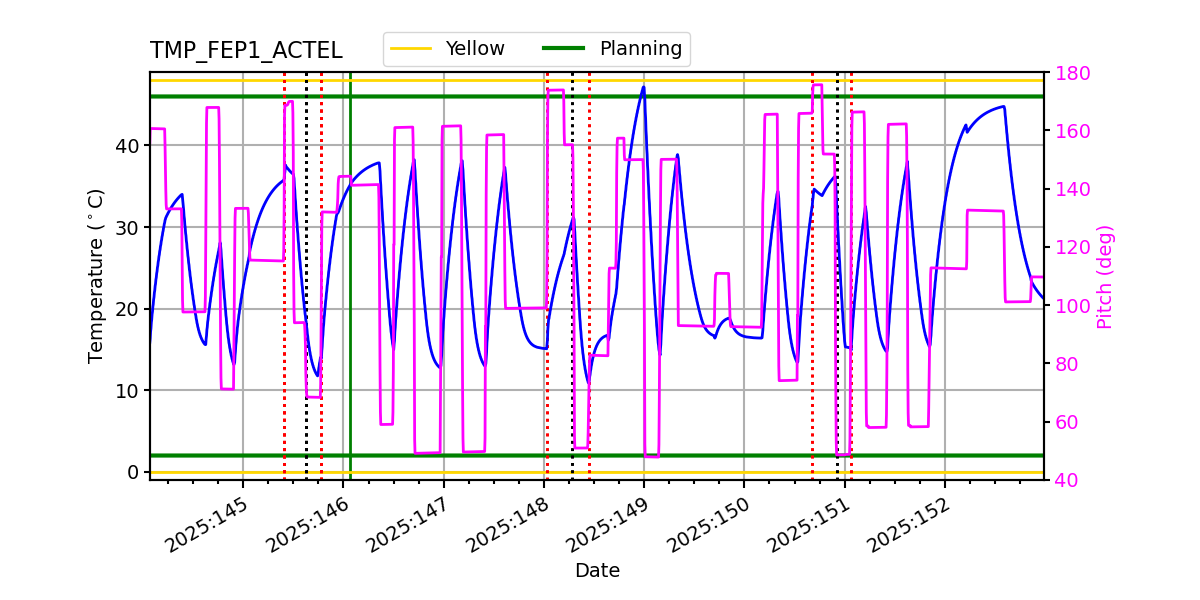

tmp_fep1_actel.png pow_sim.png roll.png

FEP1_ACTEL Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where TMP_FEP1_ACTEL >= 25.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
tmp_fep1_actel -6.80 -5.71 -4.36 -1.92 0.37 3.02 8.92
pitch -5.217 -0.249 -0.004 0.000 0.004 0.440 5.469
tscpos -1 -1 -1 0 0 0 1
roll -1.502 -0.096 -0.005 0.000 0.005 0.122 1.401

Validation Violations

MSID Quantile Value Limit
TMP_FEP1_ACTEL 1 -6.8 2.00
TMP_FEP1_ACTEL 50 -1.92 1.00
TMP_FEP1_ACTEL 99 8.92 2.00
PITCH 1 -5.217 3.00
PITCH 99 5.469 3.00

TMP_FEP1_ACTEL

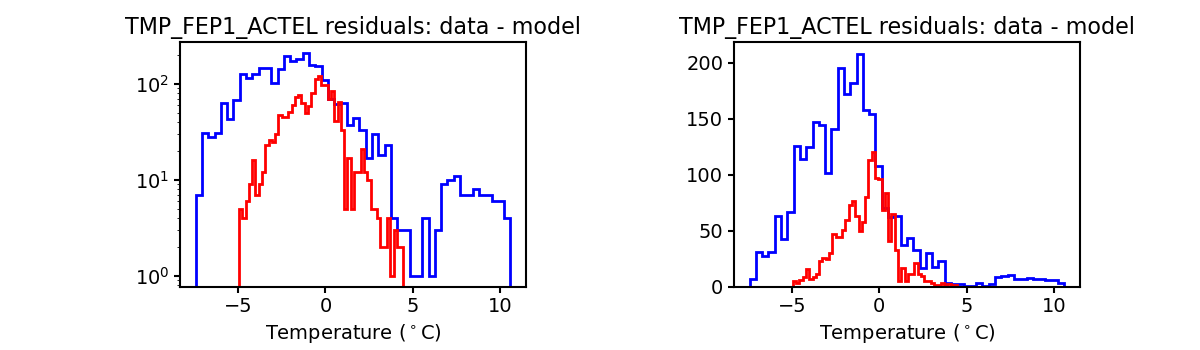

Note: TMP_FEP1_ACTEL residual histograms include only points where TMP_FEP1_ACTEL >= 25.0 C in blue and points where TMP_FEP1_ACTEL <= 20.0 C in red.

tmp_fep1_actel_valid.png tmp_fep1_actel_valid_hist.png

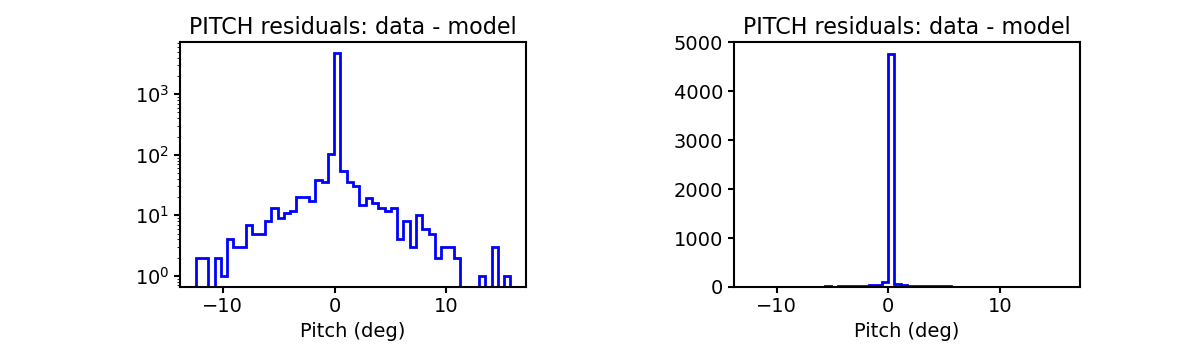

PITCH

pitch_valid.png pitch_valid_hist.png

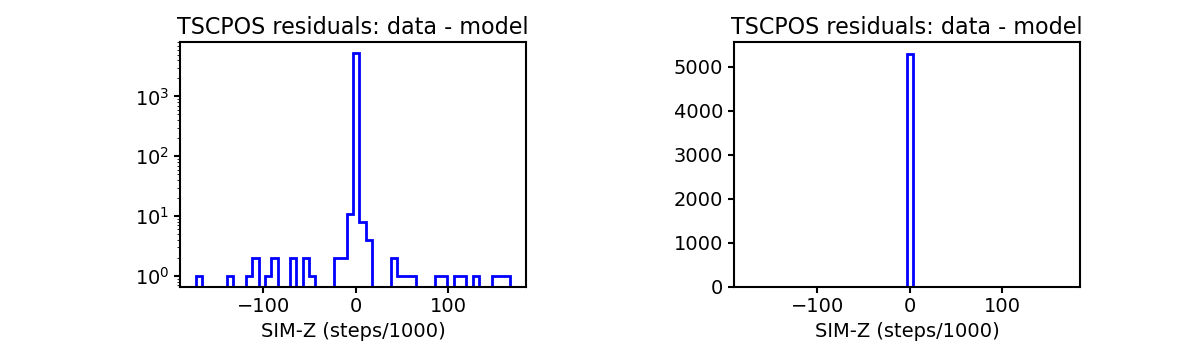

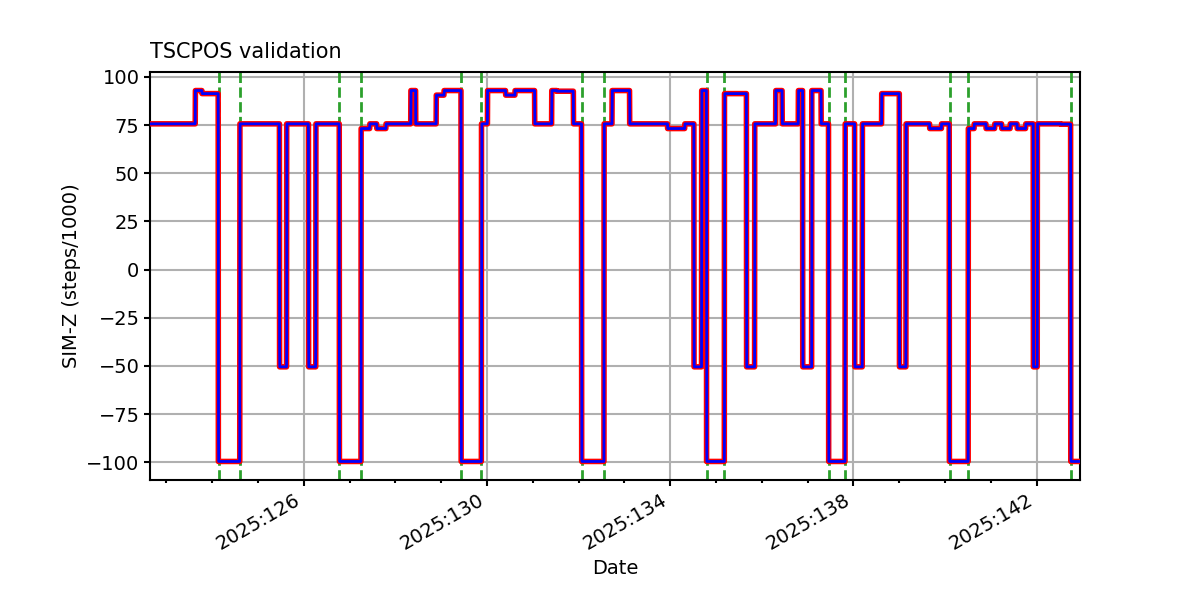

TSCPOS

tscpos_valid.png tscpos_valid_hist.png

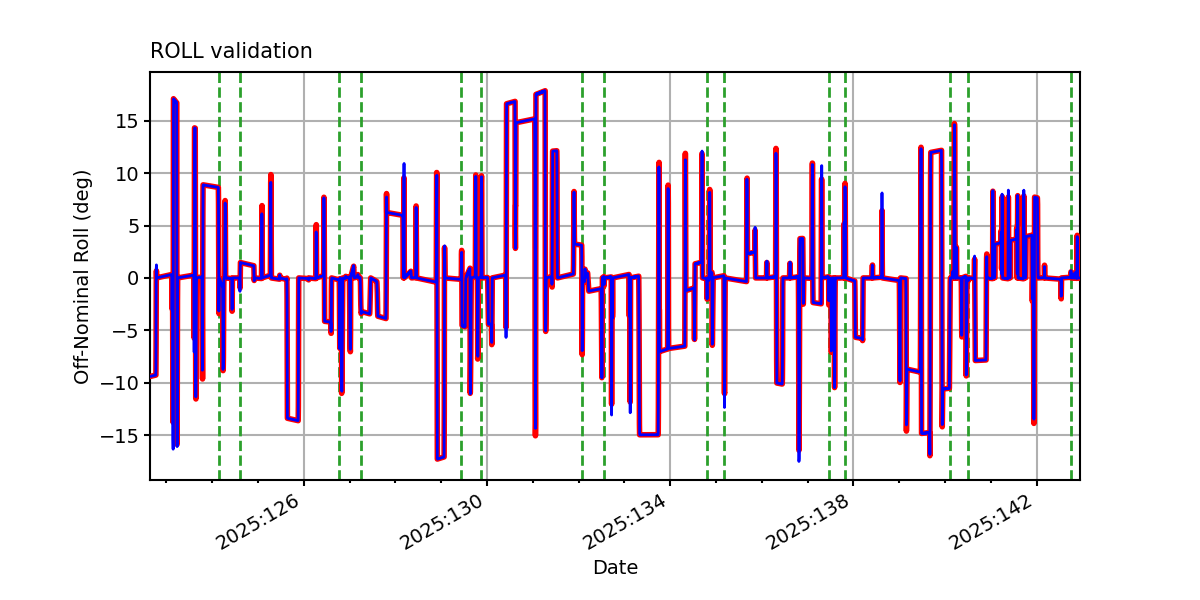

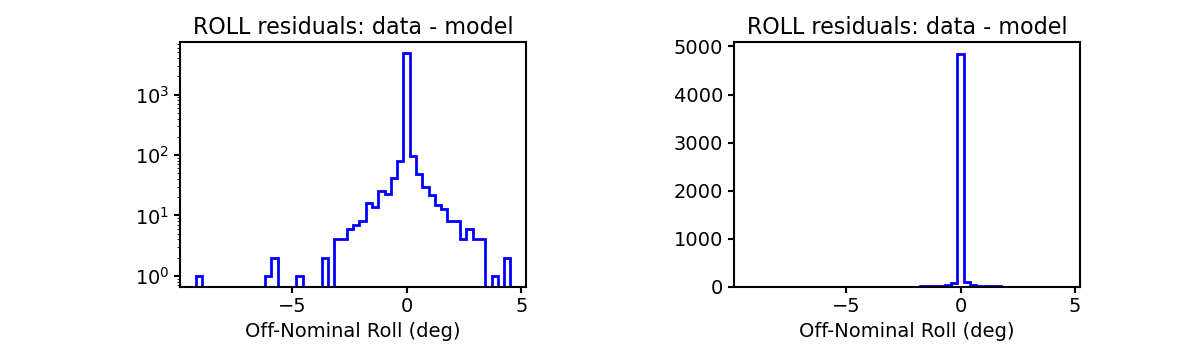

ROLL

roll_valid.png roll_valid_hist.png

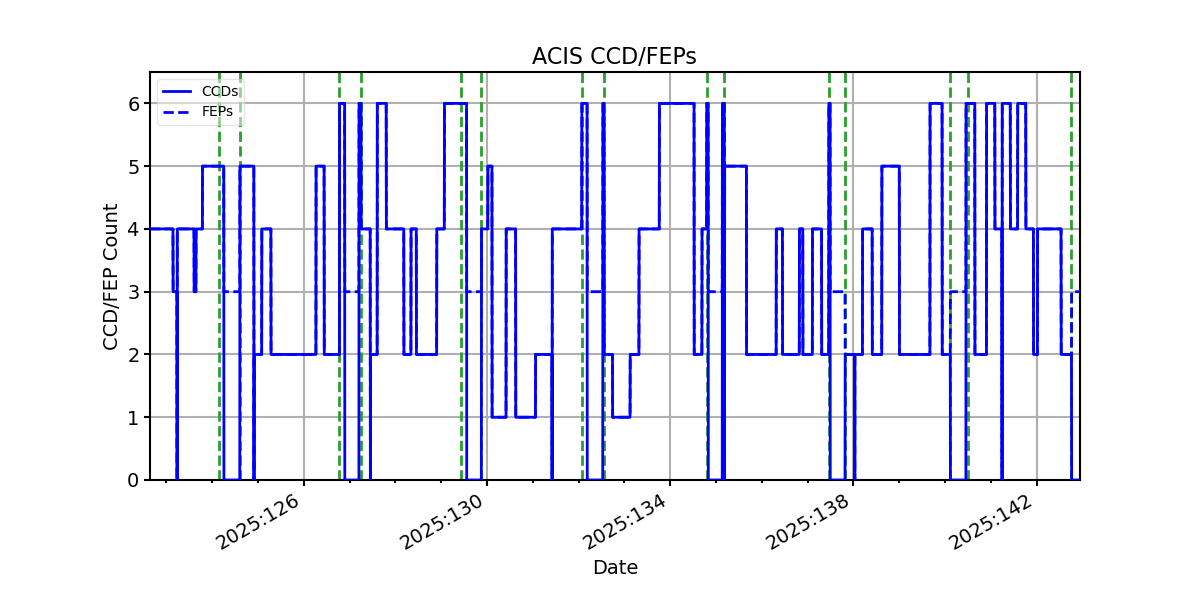

ACIS CCD/FEP Count
